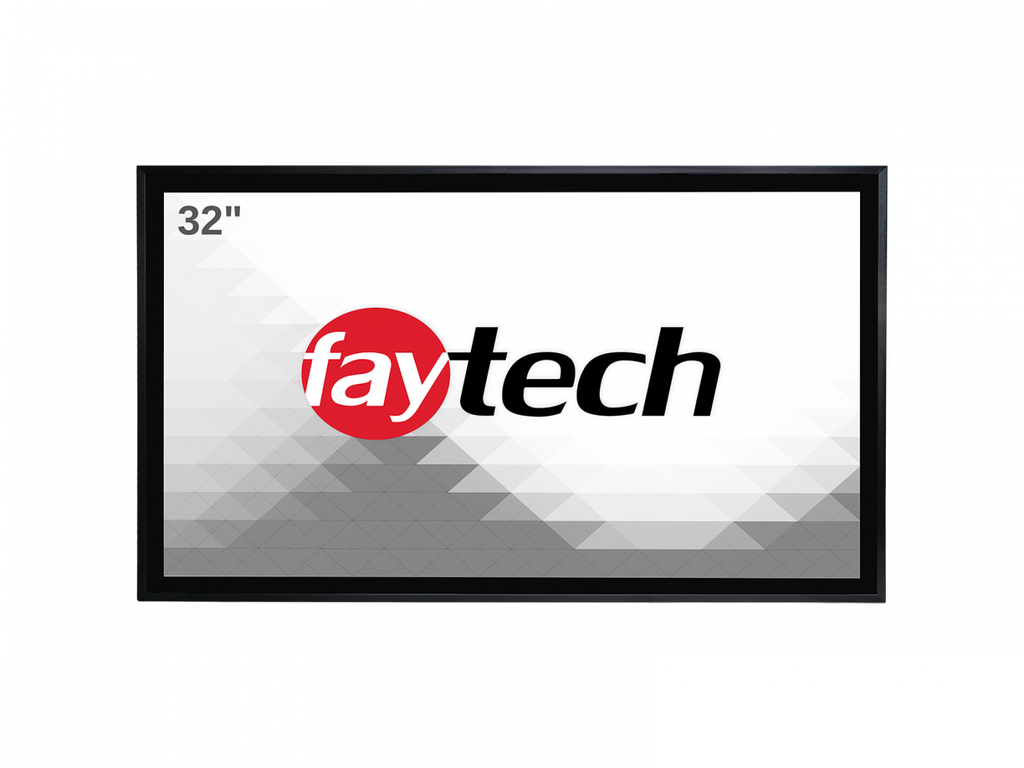

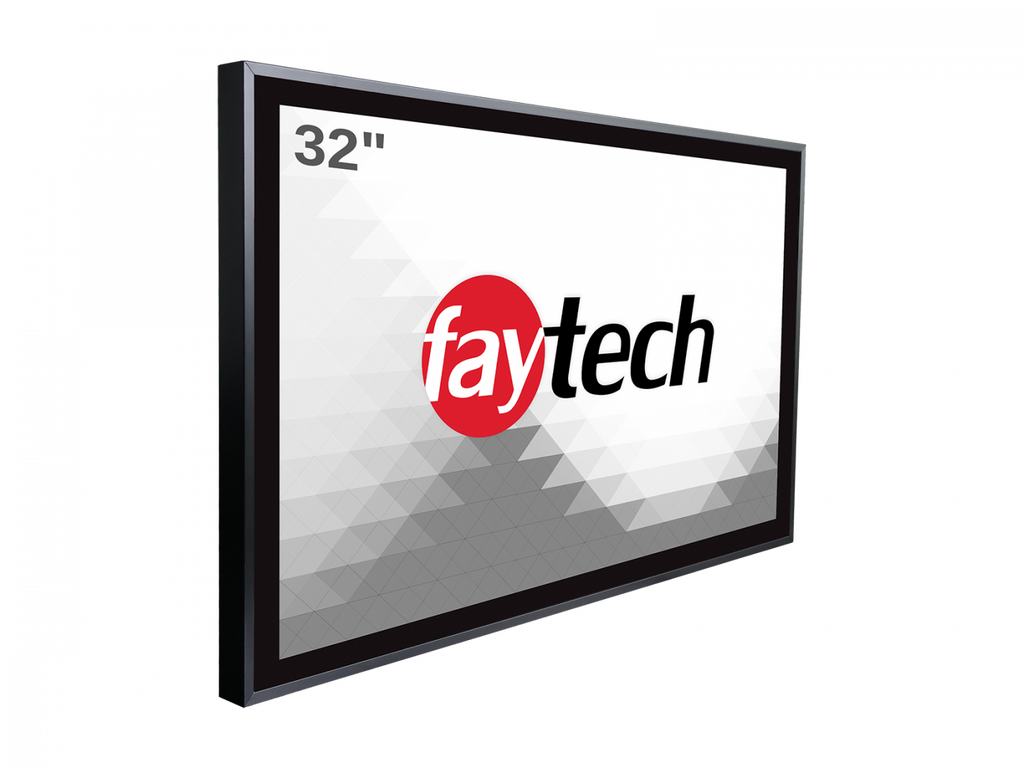

| Product name | 32" Embedded Touch PC |
| Article code / EAN number | FT32V40CAPOB / 6920734000210 |
| CPU | Allwinner® V40 QuadCore |
| Chipset | Cortex™ A7 |
| Graphic GPU | ARM® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1 |
| Audio | Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier |
| Memory | 2GB DDR3 |
| Storage | 8GB EMMC Flash |
| Network | 10/100Mbits Network; W-LAN |
| OS | Android 6.0 |
| IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 31.5/ 80.0 |
| Display active screen size (cm) | 69.84 x 39.29 |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 |
| External maximum showable resolution - HDMI | 1920×1080 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 350 |
| Contrast | 3000:1 |
| Typical reaction time Tr/ Tf (ms) | 6/1 |
| Visual Angle horizontal/vertical (°) | 178/178 |
| Backlight / Backlight Lifetime (hours) | LED / 30,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etching) |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 14.50 |
| Gross weight (kg) | 20.50 (incl. cartonage) |
| Housing material | Aluminum |
| Housing (cm) L × W × H | 768.0 x 475.0 x 65.0 |
| Mounting | VESA 400x300 |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 24V DC-Out |
| Working Power (V) | 24 |
| Power Consumption (W) | 65 |
| Stand-By Consumption (W) | <1 |
| 1x SD-card |
| 1x SIM-card |
| 2x Serial |
| 4x TTL UART |
| 2x USB 2.0 |
| 18/24Bit LVDS |
| 6x GPIO |
| 1x Line-In |
| 1x Line-Out |
| 1x Amplifier for 2x 6W loudspeaker |
| 1x SATA-Port |
| 1x RTC |
| 1x CAN bus |
| 1x 24V DC-In (4-pin) |
| 1x HDMI |
| 2x USB 2.0 |
| 1x USB OTG |
| 1x 10/100Mbits RJ45 port |
| 1x Audio-In |
| 1x Audio-Out |
| 1x Serial |
| 1x RJ10 (4P4C) |
| 1x SD-card slot |
| 1x SIM-card slot |
| 1x W-LAN antenna connector (RP-SMA male) |
| 1x MiniPCIe |
| Power Supply (see Power section) |
| W-LAN Antenna (RP-SMA female) |
| Short Installation Manual |
