| CPU |
Built in with an Intel® Celeron® Quad-Core J1900 SoC (2.0 GHz)
* Do not disassemble the onboard SoC and the heatsink by yourself to avoid damage to these components. 2 MB Cache
|
| Memory |
2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket. Dual channel memory architecture Support for DDR3/-L 1333 MHz memory modules Support for non-ECC memory modules
|
| Onboard Graphics |
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 2560x1600 1 x DVI-D port, supporting a maximum resolution of 1920x1080
* The DVI-D port does not support D-Sub connection by adapter.
|
| Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
|
| LAN |
2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
|
| Expansion Slots |
1 x PCI slot 1 x Mini PCI Express x1 slot
(The Mini PCI Express slot conforms to PCI Express 2.0 standard.)
(For Mini-PCIE card/no mSATA card)
|
| Storage Interface |
Integrated in the SoC:
2 x SATA 3Gb/s connectors
|
| USB |
Integrated in the SoC:
2 x USB 2.0/1.1 ports (available through the internal USB header)
SoC + Renesas® uPD720210 USB 3.0 Hub:
4 x USB 3.0/2.0 ports on the back panel
|
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 2.0/1.1 header 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x debug card header
|

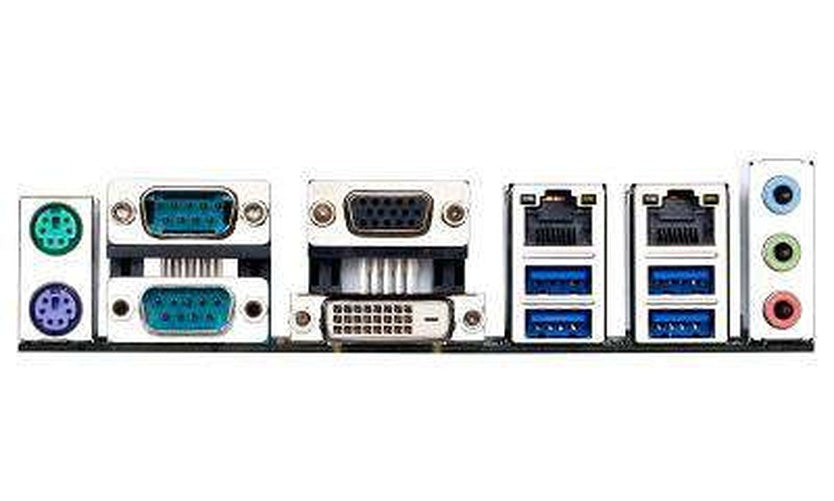

| Back Panel Connectors |
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 2 x serial ports 4 x USB 3.0/2.0 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In)
|
| I/O Controller |
iTE® I/O Controller Chip
|
| H/W Monitoring |
System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
Support for @BIOS Support for Xpress Install Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. Support for ON/OFF Charge
|
| Bundle Software |
Norton® Internet Security (OEM version) Intel® Smart Connect Technology
|
| Operating System |
Support for Windows 8.1/8 32-bit/64-bit Support for Windows 7 64-bit
* To support Windows 7 64-bit, please update the latest BIOS and drivers.
|
| Form Factor |
Mini-ITX Form Factor; 17.0cm x 17.0cm
|
| Remark |
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|
