| CPU |
Built in with an Intel® Quad-Core Celeron® J3455 SoC (2.3 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2 MB Cache
|
| Memory |
2 x DDR3L SO-DIMM sockets supporting up to 16 GB of system memory Dual channel memory architecture Support for DDR3L 1866/1600/1333 MHz memory modules Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
|
| Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|
| LAN |
2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
|
| Expansion Slots |
1 x PCI slot
|
| Storage Interface |
Integrated in the SoC:
2 x SATA 6Gb/s connectors (SATA3 0, SATA3 1)
ASMedia® ASM1061 chip:
2 x SATA 6Gb/s connectors (SATA3 2, SATA3 3)
|
| USB |
Integrated in the SoC:
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
SOC + GENESYS LOGIC USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
|
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x TPM header
|

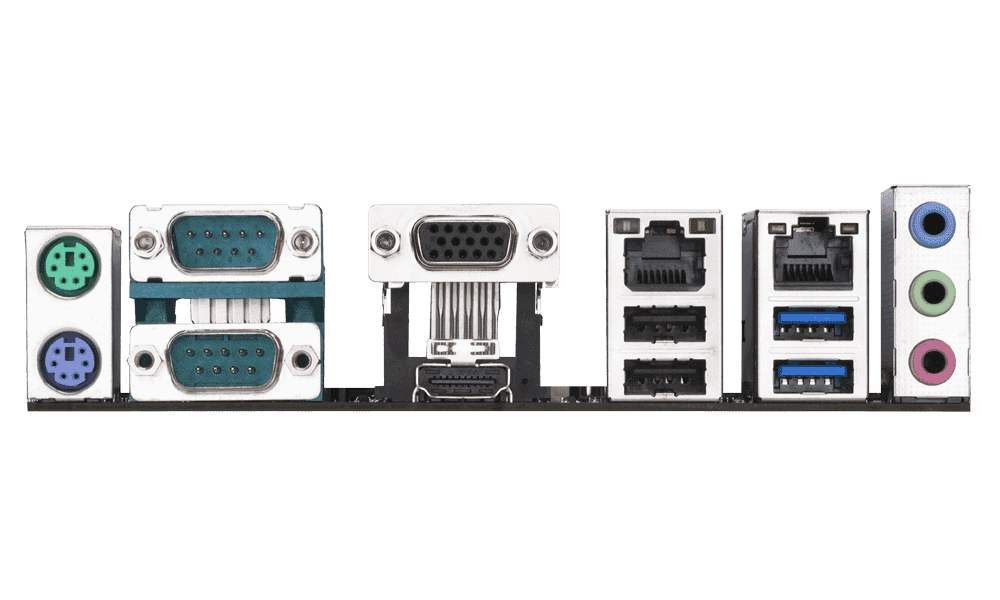

| Back Panel Connectors |
1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x serial ports 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In)
|
| I/O Controller |
iTE® I/O Controller Chip
|
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
Support for Xpress Install Support for @BIOS Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
| Bundle Software |
Norton® Internet Security (OEM version)
|
| Operating System |
Support for Windows 10 64-bit
|
| Form Factor |
Mini-ITX Form Factor; 17.0cm x 17.0cm
|
| Remark |
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|
