Jetway HBFDF632-6200-B (i5-6200U)

MB Model

– JNF632(E)-6200 / 3.5” SBC
– Core Number : i5-6200U / i5-6300U / Celeron 3855U (Default)

BIOS

– AMI 16MB SMT Flash ROM

CPU/Chipset

– Intel® Skylake/Kabylake U Processor (TDP 15W)

Memory

– 2 * SO-DIMM slots DDR4-2133MHz up to 32GB

Storage

– 1 * 2.5” SATA3 6Gb/s internal drive bay
– 1 * Mini-PCIe (full size, shared with mSATA)

Network

– 1 * Intel® i219LM GbE & 3 * Intel® i211AT (Default on board)
– 2 * Intel® i350 GbE (Expansion by request)

Expansion slot

– 2 * Intel® GbE
– 1 * half-size Mini-PCIe slot (for WiFi expansion)

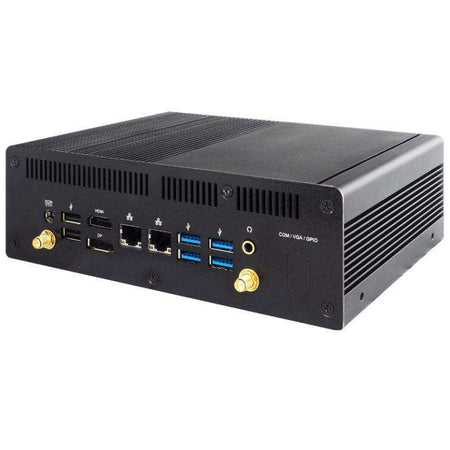

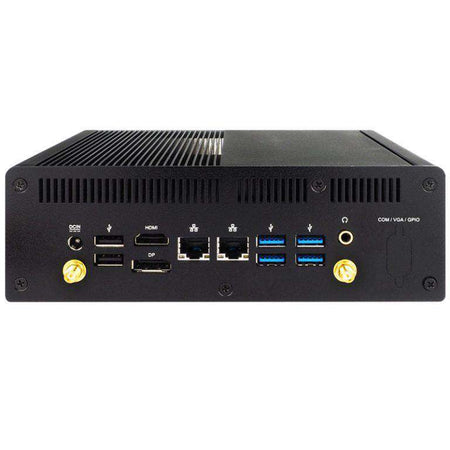

Rear Panel I/O

– 2 * USB 2.0 , 4 * USB 3.0
– 1 * HDMI (Max. resolution:4096 x 2160@24Hz)
– 1 * DP (Max. resolution:4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-outbr>
– 1 * COM or GPIO (Optional)
– 2 * Antenna holes (Optional)
– 1 * DC-In jack

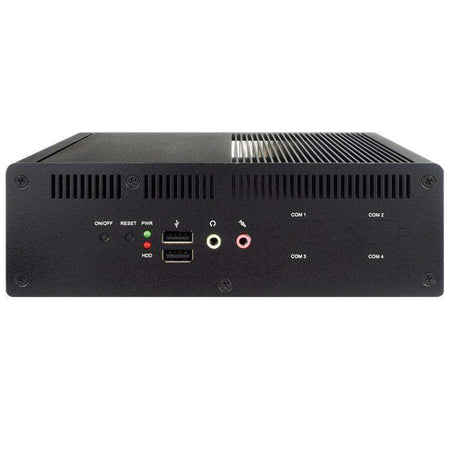

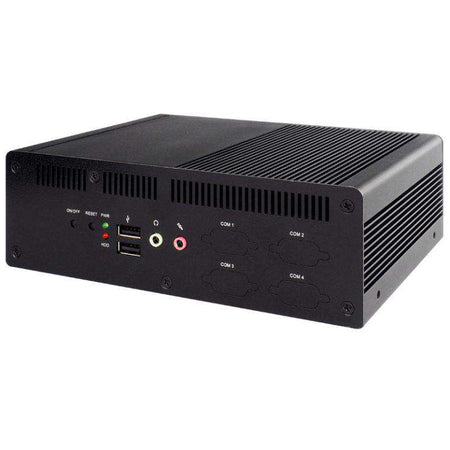

Front Panel I/O

– 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0 ports
– 1 * Line-out, 1 * MIC-in
– 4 * COM (Optional)

Power Source

– FSP DC Adapter / DC12V-5A-60W / LV6
– AC 90~240V input

Compliance

– CE, FCC, LVD, RoHS

Safety

– Vibration test: N.C
– Shock test: N.C

Temperature

– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C

Dimensions

– 193 (W) x 142.4 (D) x 62 (H) mm

Packing

– Net Weight: 2.2KG
– Gross Weight: 3.2KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm

OS Support

– 32/64 bit versions of Windows 7, Windows 8.1, Windows 10, Linux

Warranty

– 2 Year limited warranty
