Jetway HBFEF752-7100-B (Intel i3 Kaby Lake)

MB Model

– JNF752-7100U (Core i3) / (TDP 15W)
– JNF752-7200U / 7300U (Core i5) / (TDP 15W)
– JNF752-7600U (Core i7) / (TDP 15W)
The model will be ordered according to the CPU purchase status, and the detailed situation is recommended to contact the sales.

Part No

– HBFEF752-7100-B (non-WIFI)/HBFEF752W-7100-B (WIFI)
– HBFEF752-7200-B (non-WIFI)/HBFEF752W-7200-B (WIFI)
– HBFEF752-7300-B (non-WIFI)/HBFEF752W-7300-B (WIFI)
– HBFEF752-7600-B (non-WIFI)/HBFEF752W-7600-B (WIFI)
The model will be ordered according to the CPU purchase status, and the detailed situation is recommended to contact the sales.

BIOS

– AMI Flash ROM

CPU/Chipset

– Intel® Kabylake-U Core-i SoC Processor

Memory

– Support 2 * DDR4 2133MHz SO-DIMM slots up to 32GB

Storage

– Support 2 * 2.5” SATA Device tray (Removable hard drive)
– Support 1 * Mini-PCIe slot (full size, only for mSATA)

Network

– 1 * Intel® i219LM & 1 * Intel® i210AT GbE

Expansion

– 2 * Mini PCIe (full-size, for WiFi/3G/4G/ Capture Card module expansion)
– 1 * Mini-PCIe slot (USB only, full size, for 4G LTE + GPS expansion)

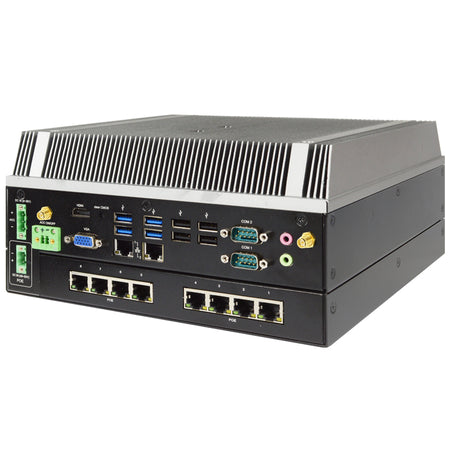

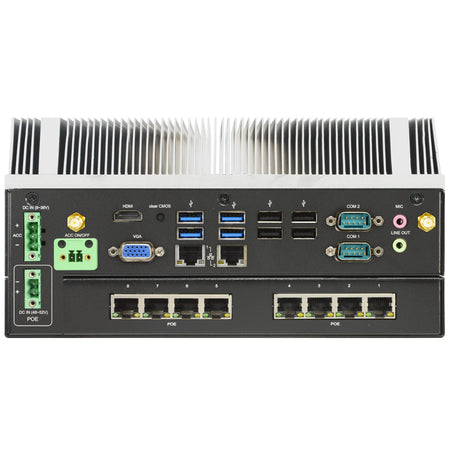

Rear Panel I/O

– 4 * USB 2.0, 4 * USB 3.0
– 1 * HDMI (Max. resolution:4096 x 2304@24Hz)
– 1 * VGA (Max. resolution:1920 x 1080@60Hz)
– 2 * RJ45, 8 * 1000M PoE (23W/per port)
– 1 * Line-out, 1 * MIC
– 2 * COM (RS232/RS422/RS485)
– 1 * DC 9~36V_3PIN Industrial connector, 1 * DC 48~52V_2PIN Industrial connector
– 1 * Clear COMS Button
– 1 * AT Mode setting_2PIN Industrial connector
– 2 * Antenna holes (Optional)

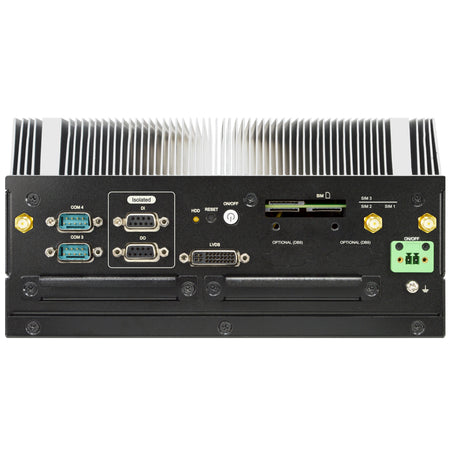

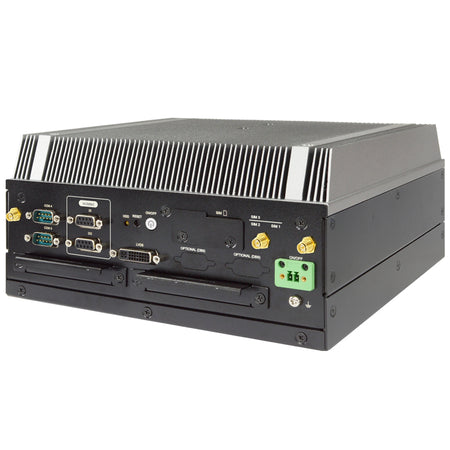

Front Panel I/O

– 1 * Power Button + LED, 1 * Reset Button, 1 * HDD LED
– 1 * Power on-off_2PIN Industrial connector
– 2 * COM (RS232)
– 2 * GPIO (1*DI & 1*DO/ 6 BIT) (Support Isolated)
– 1 * LVDS out (Max. resolution:1920 x 1080@60Hz)

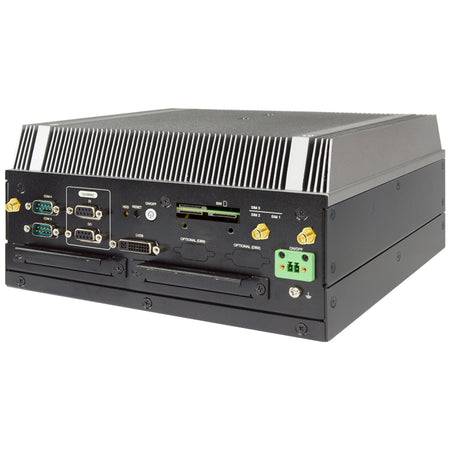

– 3 * SIM card holes
– 2 * 2.5” SATA Device tray (Easy to change HDD)
– 1 * GND Hold
– 1 * CAN Bus (DB9 Type_Optional)
– 3 * Antenna holes (Optional)

Power Source

– DC 9~36V INPUT for SYSTEM (Support Boot & Shutdown delay function_ITPS)
– DC 48~52V INPUT for POE LAN

Compliance

– CE, FCC, LVD, RoHS

Temperature

– Operating Temperature: -20 ~ 70° C
– Storage Temperature: -20 ~ 70° C

Dimensions

– 232 (W) x 231.4 (D) x 103 (H) mm

Packing

– Net Weight: 2.7KG
– Gross Weight: 3.7KG

OS Support

– Windows 10, Linux

Warranty

– 2 Years limited warranty
