MB Model

– JNF793-Q170 Series/ MINI-ITX

Part No

– HBFFF793-Q170-B (non-WIFI)

BIOS

– AMI 16MB SMT Flash ROM

CPU/Chipset

– Intel® LGA 1151 Socket 6th & 7th generation Core i7 / i5 / i3 /Pentinum CPU (35W)
– Intel® Q170 chipset
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.

Memory

– 2 * SO-DIMM slots / dual channel DDR4-2133 up to 32GB total

Storage

– 2 * 2.5” SATA3 6Gb/s internal drive bay
– 1 * Full-size mSATA slot

Network

– 2 * Intel Gigabit LAN (i219LM,i211AT)

Expansion

– 1 * Half-size Mini-PCI Express shared slot (for WIFI module)

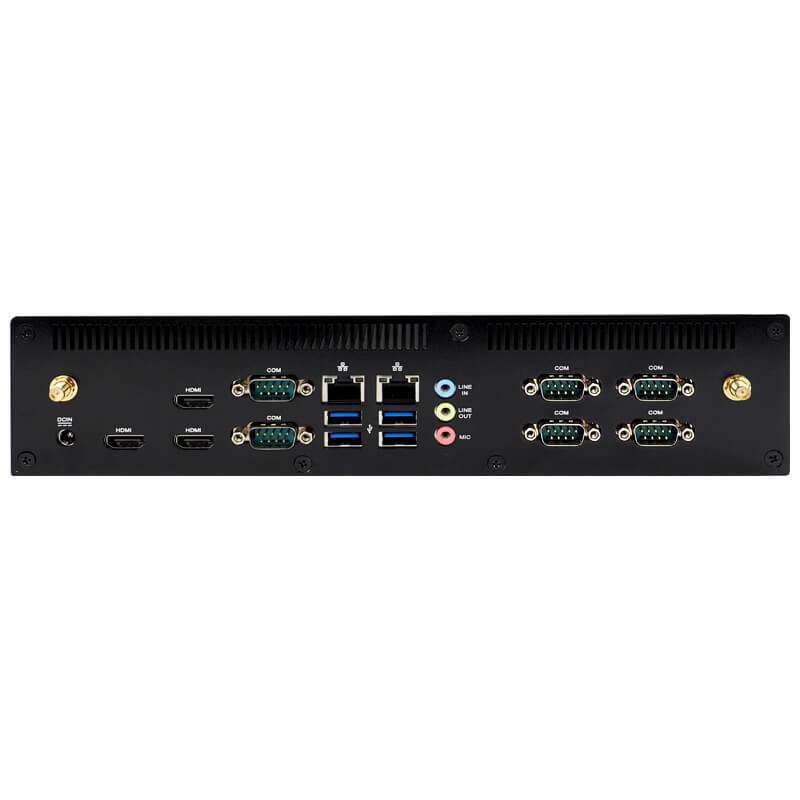

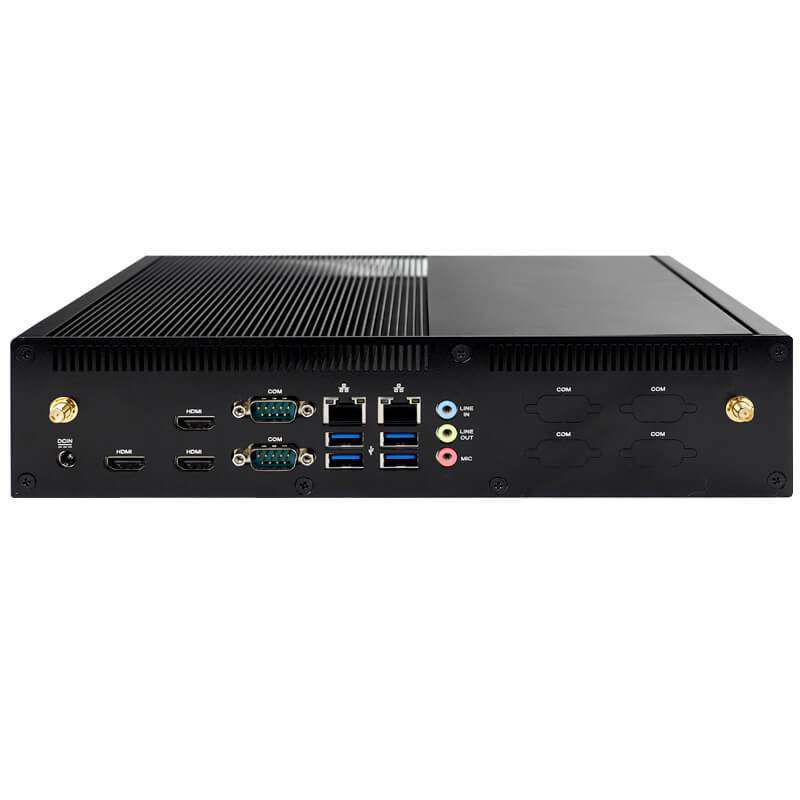

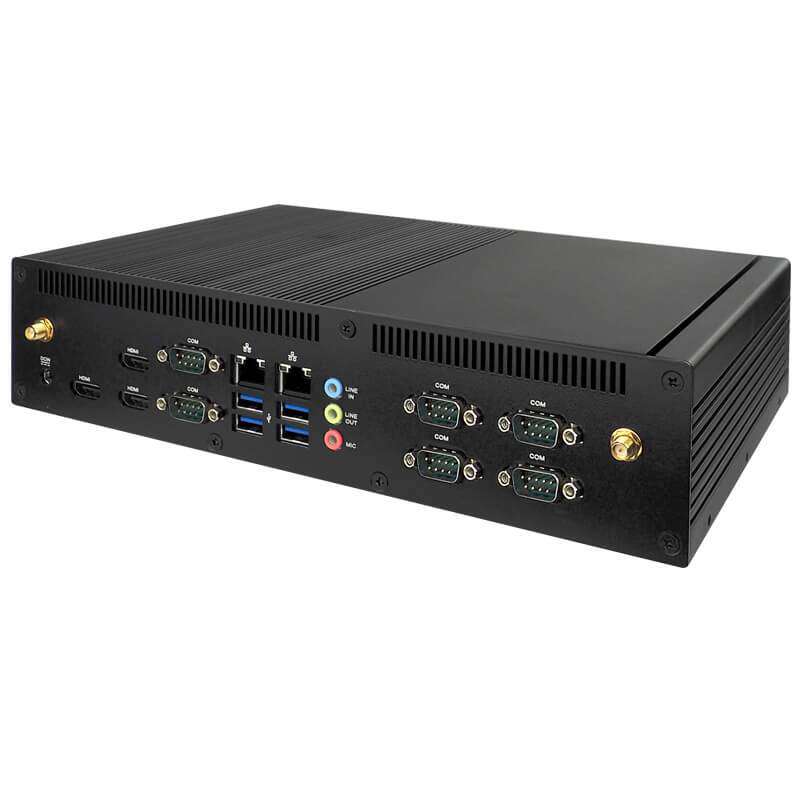

Rear Panel I/O

– 4 * USB 3.0 ports
– 3 * HDMI
– 2 * RJ45
– Line-in, Line-out, MIC
– 2 * COM (RS232/422/485), 4 * COM (RS232/optional)
– 1 * DC-In jack

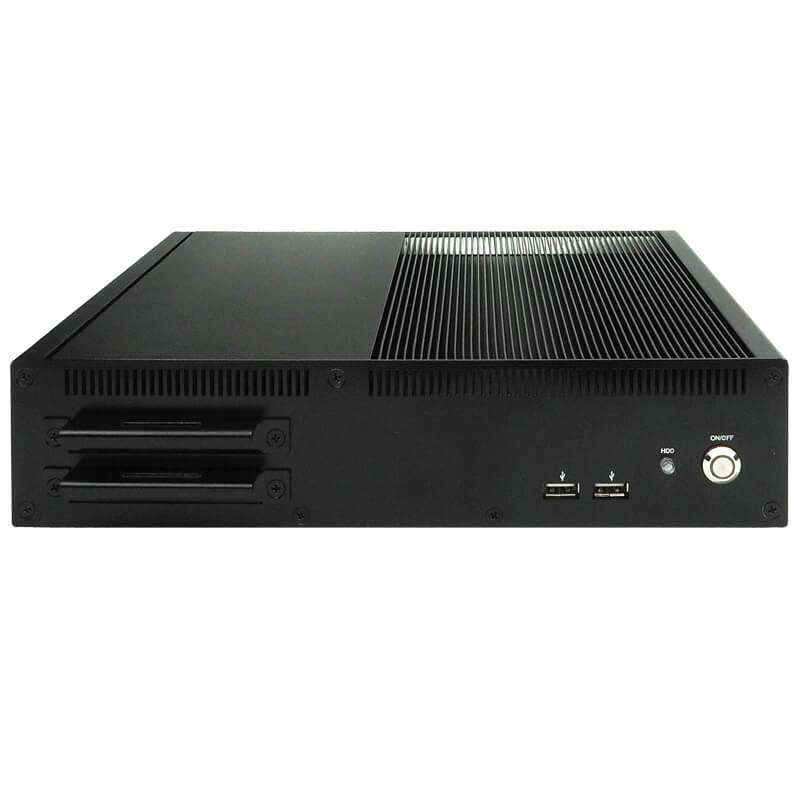

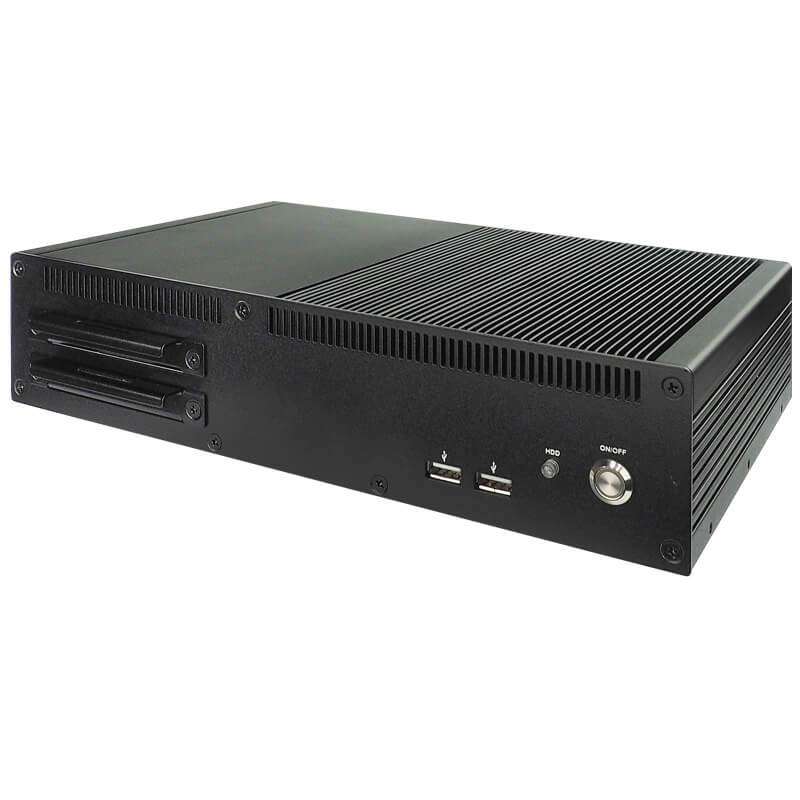

Front Panel I/O

– 1 * Power button, 1 * HDD LED
– 2 * USB 2.0 ports
– 2 * 2.5” HDD Tray (Easy to replace the hard disk, does not support hot swap)

Power Source

– FSP AC to DC Adapter 19VDC-6.3A 120W

Compliance

– CE, FCC,LVDS, RoHS, ErP Ready

Temperature

– Operating Temperature: 0 ~ 40° C
– Storage Temperature: -20 ~ 75° C

Dimensions

– 290 (W) x 207 (D) x 65 (H) mm

Packing

– Net Weight: 3.8KG
– Gross Weight: 4.8KG

OS Support

– Windows 7, Windows 8.1, Windows 10, Linux

Warranty

– 2 Year limited warranty
