Jetway HBJC313U591-3160-B (Braswell N3160 quadcore, 2* LAN)

Dimensions

– 110(D) * 116(W) * 49(H) mm

Construction

– Top cover & I/O plate –Aluminum; Base- Metal

MB model

– JNU591-3160

Part No

Non-Wifi

Mini PCIe ac Wifi card

– HBJC313U591-3160-B (Default)

– HBJC313U591Z-3160B

CPU

– Intel® Braswell N3160 SoC Processor 1.6GHz (up to 2.24GHz)

BIOS

– AMI UEFI 64 Mb

Memory

– 1 * DDR3L SO-DIMM slot (Max. to 8GB)

Storage

– 1 * full size Mini PCIe slot for Mini PCIe /mSATA Device

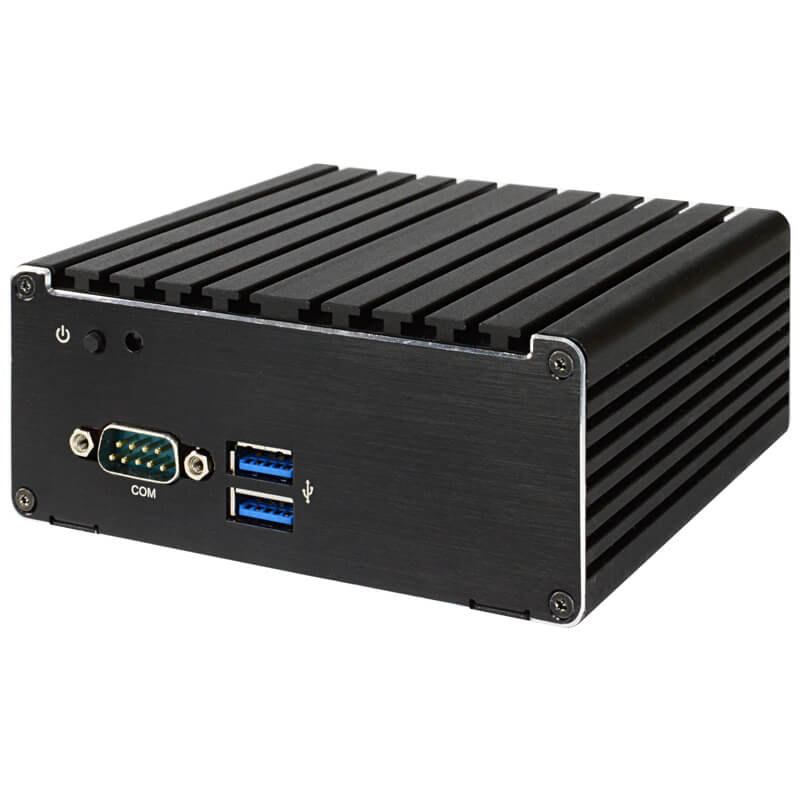

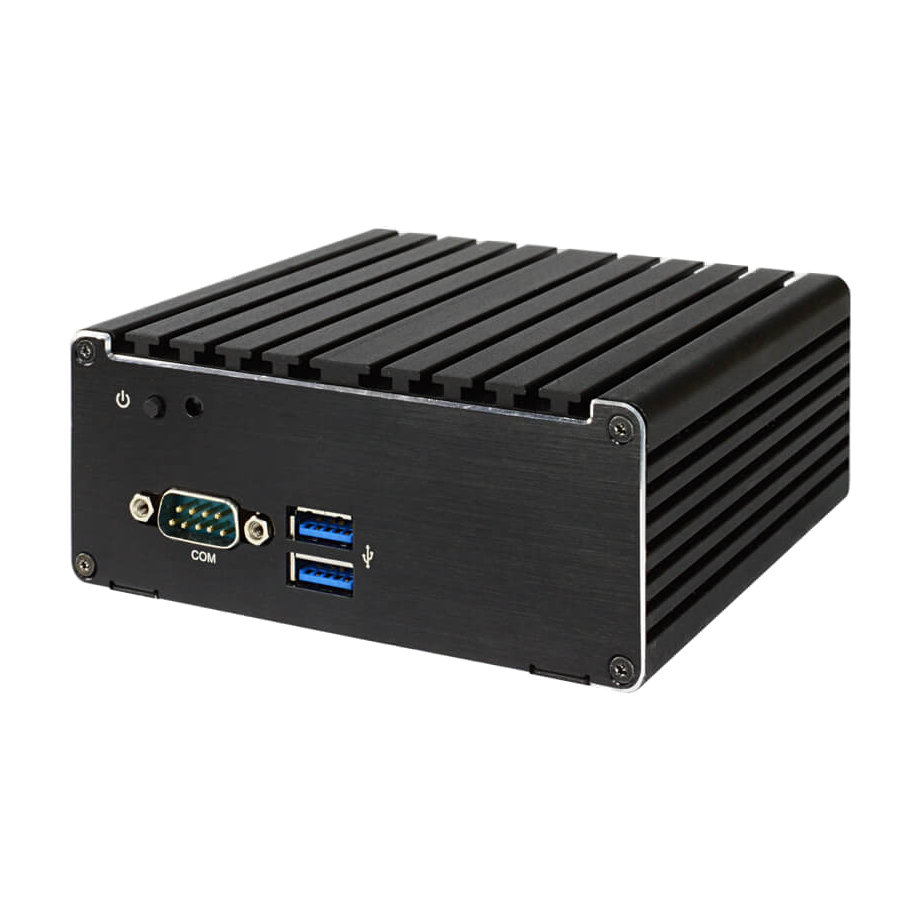

Front I/O Port

– 2 * USB3.0 (type A)
– 1 * COM port
– 1 * Power button

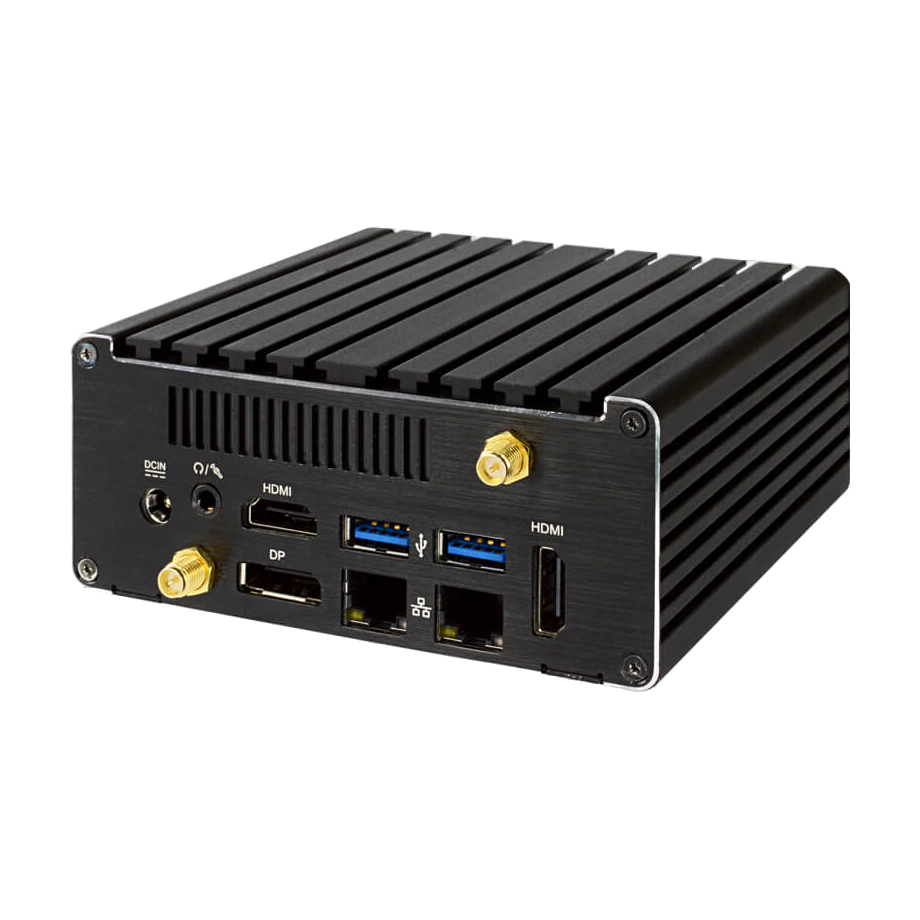

Rear I/O Port

– 2 * USB 3.0 (type A)
– 2 * HDMI 1.4b (Max. Resolution: 2560 * 1600@60Hz)
– 1 * DP 1.1a (Max. Resolution: 2560 * 1600@60Hz)
– 2 * RJ45 (GbE)
– Wi-Fi (option)
– 1 * Line out/MIC Combo
– 1 * DC-in jack

Network

– 1 * half size Mini PCIe slot (for Mini-PCIe WiFi module)
– 1 * SIM card holder

Power Source

– Adapter : AC_90~240V / DC_12V / 40W

Certification

– EMC : CE , FCC
– Safety : RoHS , ErP

Environment

– Operating Temperature : 0°C~50°C with air flow (mSATA)
– Storage Temperature : -10°C~70°C

Mounting Bracket

– Wall / VESA / DIN Rail combo mounting Kit

Packing

– Net Weight：0.9 KG
– Gross Weight：1.3 KG
– Color Box Dimension：158(W) x 167(D) x 123.6(H) mm

Warranty

–2 Year limited warranty
