Jetway HBJC313U691W-335B (N3350, 2* LAN, 2x HDMI, WLAN)

MB Model

– JNU691-3350 / NUC (101 X 101 mm)

Part No.

– HBJC313U691W-335B (WIFI)

BIOS

– AMI 128MB SMT Flash ROM

CPU/Chipset

– INTEL® Apollo Lake processor (TDP : 10W)

Memory

– 1 * DDR3L-1866MHz SO-DIMM up to 8GB

Storage

– 1 * Full-size mSATA/mini-PCI Express shared slot

Network

– 2 * Gigabit LAN
– 1 * Half-size mini-PCIE slot (for mini-PCIE WIFI module)
– 1 * SIM Card

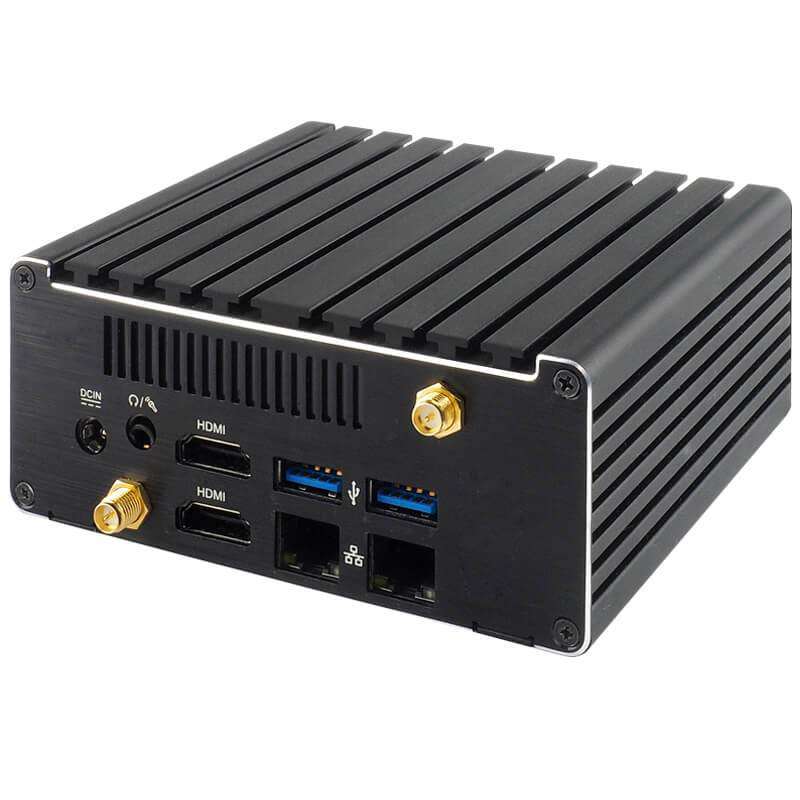

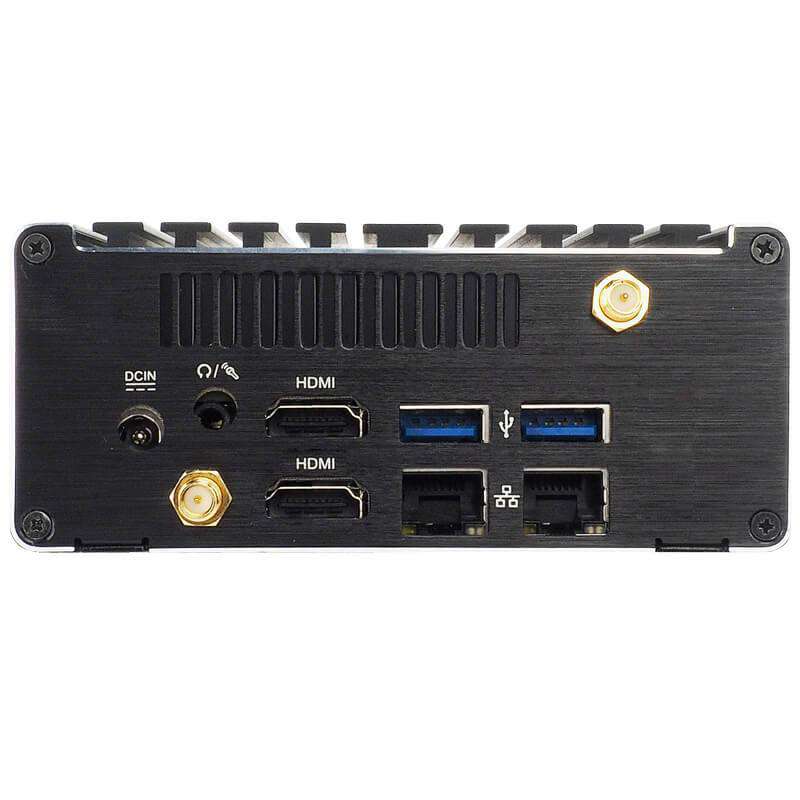

Rear Panel I/O

– 2 * USB 3.0
– 2 * HDMI 1.4 (max. 3840×2160@30Hz resolution)
– 1 * VGA (max. 1920×1200@60Hz resolution)
– 2 * RJ45
– 1 * Audio (Line-out+Mic Combo)
– 2 * Antenna holes
– 12V DC in Jack

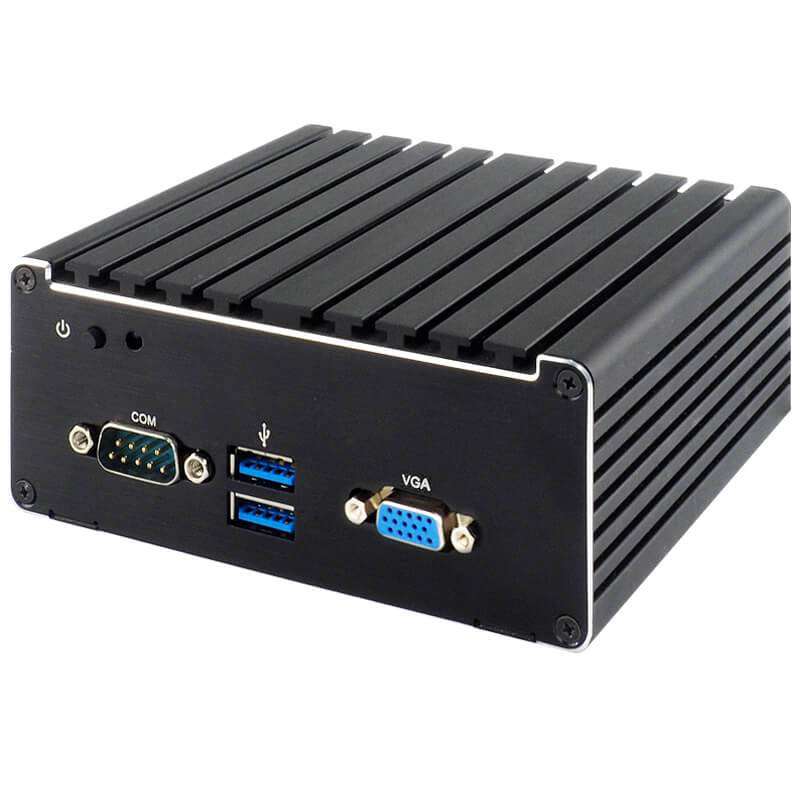

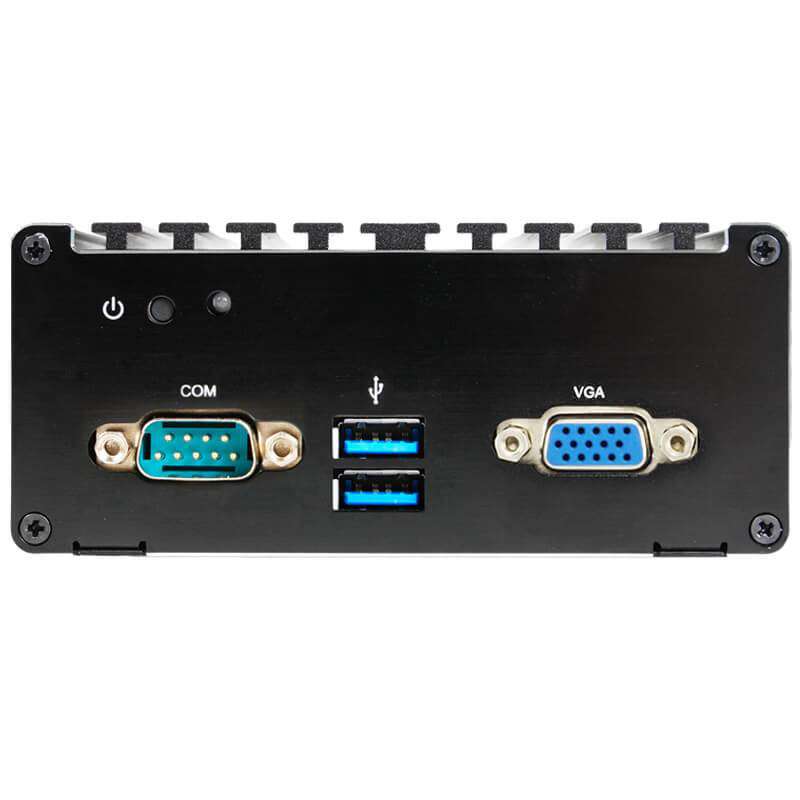

Front Panel I/O

– 1 * Power button
– 1 * Power LED
– 2 * USB 3.0
– 1 * COM (RS232/422/485)

Power Source

– AC-DC Adapter / DC12V-3.3A-40W
– AC 90~240V input

Compliance

– CE, FCC, RoHS, ErP Ready

Temperature

– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C

Dimensions

– 116 (W) x 110 (D) x 49 (H) mm

Packing

– Net Weight: 0.9KG
– Gross Weight: 1.6KG
– Color Box dimension: 158 (W) * 164 (D) * 123.6 (H) mm

OS Support

– Windows 7, Windows 8.1, Windows 10, Linux

Warranty

– 2 Year limited warranty
