MB Model

– JNF832-J3455 / 3.5” SBC

Part No

– HBJC366F832-345B (non-WIFI)

BIOS

– AMI Flash ROM

CPU/Chipset

– Intel® Apollo Lake J3455 SoC Processor

Memory

– 1 * DDR3L 1866MHz SDRAM SO-DIMM up to 8GB

Storage

– 1 *2.5” SATAIII 6Gb/s internal drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * M.2 (M-key, 2242/2280) for SSD

Network

– 1 * Realtek RTL8111H GbE
– 1 * Full-size mini-PCIe slot (Expandable WIFI module)
– 1 * M.2 (E-key 2230) PCIe slot (Expandable WIFI module)

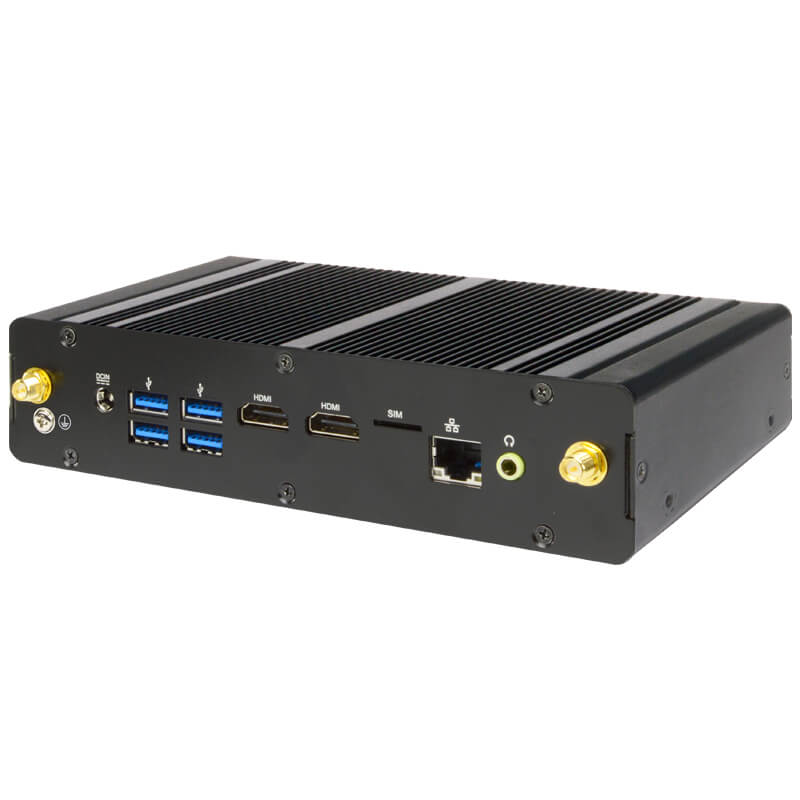

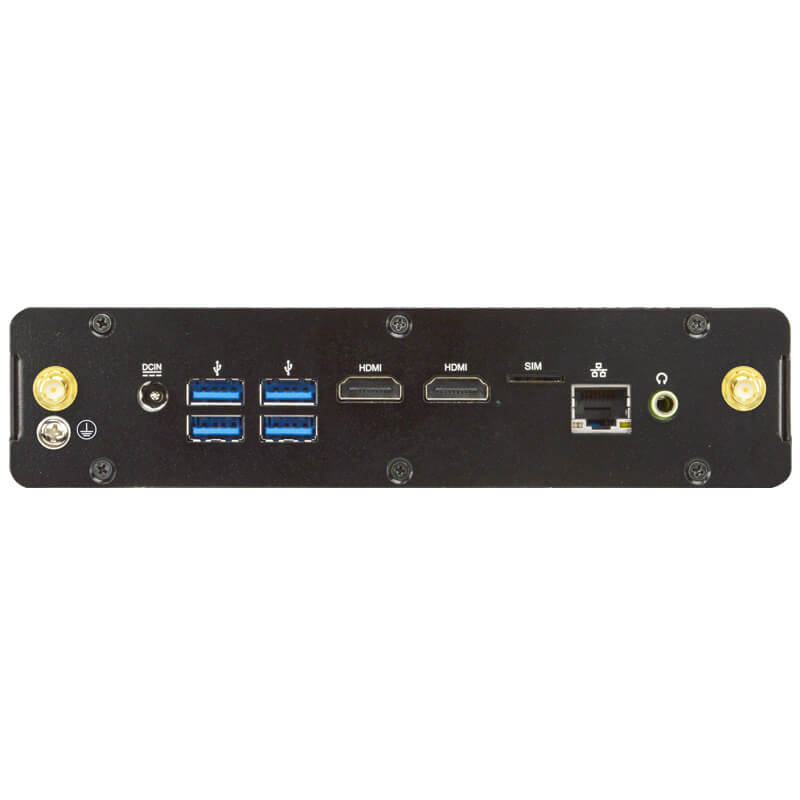

Rear Panel I/O

– 4 * USB 3.0
– 2 * HDMI 1.4b (Max. Resolution: 3840 x 2160@30Hz)
– 1 * RJ45, 1 * Line-out
– 1 * Micro-SIM Card slot

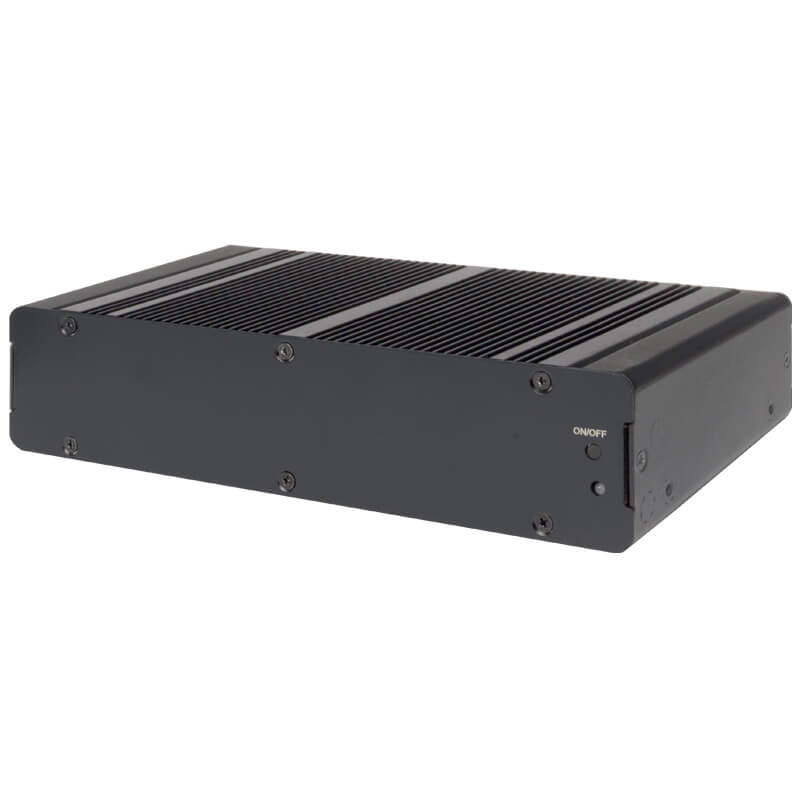

Front Panel I/O

– 1 * Power button, 1 * Power LED

Power Source

– AC-DC Adapter / AC 90~240V / DC12V-5A-60W

Compliance

– CE, FCC, RoHS, ErP Ready

Temperature

– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -20 ~ 70° C

Dimensions

– 184 (W) x 106 (D) x 42 (H) mm

Packing

– Net Weight: 1.4KG
– Gross Weight: 2.4KG
– Color Box dimension: 265 (W) *200 (D) * 100 (H) mm

OS Support

– Windows 10, Linux

Warranty

– 2 Year limited warranty
