Jetway HBJC420U691W-345B (J3455, 2* HDMI, VGA, WLAN)

MB Model

– JNU691-3455 (NUC)

Part No.

– HBJC420U691W-345B (WIFI)

BIOS

– AMI Flash ROM

CPU/Chipset

– Intel Apollo Lake J3455 Quad Core SoC Processor (up to 2.3GHz, 10W)

Memory

– 1 * 204-pin SO-DIMM DDR3L-1866 (Max. 8GB)

Support TPM

– TPM 2.0 on board

Storage

– 1 * Full-size mSATA/mini-PCI Express shared slot

Network

– 2 * Realtek RTL8111H GbE
– 1 * Half-size mini-PCIE slot with WIFI card
– 1 * SIM Card Slot

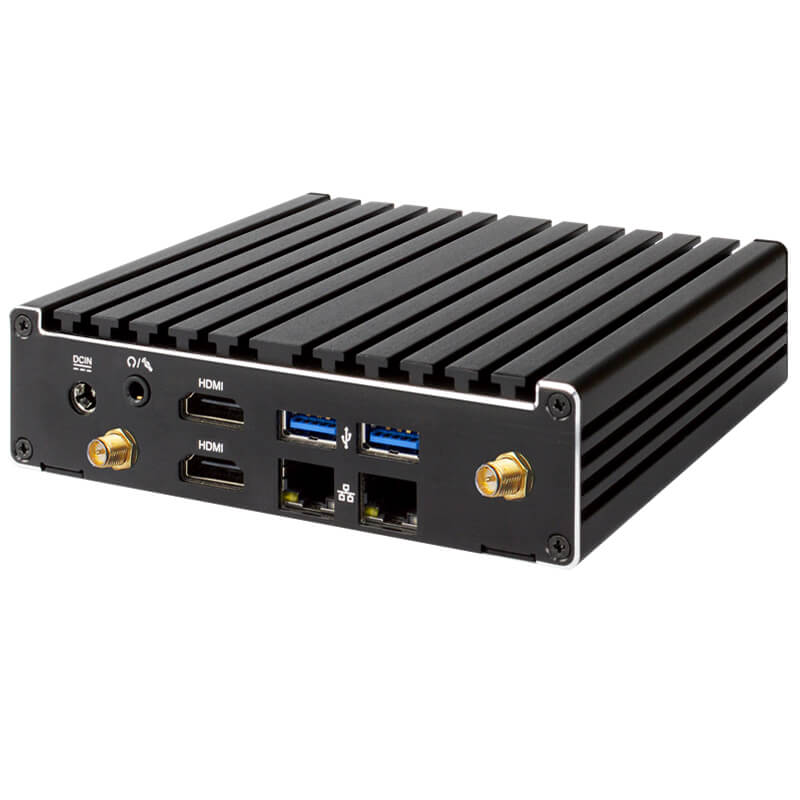

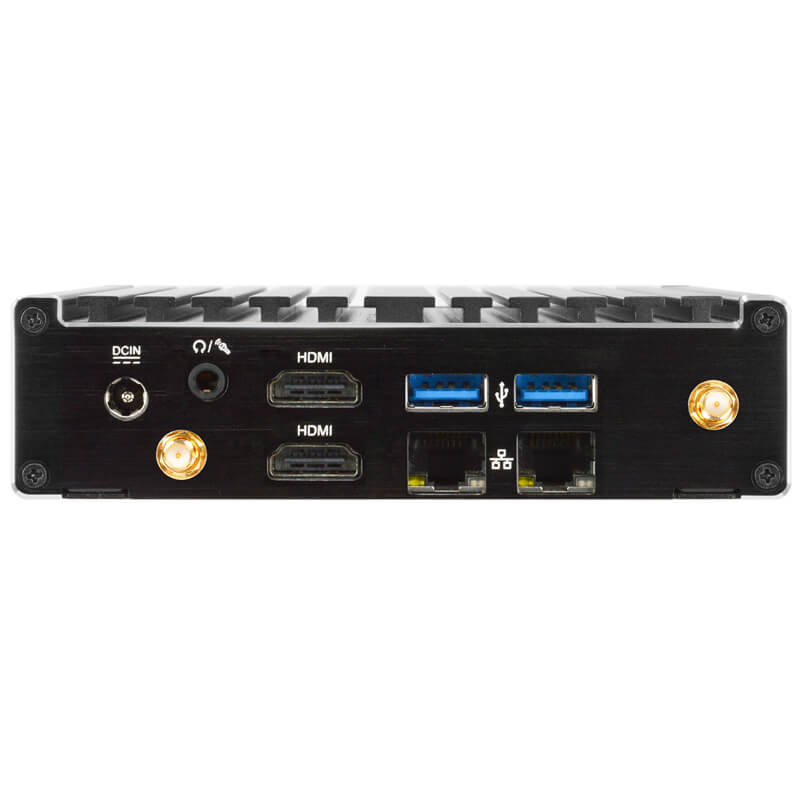

Rear Panel I/O

– 2 * USB 3.0 ports
– 2 * HDMI (max. 3840×2160@30Hz resolution)
– 2 * RJ45
– 1 * Audio (Line-out, Mic-in)
– 2 * Antenna holes
– 1 * DC-In jack

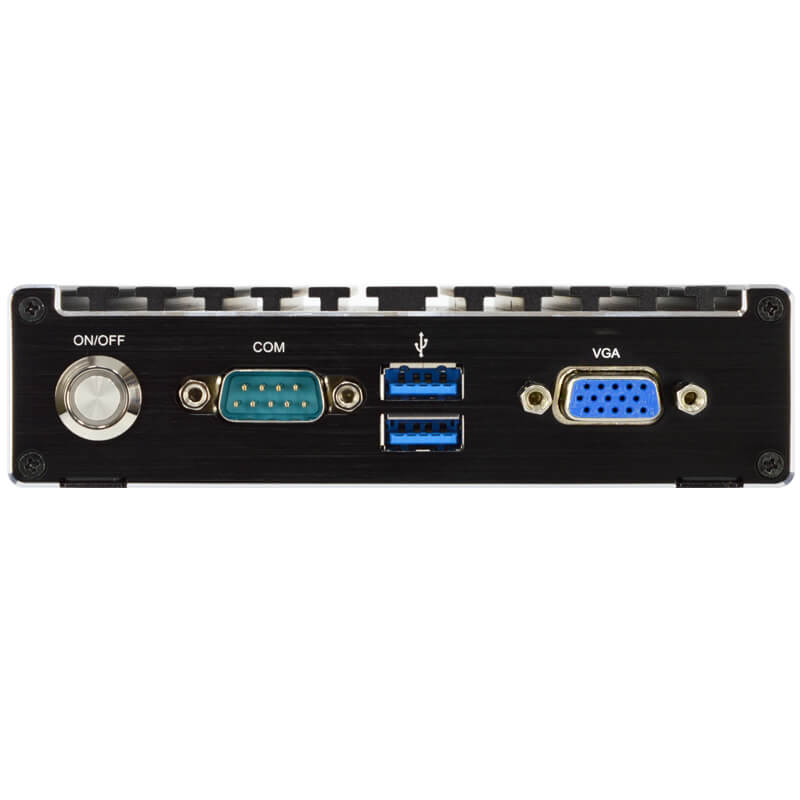

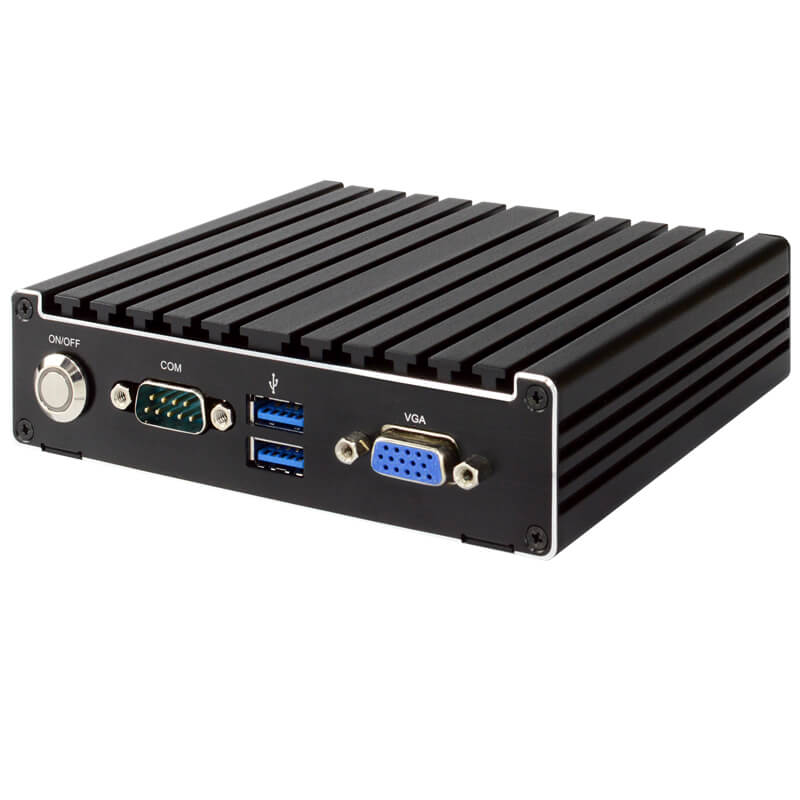

Front Panel I/O

– 1 * Power button + Power LED
– 1 * COM(RS232/RS422/RS485)
– 2 * USB 3.0 ports
– 1 * VGA (max. 1920×1200@60Hz resolution)

Power Source

– AC-DC Adapter / DC12V-3.3A-40W
– AC 90~240V input

Compliance

– CE, FCC, RoHS, ErP Ready

Temperature

– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -20 ~ 80° C

Dimensions

– 129 (W) x 109.4 (D) x 34 (H) mm

Packing

– Net Weight: 0.6KG
– Gross Weight: 1.4KG
– Color Box dimension: 158 (W) * 167 (D) * 123.6 (H) mm

OS Support

– Windows 10, Linux

Warranty

– 2 Year limited warranty
