Jetway HBJC909C9A (Coffee Lake-S LGA1151, H310, 4* HDMI, Fanless)

MB Model

– JNC9AMXM-H310

Part No.

– HBJC909C9A

BIOS

– AMI 128MB SMT Flash ROM

CPU/Chipset

– Intel® LGA1151 Socket Core I3,I5,I7 Pentium Processor (Max 35W)
– Intel® Coffee Lake-S H310 Chip

Memory

– 2* DDR42133MHz up to 32GB

Network

– 1* Intel® I219LM GbE

Storage

– 1* 2.5” SATA 6Gb/s internal drive bay (only support 2.5″ HDD with a hight
≤ 10mm)
– 1* M.2 M Key Socket (2280, Support NVMe)

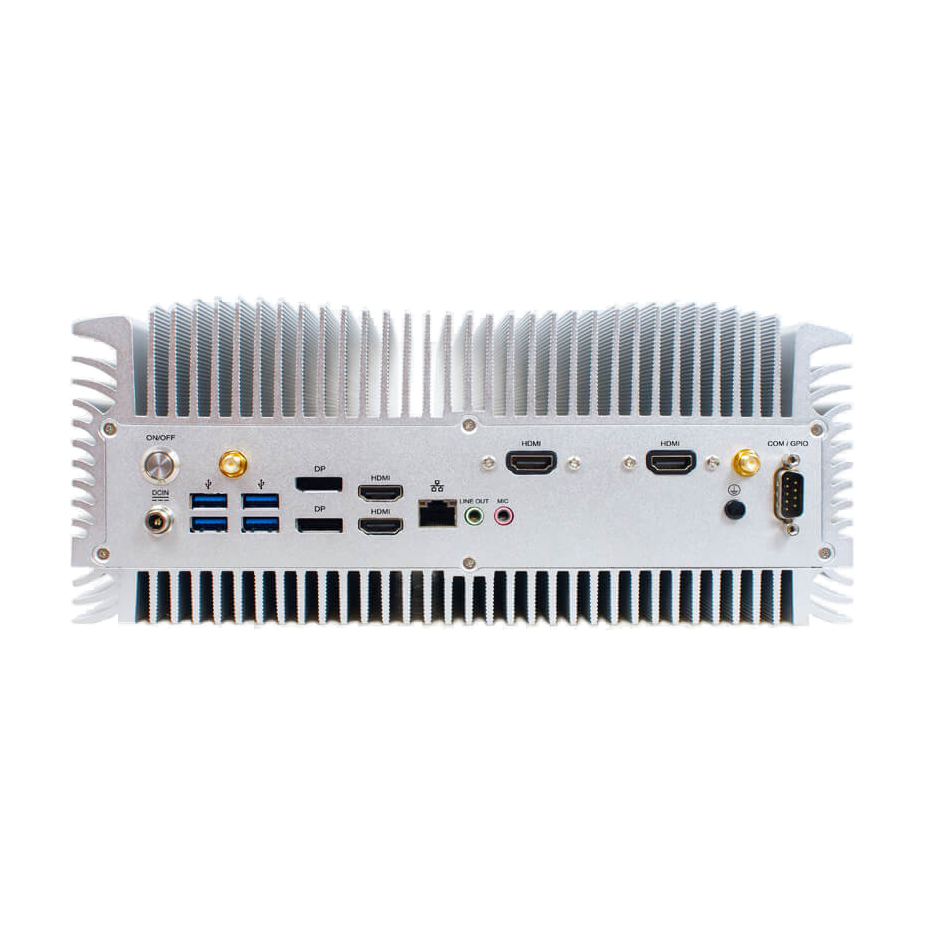

Rear Panel I/O

– 4* USB3.1
– 2* DP (Up: DP By CPU, Bottom: DP By MXM VGA Card)
– 4* HDMI (2* EXT HDMI By MXM, INT HDMI2 BY MXM, INT HDMI1 By CPU)
– 1* RJ45
– 1* RS232
– 1* Line-out, MIC
– 1* DC Jack
– 1* Power Button

Internal Connector

– 1* M.2 B Key Socket for 3G/4G Module
– 1* M.2 E Key Socket for CNVi or PCI-E/USB WIFI/BT

Power Source

– DC 12~36V input

Compliance

– CE, FCC, RoHS, ErP Ready (Option)

Temperature

– Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 60° C

Dimensions

– 279.8 (W) x 224.0 (D) x 115.9 (H) mm

OS Support

– Windows 10, Linux

Warranty

– 2 Years limited warranty
