Panel PC 15' HPC-150BR-2930-4G (N2930, 4GB RAM)

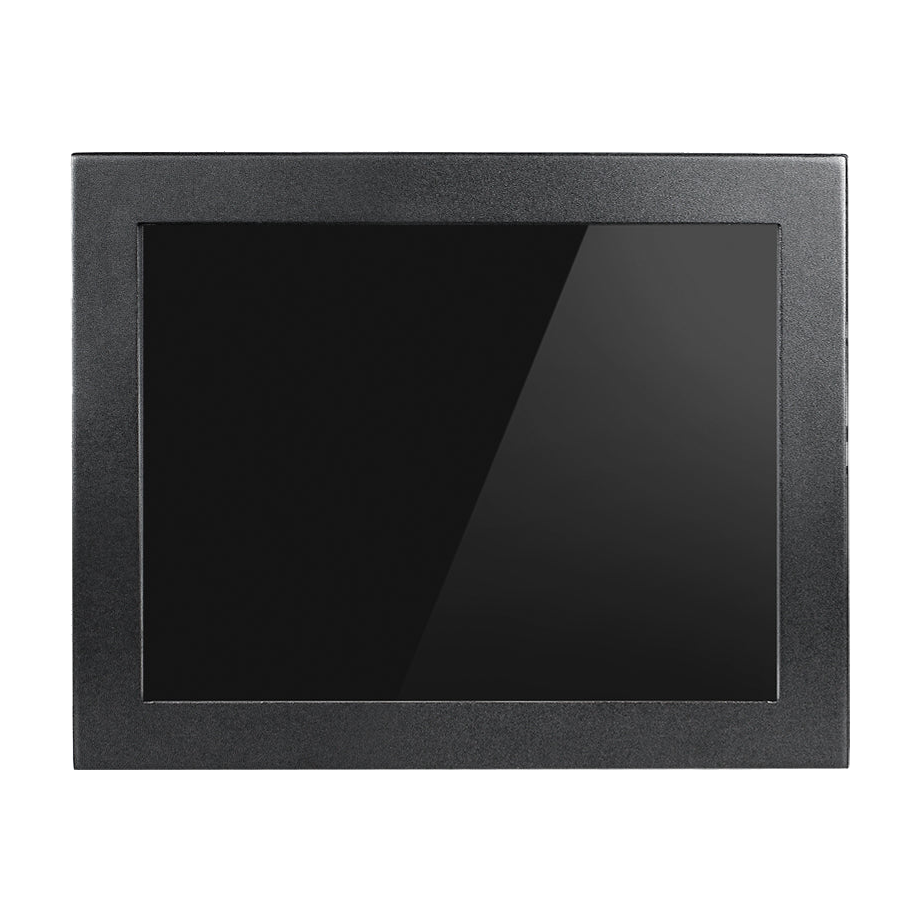

Display

Front Bezel

– IP65, NEMA 4 rugged protection, metal front bezel

Display Type

– 15.0″ With LED Backlight

Brightness (cd/m²)

– 350 nits

Display Color

– 262K

Resolution

– 1024 x768 @ 60Hz

Viewing Angle (H/V)

– 170°/160°

Pixel Pitch

– 0.297 x 0.297 mm

Aspect Ratio

– 4:3

Contrast Ratio

– 700:1

Response Time

– 5.7 ms

Operating Temperature

– 0 ~65° C

Touch Screen

Type

– 5 wires analog resistive type

Active Range

– 304.10 x 228.10mm ±0.2mm

Transparency

– 80 ±3%

Surface Hardness

– ≧3H (ASTM D3363, pressure 750g/45°)

Operating Force

– ≦ 80g

Knock test

– 10,000,000 times keystrokes

Operating Temperature

– -20 ~70° C

Main System

CPU

– Intel® Bay Trail-M N2930 1.83GHz/QC

RAM

– 4G 1333MHz DDR3L SAMSUNG DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1 * 2.5” SATA HDD (SATA-2)
– 1 * M-SATA connector

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

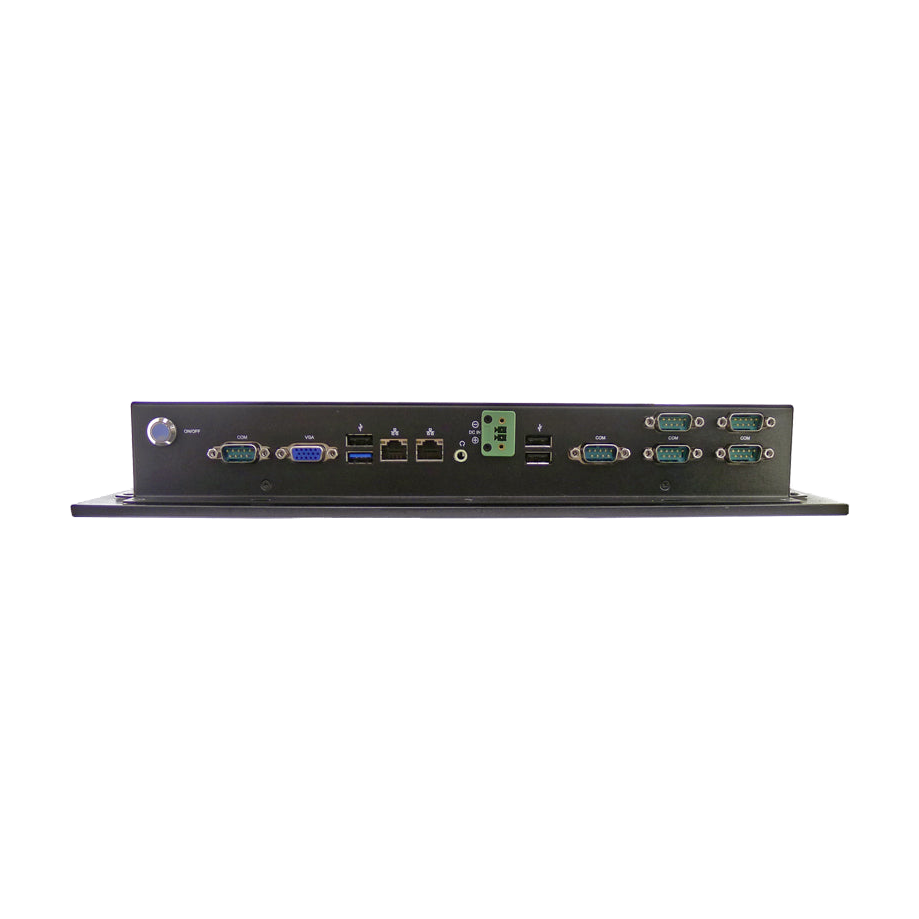

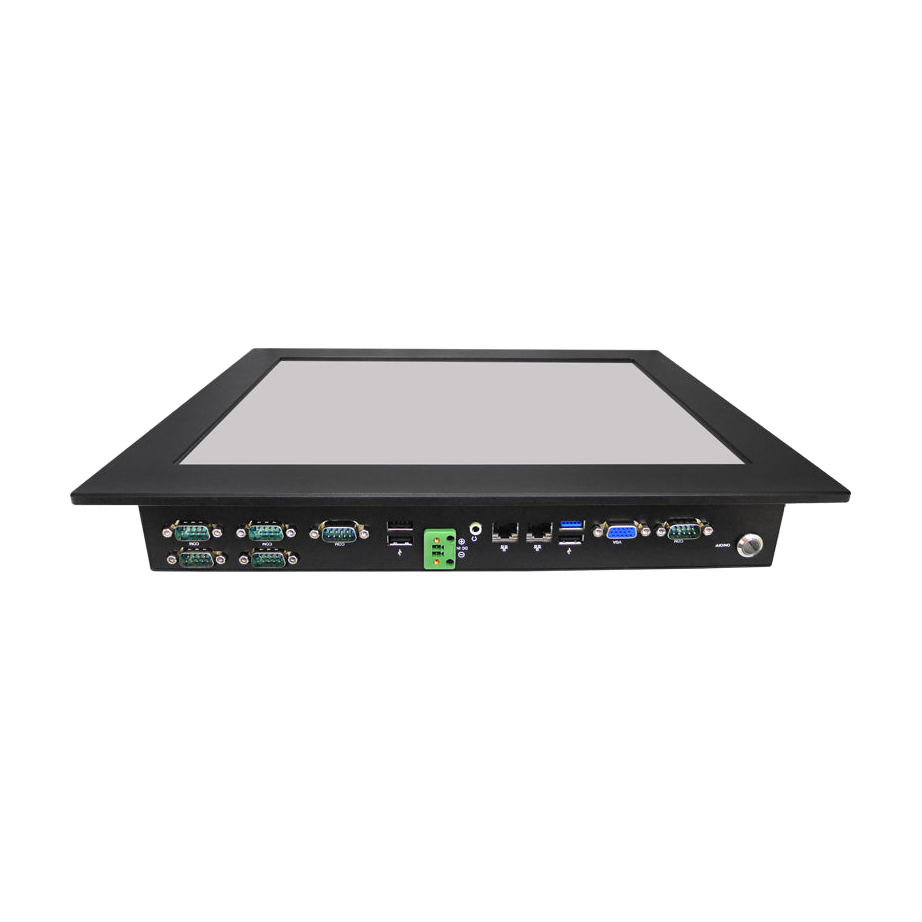

I/O Connector

I/O Ports and Switches

– 1 * USB3.0
– 3 * USB2.0
– 4 * RS232
– 2 * RS232/422/485
– 1 * CRT
– 2 * LAN (Intel® I211AT Gigabit LAN)
– 1 * Line-out (2-CH 3W Speaker)
– 1 * Euro terminal block 9~24V DC input

Expansion Interface

Expansion

– 1 * PCI-E mini card for WIFI or 4G

Power

Power Input

– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 9~24VDC with over current protection fuse

Power Consumption

– 32.58W

Dimensions

Case Dimensions

– 376.0mm*300.0mm*54.0mm

Certifications

Certifications

– CE, FCC, IP65

Environment

Temperature

– Operating Temperature: 0 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Operating Temperature: 0 ~ 60° C(with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 65° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

Warranty

Warranty

– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)
