Panel PC 7' HPC070SC-FP2807A (N2807, 2G)

 Display

Front Bezel

– IP65, NEMA 4 rugged protection, Full planar metal border

Display Type

– 7″ With LED Backlight

Brightness (cd/m²)

– 320 nits

Display Color

– 16.7M

Resolution

– 1024 x 600 @ 60Hz

Viewing Angle (H/V)

– 150°/145°

Pixel Pitch

– 0.15 x 0.15 mm

Aspect Ratio

– 16:9

Contrast Ratio

– 500:1

Response Time

– 30 ms

 Touch Screen

Type

– projected capacitive type

Active Range

– 152.40 x 91.44mm ±0.2mm

Transparency

– ≧85%

Surface Hardness

– ≧6H (JIS-5400)

Glass haze value

– ≦ 3%

 CASE

Panel Material

– Aluminum

Case Material

– Iron

Color

– Silver + white

Coating Requirement

– Spray Paint

 Main System

CPU

– Intel® Bay Trail-M N2807 1.58GHz/DC

RAM

– 2G 1333MHz DDR3L SAMSUNG DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1 * mSATA connector (Full size)

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

 I/O Connector

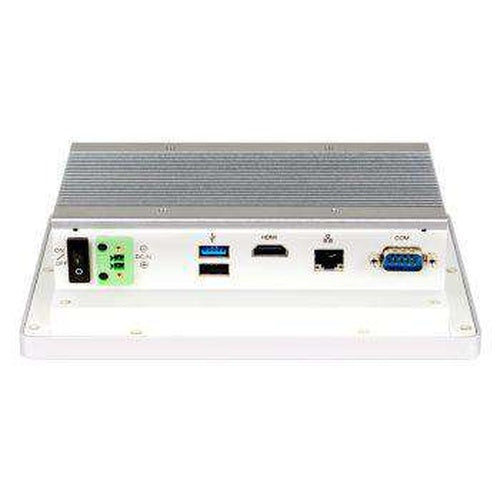

I/O Ports and Switches

– 1 * USB3.0
– 1 * USB2.0
– 1 * RS232/422/485
– 1 * HDMI
– 1 * LAN (Gigabit LAN)
– 1 * Euro terminal block by 12V DC input
– 1 * Power button

 Expansion Interface

Expansion

– 1 * PCI-E mini card for WIFI or 3G/4G

 Power

Power Input

– Supports 12V DC Power in with over current protection fuse
– Provides 100~240V AC-DC 12V, 60W power adapter

Power Consumption

– 13W

 Dimension

Case Dimensions

– 197.0*136.0*50.7mm

 Certifications

Certifications

– CE, FCC, IP65(Front)

 Environment

Temperature

– Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Storage Temperature: -20 ~ 85° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

 Warranty

Warranty

– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)
