Panel PC 10.1' HPC101SC-FP1900B (J1900, 4G)

 Display

Front Bezel

– IP65, NEMA 4 rugged protection, Full planar metal border

Display Type

– 10.1″ With LED Backlight

Brightness (cd/m²)

– 400 nits

Display Color

– 16.2M

Resolution

– 1280 x 800 @ 60Hz

Viewing Angle (H/V)

– 170°/170°

Pixel Pitch

– 0.1695 x 0.1695 mm

Aspect Ratio

– 16:10

Contrast Ratio

– 800:1

Response Time

– 30 ms

 Touch Screen

Type

– projected capacitive type

Active Range

– 257.10 x 159.66mm ±0.2mm

Transparency

– ≧87%

Surface Hardness

– ≧6H (JIS-5400)

Glass haze value

– ≦ 3%

 CASE

Panel Material

– Aluminum

Case Material

– Iron

Color

– Silver + white

Coating Requirement

– Spray Paint

 Main System

CPU

– Intel® Bay Trail-M J1900 2.0GHz/QC

RAM

– 4G 1333MHz DDR3L SAMSUNG DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1 * mSATA connector (Full size)

– 1* M.2 connector (2242/2260/2280)

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

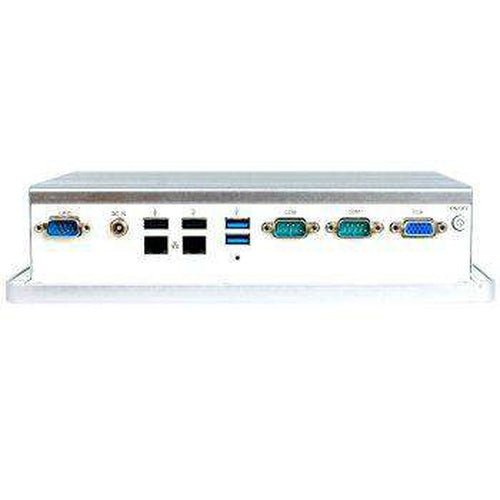

 I/O Connector

I/O Ports and Switches

– 2 * USB3.0
– 2 * USB2.0
– 1 * 8bit GPIO
– 2 * RS232/422/485
– 1 * VGA
– 2 * LAN (INTEL I211AT Gigabit LAN)
– 1 * Locking Jack 9~28V DC input
– 1 * Power button

 Expansion Interface

Expansion

– 1 * PCI-E mini card for WIFI or 3G/4G

 Power

Power Input

– Supports 9-28V DC Power in with over current protection fuse
– Provides 100~240V AC-DC 12V, 60W power adapter

Power Consumption

– 21W

 Dimension

Case Dimensions

– 258.96*176.60*59.7mm

 Certifications

Certifications

– CE, FCC, IP65(Front)

 Environment

Temperature

– Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Storage Temperature: -20 ~ 85° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

 Warranty

Warranty

– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)
