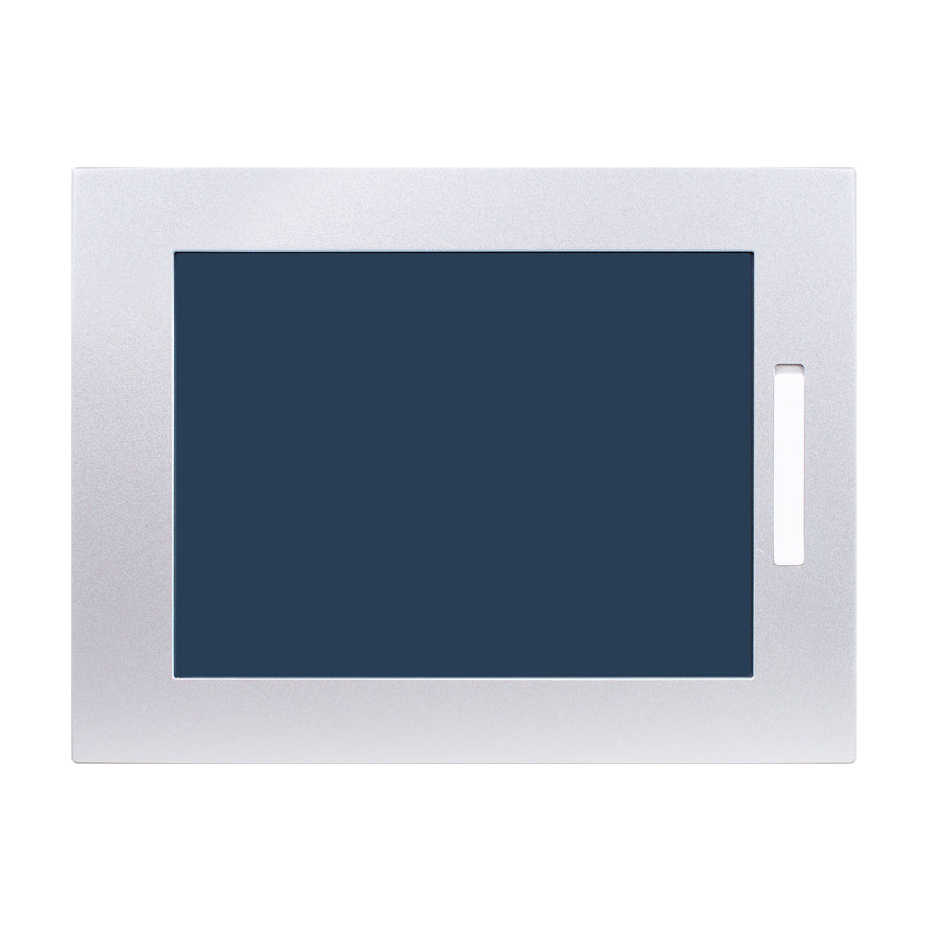

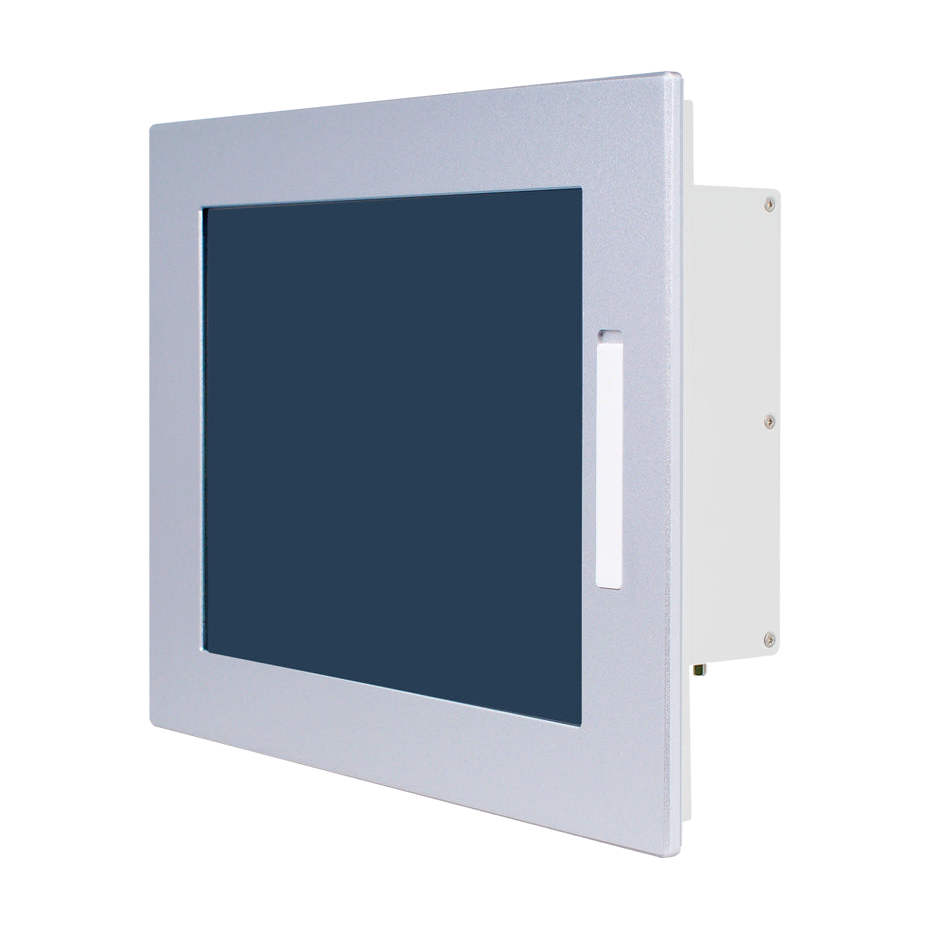

Panel PC 10.4' HPC104GR-HD1900B (J1900, 4G)

  • Intel® Bay Trail-D J1900
  • 4GB DDR3 / 9~28V DC
  • 10.4" NEMA4 Resistive Touch
  • Dual Intel® LAN Gigabit
  • IP65 frontal
com IVA
969.24€

sem IVA
788.00€
Sku: HPC104GR-HD1900B
Tipo de Produto: Panel-PC Resistivo
Fabricante: Jetway

Touch-PC 10.4" NEMA4 Resistive Touch

  • CPU Onboard Intel® Bay Trail-D J1900 2.0GHz Quad Core

  • TFT LCD 10.4” de alto brilho (230 nits) SVGA com LED backlight

  • Memória SAMSUNG 4G/1333MHz DDR3L Onboard

  • Suporta Dual Intel® LAN Gigabit

  • Suporta 2 portas COM (Suporta RS232/422/485)

  • Suporta 2 portas USB2.0 + 2x USB3.0

  • Suporta HDD 2.5” SATA, 1x conector M.2

  • 1 slot Mini PCI-E

  • 1 slot para cartões SIM 4G

  • Câmara frontal para monitorização remota

  • Suporta ampla tensão de entrada: 9~28V

  • Protecção IP65 frontal

Características

Diagrama

HPC-104GR-HD1900B_diagram

Dimensões

HPC104GR-HD1900B_size
Especificações

Display

Front Bezel

– NEMA 4 rugged protection, metal front bezel

Display Type

– 10.4″ With LED Backlight

Brightness (cd/m²)

– 400 nits

Display Color

– 262K

Resolution

– 800 x 600 @ 60Hz

Viewing Angle (H/V)

– 130°/140°

Aspect Ratio

– 4:3

Contrast Ratio

– 400:1

Response Time

– 25 ms

 Touch Screen

Type

– 5 wires analog resistive type

Active Range

– 211.58 x 158.75mm ±0.2mm

Operating Force

– ≦ 80g

Transparency

– 80 ±3%

Surface Hardness

– ≧3H (ASTM D3363, pressure 750g/45°)

Knock test

– 10,000,000 times keystrokes/span>

 CASE

Panel Material

– Aluminum

Case Material

– Iron

Color

– Silver + white

Coating Requirement

– Spray Paint

 Main System

CPU

– Intel® Bay Trail-D J1900 2.0GHz/QC

RAM

– 4G 1333MHz DDR3L SAMSUNG DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1* 2.5” SATA bay
– 1* M.2 connector (2242/2260/2280)

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

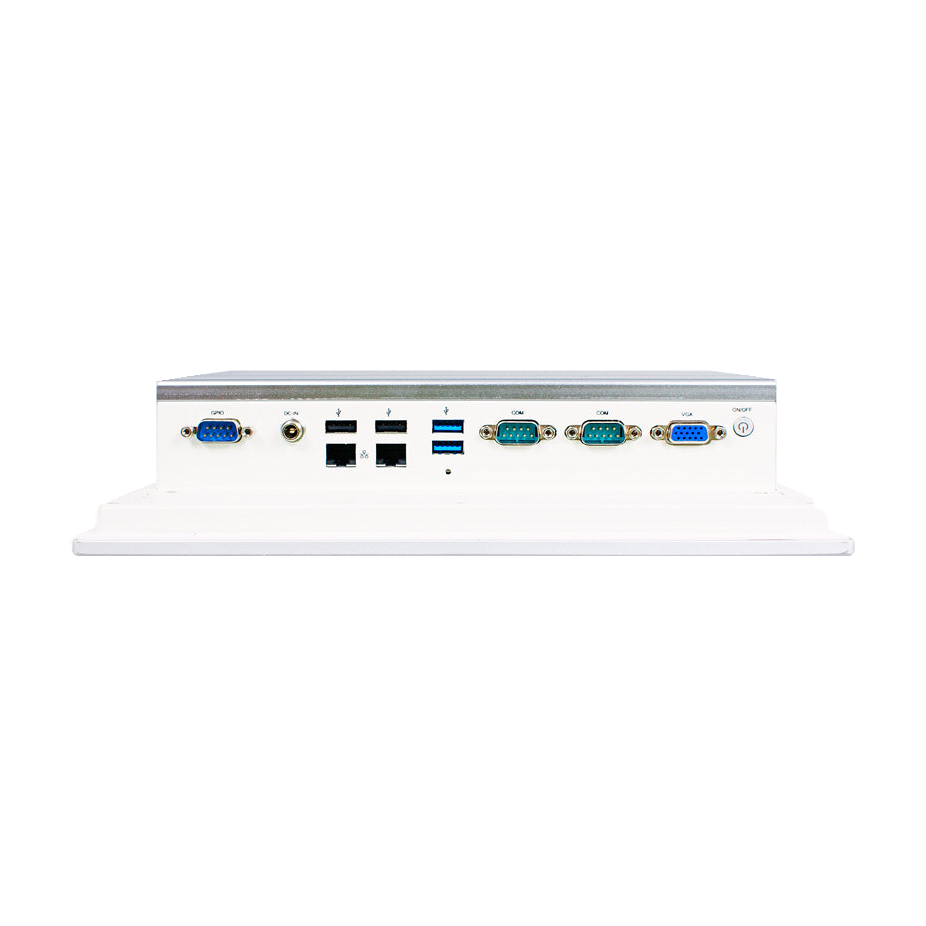

 I/O Connector

I/O Ports and Switches

– 2* USB3.0
– 2* USB2.0

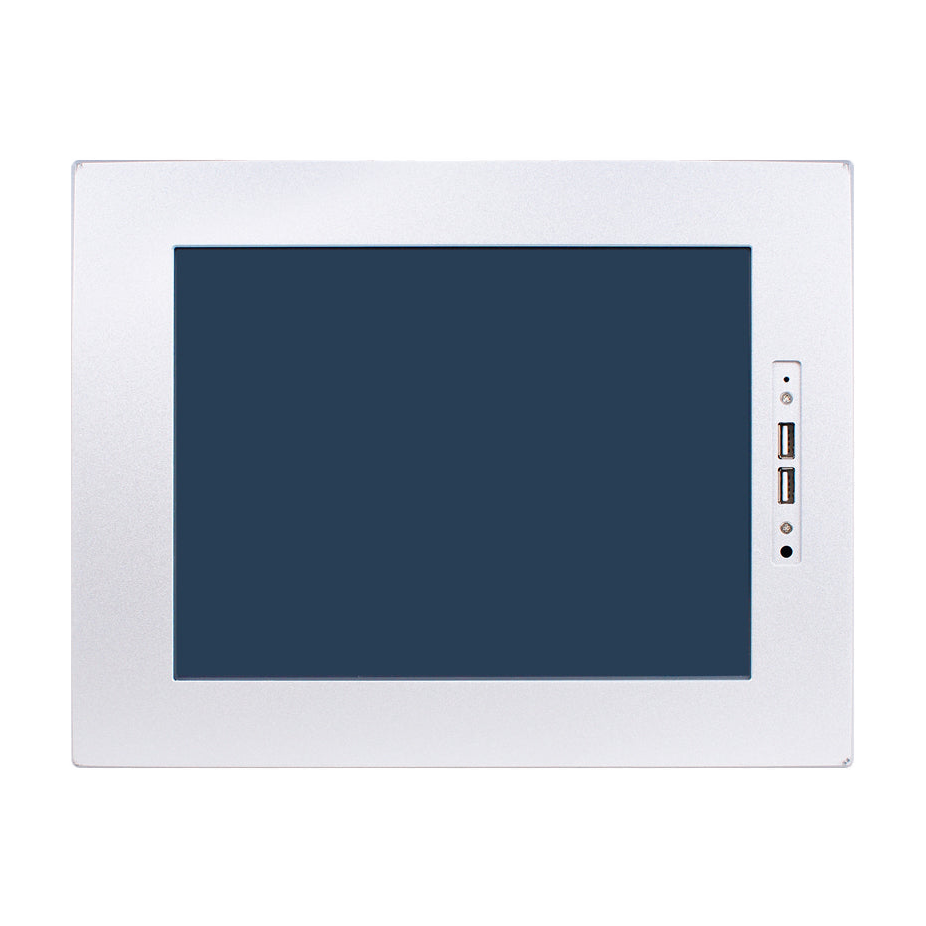

– 2* USB2.0 (Front)
– 2* RS232/422/485
– 1* CRT
– 1* 8bit GPIO
– 2* LAN (Intel® I211AT Gigabit LAN)
– 1* Locking Jack 9~28V DC input
– 1* Power button

 Expansion Interface

Expansion

– 1 * PCI-E mini card for WIFI or 3G/4G
– 1 * SIM card holder for 3G/4G

 Power

Power Input

– Supports 9-28V DC Power in with over current protection fuse
– Provides 100~240V AC-DC 12V, 60W power adapter

Power Consumption

– 25W

 Dimension

Case Dimensions

– 290.0*226.0*63.0mm

 Certifications

Certifications

– CE, FCC

 Environment

Temperature

– Operating Temperature: -10 ~ 60° C(with W.T. DRAM/HDD in airflow condition)
– Storage Temperature: -20 ~ 85° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

 Warranty

Warranty

– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Downloads
HPC104GR-HD1900B_specs
