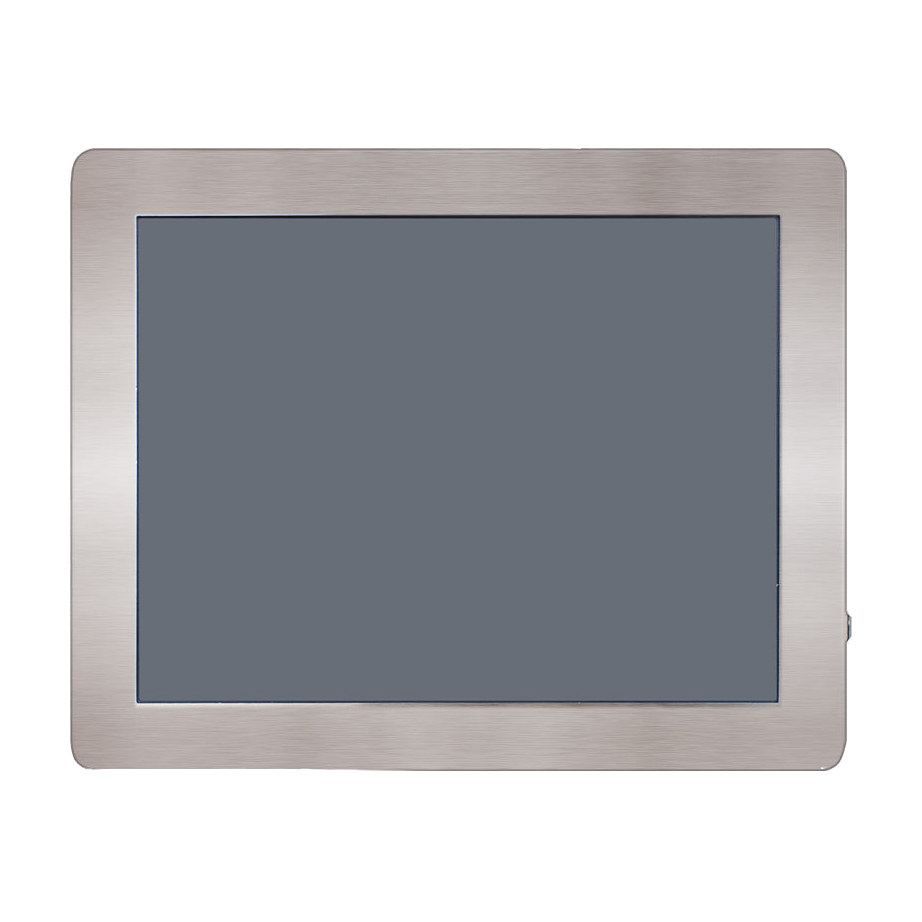

HPC121SR-SF1900B frontview
HPC121SR-SF1900B frontview
HPC121SR-SF1900B frontview
HPC121SR-SF1900B frontview

Panel PC 12.1' HPC121SR-SF1900B (J1900, 4G)

  • Intel® Bay Trail-D J1900
  • 4GB DDR3 / 9~28V DC
  • 12.1" NEMA4 Resistive Touch
  • Dual Intel® LAN Gigabit
  • IP65
com IVA
2,084.85€

sem IVA
1,695.00€
Sku: HPC-121SR-SF1900B
Tipo de Produto: Panel-PC Resistivo
Fabricante: Jetway

Touch-PC 12.1" IP67 Resistive Touch

  • CPU Intel® Bay Trail-D J1900 2.0GHz Quad Core

  • TFT LCD 12.1” de alto brilho (500 nits) SVGA com LED backlight

  • Memória 4G/1333MHz DDR3L Onboard

  • 2* Intel® LAN Gigabit

  • 2* COM (Suporta RS232/422/485)

  • 4* USB2.0

  • Suporta ampla tensão de entrada: 9~28V

  • Suporte global para protecção IP67/ NEMA4

Características

Diagrama

HPC121SR-SF1900B_diagram

Dimensões

HPC121SR-SF1900B_size

Vídeo de demonstração

Especificações

 Display

Front Bezel

– IP67, NEMA 4 rugged protection, Overall

Display Type

– 12.1″ With LED Backlight

Brightness (cd/m²)

– 500 nits

Display Color

– 262K

Resolution

– 1024 x768 @ 60Hz

Viewing Angle (H/V)

– 160°/140°

Pixel Pitch

– 0.24 x 0.24 mm

Aspect Ratio

– 4:3

Contrast Ratio

– 700:1

Response Time

– 25 ms

 Touch Screen

Type

– 5 wires analog resistive type

Active Range

– 246.80 x 185.50mm ±0.2mm

Transparency

– 80 ±3%

Surface Hardness

– ≧3H (ASTM D3363, pressure 750g/45°)

Operating Force

– ≦ 80g

Knock test

– 10,000,000 times keystrokes

 Main System

CPU

– Intel® Bay Trail-D J1900 2.0GHz/QC

RAM

– 4G 1333MHz DDR3L SAMSUNG DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1* 2.5” SATA HDD
– 1* M.2 connector (2242/2260/2280)

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

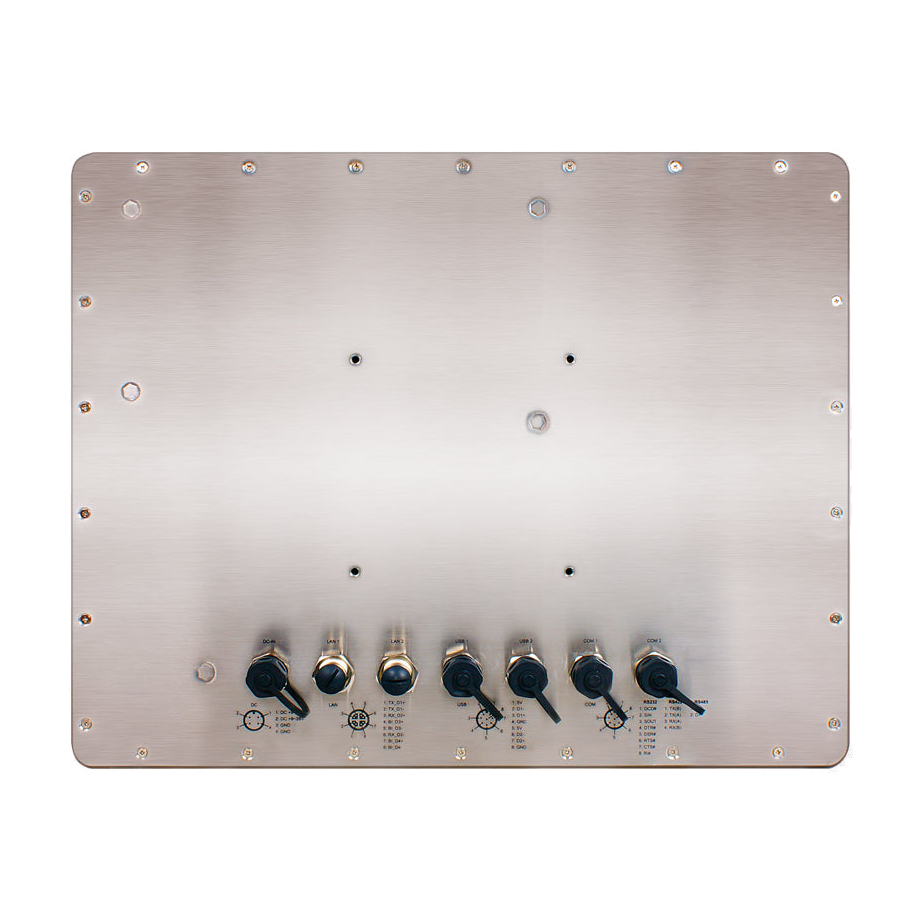

 I/O Connector

I/O Ports and Switches

– 4 * USB2.0
– 2 * RS232/422/485
– 2 * LAN (Intel® I211AT Gigabit LAN)
– 1 * Locking Jack 9~28V DC input
– 1 * Power button

 Expansion Interface

Expansion

– 1 * PCI-E mini card

 Power

Power Input

– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 9~28VDC with over current protection fuse

Power Consumption

– 25W

 Dimension

Case Dimensions

– 307.8*246.5*50mm

 Certifications

Certifications

– CE, FCC, IP67

 Environment

Temperature

– Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Operating Temperature: -10 ~ 60° C(with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 65° C

 Warranty

Warranty

– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Downloads
HPC121SR-SF1900B_specs
