Panel PC 15' HPC150GR-HD1900B (J1900, 4G)

Display

Front Bezel

– IP65, NEMA 4 rugged protection, metal front bezel

Display Type

– 15.0″ With LED Backlight

Brightness (cd/m²)

– 350 nits

Display Color

– 262K

Resolution

– 1024 x 768 @ 60Hz

Viewing Angle (H/V)

– 170°/160°

Pixel Pitch

– 0.297 x 0.297 mm

Aspect Ratio

– 4:3

Contrast Ratio

– 700:1

Response Time

– 5.7 ms

 Touch Screen

Type

– 5 wires analog resistive type

Active Range

– 304.10 x 228.10mm ±0.2mm

Operating Force

– ≦ 80g

Transparency

– 80 ±3%

Surface Hardness

– ≧3H (ASTM D3363, pressure 750g/45°)

Knock test

– 10,000,000 times keystrokes

 CASE

Panel Material

– Aluminum

Case Material

– Iron

Color

– Silver + white

Coating Requirement

– Spray Paint

 Main System

CPU

– Intel® Bay Trail-D J1900 2.0GHz/QC

RAM

– 4G 1333MHz DDR3L SAMSUNG DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1* 2.5” SATA bay
– 1* M.2 connector (2242/2260/2280)

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

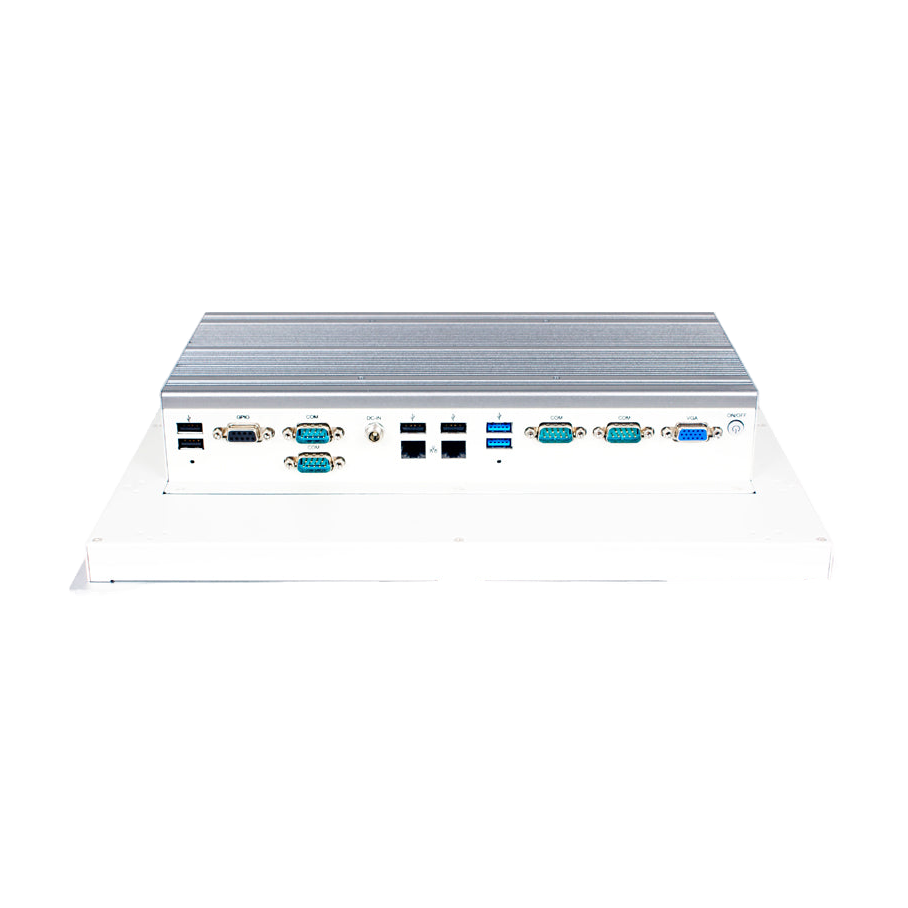

 I/O Connector

I/O Ports and Switches

– 2* USB3.0
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232
– 1* CRT
– 1* 8bit GPIO
– 2* LAN (Intel® I211AT Gigabit LAN)
– 1* Locking Jack 9~28V DC input
– 1* Power button

 Expansion Interface

Expansion

– 1 * PCI-E mini card for WIFI or 3G/4G
– 1 * SIM card holder for 3G/4G

 Power

Power Input

– Supports 9-28V DC Power in with over current protection fuse

– Provides 100~240V AC-DC 12V, 60W power adapter

Power Consumption

– 35W

 Dimension

Case Dimensions

– 366.0*290.0*74.0mm

 Certifications

Certifications

– CE, FCC, IP65(Front)

 Environment

Temperature

– Operating Temperature: 0 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Operating Temperature: 0 ~ 60° C(with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 85° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

 Warranty

Warranty

– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)
