Sku: IGT-31D
Tipo de Produto: Gateways IoT
Fabricante: Neousys

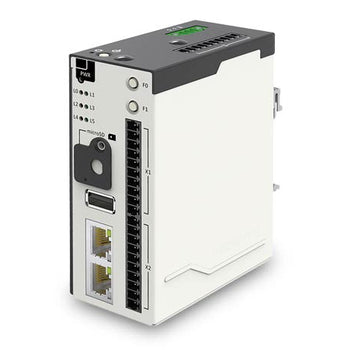

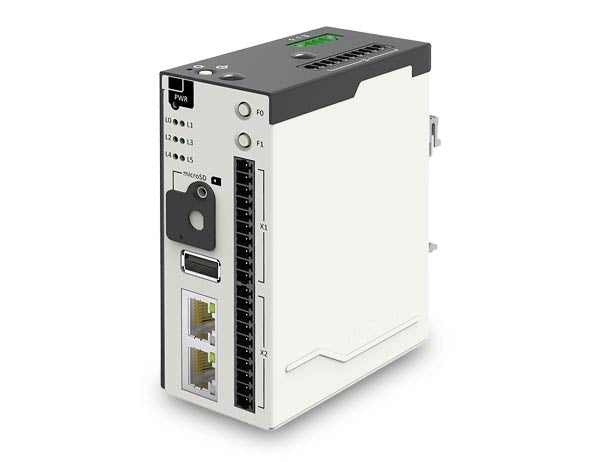

TI Sitara™ AM3352 ARM-based Industrial IoT Gateway with Dual LAN and Pre-installed Debian

  • Industrial grade ARM-based system with pre-installed Debian
  • AWS Device Qualification Program (DQP) Certified
  • Certified to operate on Verizon network
  • Field-ready Isolated DI/O and RS-232/422/485
  • 10 to 25V wide-range DC input and 802.3at PoE+ PD
  • -25°C to 70°C wide temperature operation

Neousys IGT-31, equipped with AM3352 from Texas Instrument's Sitara AM335x family, is an ARM-based Box PC aimed at Industrial IoT Gateway and Industry 4.0 applications. As required by any industrial applications, IGT-31 is shipped as a ready system preinstalled with Debian and in compliance with common industrial certifications such as CE/FCC, shock and vibration. It has a power input range of 10 to 25 VDC and a wide operating temperature from -25°C to 70°C to ensure IGT-31 continues to function under harsh industrial conditions.

IGT-31 IoT Gateway supports PoE Powered Device (PD) mode meaning it can be powered by a LAN cable from a PoE Power Sourcing Equipment (PSE), and at the same time transfer data via this cable as well. IGT-31 has I/Os that are applicable to a range of industrial grade sensors. It features one USB2.0 port, two 10/100M LAN ports, one configurable COM port (RS-232/422/485) and an optional CAN bus port. In addition to the ports mentioned, there are 8 built-in isolated digital input channels that accept discrete signals from various sensors or buttons/ switches. There are also 2 built-in isolated digital output channels to control actuators and indicators.

Communication wise, IGT-31 has a mini PCIe slot and a USIM holder allowing it to transmit acquired data and system status via 3G, 4G or WiFi (mini PCIe WiFi module). There is an opening on top of IGT-31 for users to mount the SMA connector of the wireless module. In terms of storage, IGT-30 series has dual microSDHC slots, one internal and one external. This design allows users to separate system/ user data and can expedite in OS deployment for mass production. Inherited from IGT-20, IGT-30 series provides six LED indicators and two function buttons that can be programmed by users. The function buttons can act as controls for IGT-31 and exclude the need for external input devices, such as keyboard/ mouse.


System Core
Processor TI Sitara AM3352 1GHz processor
Front-panel I/O Interface
Ethernet 2x 10/100 LAN
SD Card 1x external T-flash socket support SDHC
USB 1x USB2.0
Isolated DIO 8-CH isolated DI and 2-CH isolated DO
Console 1x 3-wire RS-232 as console port
User LEDs 6x user programmable LEDs
Function Buttons 2x user programmable buttons
CAN 1x isolated CAN bus 2.0 A/B (IGT-31D only)
Top I/O Interface
DC-in 1x DC-input connector
Power Button 1x power button
Reset Button 1x reset button
Serial Port 1x software configurable RS-232/422/485
Antenna Hole 2x antenna hole for WiFi and 3G/LTE
Internal I/O Interface
mPCIe 1x full size mPCIe (USB signal only) with an USIM holder
SD Card 1x internal T-flash socket support SDHC
Power Supply
DC input range 12~25V DC
PoE+ PD Support IEEE 802.3at PoE+ PD
Operating System Pre-installed Debian 9
Dimension 41mm(W) x 79mm(D) x 104mm(H)
Weight 0.5 Kg
Mounting DIN-Rail mounting
Operating Temperature -25°C ~ 70°C *
Storage Temperature -40°C ~ 80°C *
Humidity 10%~90%, non-condensing
Vibration 5Grms
Shock 50Grms
EMC CE/FCC Class B (to be certified), according to EN55032 & EN55024
■ Date last revised: Apr. 10, 2018

* For sub-zero operating temperature, a wide temperature microSD module is required.
