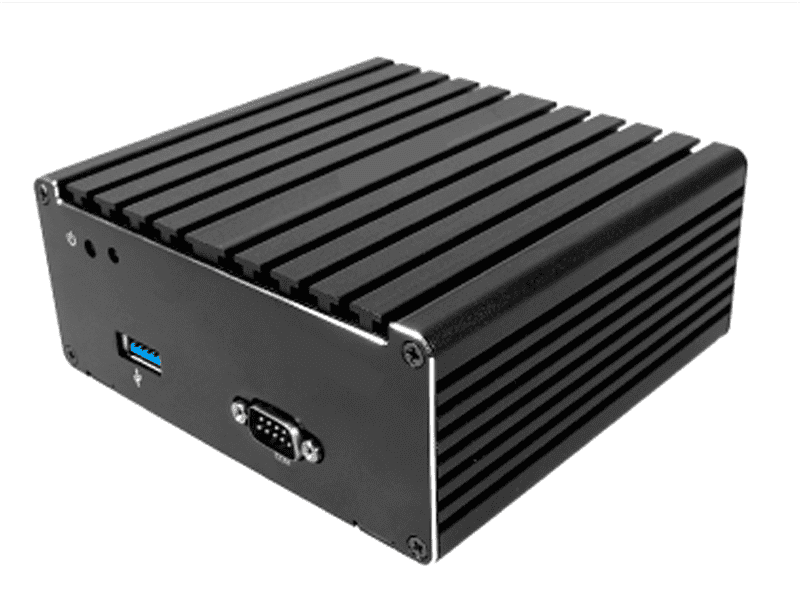

Jetway JBC312U92W-4300UB (Intel Core i5-4300U, mSATA, Wifi)

MB Model

– NU92-4300U (101 * 101 mm)

Model No.

– JBC321U92-4300UB (non-WIFI)
– JBC321U92W-4300UB (WIFI)

BIOS

– AMI UEFI

CPU/Chipset

– Intel® HaswellCore i5 – 4300U SoC Processor

Memory

– 2 * DDR3L 1600MHz SO-DIMM slot up to 16GB

Storage

– 1 * full size Mini PCI-E slot for mSATA Device
– 1 * 2.5” SATA bay (only support 2.5″ HDD with a hight ≤ 10mm)

Network

– 1 * Intel 218LM GbE
– WiFi (JBC321U92W-4300UB only)

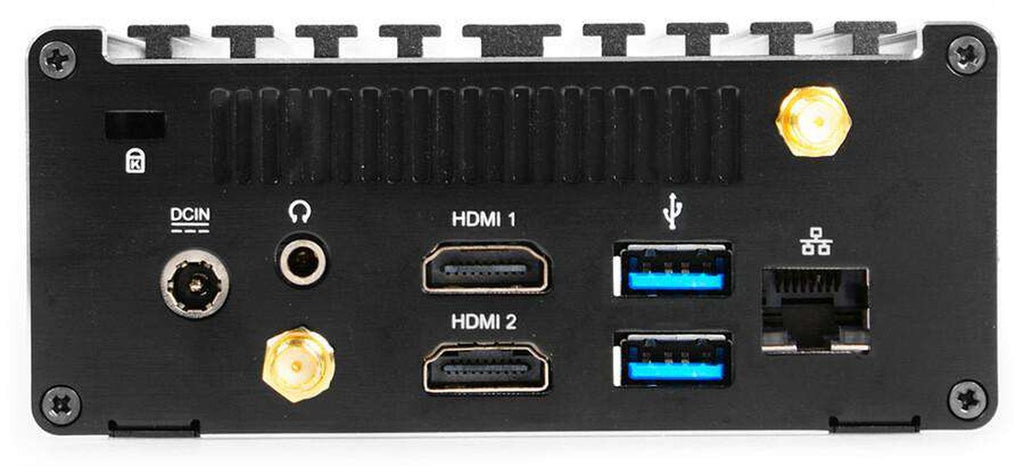

Rear Panel I/O

– 2 * USB 3.0
– 2 * HDMI (Max. Resolution: 4096 * 2304@24Hz)
– 1 * GbE
– 1 * Line-out
– 1 * DC-in jack

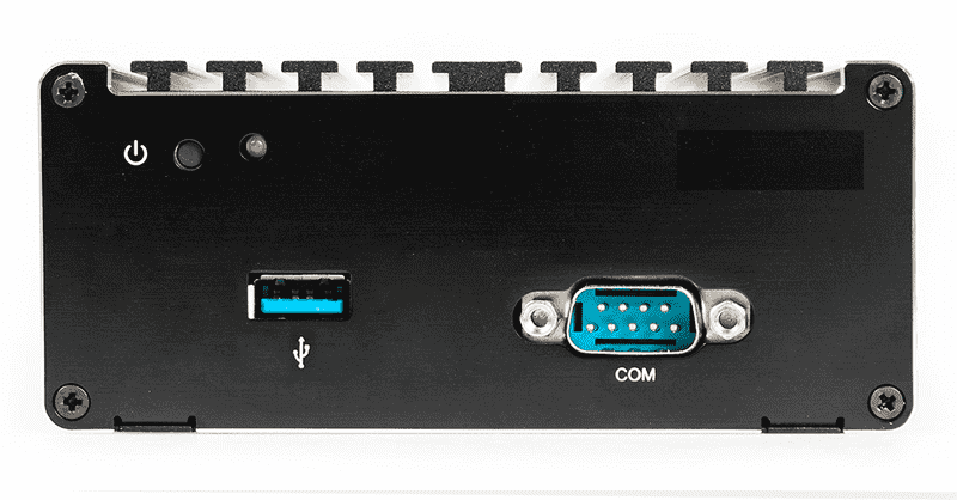

Front Panel I/O

– 1 * USB 3.0
– 1 * COM
– 1 * Power button

Power Source

– Supports 9~24V Wide range DC input
– Provides AC_90~240V / DC_12V 40W adapter

Compliance

– CE, FCC, RoHS, ErP

Temperature

– Operating: 0°C – 50°C with air flow (mSATA)

– Storage: -10°C – 70°C

Mounting Bracket

– Wall / VESA / DIN Rail combo mounting Kit

Dimensions

– 110(D) * 116(W) x 65(H) mm

Packing

– Net Weight: 1.4KG
– Gross Weight: 1.8KG
– Color Box dimension: 158(W)* 167(D)* 123.6(H)mm

Warranty

– 2 Year limited warranty
