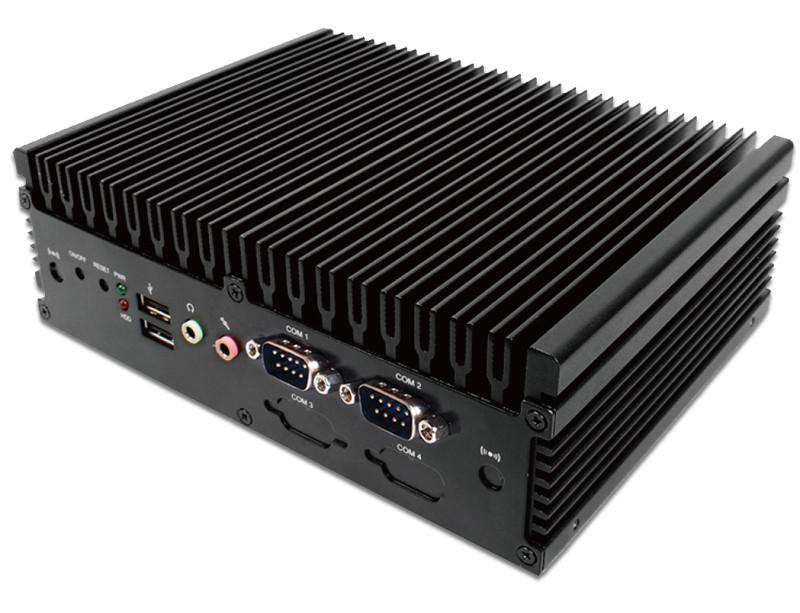

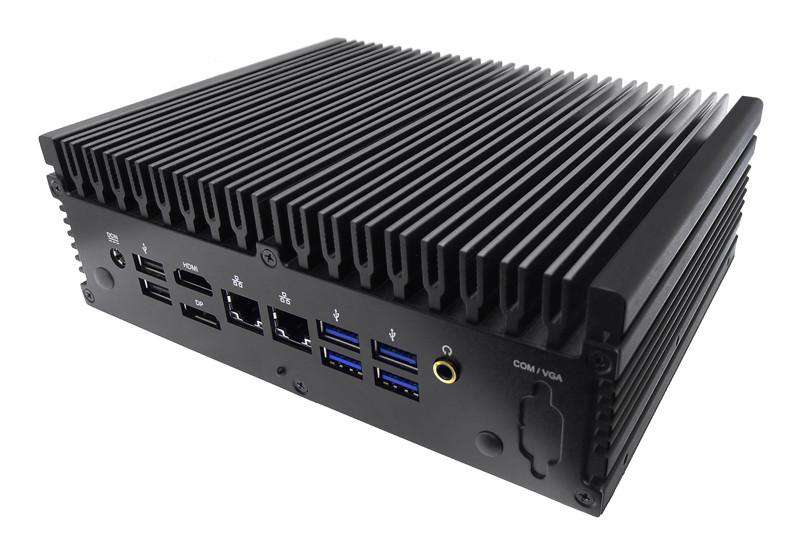

Jetway JBC382F632W-6300U-B (Skylake, 32GB, WLAN)

com IVA
830.25€

sem IVA
675.00€
Sku: JBC382F632W-6300U-B
Tipo de Produto: PCs Industriais
Fabricante: Jetway

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

Mini PC Fanless Industrial com processadores Intel Skylake i5-6300U de 35W, suporta memórias SO-DDR4 até 32GB, Dual LAN e WiFi. Caixa robusta em Alumínio ideal para ambientes exigentes.

  • Intel® Skylake-U i5-6300U, TDP: 15W
  • 2 slots SO-DIMM DDR4 até 32GB
  • Suporta 1x HDD / SSD 2.5” SATA
  • Suporta 1x SSD m-SATA (Mini PCIe)
  • Saídas de vídeo: DisplayPort / HDMI
  • 1x Mini PCIe Half size, 1x Mini PCIe Full size (partilhada com mSATA)
  • 4x USB 2.0 + 4x USB 3.0
  • Dual Intel LAN Gigabit
  • WiFi
  • Jack DC-in 12V com bloqueio



Jetway JBC382F632W-6300U-B datasheet




Especificações

  • Dimension (W*H*D)
  • 185 * 142 * 60  mm
  • Construction
  • Aluminum housing
  • Colors
  • Black
  • MB model
  • JBC382F632-6300U-B (i5-6300U)
  • CPU & CHIP
  • INTEL® Skylake-U /i5-6300U, TDP: 15W
  • BIOS
  • AMI 128Mb Flash ROM
  • Memory
  • 2 * SO-DIMM DDR4 Slot (Max. 32GB)
  • Storage Space
  • 1 * 2.5” SATA Device
  • 1 * m-SATA SSD Device (Mini PCIe)

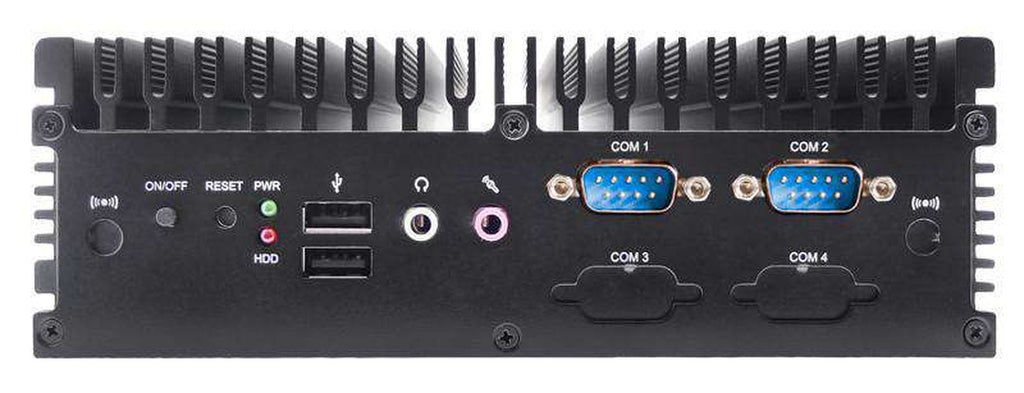

  • Front I/O Port
  • 2 * USB 2.0
  • 2 * COM
  • 1 * MIC , 1 * Line out

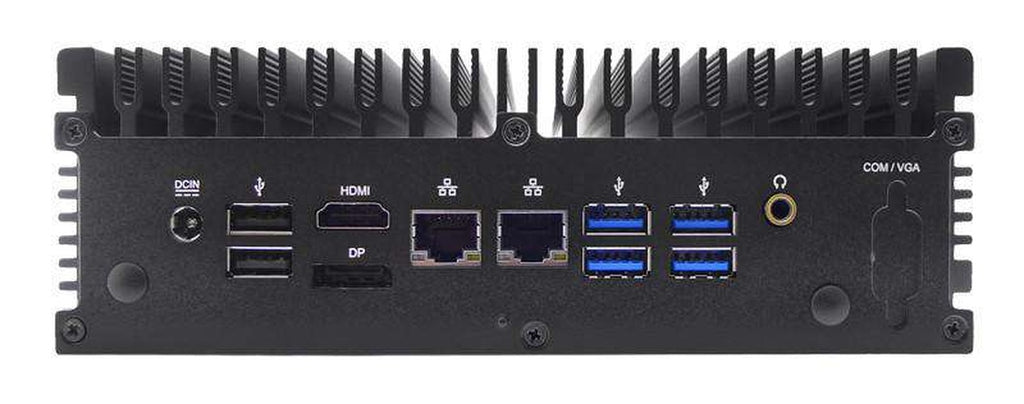

  • Rear I/O Port
  • 2 * USB 2.0 , 4 * USB 3.0
  • 1 * DP (max resolution:4096 x 2304@60Hz)
  • 1 * HDMI (max resolution:4096 x 2160@24Hz)
  • 2 * RJ45 (Intel Gigabit LAN)
  • 1 * Line out
  • WiFi
  • Expansion Interface
  • Mini PCIe # 1 : Half-size (for mini PCIe module)
  • Mini PCIe # 2 : Full-size (shared with mSATA)
  • Power Source
  • Lockable 12V DC-in Jack
  • Adapter : AC_90~240V / DC_12V_5A / 60W
  • Certification
  • EMC : CE , FCC
  • Safety : RoHS , ErP
  • Environment
  • Operating Temperature : 0 ~ 50°C
  • Storage Temperature : -20 ~ 70°C
  • Mounting
  • Wall mounting Kits
  • ­­Packing
  • Net Weight：2.2KG
  • Gross Weight：3.5KG
  • Color Box Dimension：250(W) x 118 (D) x 295 (H) mm
