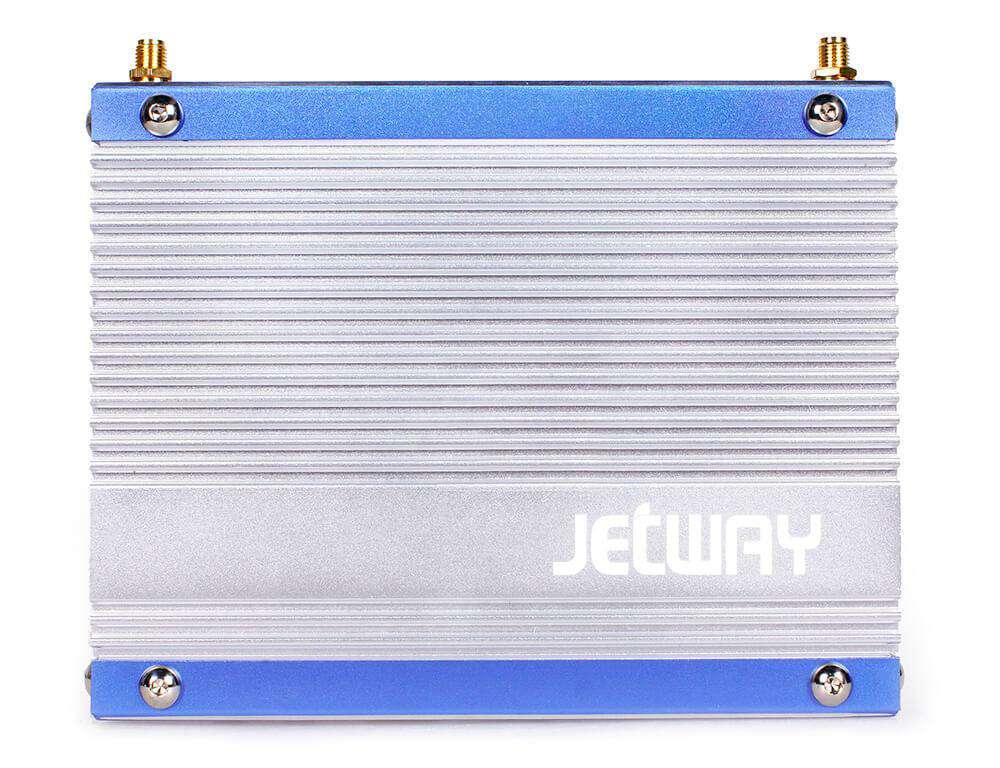

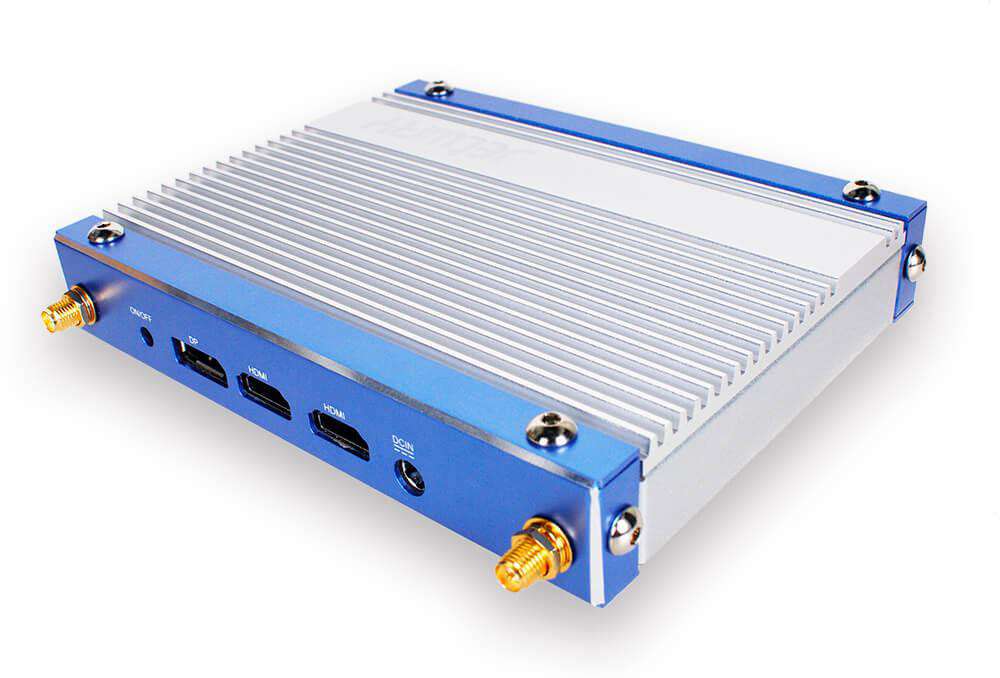

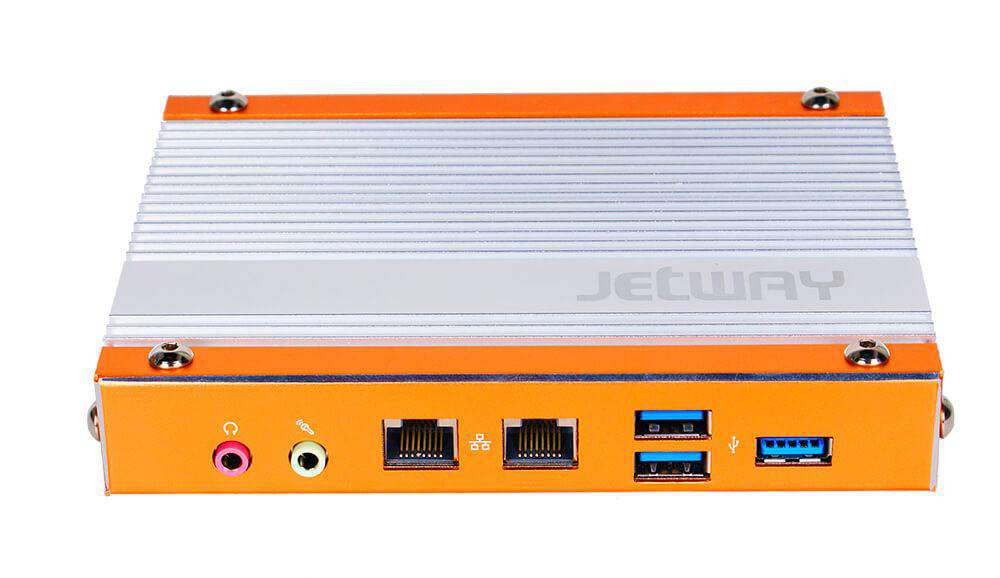

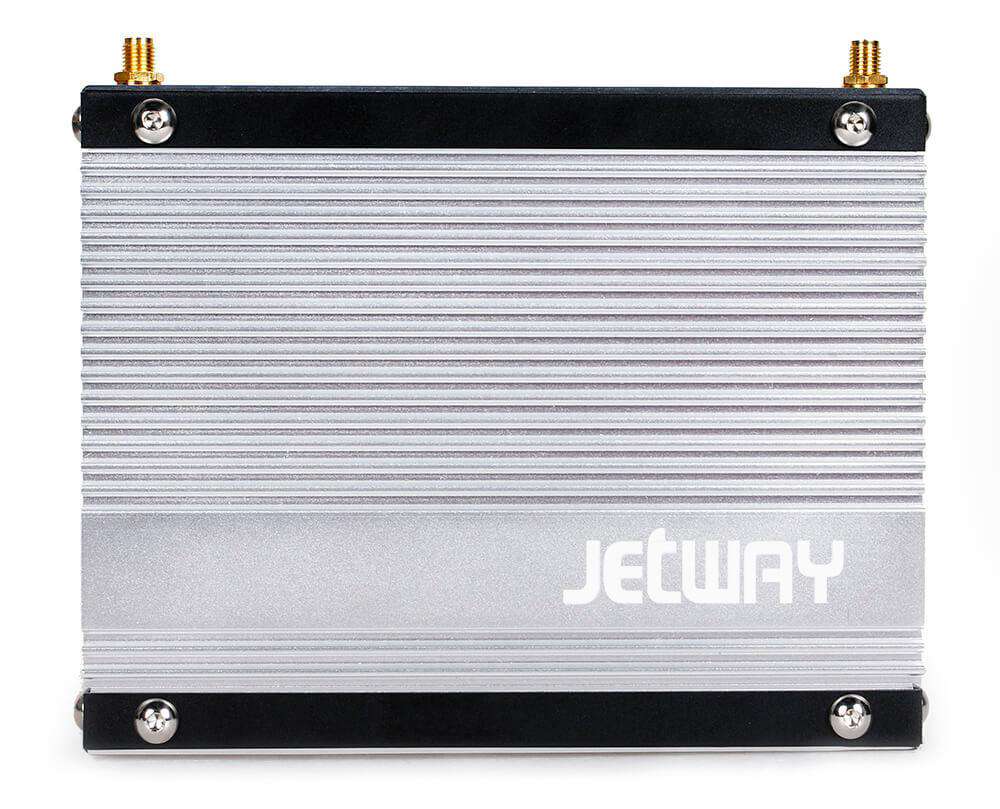

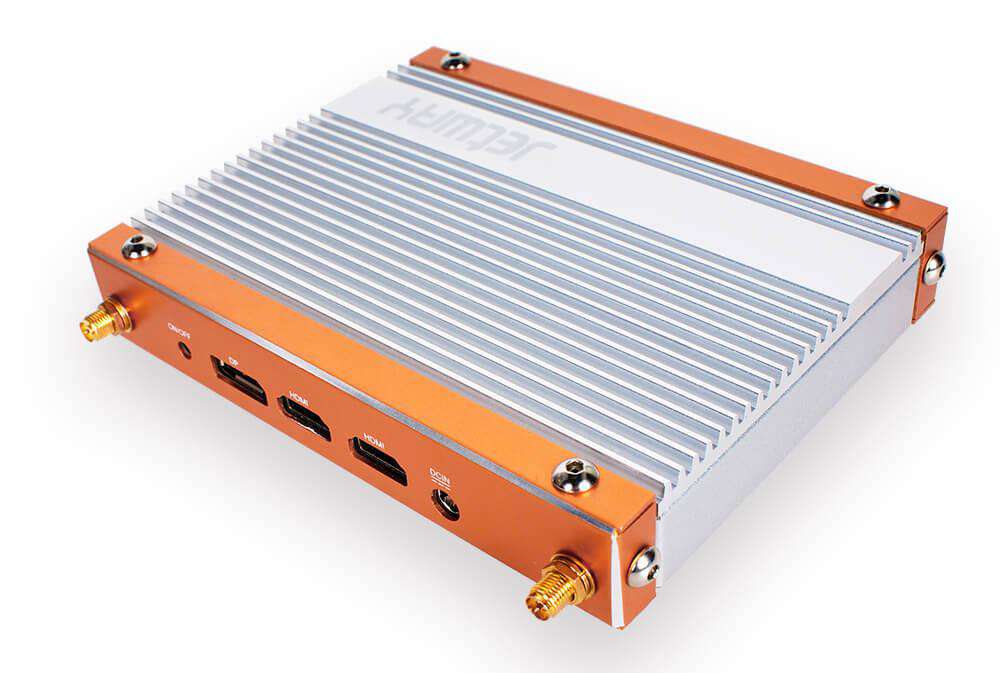

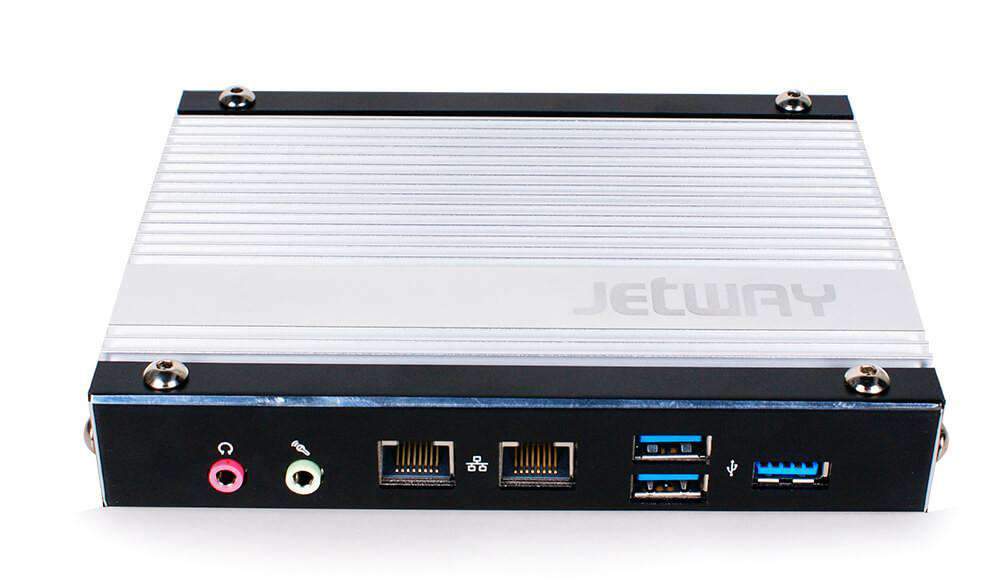

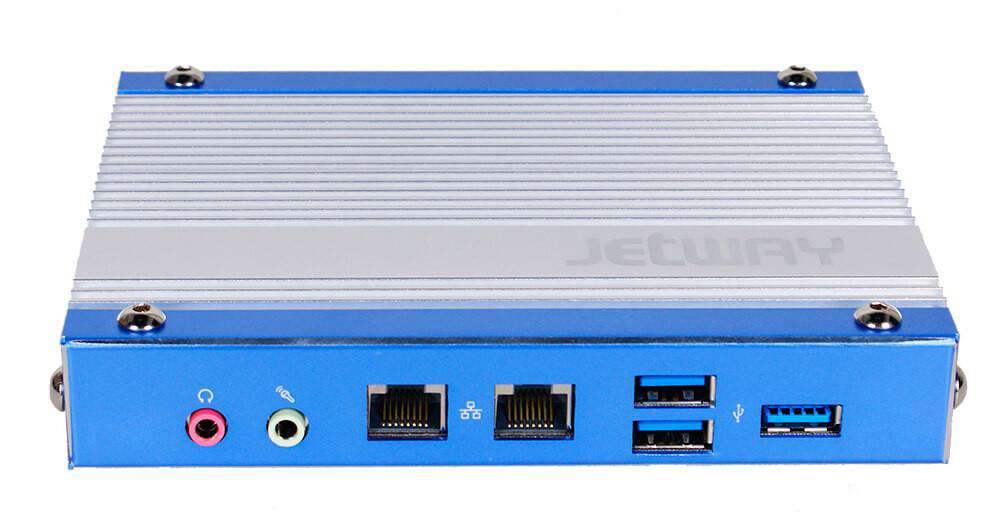

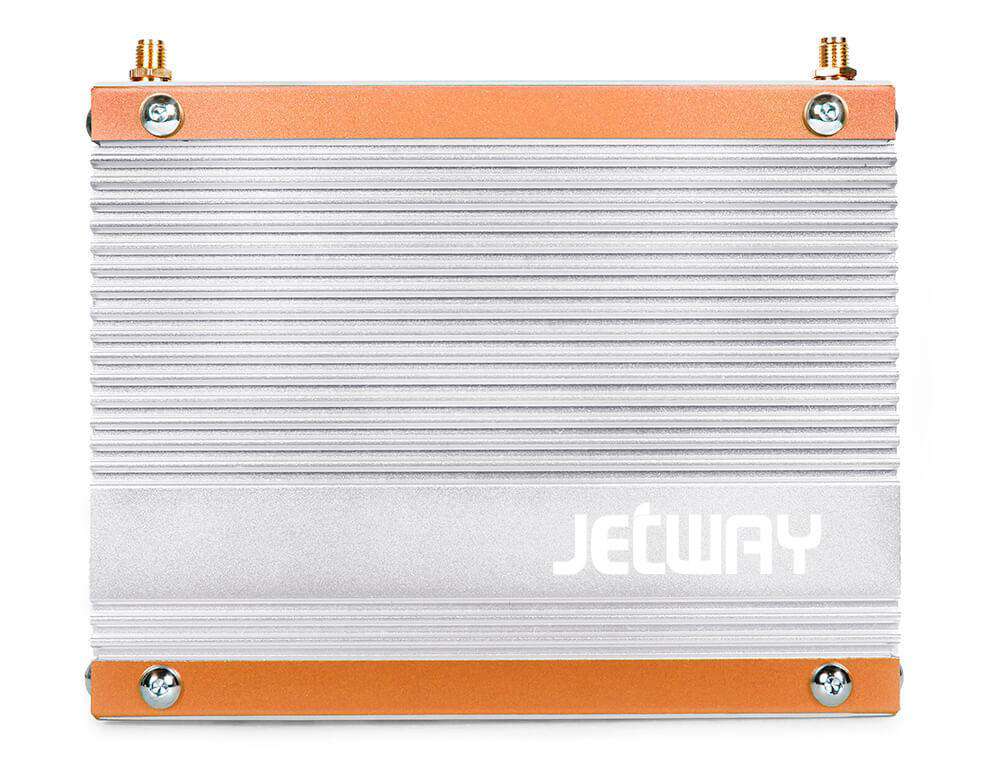

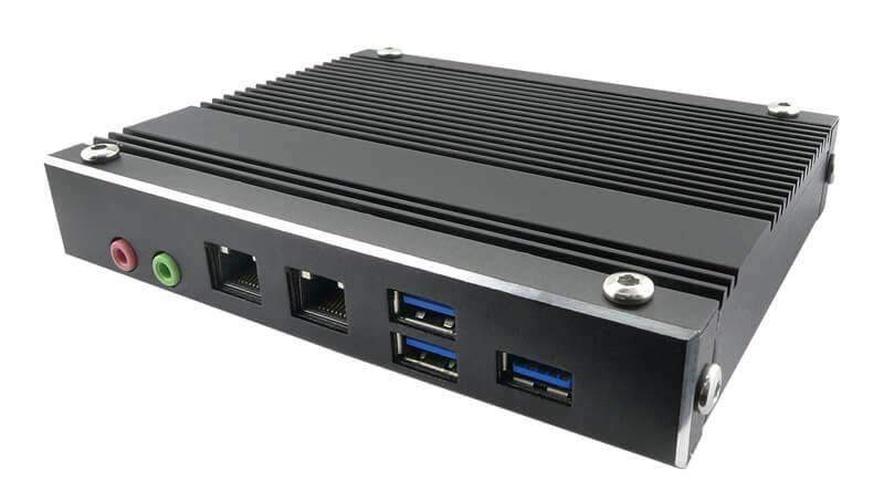

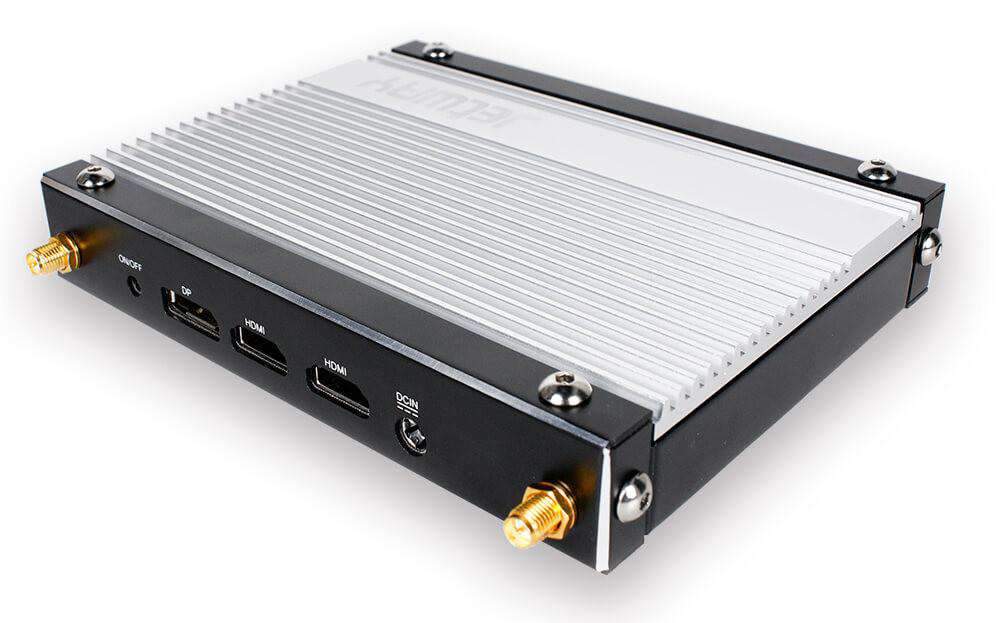

Slim Design fanless mini-PC, CPU Intel Braswell-D J3160 2.24GHz Quadcore, 4Gb DDR3 onboard, Dual Lan, dual HDMI e 1 DisplayPort para exibição independente. Chassi robusto, de baixo perfil em Alumínio concebido preparado para se adaptar a qualquer ambiente.
- CPU INTEL® Braswell-D J3160 2.24GHz Quadcore
- 4G DDR3L 1600MHz onboard
- Suporta gráficos DirectX 12 3D
- CODEC de áudio HD integrado
- 2x PCI Express LAN Gigabit
- 1x DisplayPort e 2x saídas HDMI
- 3x portas USB3.0
- 1x slot M-SATA (Full size)
- 2x slots Mini PCI-E (Full size + Half size)
- Protecção contra choque e vibração
- Slim design 25mm
Especificações:
|
Case
|
Panel Material
|
Aluminum
|
|
Color
|
Option
|
|
Coating Requirement
|
Spray Paint + Anode
|
|
Cooling Mode
|
Fan less Fully sealed design
|
|
System Specification
|
Form Factor
|
uTX
|
|
Processor
|
INTEL® Braswell-D J3160 2.24GHz/QC
|
|
GPU
|
INTEL® HD Graphics 400
|
|
System Chipset
|
INTEL® Braswell-D J3160 (SOC)
|
|
System Memory
|
4G/DDR3L
|
|
BIOS
|
64MB SPI Flash ROM
|
|
Ethernet
|
2*Realtek® RTL8111G Gigabit LAN
|
|
Audio
|
Realtek® ALC662 HD Audio
|
|
Storage
|
1* M-SATA connector
|
|
WIFI Module
|
Option
|
|
Optical Device
|
N/A
|
|
Expansion
|
2*PCI-E mini card for WLAN
|
|
Display Output
|
1*DP+2*HDMI
|
|
Display
|
Three Independent Displays
|
|
Resolution
|
3840x2160@ 30Hz、2560x1600@60Hz
|
|
I.O Port
|
3*USB3.0、1*Line-out、1*MIC、2*RJ45、1*Power Button、1*DC-Jack
|
|
Power Adapter
|
DC-IN (9~24V)
|
|
OS Support
|
Windows 7/8.1/10
|
|
Temperature
|
Operating：-10 ~ +60℃
|
|
Humidity
|
20%~90% (non condensing)
|
|
Dimension
|
148.0mm*116.0mm*25.0mm
|
|
Certification
|
FCC CE (Option)
|
