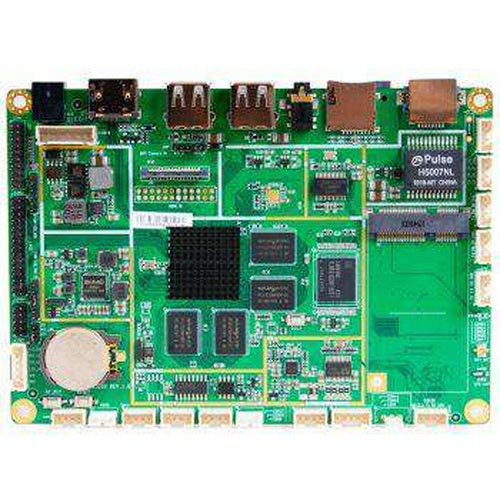

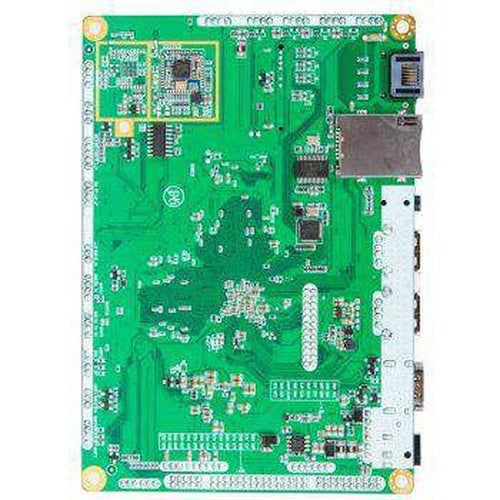

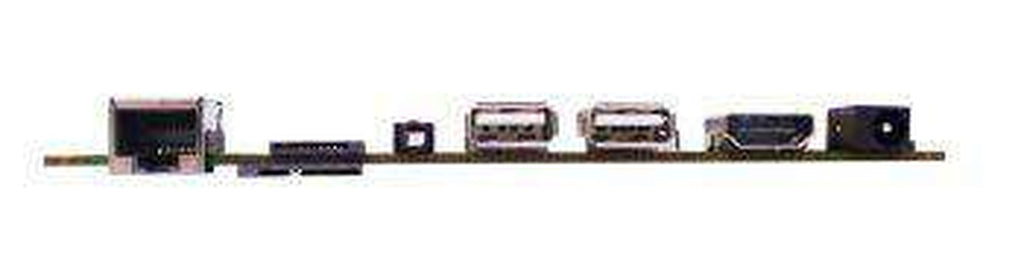

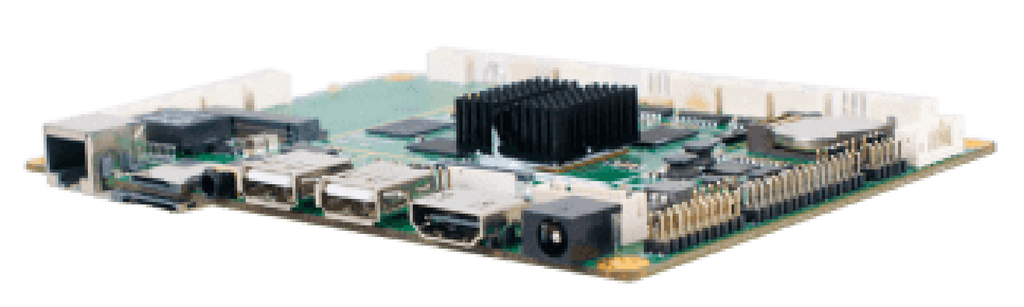

Jetway ARM-R3288-2N (ARM Cortex A17, Android 5)

Formato

Dimensions

–3.5” SBC (102 * 146mm)

Sistema

CPU

– Rock chip® ARM Cortex A17 RK3288 1.8GHz

Core Number

– Quad-core

Max Speed

– 1.8G

L2 Cache

– 0

Chipset

–  Rock chip® ARM Cortex A17 RK3288 SoC

BIOS

– 0

PMU

– Rock chip® RK808‐B

Slots de Expansão

PCI

– 0

Mini-PCIe

– 1 (full size，by USB interface)

SIM card holder

– 1

Technology

– Onboard DDR3L 1333MHz 2GB

Max.

– 4GB

Socket

–

Flash Rom

– 8GB (Max 32GB)

Gráficos

Controller

– (by CPU)

VRAM

– Shared Memory

VGA

– 0

LVDS

– 1 * 24 bit Dual Channel connector

eDP

– 1 * eDP support up to 3840*2160@60Hz

HDMI

– 1 (2.0)

DVI‐D

– 0

MultiDisplay

– Dual Display

Ethernet

– 10/100/1000 Mbps

Controller

– 1 * Realtek RTL8211E‐VB Gigabit LAN

Connector

– 1 * RJ 45

Áudio

CODEC

– HD Audio : ES8316

Channel

– 2 Channel

Características Especiais

WIFI

– 802.11 b/g/n,2.4G

WIFI Chip

– RTL8723BS

Bluetooth

– BT‐V4.0 BLE

3G

–  WCDMA, EVDO,CDMA,GSM (Option)

LTE

–  LTE‐TDD/LTE‐FDD/TD‐SCDMA/EDGE/GPRS/GSM (Option)

OS

–  Android 5.1

VGA

– 0

DVI‐D

– 0

Display Port

– 0

Ethernet

– 1

Audio

– 1 (Line-Out, MIC)

Serial

– 0

SIM Socket

– 1

TF Card Socket

– 1

LVDS / inverter

– 1 (24 bit)

USB

– 4 ( 4 * USB 2.0)

Others

– 1 * I2C

SATA

– 0

Interval

– 256 segments, 0,1,2…255sec/min

Power

Input PWR

– 12V DC-in ( PWR Con)

Power On

AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Certificados

Certifications

– CE, FCC, RoHS, REACH

Warranty

Warranty

– 2 Years Limited Warranty

Temperature

– Operating: 0°C ~ 45°C

– Storage: -20°C ~ 65°C

Packing

– Net Weight:
‐ Gross Weight:
‐ Color Box dimension:
