Jetway HBFCU792V-3965 (Celeron 3965U, VGA Series)

MB Model

– JNU792C-7100 Core i3-7100U Processor (Default)
– JNU792V-3965 Celeron 3965U Processor

Part No

COM Series

Non-Wifi

Mini PCIe ac Wifi card

TPM2.0

– HBFCU792C-7100-B (Default)

– HBFCU792CZ-7100-B

– HBFCU792C-7100-T
– HBFCU792CZ-7100-T

VGA Series

Non-Wifi

Mini PCIe ac Wifi card

TPM2.0

– HBFCU792V-3965-B

– HBFCU792VZ-3965-B

– HBFCU792V-3965-T
– HBFCU792VZ-3965-T

BIOS

– AMI 16MB SMT Flash ROM

CPU/Chipset

– Intel® Skylake/Kabylake U-series Processor (TDP15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.

Memory

– 2 * 260-pin Dual-channel DDR4 2133MHz SODIMM up to 32GB

Storage

– 1 * 2.5” SATAIII 6Gb/s internal drive bay (only support 2.5″ HDD with a height ≤ 10mm)
– 1 * full-size mSATA/Mini-PCIe shared slot

Network

– 1 * Intel i211AT GbE, 1 * Intel i219LM GbE
– 1 * half-size Mini-PCIe slot (for WiFi model installed)

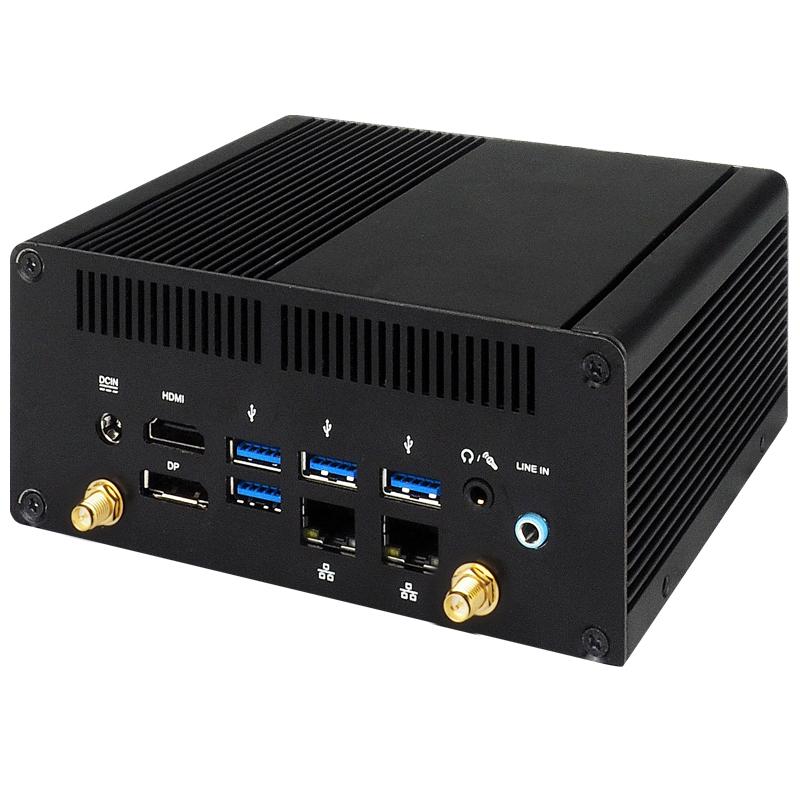

Rear Panel I/O

– 4 * USB3.0 (COM Series)
– 2 * USB3.0, 2 * USB2.0 (VGA Series)
– 1 * HDMI 1.4 (max. 4096 x 2304@24Hz resolution)
– 1 * DP (Max. 4096 x 2304@60Hz resolution) (COM Series)
– 2 * RJ45
– 1 * Line-in, 1 * MIC+Line-out Combo
– 2 * Antenna holes (WiFi only)
– 1 * DC-in jack

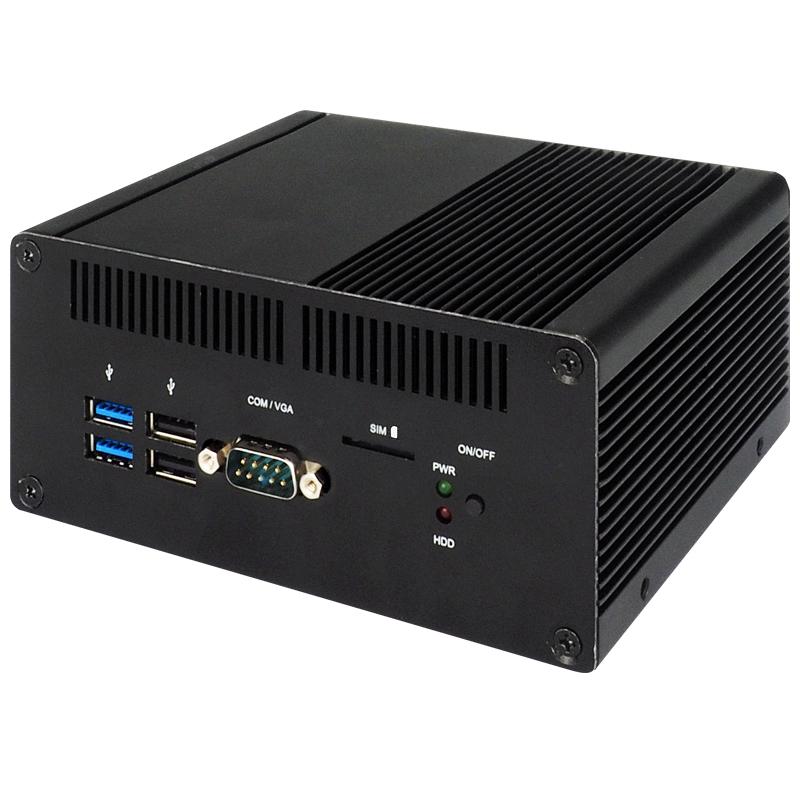

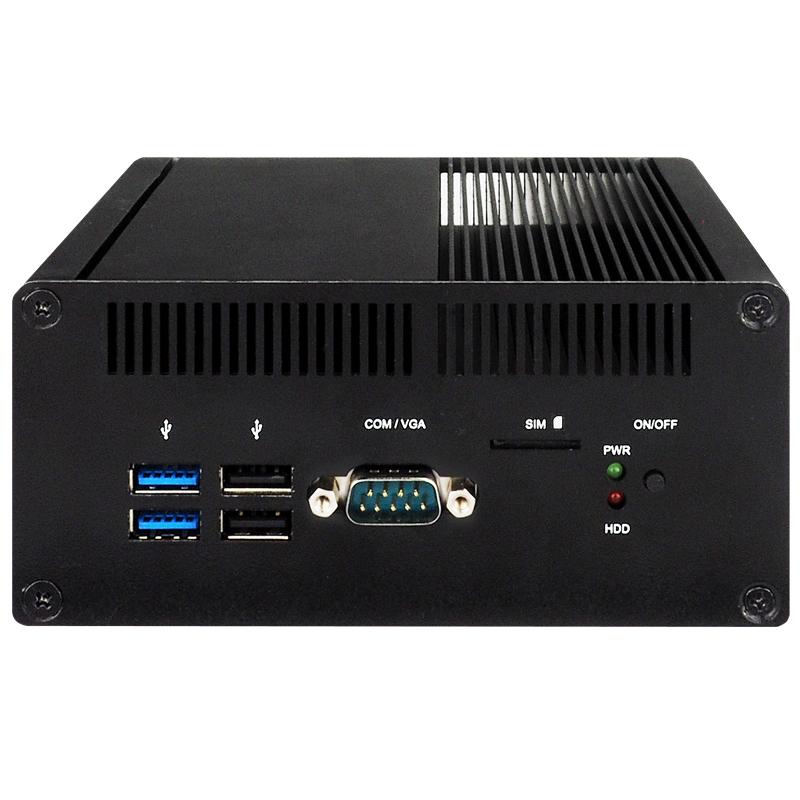

Front Panel I/O

– 1 * Power button
– 1 * Power LED, 1 * HDD LED
– 1 * SIM Card Slot
– 2 * USB2.0, 2 * USB3.0
– 1 * COM (RS232/422/485) (COM Series only)
– 1 * VGA (Max. resolution: 1920 x 1200@60Hz) (VGA Series only)

Power Source

– AC to DC Adapter / DC12V_5A_60W
– AC 90~240V input

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

Temperature

– Operating Temperature: -20 ~ 60° C (Under the condition of using mSATA or SSD)
– Operating Temperature: 0 ~ 50° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 70° C
– Humidity: Between 40% and 60%, non-condensing

Dimensions

– 144 (W) x 116.9 (D) x 65 (H) mm

Packing

– Net Weight: 1.8KG
– Gross Weight: 2.8KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm

OS Support

– Skylake-U CPU support Win7, Win8, Win10.
– Kabylake-U CPU only support Win10.

Warranty

– 2 Year limited warranty
