Model

– HBFDF05-45G7-V (CPU: i5-1145G7E)
– HBFDF05-45G7-VT (CPU: i5-1145G7E, TPM )
– HBFDF05I-45G7-V (CPU: i5-1145G7E, Wifi)
– HBFDF05X-45G7-V (CPU: i5-1145G7E, Wifi)
– HBFDF05I-45G7-VT (CPU: i5-1145G7E, TPM, Wifi)
– HBFDF05X-45G7-VT (CPU: i5-1145G7E, TPM, Wifi)
– HBFDF05-35G7-V (CPU: i5-1135G7)
– HBFDF05-35G7-VT (CPU: i5-1135G7, TPM)
– HBFDF05I-35G7-V (CPU: i5-1135G7, Wifi)
– HBFDF05X-35G7-V (CPU: i5-1135G7, Wifi)
– HBFDF05I-35G7-VT (CPU: i5-1135G7, TPM, Wifi)
– HBFDF05X-35G7-VT (CPU: i5-1135G7, TPM, Wifi)

CPU/Chipset

– Intel® Tiger Lake-UP3 Processor (TDP 15W), Default: 1145G7E

BIOS

– AMI Flash ROM

Memory

– 2 * DDR4-3200MHz SO-DIMM up to 64GB

Network

– 1* Intel® i219LM GbE
– 1* Intel® i225V 2.5GbE

Graphics

– Intel® HD Graphics, shared memory
– 2 * HDMI 2.0b (Max. resolution:4096 x 2160@60Hz)
– 2 * DP1.4 (Max. resolution:4096 x 2304@60Hz)
– Support Four Display (4K HDR Displays or One 8K SDR Displays (DP))

Storage

– 1 * M.2 M-key (2242/2280) Support PCIex4 (NVMe)
– 1 * 2.5” SATAIII 6Gb/s internal drive bay (Max. Height 9.5 mm)

Expansion

– 1 * M.2 E-key (2230) USB2.0/PCIex1 interface support CNVi

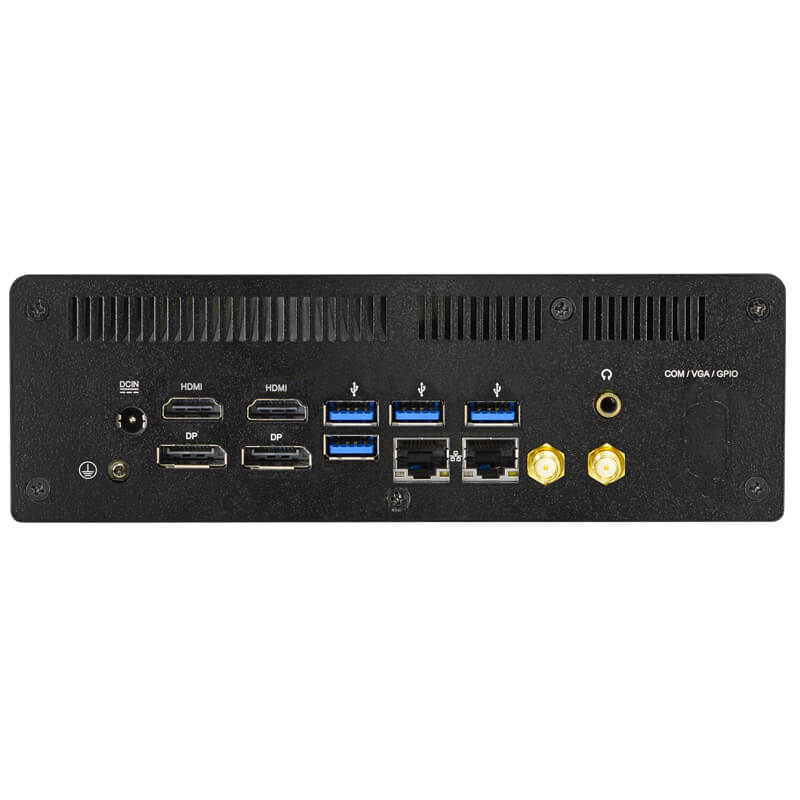

Rear Panel I/O

– 4 * USB 3.2(Gen2)
– 2 * HDMI 2.0b
– 2 * DP1.4
– 2 * RJ45
– 1 * Line-out/MIC Combo
– 1 * DC-in
– 1 * COM or GPIO (Optional)

Front Panel I/O

– 1* Power button
– 1* Reset button
– 1* Power LED
– 1* HDD LED
– 2* USB 2.0
– 4* COM (2 sets of installation, 2 set of accessories box)

Internal Connector

– NA

Power Source

– MB : DC-in 12~24V
– Adapter : AC_90~240V / DC_12V / 90W

Compliance

– CE, FCC, LVD Ready, RoHS

Dimensions

– System: 193 (W) x 142.4 (D) x 62 (H) mm
– Box: 250 (W) x 118 (D) x 295 (H) mm

Temperature

– Operating Temperature: -20 ~ 50° C (Under the condition of using M.2 interface SSD); 0 ~ 50° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -40 ~ 85° C
– Humidity : 10% ~ 95% RH @40°C (non-condensing)

OS Support

– UEFI Win10 64-bit (Version: Build 10.0.19042.631), Win 10 IoT Enterprise 64-bit LTSC 2019 (Version: Build 17763.107), UEFI Win 11 64-bit (Version: Build 22000.65), UEFI Win 11 IoT Enterprise (Version: Build 22000.65), CentOS (Version: 8.2.2004), Fedora-LXDE (Version: 33.1.2), Fedora Workstation (Version: 33.1.2), Fedora Server (Version: 33.1.2), OpenSUSE (Version: 15.2), Ubuntu Standard / LTS (Version: 20.04.1)

Warranty

– 2 Year limited warranty

Part Number

  Description

 HBFDF05 Series

 L01AS064-F

 DC12V/90W Adapter

 Change according to shipping area

 Power cord

 LCSCHBFDXXX-F

 HBFX_Series Barebone Screw Pack

 HCSFDMWM01B-F

 FD Series Wall mount

 HCS3XXDINRAILPS-F

 DIN Rail Clip

 J05-ANT-GX57245-F

 Antenna (WiFi only)

 HNSCOMWFCB375NF-F

 AW-CB375NF M.2 2230 (WiFi only)

 HNSCOMWFAX200NV-1F

 Intel AX200NGWG M.22230 (WiFi only)

 G01-COM-H2M20-1F

 COM Cable

 HBDRK-FD-S

 HBFD SERIES DIN RAIL KITS (optional)
