Jetway HBFDF13-6412-B (Intel Elkhart Lake J6412, 4* Intel 2.5Gb}

MB Model

– MF13-00 (J6412)
– MF13-03 (J6412+32GB EMMC)
– MF13-07 (J6412+32GB EMMC+TPM)

Part No

Non-WiFi

M.2 ac Wifi card

– HBFDF13-6412-B (Default)
– HBFDF13-6412-E (EMMC)
– HBFDF13-6412-T (EMMC+TPM)

– HBFD13I-6412-B (Default)
– HBFDF13I-6412-E (EMMC)
– HBFDF13I-6412-T (EMMC+TPM)

CPU/Chipset

– Intel® Elkhart Lake SoC Processor / Default: J6412

Memory

– 1 * SO-DIMM DDR4-3200MHz up to 32GB

Storage

– 1 * 2.5” SATA3 6Gb/s internal drive bay (only support 2.5″ HDD with a height ≤ 10mm)
– 1 * M.2 M-KEY(2242/2280,SATA/PCIe Gen.3×2)support NVME

Network

– 4 * Intel® i225V 2.5GbE

Expansion slot

– 1 * M.2 E-KEY(2230,USB2.0/PCIe Gen.3×1)
– 1 * M.2 B-KEY(3042/3052,USB3.1)

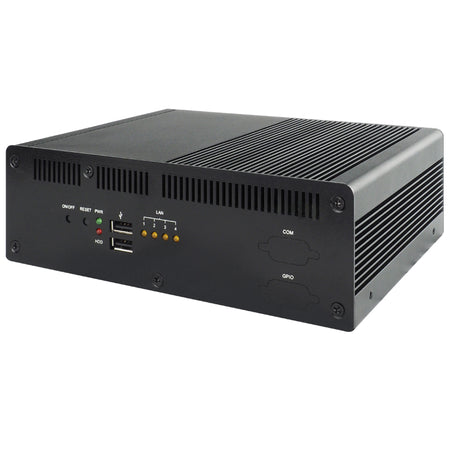

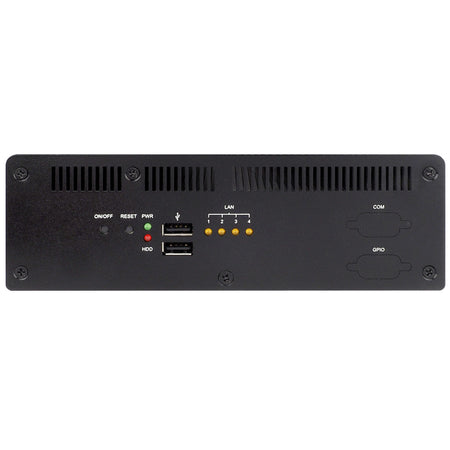

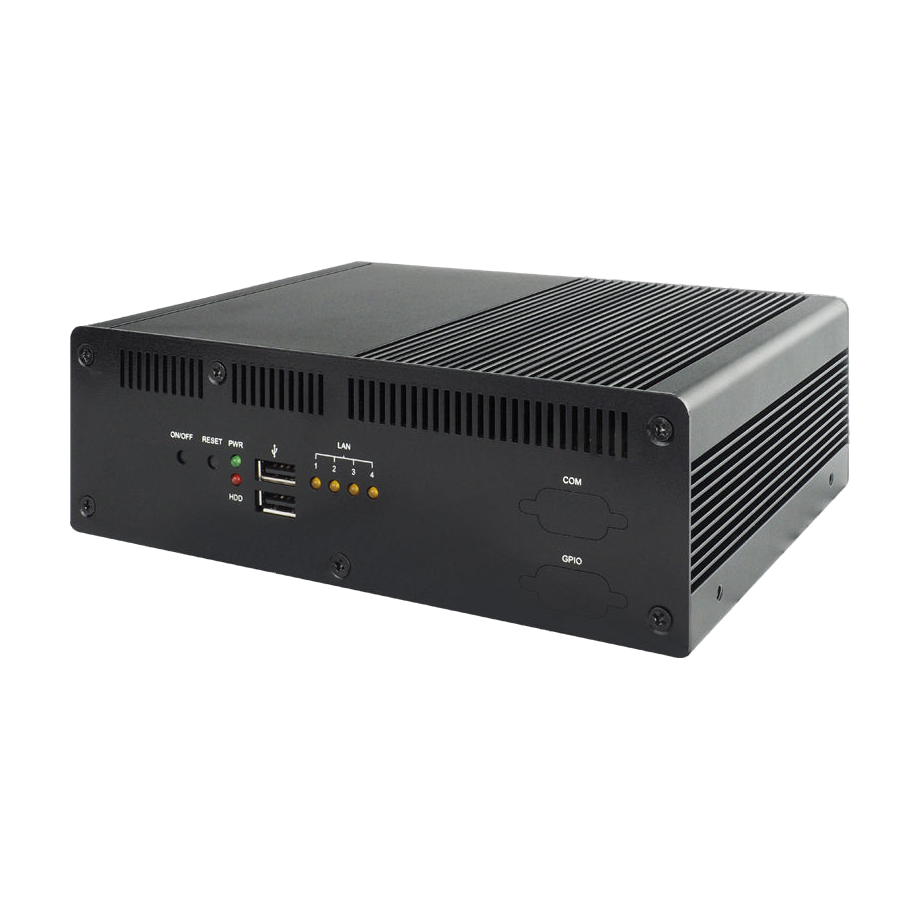

Front Panel I/O

– 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB2.0
– 4 * NIC LED
– 1 * COM & 1 * GPIO (option)

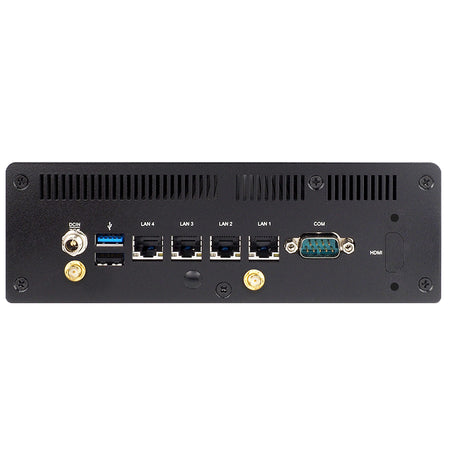

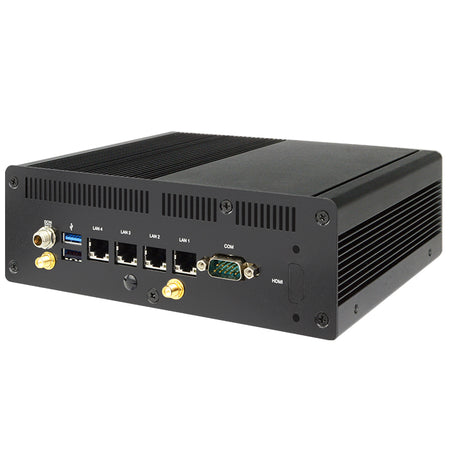

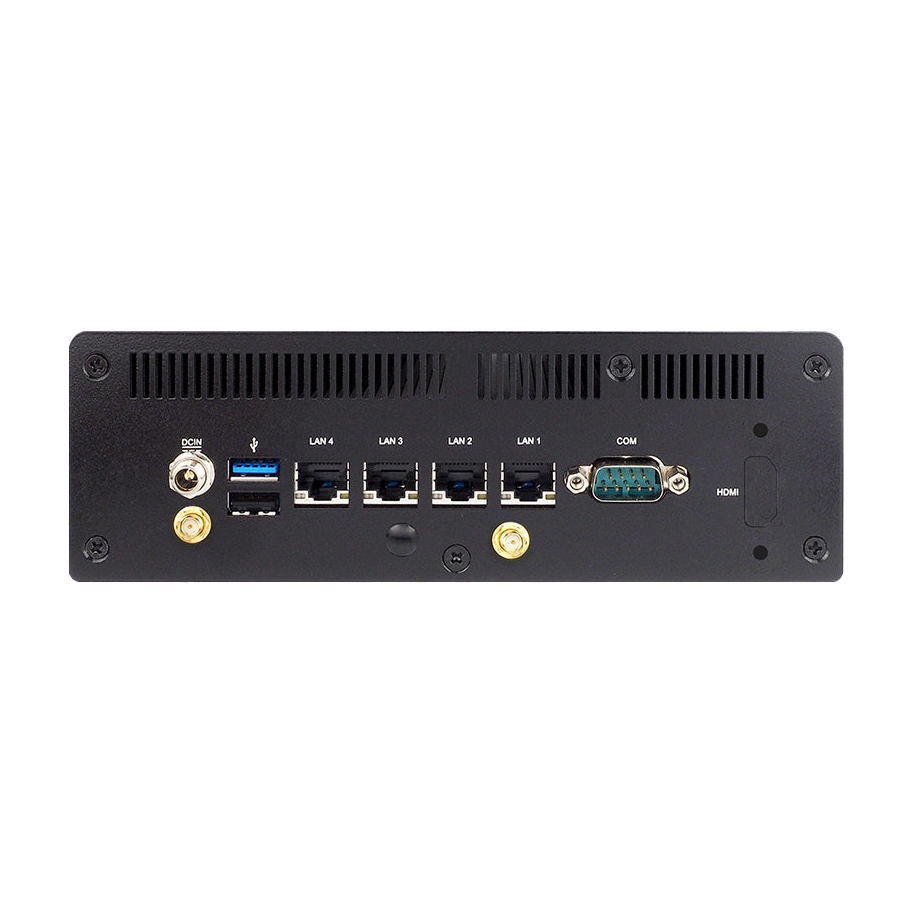

Rear Panel I/O

– 4 * RJ45
– 1 * USB3.1, 1*USB2.0
– 1 * HDMI (Reserve, Max. resolution:1920×1080@60Hz)
– 1 * COM (RS232/422/485)
– 1 * DC-in jack Lock type

Other Features

– TPM2.0 (On board option)
– 32GB EMMC (On board option)
– 0~255 segments by software programmable

Power Source

– Adapter : AC 90~240V input / DC12V-60W output
– MB : DC12V input

Compliance

– CE, FCC, LVD, RoHS

Temperature

– Operating Temperature: -20 ~ 60° C (Under the condition of using mSATA or SSD)
– Operating Temperature: 0 ~ 60° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 70° C
– Humidity: Between 40% and 60%, non-condensing

Dimensions

– 193 (W) x 142.4 (D) x 62 (H) mm

Packing

– Net Weight: 2.2KG
– Gross Weight: 3.2KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm

OS Support

– Windows 10, Windows 11, Linux

Warranty

– 2 Years limited warranty

Part Number

  Description

 HBFDF13 Series

 L01AS052-F

 Lockable Adapter 12V/60W

 Change according to shipping area

 Power cord

 LCSCHBFDXXX-F

 HBFX_Series Barebone Screw Pack

 HCSFDMWM01B-F

 FD Series Wall mount

 HNSCOMWFAWCB161HF

 Mini PCIe ac Wifi card (Wifi model only)

 J05-ANT-GX57245-F

 Antenna2G4/5G 2.8dBi GX572450001SM (Wifi model only)

 G01-COM-H2M20-1F

 COM Cable

 G01-2X10A-HDMI-1F

 HDMI Cable
