Jetway HBFDF835-8365-V (Whiskey Lake i5-8365UE, USB Type-C, 4K)

Model

– HBFDF835-8365-V (Default)
– HBFDF835I-8365-V (Wifi)
– HBFDF835-8265-V
– HBFDF835I-8265-V (Wifi)

CPU/Chipset

– Intel® Whiskey Lake-U SoC Processor (TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.

BIOS

– AMI Flash ROM

Memory

– 2* DDR4 2400MHz SO-DIMM up to 64GB

Network

– 1* Intel® i219LM GbE
– 1* Intel® i225V 2.5GbE

Graphics

– Intel® HD Graphics, shared memory
– 1* DP (Max Resolution: 4096×2304@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– Support Dual Displays

Storage

– 1* M.2 M-key (2242/2280, PCIe x4/SATA interface) support NVMe
– 1* 2.5” SATAIII Device (support 2.5” HDD with a height ≤ 10mm)

Expansion

– 1* M.2 E-key (2230) support CNVi for WiFi expansion

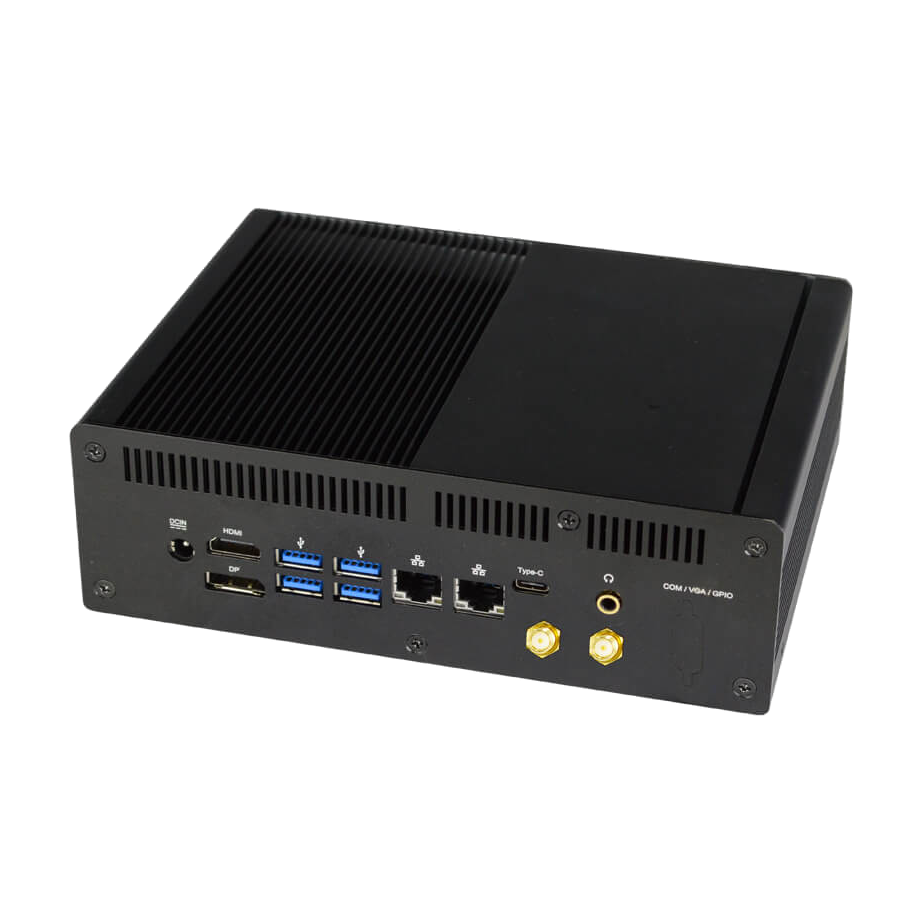

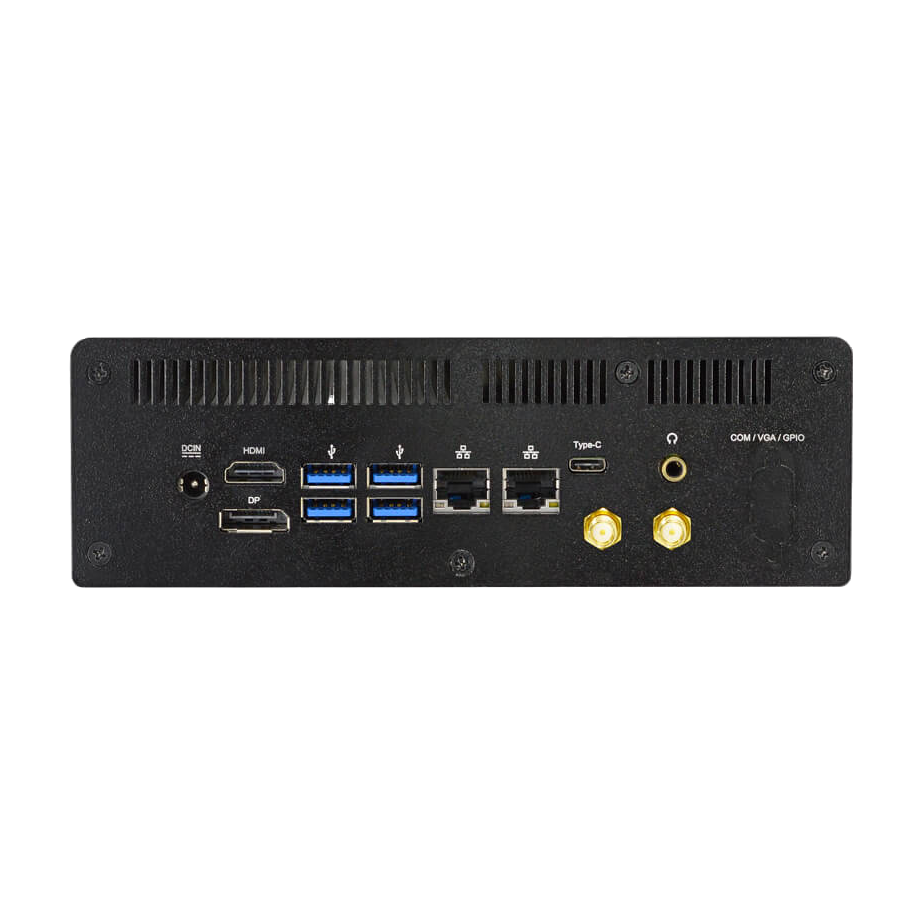

Rear Panel I/O

– 4 * USB 3.1 (Gen.2)
– 1 * USB 3.1 (Gen.2) Type C (USB data transfer only)
– 1 * HDMI 1.4 (Max. resolution:4096 x 2160@30Hz)
– 1 * DP (Max. resolution:4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-out
– 1 * COM
– 2 * Antenna holes (Optional)
– 1 * DC-in jack

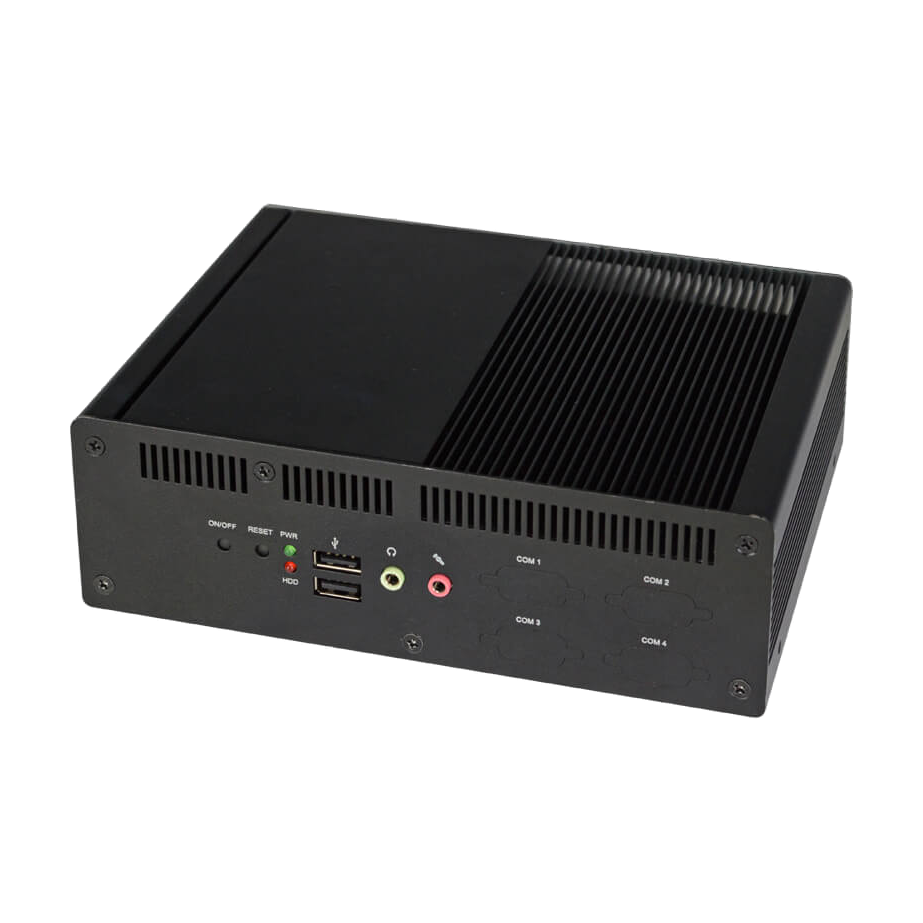

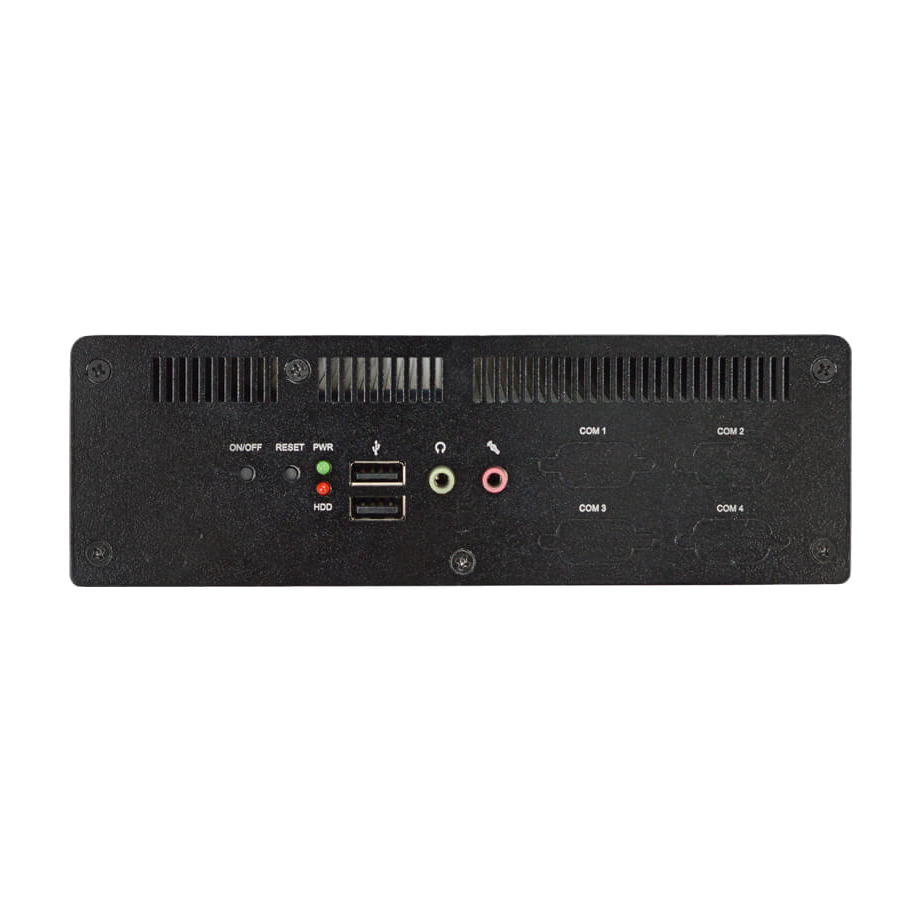

Front Panel I/O

– 1 * Power button
– 1 * Reset button
– 1 * Power LED
– 1 * HDD LED
– 2 * USB 2.0
– 1 * Line-out
– 1 * MIC
– 4 * COM

Internal Connector

– Onboard TPM2.0

Power Source

– MB: DC-in 9~24V
– Adapter: AC_90~240V / DC_12V_7.5A / 90W

Compliance

– CE, FCC, LVD Ready

Dimensions

– System: 193 (W) x 142.4 (D) x 62 (H) mm
– Box: 250 (W) x 118 (D) x 295 (H) mm

Temperature

– Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD)
– Operating Temperature: 0 ~ 50° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 70° C
– Humidity: Between 40% and 60%, non-condensing

OS Support

– Windows 10, Linux

Warranty

– 2 Year limited warranty
