• Intel® Alder Lake-S 12/ 13 Q670E
  • DDR5 SO-DIMM 64GB
  • 8x 2.5GbE
  • 2x 2.5” SATA HDD
  • 1U FLEX 400W
com IVA
859.77€

sem IVA
699.00€
Sku: HBJC153I23-Q670B
Tipo de Produto: PCs Rackmount
Fabricante: Jetway

HBJC153I23-Q670B

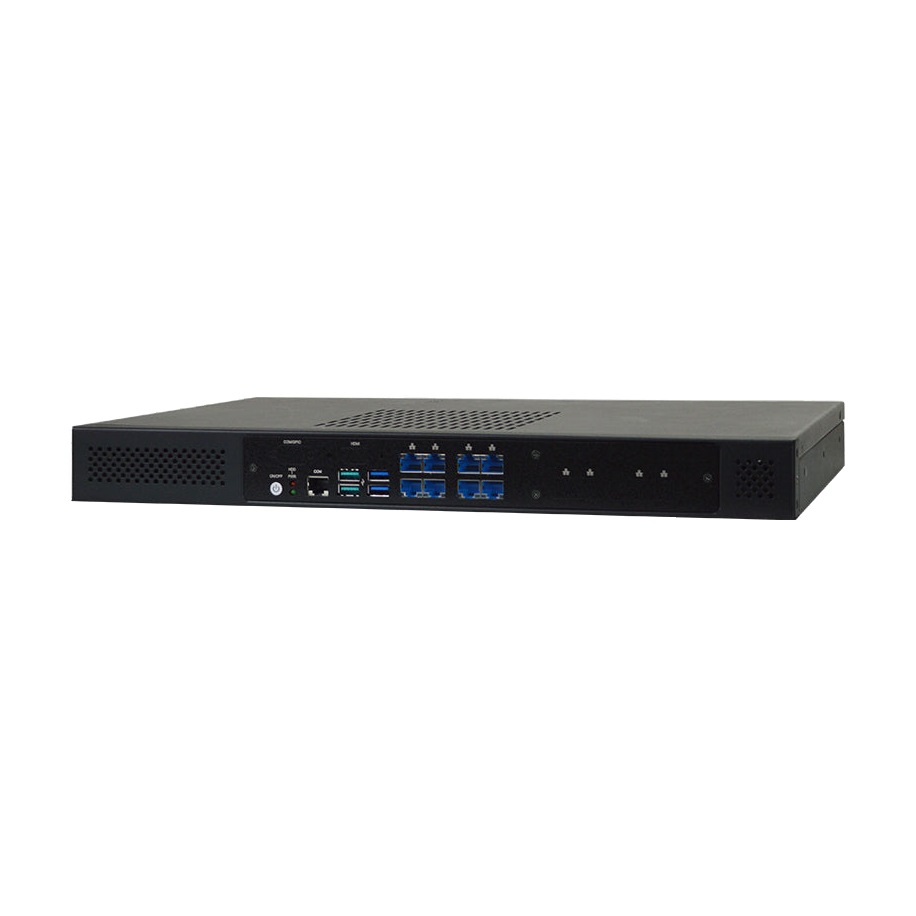

Rackmount PC HBJC153I23-Q670B para CPU's Intel® Core™ 12ª ger, skt LGA1700, 8 portas LAN 2.5GbE

- Intel® LGA1700 suporta Processador Core de 12ª Geração
- Chipset Intel® Alder Lake Q670E
- 2* DDR5 SO-DIMM de 4800MHz, até 64GB
- Suporte para dispositivos HDD SATA de 2* 2.5" em RAID 0, 1
- 1* M.2 (key M, 2242/2280), 1* M.2 (key M, 2280), 1* M.2 (key E), 1* M.2 (key B), 1* PCIex4
- 8* 2.5GbE, 2* USB3.2 (Gen.2), 2* USB3.2 (Gen.1), 2* COM, 1* HDMI
- Entrada de energia ATX com conector ATX de 24 pinos + 4 pinos 12V
- Suporte TPM2.0 (opcional)

Características

Diagrama

HBJC153I23-Q670B_diagram
HBJC153I23-Q670B_diagram

Dimensões

HBJC153I23-Q670B_size
Especificações

Model

– HBJC153I23-Q670B (Default)
– HBJC153I23-Q670G4 (Expansion PCIe 4* Lan Card) system total up to 12* LAN ports
– HBJC153I23-Q670B4 (Expansion PCIe 4* Bypass Lan Card) system total up to 12* LAN ports

MB Model

– MI23-Q6700 (Q670E)
– MI23-Q6702 (optional , Q670E,onboard TPM2.0)

CPU/Chipset

– Intel® 12th/13th LGA1700 Socket Core i7/i5/i3/Pentium/Celeron Processor(Max. 65W TDPs under 180A)
– Intel® Alder Lake Q670E Chipset

BIOS

– AMI Flash ROM
– Support recover crashed BIOS data tool by a USB flash pen driver: Using JetBIOS SW back up tool with any external USB ports

Memory

– 2* DDR5 4800MHz SO-DIMM up to 64GB

Network

– 7* Intel® i225-V 2.5GbE
– 1* Intel® i225-LM 2.5GbE

Graphics

– Intel® UHD Graphics, shared memory
– 1* HDMI (Max Resolution: 1920×1080@60Hz)

Storage

– 1* M.2 M-key (2242/2280, PCIe Gen.4×4 w/SATA interface)
– 1* M.2 M-key (2280, PCIe Gen.4×4 w/SATA interface) support NVMe
– 2* 2.5” SATA HDD device support RAID 0, 1 (support 2.5” HDD with a height≦10mm)

Expansion

– 1* M.2 E-key (2230, USB2.0/PCIe x1) support CNVi
– 1* M.2 B-key (3042, USB3.2 Gen.1/USB2.0/PCIe x1 interface) support 4G Module
– 1* PCIe Gen.4×4 slot

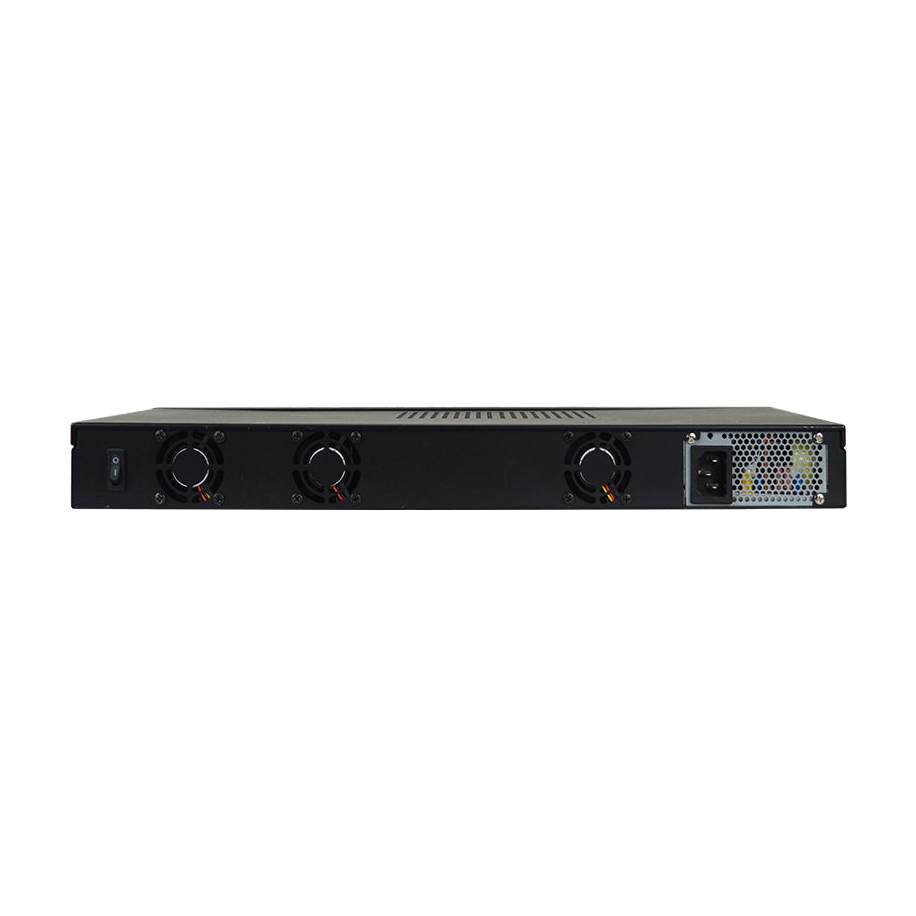

Rear Panel I/O

– AC input CON
– Power on/off SW

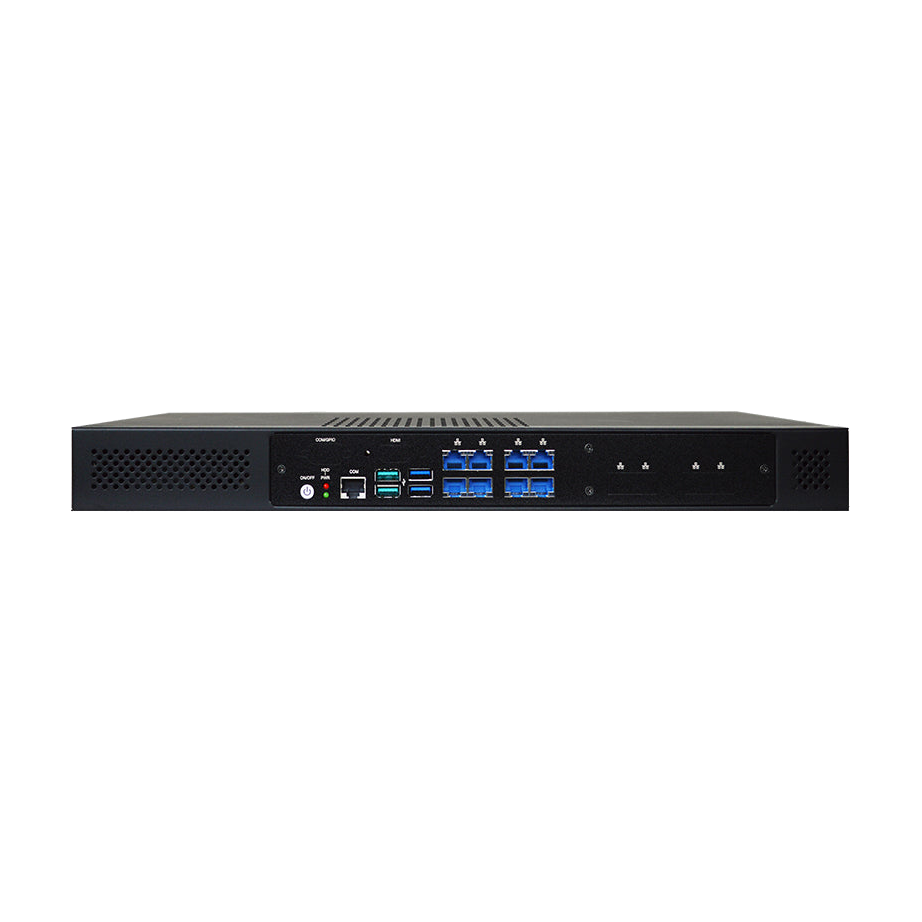

Front Panel I/O

– 8* RJ45
– 2* USB3.2 (Gen.2)
– 2* USB3.2 (Gen.1)
– 1* COM (RS232) (Not installed when leaving the factory, the wires are placed in the parts box)
– 1* HDMI (Not installed when leaving the factory, the wires are placed in the parts box)
– 1* Alarm LED, 1* Power LED
– Power on/off SW

Internal Connector

– SIM Card Holder

Power Source

– Power : 1U FLEX 400W POWER
– MB : ATX Power Input (24pin ATX + 4pin 12V)

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

Dimensions

– System: 430 (W) x 252 (D) x 44(H) mm
– Box: 560 (W) x 400 (D) x 380 (H) mm

Temperature

– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -40 ~ 85° C
– Humidity: 10%~95% @40° C (non-condensing)

OS Support

– Windows 11, Linux

Warranty

– 2 Year limited warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
