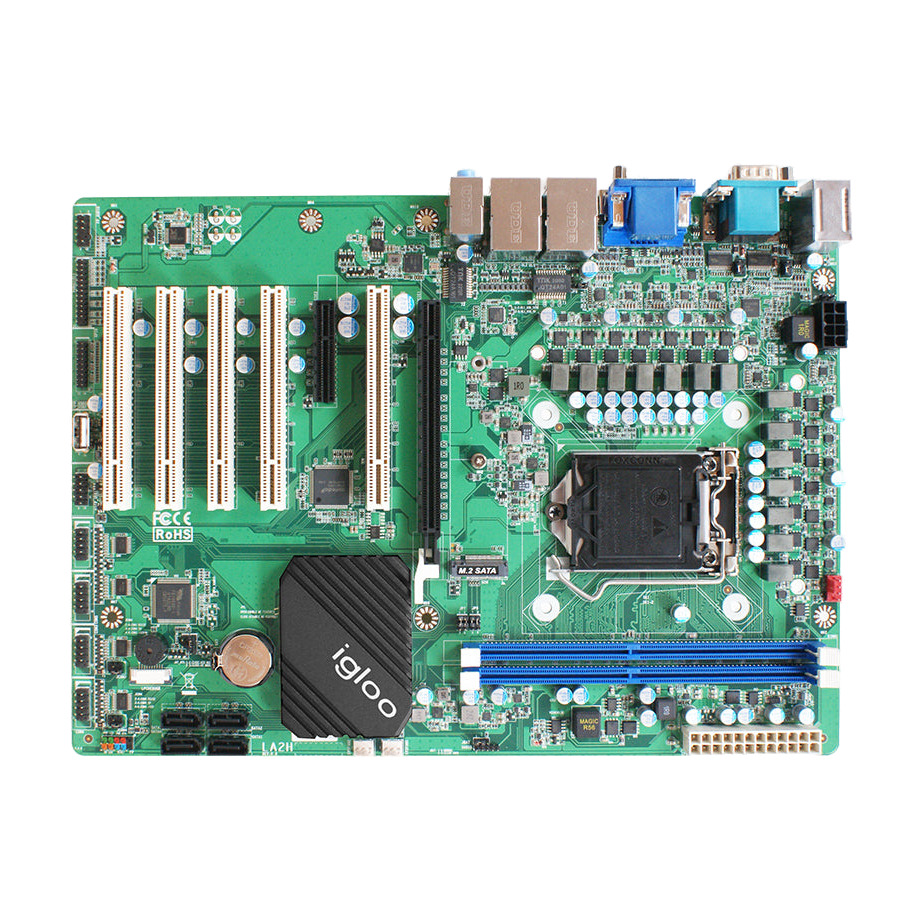

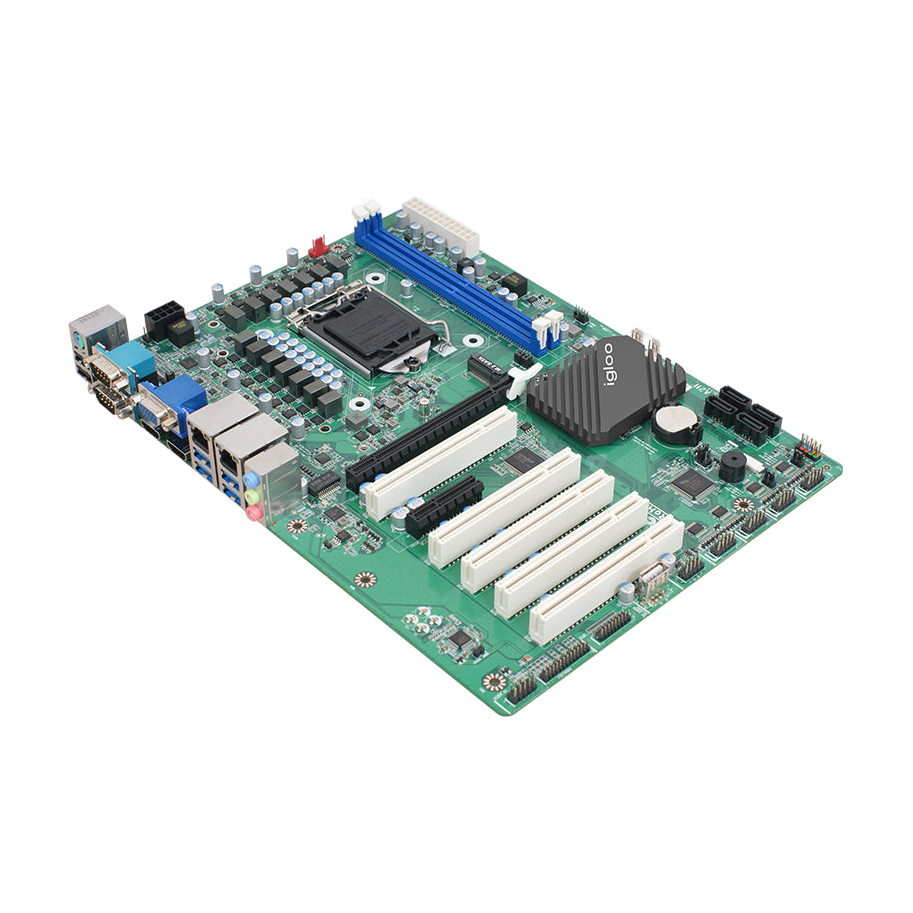

Jetway LA2H-H420E (Intel LGA1200, Chipset H420E, 2 COM, 2 LAN)

Model

– LA2H-H420E
– LA2H-H420E2 (TPM2.0)

Form Factor

– ATX (305 * 220mm)

Processor System

– Intel® LGA1200 Socket supports 10th/11th Gen Core Processor (Max. 125W)
– Intel® H420E chipset
– AMI 256M Flash ROM
– Support TPM2.0 (option)

Memory

– 2* DDR4 LONG DIMM 2933/2666MHz DRAM up to 64GB

Storage

– 4* SATAIII (6.0Gb/s , SATA4 Co-lay M-key)
– 1* M.2 M-key (2242/2280, SATA interface Co-lay SATA4)

Expansion

– 1* PCI-E x16 slot
– 1* PCI-E x4 slot
– 5* PCI slots

Ethernet

– 1* Intel® i225-V 2.5GbE
– 1* Intel® i219-LM GbE

Graphics

– Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution : 1920×1080@60Hz)
– 2* HDMI 1.4 (Max Resolution : 4096×2160@30Hz)

Audio

– Line-in, Line-out, MIC

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Internal I/O

– 2* USB2.0
– 1* USB2.0 (TYPE A)
– 4* RS232 (COM3/4 Support 5/12V TTL)
– 4* SATAIII (6.0Gb/s)
– 1* M.2 (M-key, 2242/2280, SATA interface)
– 1* PCI-Ex16 slot (by CPU)
– 1* PCI-Ex4 slot
– 5* PCI
– 1* GPIO (16 bit, 5V, Co-lay LPT)
– 1* LPT (Co-lay GPIO)
– 1* CPU FAN (Support Smart FAN)
– 2* System FAN
– 1* Chassis intrusion
– 1* SMBUS/ I2C
– 1* AT mode

External I/O

– 2* RS232/422/485 (Support 5V/12V TTL)
– 4* USB3.2 (Gen1)
– 2* USB2.0
– 1* VGA
– 2* HDMI 1.4
– 2* RJ45
– Line-in, Line-out, MIC

Power

ATX PWR (8 + 24 pin)
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH compatible

Temperature

– Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 85° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Windows 11, Linux

Warranty

– 2 Year limited warranty

Part Number

  Description

 LA2H-H420E Series M/B

 F04-MB-060-F

 LA2H I/O Shield

 G01-COM9X2-30A-1F

 1* COM cable

 G01-SATA3-BL-1F

 2* CABLE for SATA3 50cm Blue w/LOCK
