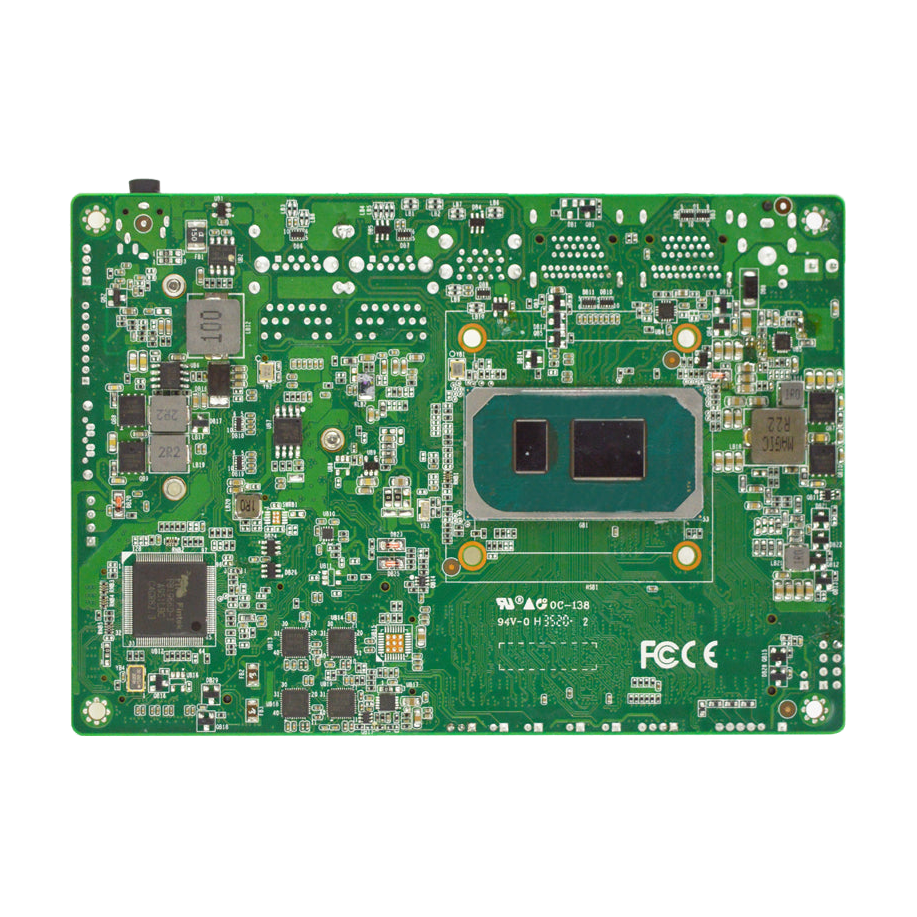

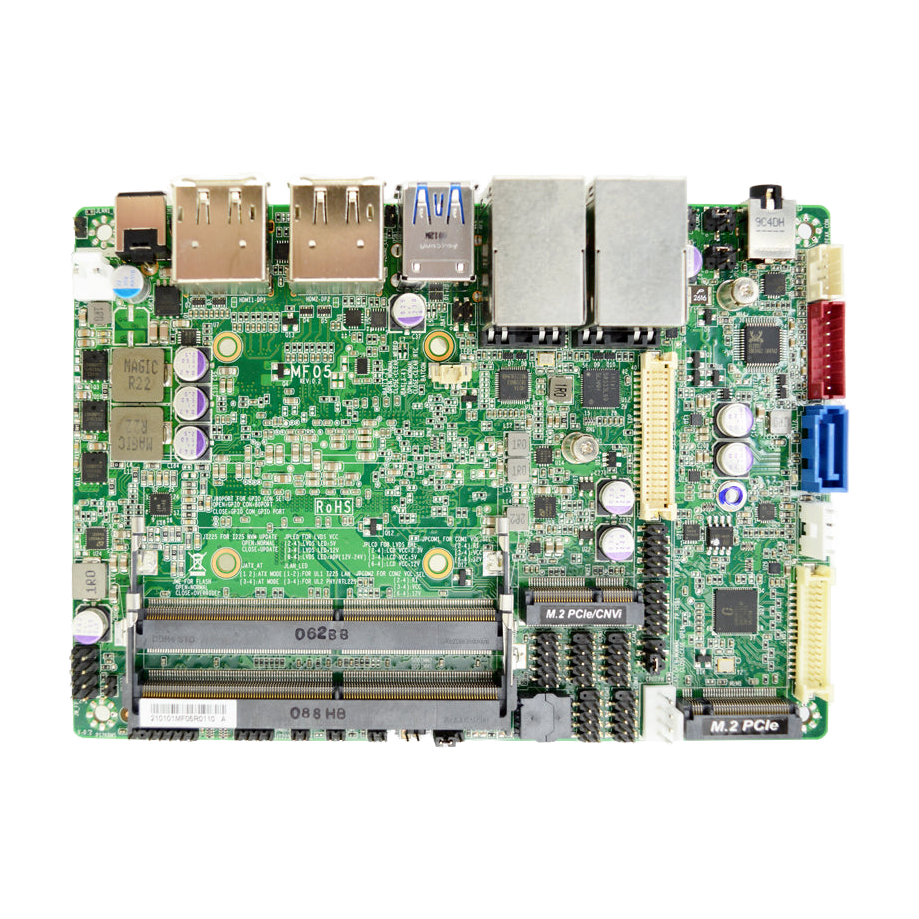

Jetway MF05-20 (Tiger Lake-U i5-1145G7E, PCIe 4.0, 2 LAN, 4 HDMI/DP)

Model

– MF05-20 (i5-1145G7E Default)

Form Factor

– 3.5” (5.8-in * 4.0-in, 148 * 102mm)

Processor System

– Intel® Tiger Lake i5-1145G7E SoC Processor (TDP 12~28W) (Default)
– AMI Flash ROM BIOS

Expansion Slot

– M.2 E-key (2230) USB2.0/PCIex1 interface support CNVi

Memory

– 2* DDR4-3200 Dual Channel SO-DIMM up to 64GB total

Graphics

– Intel® HD Graphics, shared memory
– 1* eDP (Max Resolution: 4096×2304@60Hz)
– 1* LVDS (Max Resolution: 1920×1200@60Hz)
– 2* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
– 2* DP1.4 (Max Resolution: 4096×2304@60Hz)
– Support Four independent 4K HDR Displays or Two 8K SDR Displays (DP)

Ethernet

– 1* Intel i219-LM 1.0GbE
– 1* Intel i225-LM 2.5GbE

Audio

– HD audio: Realtek ALC888S-VD2
– 3W AMP speaker

Storage

– 1* SATAIII
– M.2 M-key 2242/2280, PCIe 4.0 x4 interface, support NVME

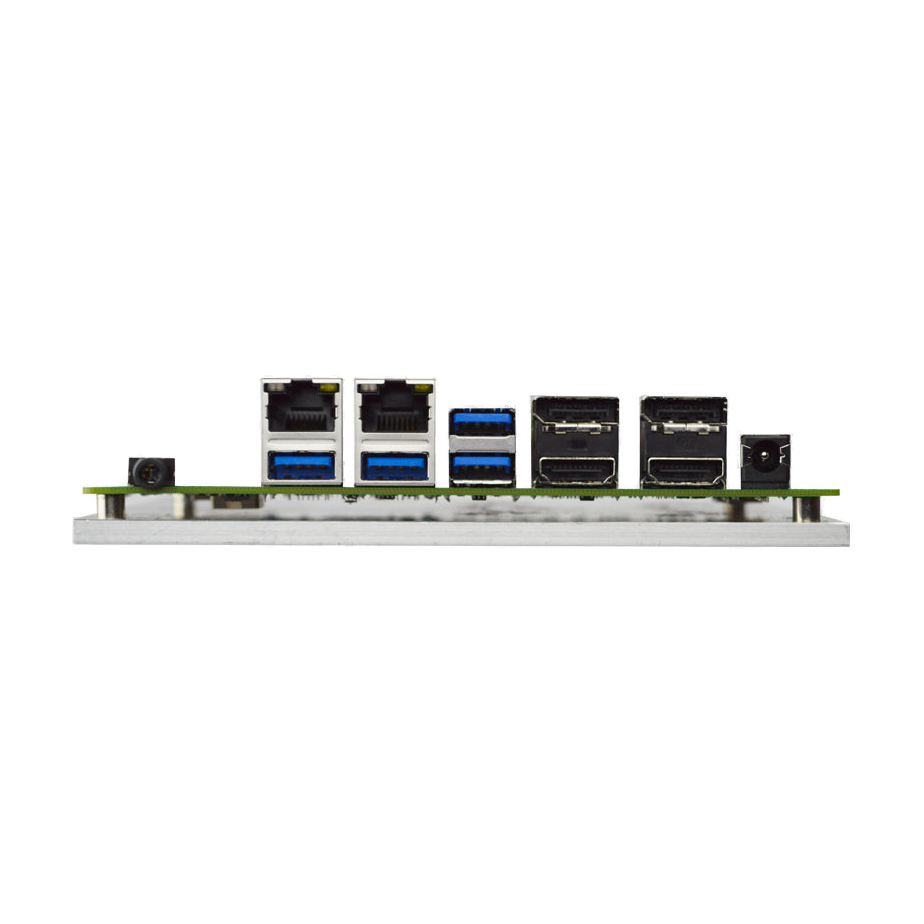

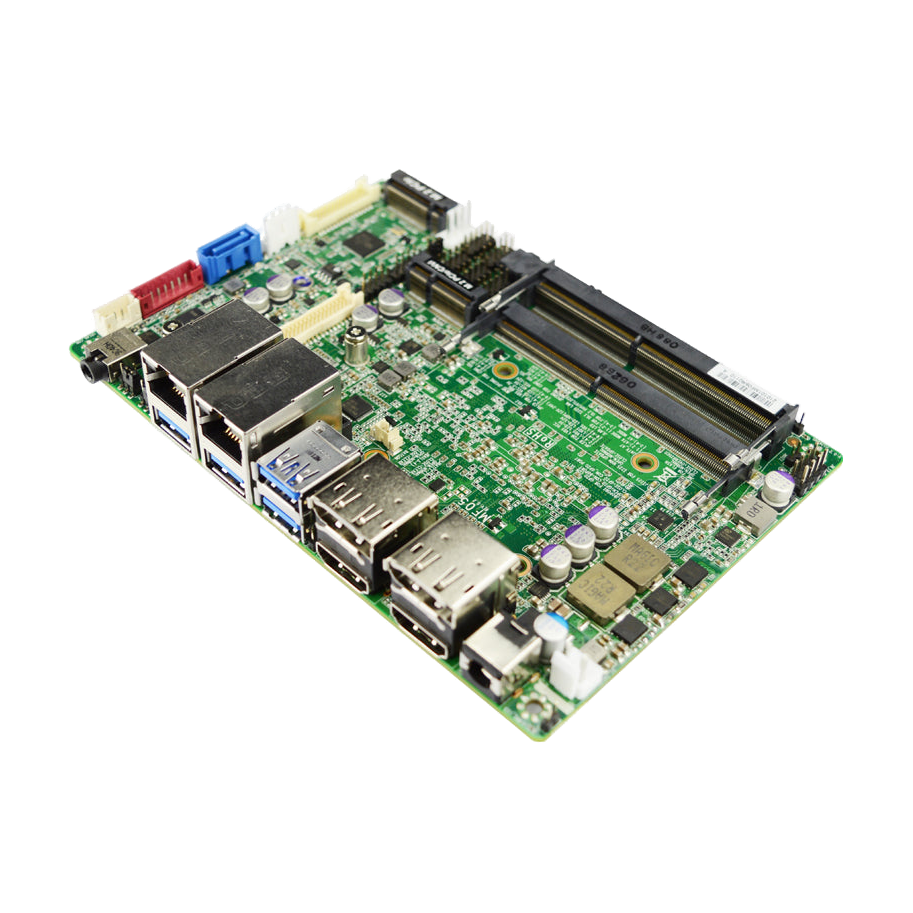

Rear I/O

– 4* USB3.2(Gen. 2)
– 2* DP
– 2* HDMI
– 2* RJ45
– Line-out/MIC Combo
– DC-in (12-24V)

Internal I/O

– 4* USB 2.0
– 1* PS/2
– 1* LVDS / Inverter
– 1* eDP
– 4* COM (2* RS232/422/485, 2* RS232)
– 1* SATAIII
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio header
– 1* SMBUS
– 1* AT/ATX mode jumper
– Optional onboard TPM2.0 (MF05-22)

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Power

DC-in 12-24V
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, LVD, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux

Warranty

– 2 Years Limited Warranty
