| Form factor | For 1U 19" Rackmount chassis |
| M/B support | Compatible with 12" x 13" M/B & Mini-ITX /
EATX / ATX / Micro ATX |
| Backplane | SFF 8087 miniSAS compatible with SATA III
Support SAS I/II/III & SATA I/II/III, 6Gbps/12Gbps |
| Power Supply | 1U single power, FSP 1U Redundant |
| Cooling System | Direct air ventilation design
6 x 4cm fan design (2pcs in 1 set, hotswappable) |
| HDD hot swap bay | 4 x 3.5"/2.5" HDD/SSD slot
2 x 2.5" internal HDD/SSD slot |

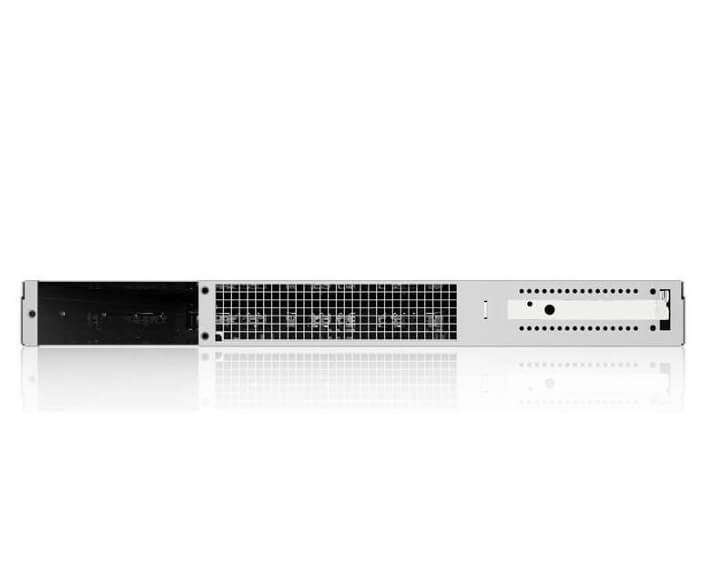

| I/O rear view | Standard 1U width & rear panel DIY available |
| Expansion slot | 1 x full-high expansion slot |
| Front ports | 1 x USB, 1 x power switch, 1 x reset switch
1 x HDD LED, 1 x system LED, 2 x LAN LED |
| Material | SECC steel, aluminum alloy, stainless steel, ABS plastic |
| Dimension (mm) | 438(W) x 44(H) x 700(D) |
| Model No. | JJ-M0104 |
| Module space | 4 x 3.5" hot-swap bay for 3.5"/2.5" HDD/SSD |
| Connections | MiniSAS SFF8087 x 1
15 pin SATA power x 2 3 pin fan jumper x 6 |
| HDD support | For SAS, SATA HDD(SSD)
Support SATA I/II/III, SAS I/II/III 6Gbps/12Gbps |
| HDD installation | Horizontal way |
| Group setting | Group 1 -- 1~4( from left to right) |
| Data connection | MiniSAS connector x 1 |
| Structure | Stainless tray & frame/Plastic bezel |
| HDD mounting | From both sides or from bottom side
(Option: screwless mounting design) |
| Ventilation | HDD tray: air ventilation holes
*Option: Upper blower fan (upto 4 x fan) |
| Safety lock | Mechanical handle locking & keylock design |
| LED Indication | *Power LED: Green
*Overheating: solid red *Accessing: blue blinking |
| Anti-vibration | Front upper & lower springs
Hidden left & right side cushion design |
