| Form factor | For 2U 19" Rackmount chassis |
| M/B support | Compatible with 12" x 13" M/B & Mini-ITX / EATX / ATX / Micro ATX |
| Backplane | SFF 8087 miniSAS compatible with SATA III Support SAS I/II/III & SATA I/II/III, 6Gbps/12Gbps |
| Power Supply | 2U single power, Zippy 2U Redundant |
| Cooling System | Direct air ventilation design 4 x 8cm fan design |

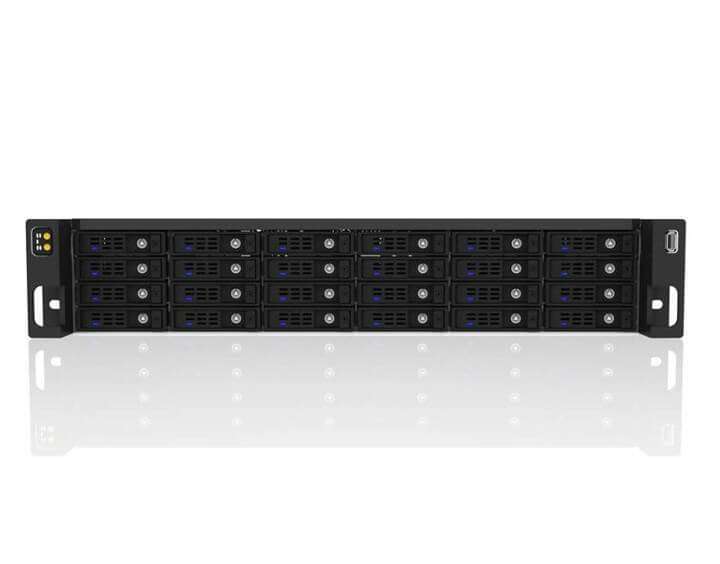

| HDD hot swap bay | 24 x 2.5" built-in HDD/SSD slot |

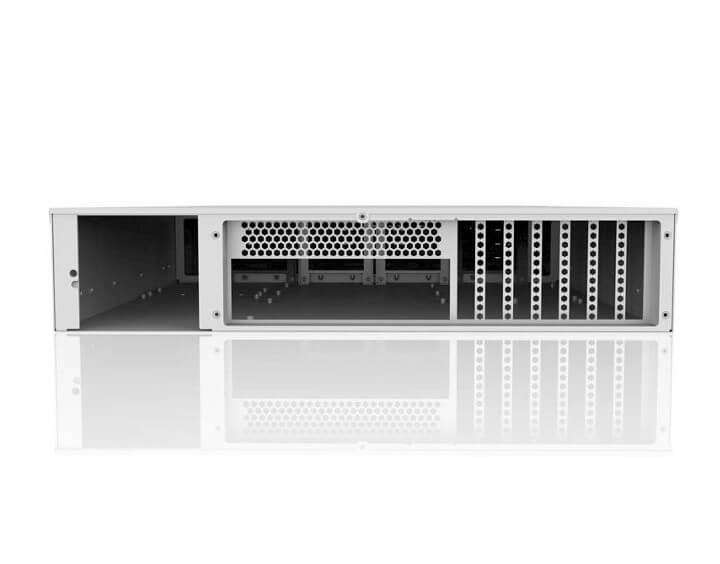

| I/O rear view | Standard 2U width & rear panel |
| Expansion slot | 7 x half-high or 3 x full-high expansion slot |
| Front ports | 1 x USB, 1 x power switch, 1 x reset switch, 1 x HDD LED, 1 x system LED, 2 x LAN LED |
| Material | SECC steel, aluminum alloy, stainless steel, ABS plastic |
| Dimension (mm) | 440,2(W) x 88,5(H) x 655,6(D) |
| Model No. | JJ-M0224 |
| Module space | 24 x 2.5" hot-swap bay for 2.5" HDD/SSD |
| Connections | MiniSAS SFF8087 x 6 15 pin SATA power x 8 3 pin fan jumper x 6 |
| HDD support | For SAS, SATA HDD(SSD) Support SATA I/II/III, SAS I/II/III 6Gbps/12Gbps |
| HDD installation | Horizontal way |
| Group setting | Group 1 -- Upper 1~4 (from left to right) Group 2 -- Upper 5~6 (left to right)+ 2nd layer 1~2 (left) Group 3 -- 2nd layer 3~6 (left to right) Group 4 -- 3rd layer 1~4 (left to right) Group 5 -- 3rd layer 5~6 (left to right)+ 4th layer 1~2 (left) Group 6 -- bottom layer 3~6 (left to right) |
| Data connection | MiniSAS connector -1 for Group 1 ( 1-4) MiniSAS connector -2 for Group 2 ( 5-8) MiniSAS connector -3 for Group 3 ( 9~12) MiniSAS connector -4 for Group 1 ( 13-16) MiniSAS connector -5 for Group 2 ( 17-20) MiniSAS connector -6 for Group 3 ( 21~24) |
| Structure | Stainless tray & frame/Plastic bezel |
| HDD mounting | From both sides or from bottom side (Option: screwless mounting design) |
| Ventilation | HDD tray: air ventilation holes |
| Safety lock | Mechanical handle locking & keylock design |
| LED Indication | *Power LED: Green *Overheating: solid red *Accessing: blue blinking |
| Anti-vibration | Front upper & lower springs Hidden left & right side cushion design |
