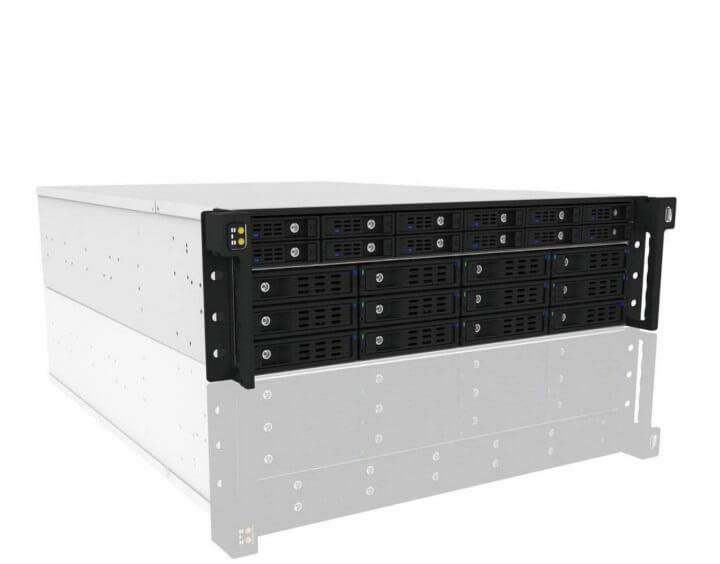

| Form factor | For 3U 19" Rackmount chassis |
| M/B support | Compatible with 12" x 13" M/B & Mini-ITX / EATX / ATX / Micro ATX |
| Backplane | SFF 8087 miniSAS compatible with SATA III Support SAS I/II/III & SATA I/II/III, 6Gbps/12Gbps |
| Power Supply | 3U single power, Zippy 3U Redundant |
| Cooling System | Direct air ventilation design 4 x 8cm fan design |

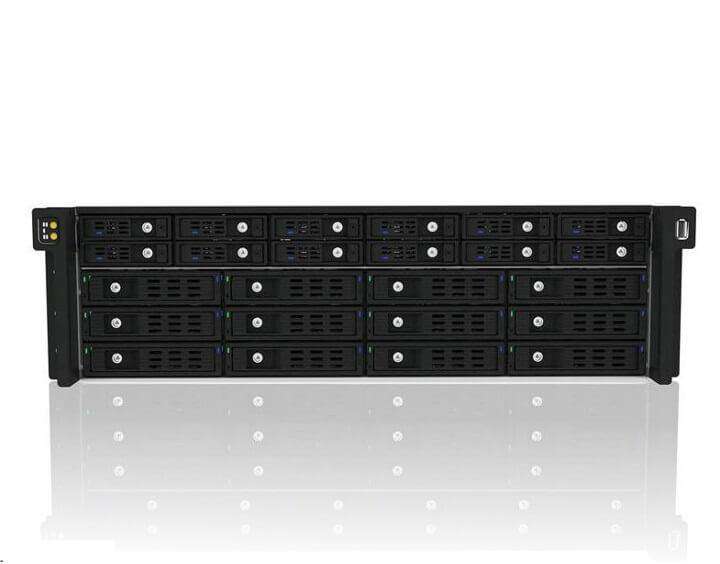

| HDD hot swap bay | 12 x 3.5" (or 2,5") + 12 x 2.5" built-in HDD/SSD slot |

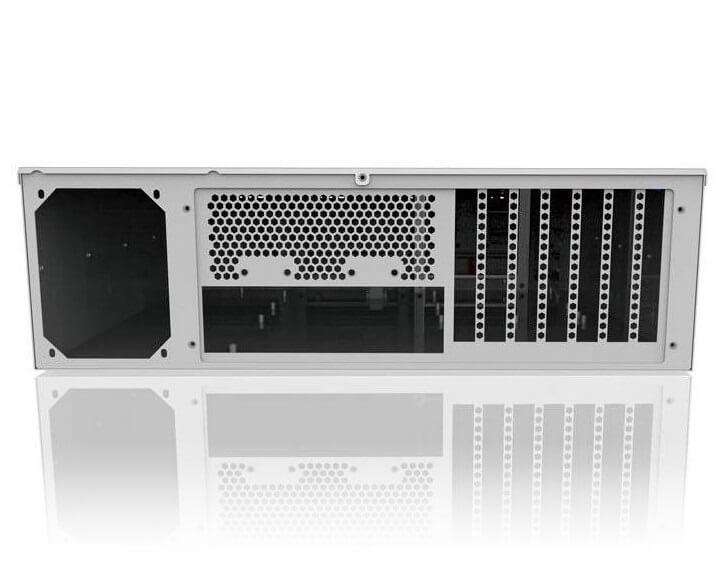

| I/O rear view | Standard 3U width & rear panel |
| Expansion slot | 7 x full-high expansion slot |
| Front ports | 1 x USB, 1 x power switch, 1 x reset switch, 1 x HDD LED, 1 x system LED, 2 x LAN LED |
| Material | SECC steel, aluminum alloy, stainless steel, ABS plastic |
| Dimension (mm) | 440,2(W) x 132,1(H) x 634,1(D) |
| Model No. | JJ-M0212 | JJ-M0112 |
| Module space | 12 x 3.5" hot-swap bay for 3.5"/2.5" HDD/SSD | 12 x 2.5" hot-swap bay for 2.5" HDD/SSD |
| Connections | MiniSAS SFF8087 x 3 15 pin SATA power x 6 3 pin fan jumper x 6 |
MiniSAS SFF8087 x 3 15 pin SATA power x 4 3 pin fan jumper x 6 |
| HDD support | For SAS, SATA HDD(SSD) Support SATA I/II/III, SAS I/II/III 6Gbps/12Gbps | |
| HDD installation | Horizontal way | |
| Group setting | Group 1 -- Upper 1~4 (from left to right) Group 2 -- Middle 5~8 (from left to right) Group 3 -- Lower 9~12 (from left to right) |
Group 1 -- Upper 1~4 (from left to right) Group 2 -- Upper 5~6 (from left to right) + lower 1~2 (left) Group 3 -- Lower 3~6 (from left to right) |
| Data connection | MiniSAS connector -1 for Group 1 (Upper 1-4) MiniSAS connector -2 for Group 2 (Middle 5-8) MiniSAS connector -3 for Group 3 (Lower 9~12) |
MiniSAS connector -1 for Group 1 (Upper 1-4) MiniSAS connector -2 for Group 2 (Upper 5~6 + Lower 7-8 left) MiniSAS connector -3 for Group 3 (Lower 9~12) |
| Structure | Stainless tray & frame/Plastic bezel | |
| HDD mounting | From both sides or from bottom side (Option: screwless mounting design) | |
| Ventilation | HDD tray: air ventilation holes | |
| Safety lock | Mechanical handle locking & keylock design | |
| LED Indication | *Power LED: Green *Overheating: solid red *Accessing: blue blinking |
|
| Anti-vibration | Front upper & lower springs Hidden left & right side cushion design |
|
