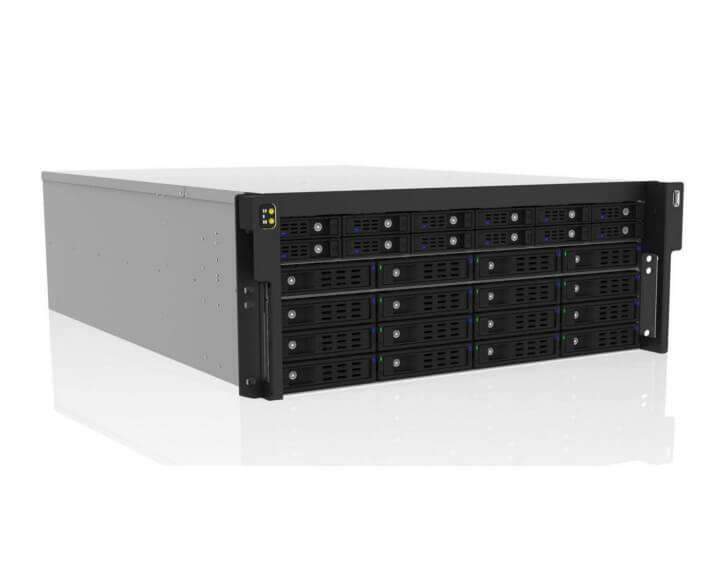

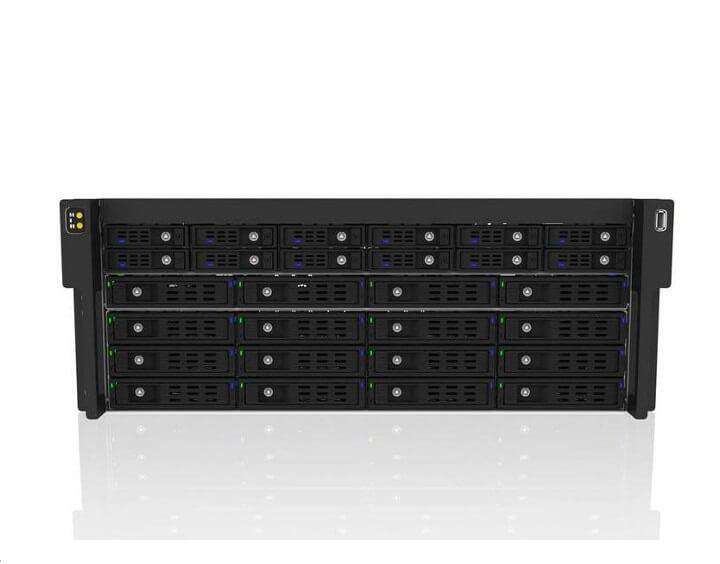

Caixa JJ-R42328 para sistemas Rackmount 4U projectado para hospedar 16x HDD 3,5" + 12x HDD 2,5" para diferentes aplicações como vigilância digital, servidor de backup de dados, sistema de armazenamento corporativo, pós-produção de vídeo e armazenamento em nuvem.
- Caixa Rack 19" 4U
- Suporta SAS I / II / III, SATA I / II / III, design compatível com 6Gbps / 12Gbps
- 7x conectores MiniSAS
- Duplo Canal SAS completo
- Com mola anti-vibração na bandeja dianteira e almofadas de plástico em ambos os lados da bandeja
- Oferece um fácil acesso / saída de discos rígidos
- Módulo do painel traseiro suporta HDD 2,5" ou 3,5"
Características:
- Grupo organizado para conexões miniSAS
- Números digitais para organização em grupo ou RAID
- Indicadores de LED para alimentação, acesso e aquecimento
- Design com furos para ventilação do ar no painel frontal, PCB e lado inferior
- Flexível para mudar os discos HDD montado em bastidores rack
Especificações:
| Form factor | For 4U 19" Rackmount chassis |
| M/B support | Compatible with 12" x 13" M/B & Mini-ITX / EATX / ATX / Micro ATX |
| Backplane | SFF 8087 miniSAS compatible with SATA III Support SAS I/II/III & SATA I/II/III, 6Gbps/12Gbps |
| Power Supply | 4U single power, Zippy 4U Redundant |
| Cooling System | Direct air ventilation design 2 x 12cm fan + 2 x 8cm fan design |
| HDD hot swap bay | 16 x 3.5" (or 2,5") + 12 x 2.5" built-in HDD/SSD slot |

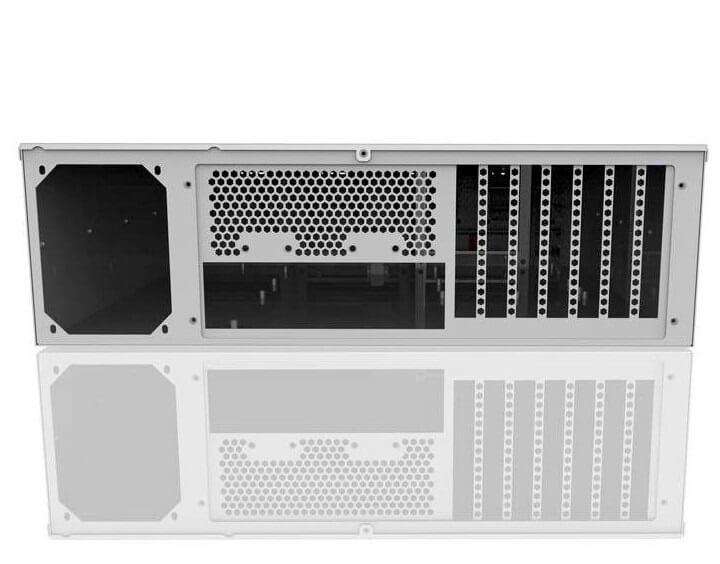

| I/O rear view | Standard 4U width & rear panel |
| Expansion slot | 7 x full-high expansion slot |
| Front ports | 1 x USB, 1 x power switch, 1 x reset switch, 1 x HDD LED, 1 x system LED, 2 x LAN LED |
| Material | SECC steel, aluminum alloy, stainless steel, ABS plastic |
| Dimension (mm) | 440,2(W) x 176,5(H) x 634,1(D) |
| Model No. | JJ-M0212 | JJ-M0112 | JJ-M0104 |
| Module space | 12 x 3.5" hot-swap bay for 3.5"/2.5" HDD/SSD | 12 x 2.5" hot-swap bay for 2.5" HDD/SSD | 4 x 3.5" hot-swap bay for 3.5"/2.5" HDD/SSD |
| Connections | MiniSAS SFF8087 x 3 15 pin SATA power x 6 3 pin fan jumper x 6 |
MiniSAS SFF8087 x 3 15 pin SATA power x 4 3 pin fan jumper x 6 |
MiniSAS SFF8087 x 1 15 pin SATA power x 2 3 pin fan jumper x 6 |
| HDD support | For SAS, SATA HDD(SSD) Support SATA I/II/III, SAS I/II/III 6Gbps/12Gbps |
||
| HDD installation | Horizontal way | ||
| Group setting | Group 1 -- Upper 1~4 (from left to right) Group 2 -- Middle 5~8 (from left to right) Group 3 -- Lower 9~12 (from left to right) |
Group 1 -- Upper 1~4 (from left to right) Group 2 -- Upper 5~6 (from left to right) + lower 1~2 (left) Group 3 -- Lower 3~6 (from left to right) |
Group 1 -- 1~4( from left to right) |
| Data connection | MiniSAS connector -1 for Group 1 (Upper 1-4) MiniSAS connector -2 for Group 2 (Middle 5-8) MiniSAS connector -3 for Group 3 (Lower 9~12) |
MiniSAS connector -1 for Group 1 (Upper 1-4) MiniSAS connector -2 for Group 2 (Upper 5~6 + Lower 7-8 left) MiniSAS connector -3 for Group 3 (Lower 9~12) |
MiniSAS connector x 1 |
| Structure | Stainless tray & frame/Plastic bezel | ||
| HDD mounting | From both sides or from bottom side (Option: screwless mounting design) | ||
| Ventilation | HDD tray: air ventilation holes | ||
| Safety lock | Mechanical handle locking & keylock design | ||
| LED Indication | *Power LED: Green *Overheating: solid red *Accessing: blue blinking |
||
| Anti-vibration | Front upper & lower springs Hidden left & right side cushion design |
||
