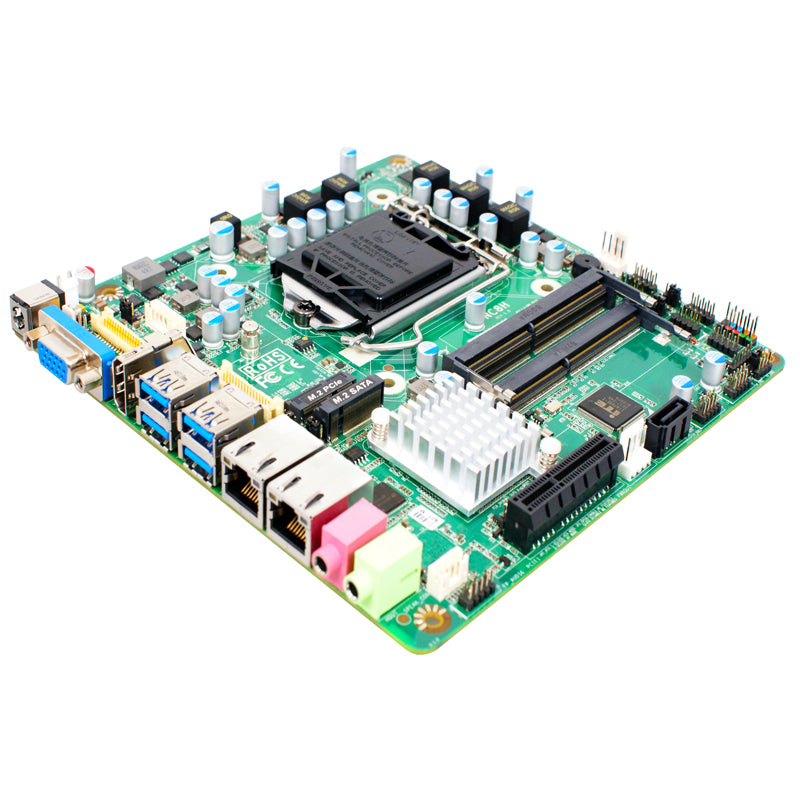

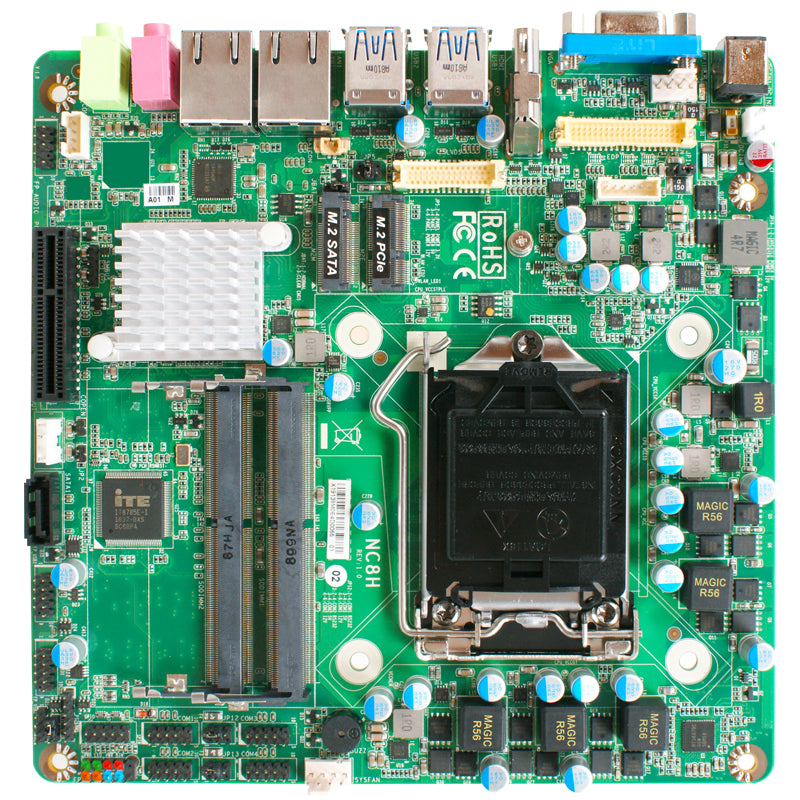

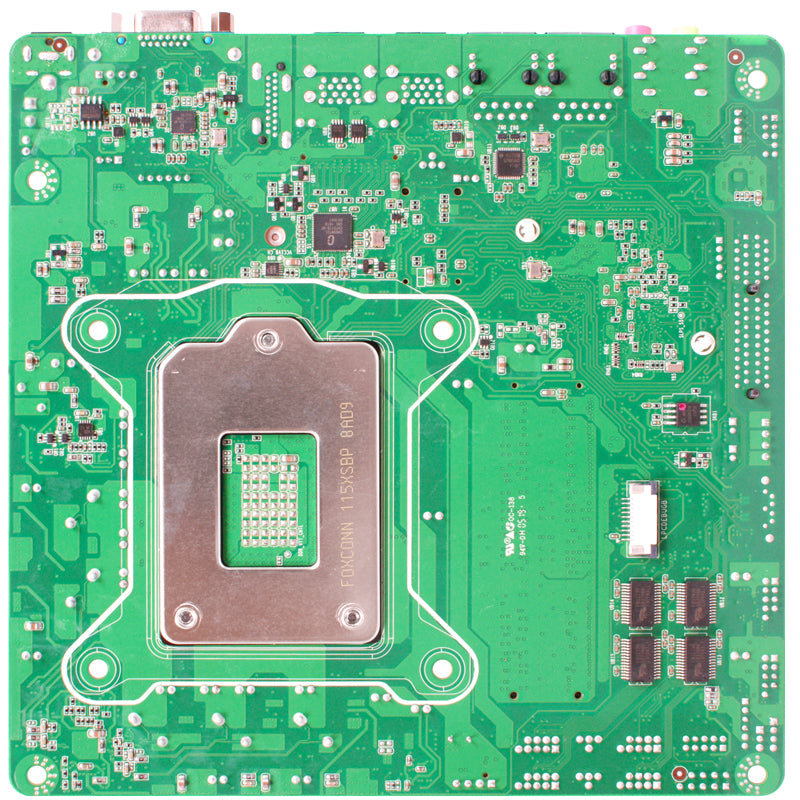

Jetway JNC8HA-IH310 (Intel® Coffee Lake-S H310 Chip, 12~24V DC-in)

Form Factor

Dimensions

– Thin Mini ITX ( 170 * 170mm)

 Processor System

CPU

– Intel^® LGA1151 Series Processor (Max. 65W)

Core Number

– (By CPU)

Max Speed

– (By CPU)

L2 Cache

– (By CPU)

Chipset

– H310

BIOS

– AMI 128M Flash ROM

 Expansion Slot

M.2

– 1* E key 2230,Support CNVi
– 1* M Key 2242

SATA

– 1

PCIe

– 1 (PCIe x4 slot)

 Memory

Technology

– Single channel DDR4 2133MHz DRAM

Max.

– 64GB

Socket

– 2 * SO-DIMM

 Graphics

Controller

– Intel® HD Graphics

VRAM

– Shared Memory

VGA

– 1 (Max. Resolution: 1920×1200@60Hz)

LVDS

– 1 (Co-lay eDP, Max. Resolution: 1920×1080@60Hz)

eDP 1.3

– 1 (Co-lay LVDS, Max. Resolution: 4096×2304@60Hz)

HDMI 1.4

– 1 (Max. Resolution : 4096×2160@30Hz)

Multi Display

– Dual Display

 Ethernet

Ethernet

– 10/100/1000 Mbps

Controller

– Intel® I219-V + i211AT Gigabit LAN

Connector

– 2* RJ 45

 Audio

CODEC

– N/A

Channel

– N/A

 SATA

Max Data Transfer Rate

– 1* SATAIII (6.0Gb/s)

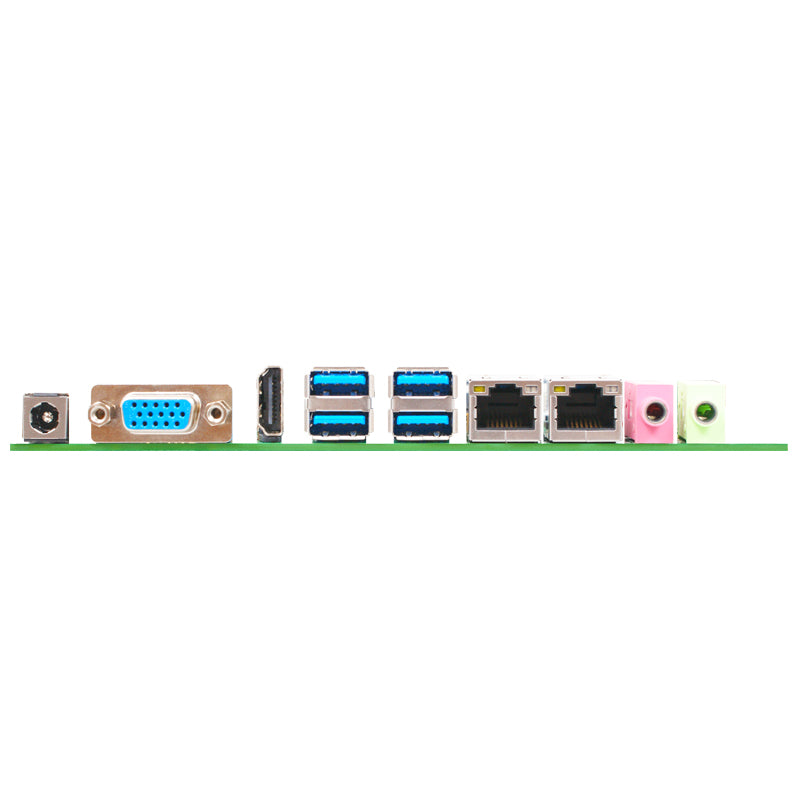

 Rear I/O

VGA

– 1

HDMI

– 1

Ethernet

– 2

USB

– 4* USB 3.0

Audio

– 1 (Line-out, MIC, No function)

DC-input

– 1

 Internal Connector

USB

– 5 (USB 2.0)

PS/2

– 1

LVDS / inverter

– 1 (Co-lay eDP )

eDP

– 1

Serial

– 4 (COM1/2 Support 5V/12V TTL)

SATA

– 1* SATAIII (6.0Gb/s)

M.2

– 2 (M key + E key)

GPIO

– 1 (8 bit)

Chassis intrusion

– 1

Audio Header

– 1 (No function)

SMBUS/ I2C

– 1

AT mode

– 1

 Watchdog Timer

Output

– From Super I/O to drag RESETCON#

Interval

– 256 segments (10sec ~ 255min)

 Power Requirements

Input PWR

– 12 ~ 24V DC-in

Power On

AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Certifications

Certifications

– CE, FCC, RoHS, REACH

 Environment

Temperature

– Operating: 0°C ~ 60°C

– Storage: -20°C ~ 85°C

 Warranty

Warranty

– 2 Years Limited Warranty
