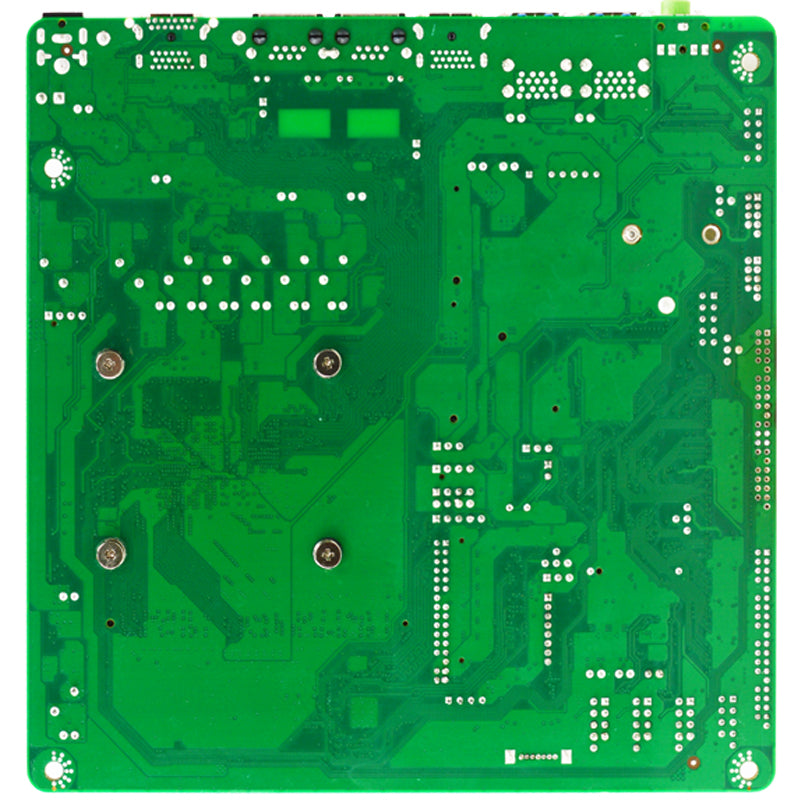

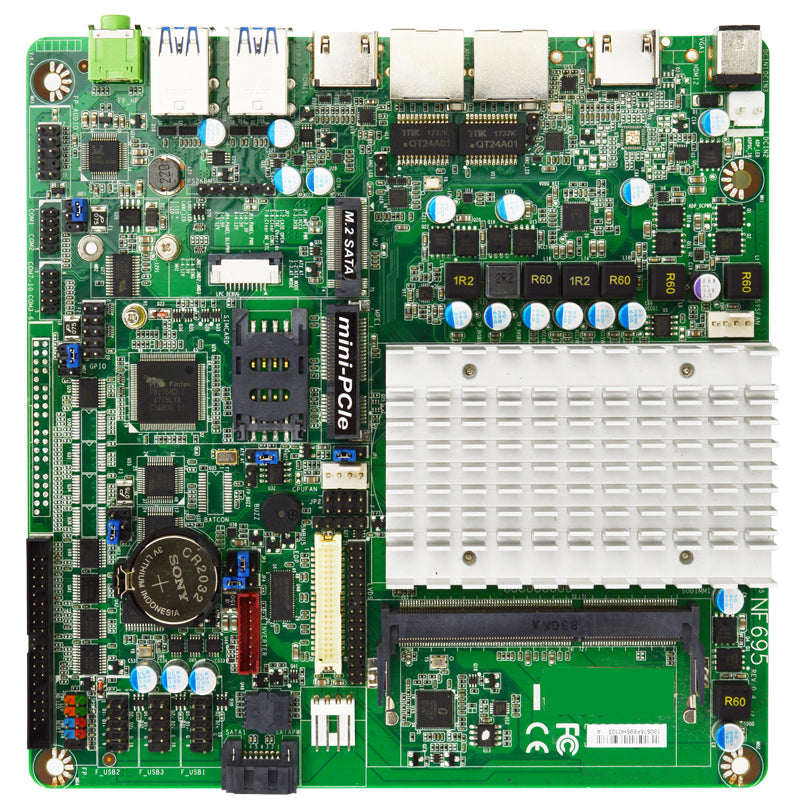

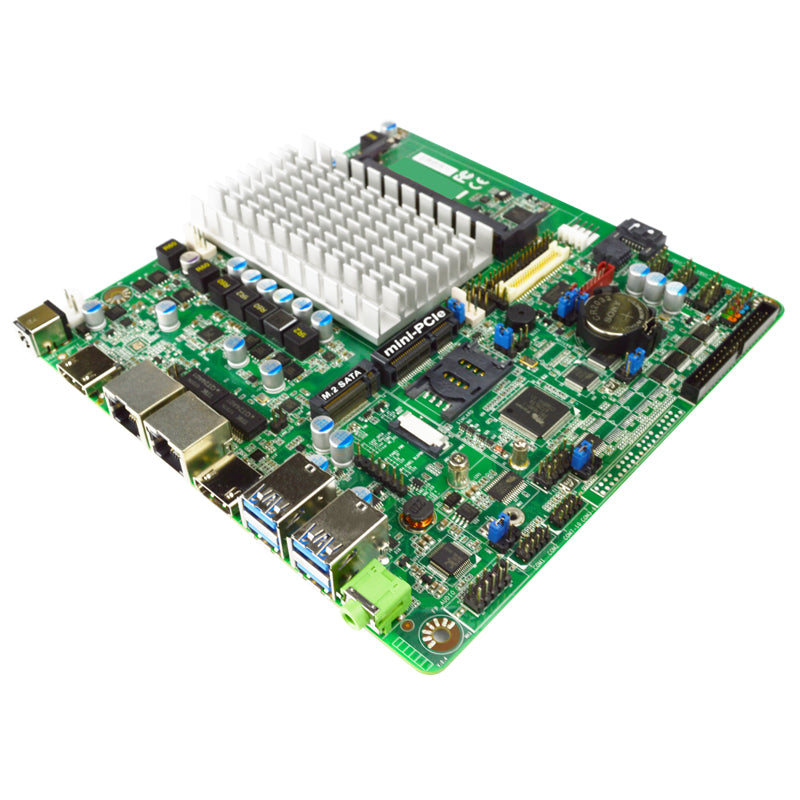

Form Factor

Dimensions

– Slim Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)

 Processor System

CPU

– Intel® Apollo Lake J3455 SoC Processor

Core Number

– 4

Max Speed

– 2.3GHz

L3 Cache

– 2MB

Chipset

– SoC

BIOS

– AMI Flash ROM

 Expansion Slot

Expansion

– 1* Mini-PCIe (full size)
– 1* M.2 (M-key, 2242/2260)
– 1* SIM card slot

 Memory

Technology

– DDR3L 1866MHz SDRAM

Max.

– 8GB

Socket

– 1* SO-DIMM

 Graphics

Controller

– Intel® HD Graphics

VRAM

– Shared Memory

LVDS

– 1 (Max. Resolution: 1920 * 1200@60Hz, selectable with eDP, not working while using LVDS)

eDP

– 1 (Max Resolution: 4096×2160@60Hz, selectable with LVDS, not working while using eDP)

HDMI 1.4

– 2 (Max. Resolution: 3840 * 2160@30Hz)

Multi Display

– Triple Displays

 Ethernet

Ethernet

– 10/100/1000 Mbps

Controller

– 2 * Realtek 8111H GbE

Connector

– 2* RJ45

 Audio

CODEC

– HD Audio: Realtek ALC662VD

Channel

– Line-out

 SATA

Max Data Transfer Rate

– 1* SATAIII (6.0Gb/s)

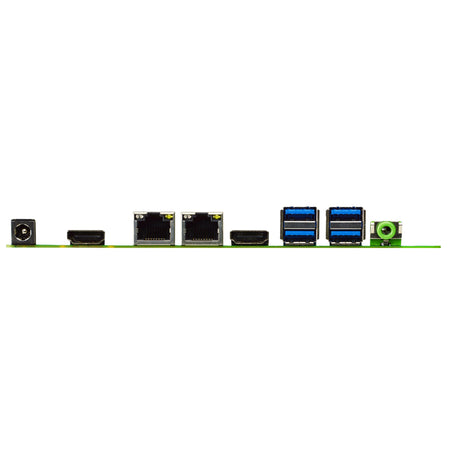

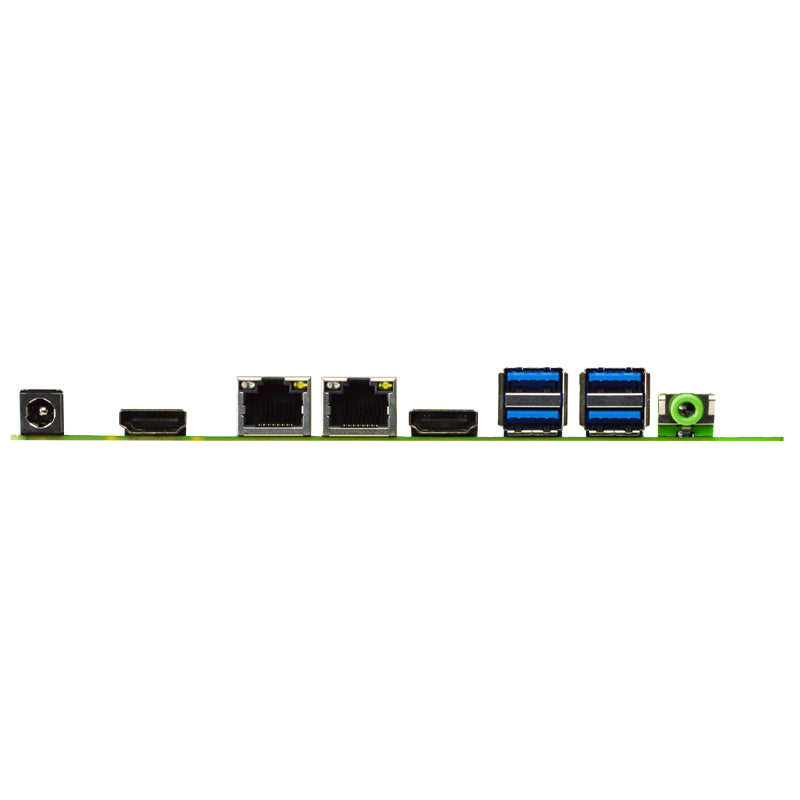

 Rear I/O

Rear I/O

– 2* HDMI
– 2* RJ45
– 4* USB 3.0
– 1* Line-out
– 1* DC-in

 Internal Connector

Internal Connector

– 6* USB 2.0
– 1* PS/2
– 1* LVDS(Selectable with eDP, not working while using LVDS)
– 1* eDP(Selectable with LVDS, not working while using eDP))
– 6* COM(COM1 support RS232/422/485)
– 1* SATAIII
– 1* mPCIe (full size)
– 1* SIM card holder
– 1* M.2 (M-key, 2242/2260)
– 1* (8 bit) GPIO
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS/ I2C
– 1* AT mode
– 1* TPM 2.0(onboard option)

 Watchdog Timer

Output

– From Super I/O to drag RESETCON#

Interval

– 256 segments (10sec ~ 255min)

 Power Requirements

Input PWR

– 12V DC-in

Power On

AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Certifications

Certifications

– CE, FCC, LVD, RoHS, REACH

 Environment

Temperature

– Operating: 0°C ~ 60°C (with 0.7m/s air flow)

– Storage: -20°C ~ 85°C

 Warranty

Warranty

– 2 Years Limited Warranty
