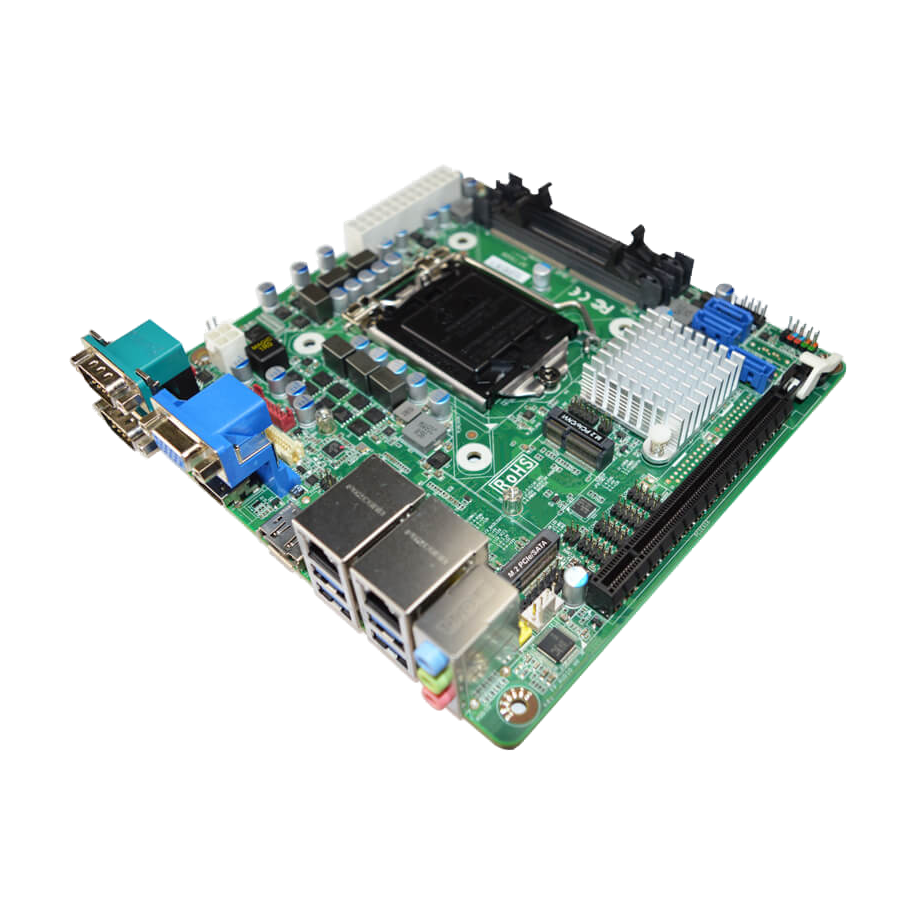

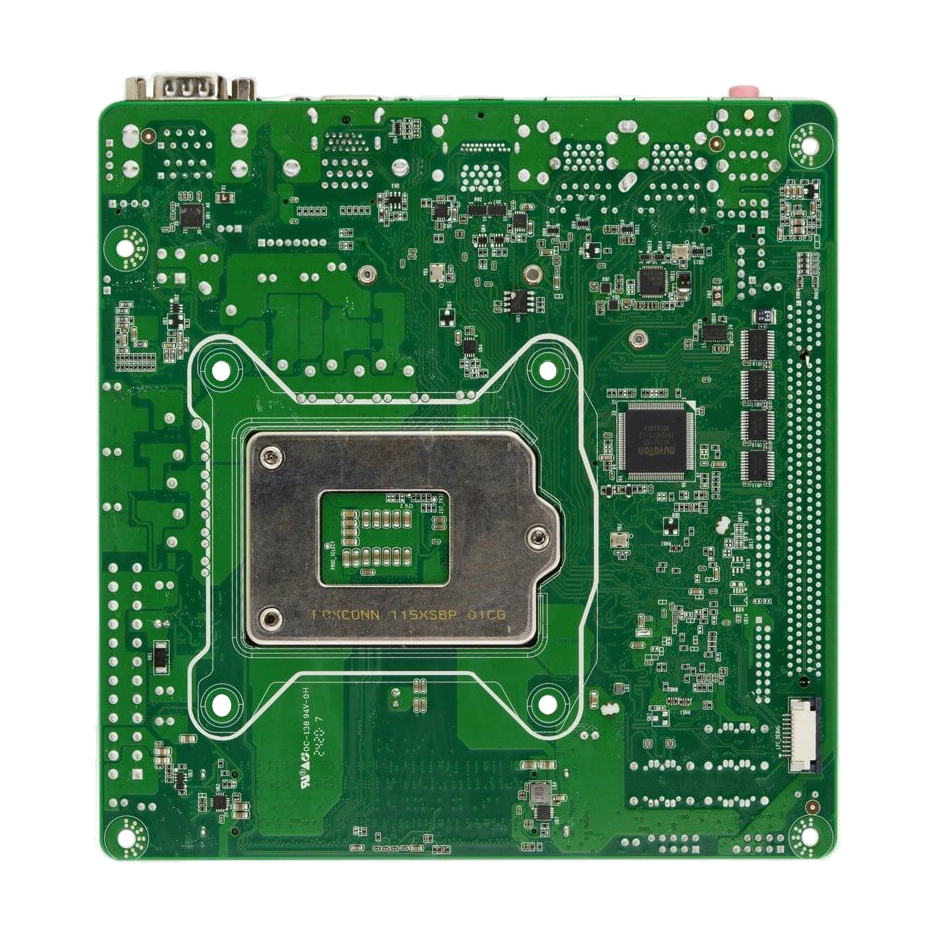

Jetway JNF796M-H310 (Coffee Lake LGA1151, H310, 2* LAN, VGA)

Model

 Model

– JNF796M-H310

 Form Factor

 Form Factor

– Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)

 Processor System

 Processor/CPU

– Intel® 8th/9th LGA 1151 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDP)
– Intel H310 Express chipset
– AMI 128Mb Flash ROM BIOS

 Memory

 Memory

– 2* Dual CH DDR4 2400/2666MHz SDRAM SO-DIMM up to 64GB

 Expansion Slot

 Expansion

– 1* M.2 E-key 2230 (PCIex1/USB2.0) support CNVi
– 1* PCIex16 slot

 Storage

 Storage

– 3* SATAIII
– 1* M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe

 Graphics

 Graphics

– Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1200@60Hz)
– 1* LVDS (Max Resolution: 1920×1200@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– Support Dual Displays

 Ethernet

 Ethernet

– 1 * Intel i219LM GbE
– 1 * Intel i211AT GbE

 Audio

 Audio

– 6 channel HD audio: Realtek ALC662VD

 I/O Port

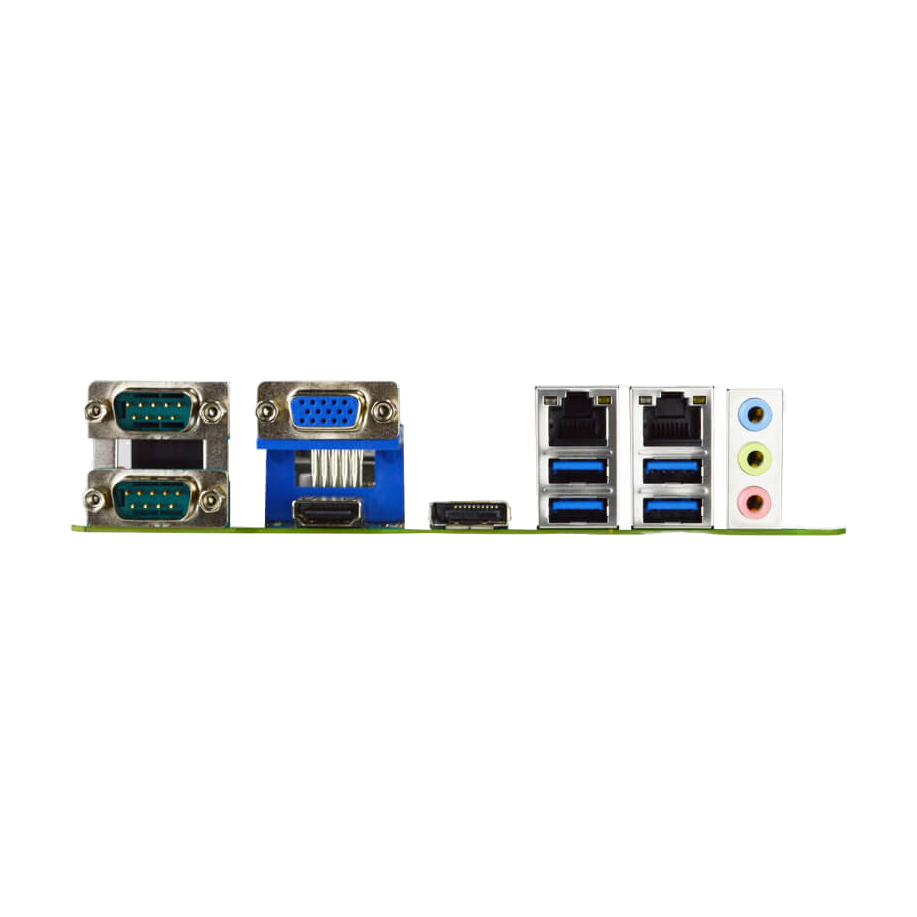

 Rear I/O

– 1* VGA
– 1* HDMI
– 1* DP
– 2* RJ45 Ethernet
– 4* USB 3.1 (Gen. 1)
– Line-in, Line-out, MIC
– 2* COM (COM 1/2 support RS232/422/485)

 Internal I/O

– 2* USB 2.0
– 1* PS/2
– 1* LVDS / Inverter
– 4* COM
– 3* SATAIII
– 1* M.2 E-key 2230 (PCIex1/USB2.0) support CNVi
– 1* M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS
– 1* AT mode
– Support onboard TPM2.0 (option)

 Watchdog Timer

 Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

 Power

 Power

ATX PWR (4+24 pin), AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Compliance

 Certifications

– CE, FCC, LVD, RoHS, REACH

 Environment

 Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

 Warranty

 Warranty

– 2 Years Limited Warranty
