com IVA
621.15€

sem IVA
505.00€
Sku: JNU95-10210
Tipo de Produto: Boards NUC
Fabricante: Jetway

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

JNU95-10210

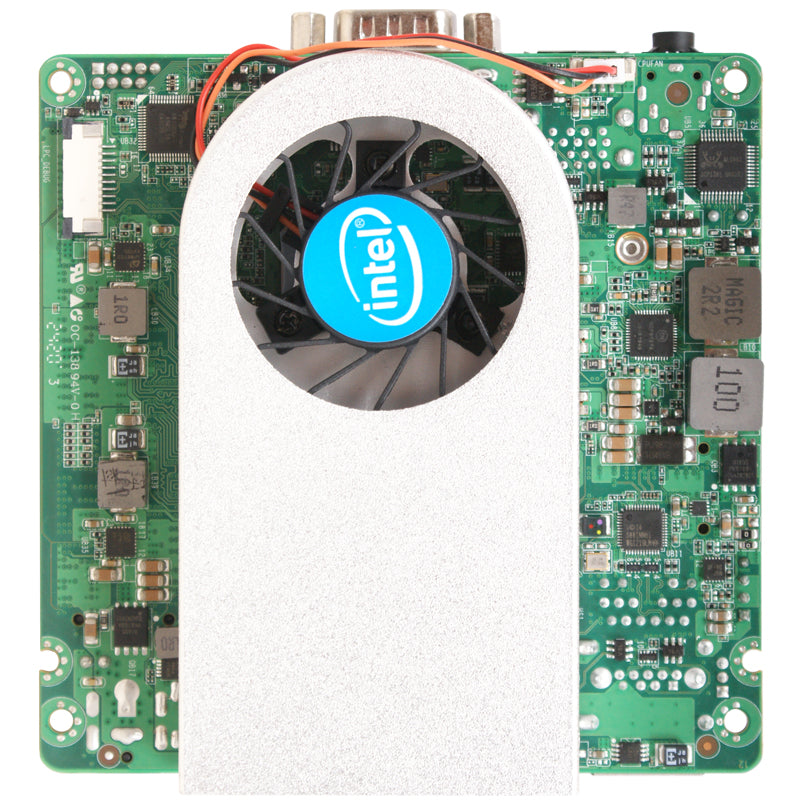

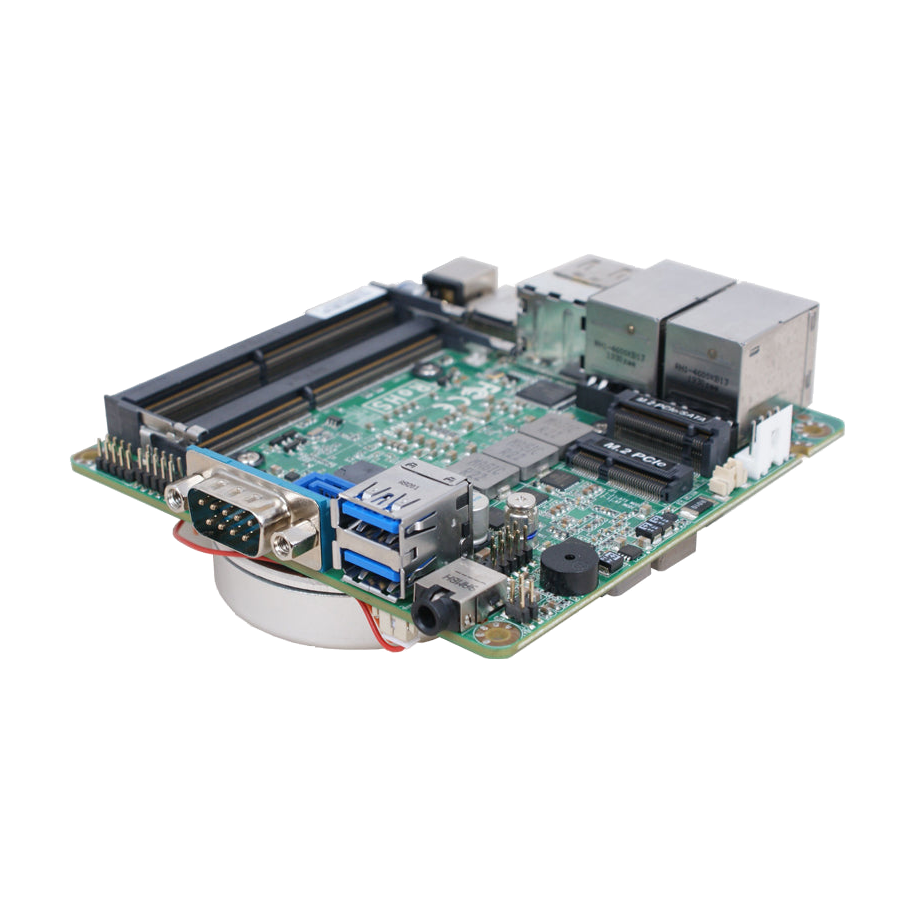

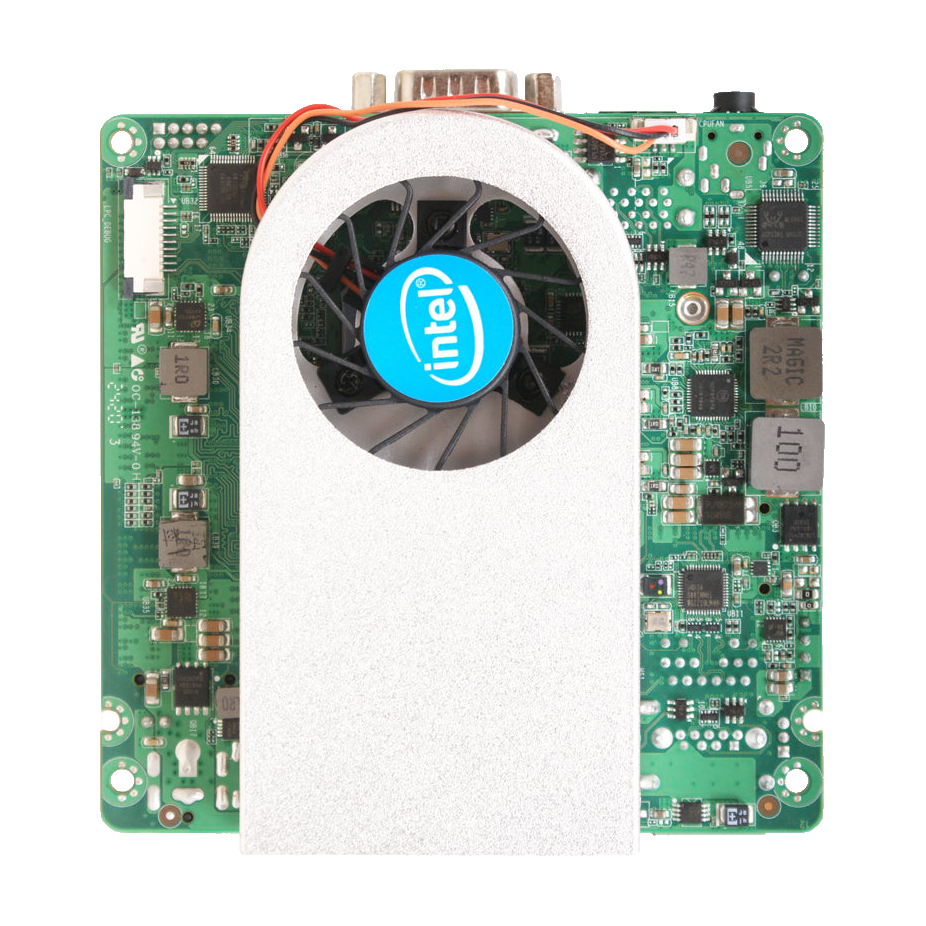

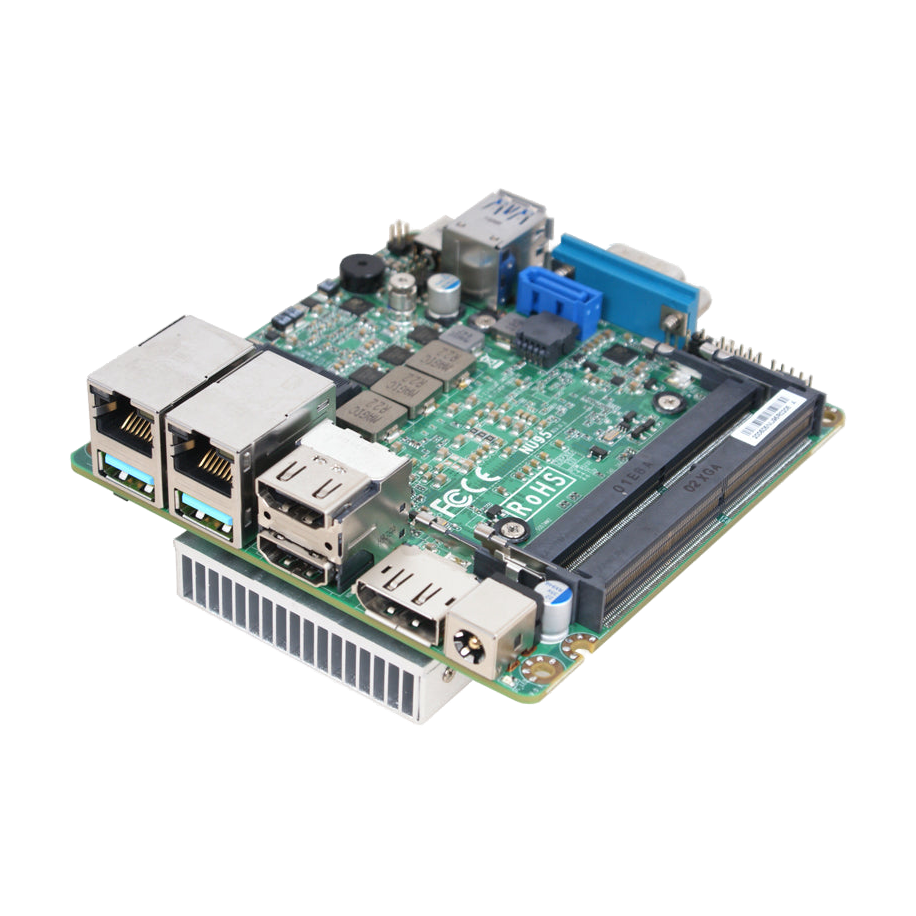

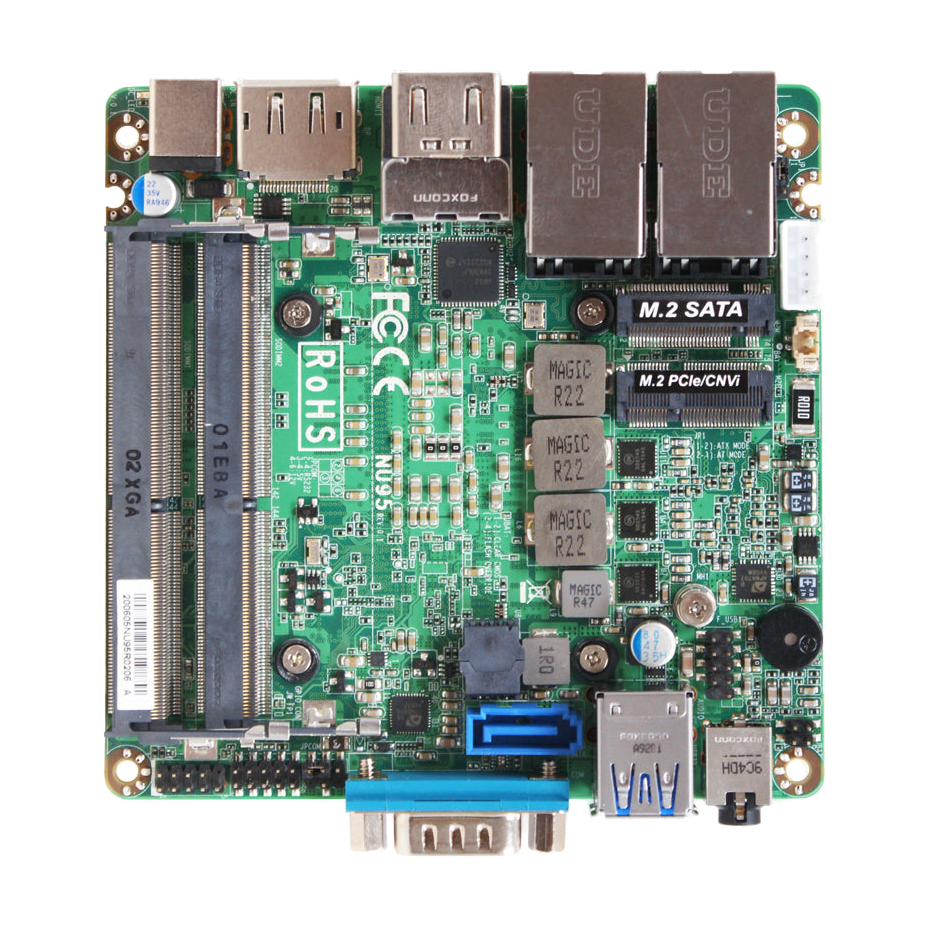

Motherboard NUC, Intel® Comet lake-U 10210U, DDR4 até 64GB

  • Intel® 10th Gen Comet lake i5-10210U 1.60GHz/QC CoreTM MCP Processor
  • 2* DDR4 2666MHz up to 64GB
  • 1* Intel® I219LM GbE, 1* Intel® i211AT GbE
  • 1* SATAIII, 1* M.2 (M key), 1* M.2 (E key) Support CNVi
  • 2* HDMI, 1* DP
  • 1* RS232/422/485, 4* USB3.2, 2* USB2.0
  • 12~24V DC in
  • NUC Form Factor (101 *101 mm)
Caraterísticas

Diagrama

JNU95-10210_diagram

Dimensões

JNU95-10210-size
Especificações

Model

– JNU95-10210

Form Factor

– NUC (101 * 101mm)

Processor System

– Intel® 10th Gen. Comet lake CoreTM MCP Processor, I5-10210U QC, 1.6GHz, 15W
– SoC chipset
– AMI 128M Flash ROM BIOS

Expansion Slot

– 1* M.2 M key (2242, SATA interface)
– 1* M.2 E key (2230, Support CNVi)
– 1* SATAIII

Memory

– 2* DDR4 2666 MHz SO-DIMM up to 64GB

Graphics

– 1* HDMI1.4 (Max Resolution : 4096×2304@30Hz)
– 1* HDMI2.0 (Max Resolution : 4096×2304@60Hz)
– 1* DP (Max Resolution : 4096×2304@60Hz)
– Support Triple Displays

Ethernet

– 1* Intel® I219LM GbE
– 1* Intel® i211AT GbE

Audio

– HD Audio: Realtek® ALC662

SATA

– 1* SATAIII (6.0Gb/s)

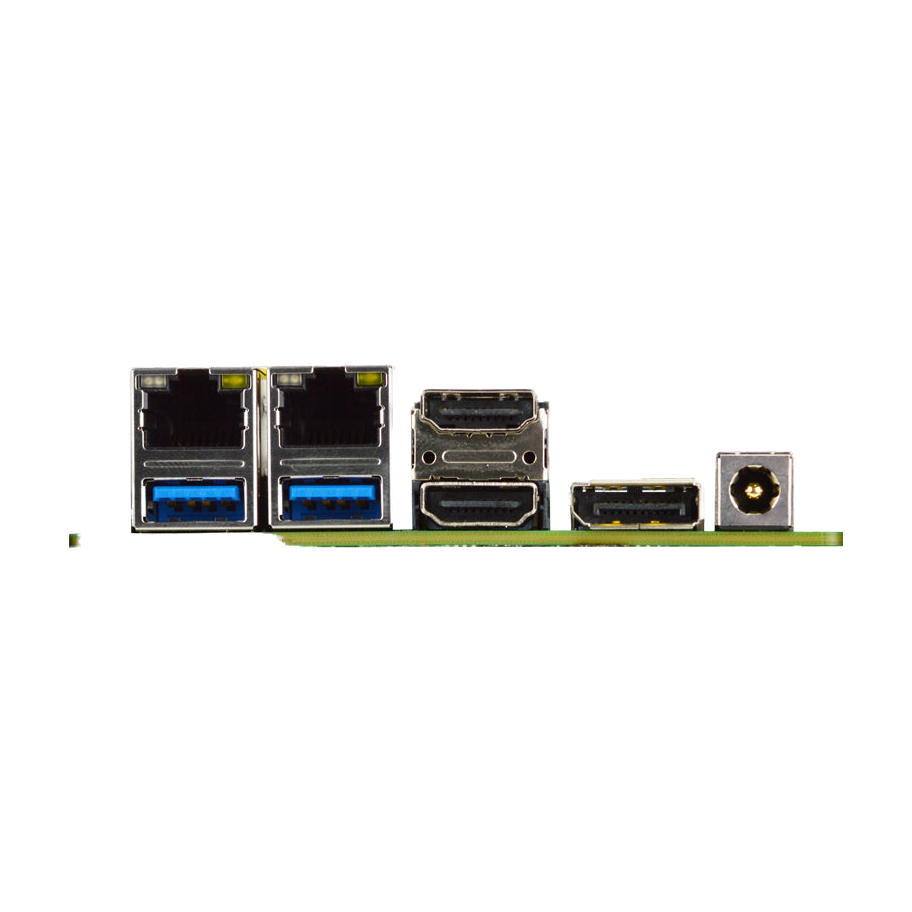

Rear I/O

– 2* HDMI
– 1* DP
– 2* RJ45
– 2* USB3.2 (Gen2)
– 12~24V DC-in

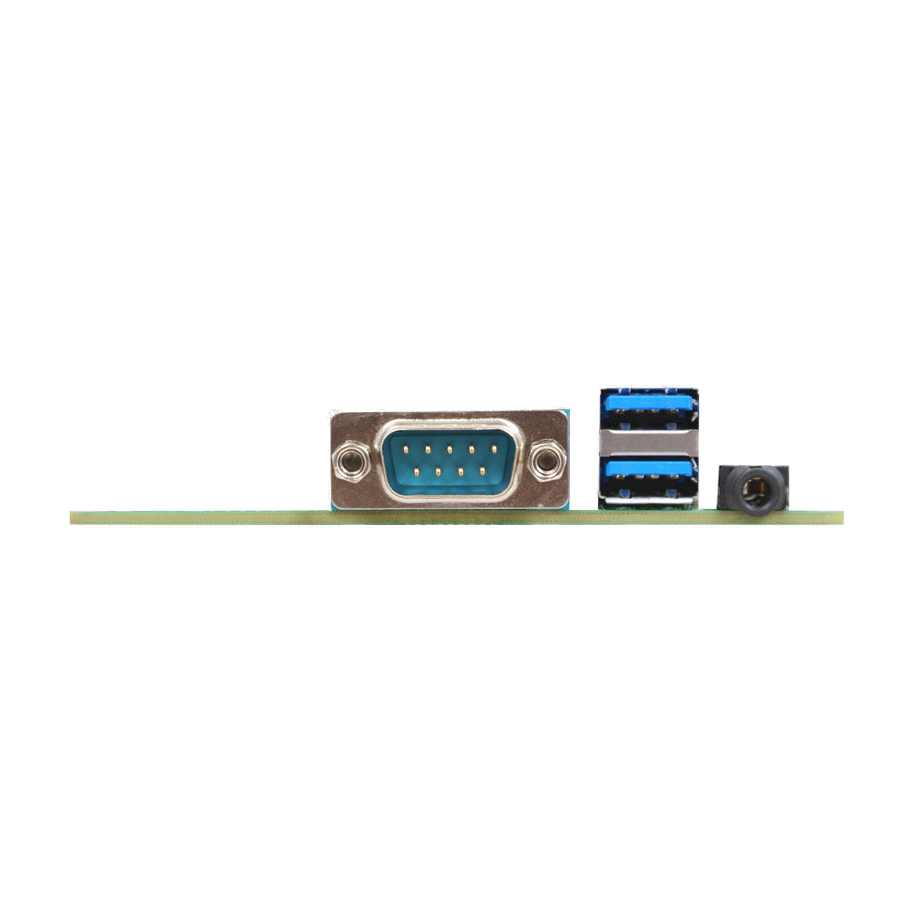

Front I/O

– 1* Audio (Line-out, MIC)
– 1* RS232/422/485 (Support 5/12V TTL)
– 2* USB3.2 (Gen2)

Internal Connector

– 2* USB2.0
– 1* SATAIII (6.0Gb/s)
– 1* M.2 (M key)
– 1* M.2 (E key)
– 1* GPIO (8bit, 5V)
– 1* AT mode

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10 ~ 255min)

Power

12~24V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux

Warranty

– 2 Years Limited Warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Downloads

Entrega Normal | 3 a 5 dias úteis

Entrega Urgente | 1 a 2 dias úteis

*salvo ruptura de stock
