€179.00
Sku: FTRFIDV1
Acessorio Faytech
Faytech

Caraterísticas

  • Easyident-Legic Module inside

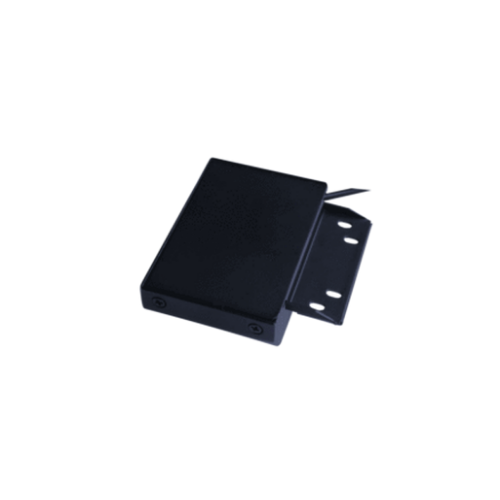

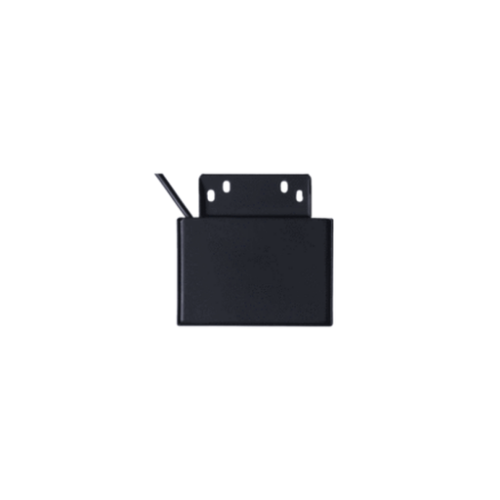

  • Easily attachable to the device using screw holes.

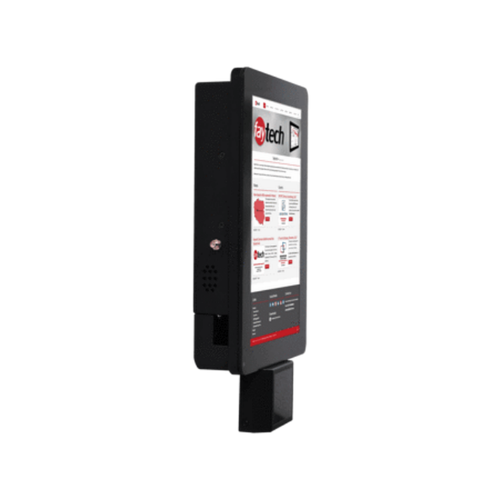

  • Compatible with a wide range of faytech devices
  • Solid design with Aluminum frame
  • Provides 3 different data (System Identification, Application Number, Chip Serial Number)

Especificações



Product name RFID Reader
Model number FTRFIDV1



Serial Interface With TTL Output
Baud Rate 19200, 8, n, 1
Carrier Frequency (MHz) 13.56
Detection Time (ms) 50



Operating Temperature (°C) -10 ~ +40
Weight (g) 150
Housing Material Aluminum with Plexiglass Front
Dimensions (cm) L × W × H 5.60 × 8.10 × 2.80

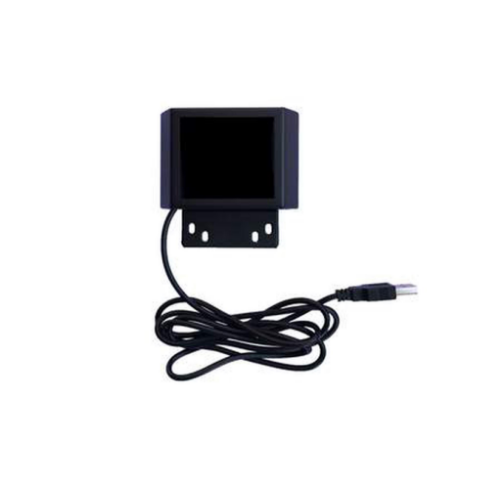

Cable Length (cm) 1.20



Power Supply + 5v DC +/- 5%
Stromaufnahme (mA) ~40



Capacitive Touch PC 10 - 21.5" (ohne 15.6")
Embedded Touch PC 13.3 - 21.5"
Capacitive Touch Monitor 13.3 - 21.5" (ohne 15.6")
The RFID Reader provides 3 different data, these data are stored in 1 datastring and transmitted this way.
The user can choose the individual values from the datastring.
The following data is read and transmitted:

System Identification (8 bytes)
Application Number (6 bytes)
Chip Serial Number (8 bytes)
Checksum

Then follows the output of CR and LF.
The output is in ASCII-HEX as follows.
Example: 01020304123456AABBCCDDZ <0xD> <0xA>

More information available in the downloadable Datasheet.
