The 4F28 Mining is a 19" rack case with 4U and an installation depth of 650mm.
In addition to accommodating a motherboard with a maximum of 12" x 13", it offers space for up to 28x 3.5" HDD and up to 4x 2.5" or 6x¹ 2.5" SSD. Thanks to its robust construction, the case offers the necessary support for your sensitive hardware.

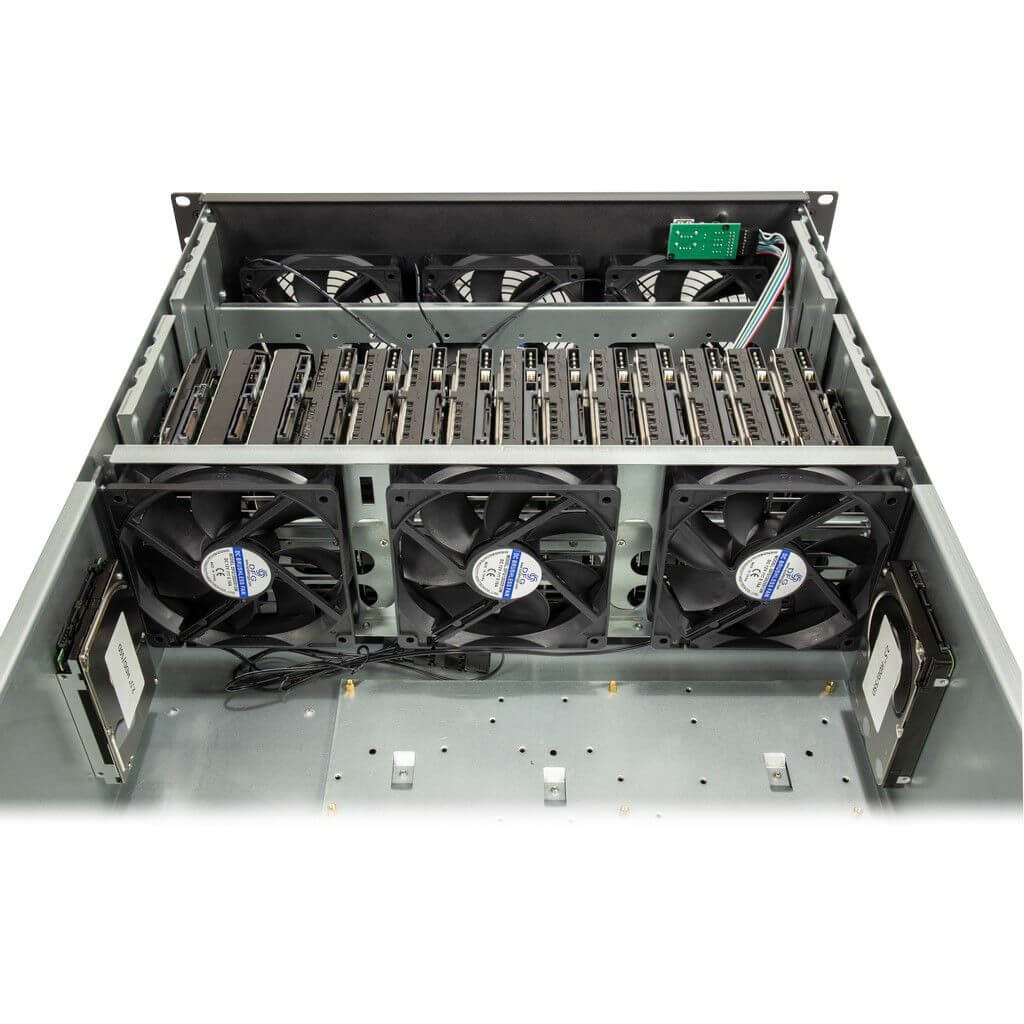

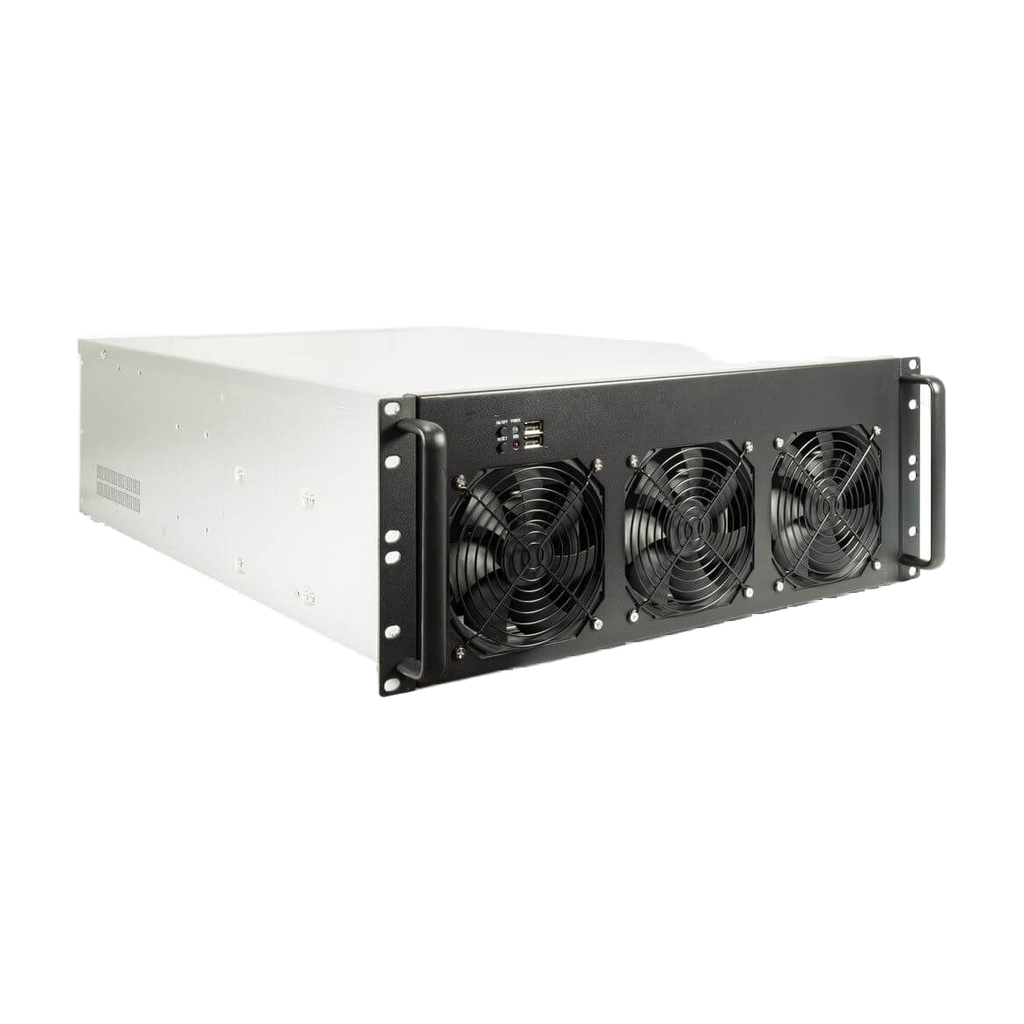

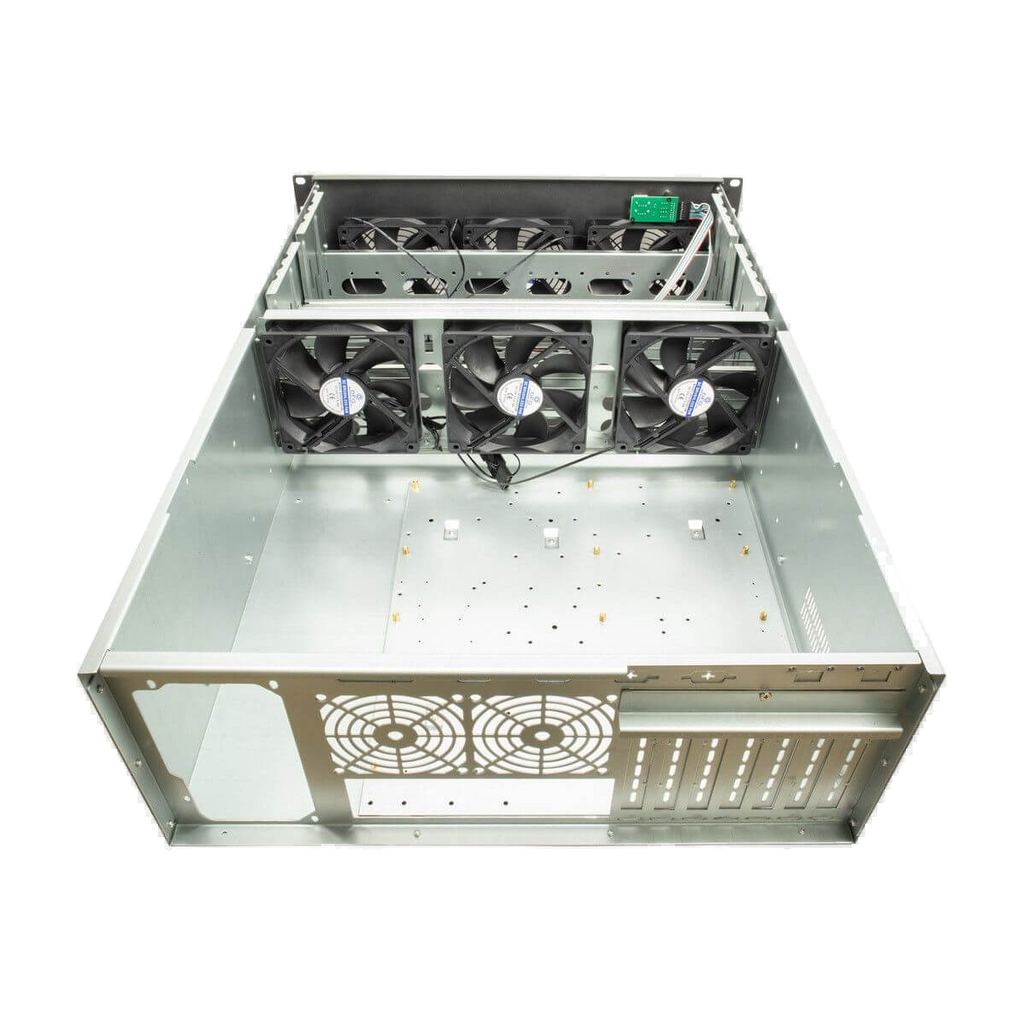

Six powerful 120mm case fans are preinstalled for optimal cooling of the hardware, three of them in the front and three more in the middle bar. Two USB 2.0 front connections complete the offer.
| MOTHERBOARD | |
|---|---|
| Form factor | Mini ITX, μATX, ATX, eATX |
| max. Motherboard size | 305mm x 330mm (12" x 13") |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 155mm |
| Length graphics card (max.) | 310mm |
| DRIVE BAYS | |
| 5.25" external | |
| 3.5" external | |
| 3.5" internal | 28x |
| 2.5" internal | 4x / 6x¹ |
| FRONT CONNECTORS | |
| USB 3.0 | |
| USB 2.0 | 2x |
| POWER SUPPLY | |
| ATX PSU | |
| FAN MOUNTING OPTION | |
| Front | 3x 120mm (serial, Molex connector) |
| Inside | 3x 120mm (serial, Molex connector) |
| Rear | 2x 80mm (optional) |
| CONTROLS & LED | |
| Controls | Power-Button Reset-Button |
| LED | Power HDD Activity |
| OTHER DATA | |
| Dimensions (h/w/d) | 178 x 482 x 688mm |
| Material | 1.0-1.2mm Steel |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw Set Two slot brackets |
| Features |
6x 120mm fans in the front and in the middle bar Space for up to 28x 3.5" HDD and 4x or 6x¹ 2.5" SSD |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 12 Pcs |
| Weight | net = 11.36kgs gross = 13.20kgs |
| Item number | 88887352 |
| EAN-Code | 4260455647182 |
¹ 6 pieces only possible with half-height 3.5" hard drives
| Scope of delivery |
Case Retail packaging Screw Set Mounting rail for 6 dual-slot graphics cards (pre-mounted) Mounting rail for 8 single-slot graphics cards Adhesive tape made of foam |
