DIN-Rail Embedded PC Industrial da Lex System. Poderoso fanless Mini-PC MIRO-3-3-L + 3I385AW com o CPU Bay Trail-D J1900 quad core, dual LAN e 6 portas COM. Slot para cartão...

  • - Preços Sem IVA incluído.

  • - Valores sujeitos a alterações.

  • - Alguns dos valores requerem confirmação no acto da encomenda.

Lex System
€450.00

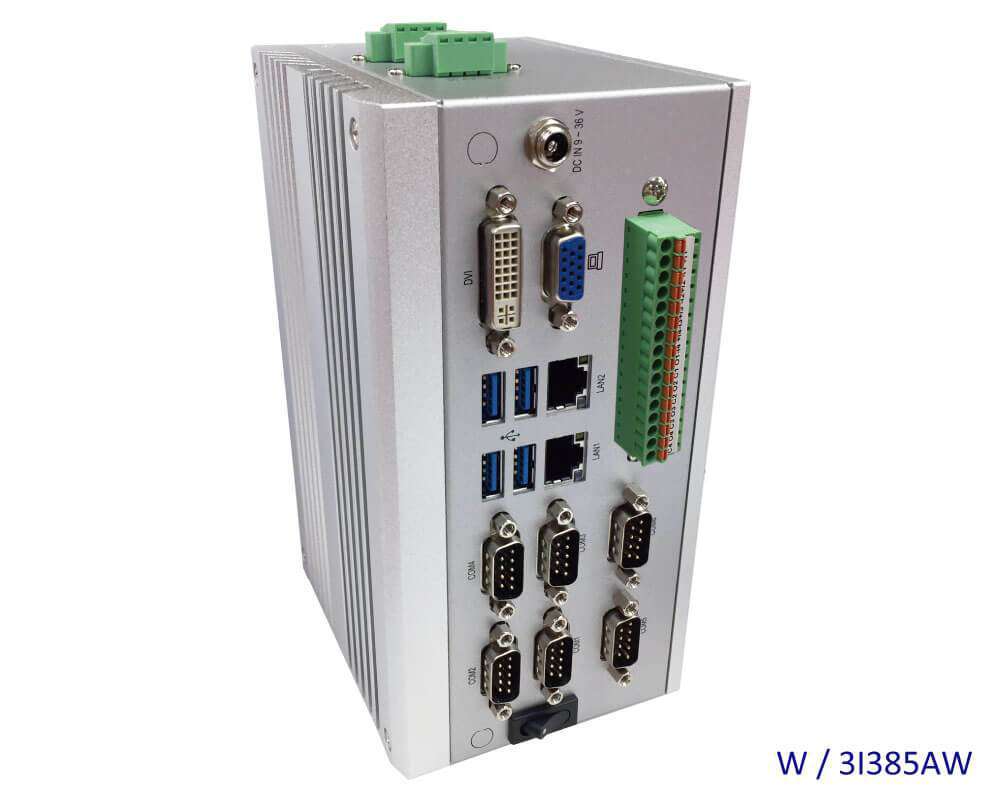

DIN-Rail Embedded PC Industrial da Lex System. Poderoso fanless Mini-PC MIRO-3-3-L + 3I385AW com o CPU Bay Trail-D J1900 quad core, dual LAN e 6 portas COM. Slot para cartão SIM garantem comunicações 3G / 4G.



  • CPU Embedded Intel® Bay Trail-D J1900
  • 1x socket DDR3L SODIM até 8GB
  • Multi displays: VGA, DVI & LVDS
  • 6x COM
  • 2x Intel GbE LAN
  • 4x USB 3.0 + 1x USB 2.0
  • 2X Mini-PCIe
  • 1x slot para cartão SIM



MIRO-3-3-L_3I385AW_DIN-Rail_Embedded-PC_datasheet



Especificações:

MODEL MIRO-3 (3 Layers)
DIN-Rail Mounted Embedded Series
Dimension 90.9 H x 178 W x 116D mm
Material Aluminum
Color Silver
Weight 1.75 Kg (Incl. M/B)
Storage Space 1 x 2.5" HDD

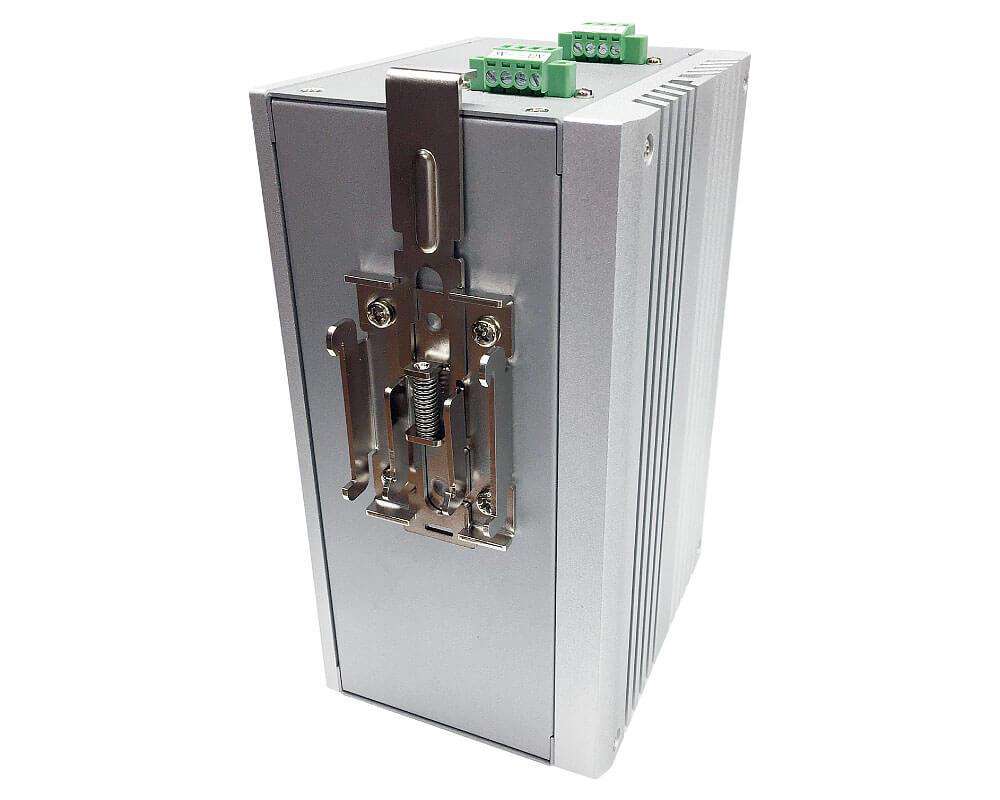

Optional Accessory DIN-Rail munted kit. (Option)



MODEL 3I385AW 3I385CW
CPU Type Bay Trail-D J1900 2.0Ghz (Quad Core processor)
Bay Trail-I E3845 1.91GHz (Quad core processor)
MB Chipset Intel Bay Trail J1900 / E3845 chipset
BIOS Insyde UEFI BIOS
Graphics Intel's 7th generation (Gen 7) graphics and media encode / decode engine,
Supports DX*11, OpenGL 3.0 (OGL 3.0), OpenCL 1.2 (OCL 1.2), OpenGLES 2.0
System Memory 1 x DDR3L SODIMM max up to 8GB ; DDR3L 1333 MHz for E3845 / J1900
DVI 1 x DVI support resolution 1920 x 1200
SATA 1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s)
1 x mini card socket for mSATA
Audio (option) Optional-High Definition Audio Specification, Support Line-out / Mic-in
Amplifier (option) Optional-Two channel Class D Audio Amplifier ; 2.1W/Ch (Typ.) into a 4ΩLoad
LAN 2 x Intel 10 / 100 / 1000 Mbps
LVDS / Touch Screen Optional 24bits / 2 channel LVDS up to
1920 x 1080 resolution
touch screen controller (USB interface)
IO Function 6 x RS232 / 422 / 485 (4 x external + 2 x internal)
USB 4 x USB 3.0 (external)
1 x USB 2.0 (internal)
4 x USB 3.0 (external) ;
1 x USB 2.0
(internal-optional to Touch Screen)
PS2 KB/MS Internal
DIO & WDT Hardware digital Input & Output, 8 x DI / 8 x DO
Hardware Watch Dog Timer, 0~255 sec programmable
Expansion Interface 1 x Full size mini card for PCIe / mSATA / USB
1 x Full size mini card for PCIe / USB, 1 x SIM socket
Power Wide Range DC in +9-36V
Dimension 146 x 102 mm (3.5 inch)
Operation Temperature -20°C~70°C
Operation Humidity 5 ~ 95%, non-condensing
