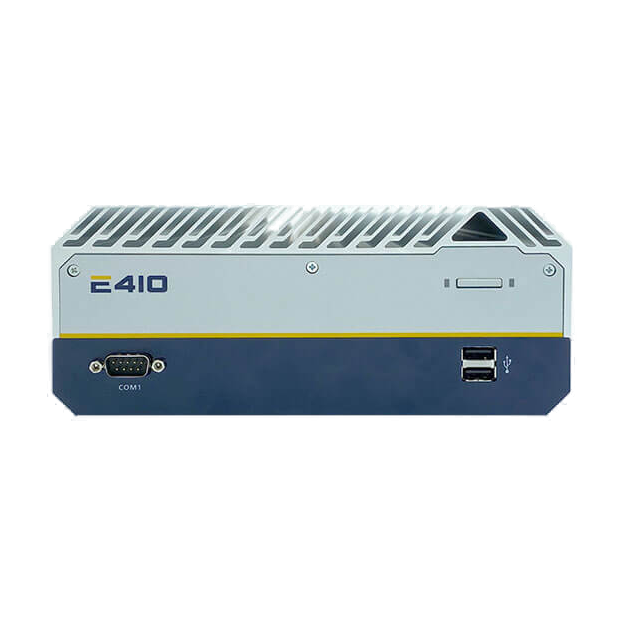

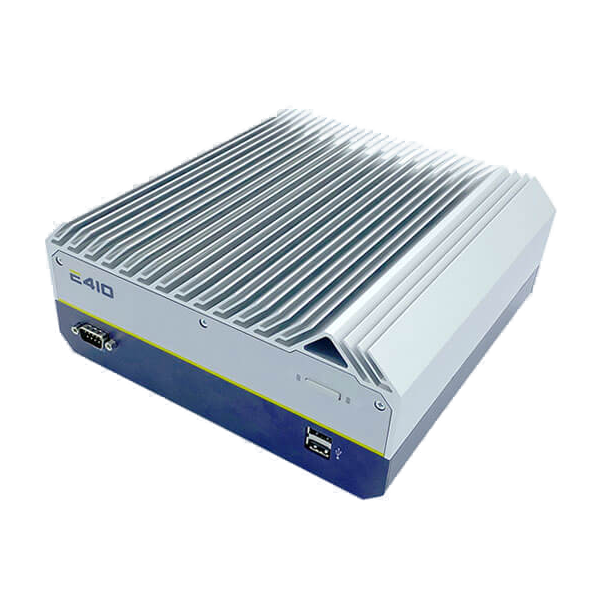

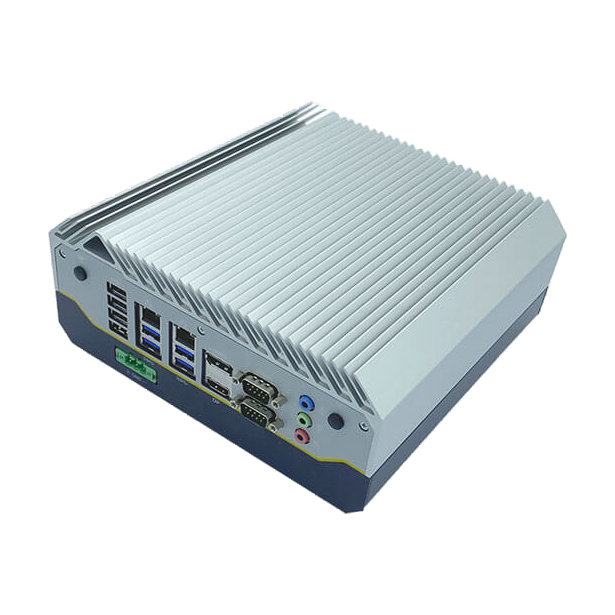

| E410 (E410) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | 10th Gen Intel® Comet Lake LGA1200 Socket Processor 10core TDP Max 35W | |
| CHIPSET | Intel® H420E | ||
| SYSTEM MEMORY | DDR4 2933/2666/2400MHz / 2 x 260-pin SO-DIMM / Max. 64 GB (Non-ECC) | ||
| GRAPHICS | Intel® HD Graphics | ||
| DISPLAY INTERFACE | DisplayPort 1.2 / HDMI 1.4 | ||
| STORAGE SLOT | 1 x 2.5 HDD / SSD (Default w/ HDD Bracket) / 1 x M.2 M Key SSD / 1 x mSATA | ||
| ETHERNET | Intel® I219-LM Giga LAN + Intel® I210-AT Giga LAN | ||
| AUDIO | Realtek® ALC888S | ||
| I/O CHIPSET | Nuvoton NCT6126D(eSPI) | ||
| TPM | Nuvoton NPCT750AAAYX TPM2.0 (Optional) | ||
| EXPANSION SLOT | 1 x Mini PCIe Full size (USB2.0 / SATAIII / PCIeX1) / 1 x M.2 2242 / 2280 M key (SATAIII) / 1 x M.2 2230 E key (PCIeX1, USB 2.0) |
||
| INDICATOR | Power Button / Power LED / HDD LED | ||
| FRONT I/O | 2 x USB 2.0 / 8-bit GPIO (DB9 Connector) |
||

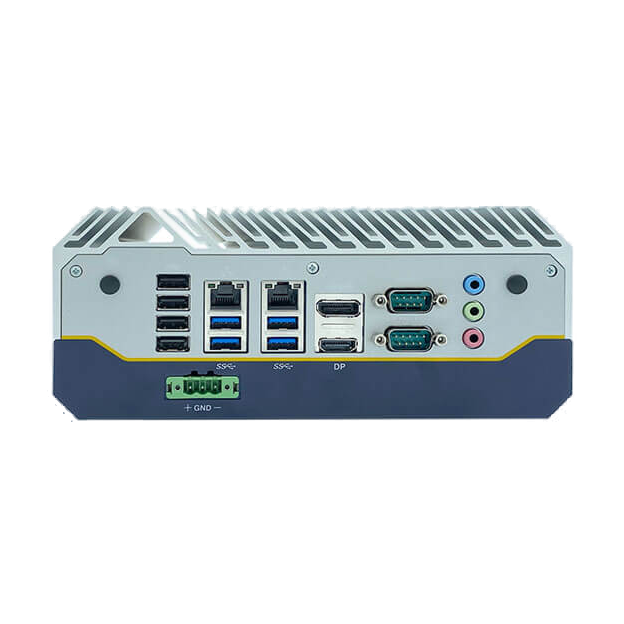

| REAR I/O | 2 x SMA hole with rubber cap / DC-in 12V in 3-pin terminal block connector / 2 x RS232 (1 support RS422/485) / 1 x HDMI 1.4 / 1 x DisplayPort 1.2 / 2 x RJ-45 / 4 x USB 3.0 / 4 x USB 2.0 / 1 x Mic-in / 1 x Line-out / 1 x Line-in |
||
| POWER REQUIREMENT | POWER INPUT | 12V DC Input w/ 3-pin Terminal Block Connectivity | |
| POWER ADAPTER | 90W adapter / DC12V / 7.5A / AC to DC | ||
| MECHANICAL | THERMAL DESIGN | Fanless | |
| MOUNTING | Wallmount | ||
| DIMENSIONS (W X H X D) | 209mm x 209mm x 87mm | ||
| WEIGHT | TBD | ||
| MATERIAL | Cold rolled steel and extruded aluminum front panel | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -20~50°C (4 ~ 122°F) | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| VIBRATION RESISTANCE | 5Hz~500Hz / 2Grms / 3Axis (Non-operating) | ||
| SHOCK RESISTANCE | 120G, 2ms Duration (Non-operating) | ||
| CERTIFICATION | CE / FCC Class A | ||
| OS | OS SUPPORT | Ubuntu 20.04 / Windows® 10 IoT 64bit (2019 LTSC / 2021 LTSC) | |
| PACKING LIST | PACKAGE | 1 x Embedded System / US + EU Power Cord / 1 x 18 cm SATA Cable / 1 x Power Adapter (12V, 90W, AC Jack Type) / 1 x CPU Heat spreader / 1 x 3-pin terminal block to 6530 DC Jack cable | |
