Our Revolution Edge AI Workstation enables advanced inference and model training capabilities, revolutionizing your edge AI. On-premise ML offers 24/7 calculation capacity and lower latency, and sensitive data can be stored and secured on-site, ensuring regulatory compliance.
The 1st desktop processor with Intel new hybrid technology 8+8 cores to intelligently allocate resource.
1.35X Performance Gen-to-Gen Improvement, and Efficiency optimization for machine vision. Lower latency with lower power consumption.
Supports triple independent displays (DP + HDMI + VGA). The HDMI & DisplayPort up to 4K high resolution. The enhanced visual quality responses the demand of being high precise.
Total System Power Budget
1500W
Wide Power Range
9V~48V
Protection
Reverse Power Input Protection
Over Voltage Protection: 58V
Over Current Protection: 75A
ESD Protection: +/-15kV (air), +/-8kV (contact)
Surge Protection: 3kW
Diferente dos Capacitores Eletrolíticos, com uma vida útil de longevidade, estabilidade e confiabilidade, nossas placas-mãe de servidor são construídas com Capacitores Sólidos.
MZ1-10ADP (MZ1-10ADP) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ordering Information | |||||||||||||||||||
| Model | DC-in Power | AC to DC PSU | |||||||||||||||||
| MZ1-10ADP-R680E | 9~48V DC-in w/ Terminal Block Connectivity | No PSU & no power cord | |||||||||||||||||
| MZ1-10ADP-R680E-AC300 | 9~48V DC-in w/ Terminal Block Connectivity | 24V/300W AC Adaptor EU + US AC power cord |
|||||||||||||||||
| MZ1-10ADP-R680E-AC1000 | 9~48V DC-in w/ Terminal Block Connectivity | 48V/1000W Power Supply (External) DC to DC power cable DC to AC - EU + US power cord |
|||||||||||||||||
| MZ1-10ADP (MZ1-10ADP) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | 13th/12th Gen Intel® Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 125W) | |
| CHIPSET | Intel® R680E | ||
| SYSTEM MEMORY | 2 x 262-pin SO-DIMM / DDR5 4800 MHz / Max. 64 GB (Non-ECC/ECC) | ||
| GRAPHICS | Intel® UHD Graphics | ||
| DISPLAY INTERFACE | VGA / HDMI 2.0b / DisplayPort 1.4 | ||
| STORAGE SLOT | 1 x M.2 B Key 2280/2260/2242 Slot / 2 x Hot Swappable 2.5” HDD Tray (support 7-9.5mm height) / 2 x Hot Swappable 3.5” HDD Tray / 1 x CFast slot / 1 x M.2 M Key 2280/2262/2242 SSD slot / 1 x mSATA |
||
| ETHERNET | 1 x Intel® I225-LM 2.5GbE LAN + 1 x Intel® I225-V 2.5GbE LAN | ||
| AUDIO | Realtek® ALC888S | ||
| I/O CHIPSET | Nuvoton NCT6126D | ||
| TPM | Nuvoton NPCT750AAAYX TPM2.0 | ||
| EXPANSION SLOT | 1 x M.2 3052 / 3042 / 2242 / 2260 / 2280 B key (USB3.0 , SATAIII, PCIeX1) w/ SIM slot / 1 x M.2 2230/ 2242 / 2260 / 2280 M key (PCIeX4 NVME, SATAIII) / 1 x M.2 2230 E key (CNVi , PCIeX1, USB 2.0) / 1 x Mini PCIe Full size (USB2.0 / SATAIII / PCIeX1) / 1 x Mini PCIe Full size (USB2.0 / PCIeX1) / #1: 1 x PCIe X16 (Gen4) or PCIe X8 (Gen4) #2: 1 x PCIe X4 in PCIe X16 physical connector (Gen4) #3: 1 x PCIe X4 in PCIe X16 physical connector (Gen4) #4: 1 x PCIe X8 in PCIe X16 physical connector (Gen4 x8 = Gen3 x16 Bandwidth) #5: 1 x PCIe X1 in open ended connector (Gen3) |
||
| INTERNAL SPEAKER | 1 x Buzzer | ||
| INDICATOR | Power Button / Power LED / HDD LED | ||
| INTERNAL I/O | 1 x USB3.2 Gen1 TYPE A / 1 x USB2.0 TYPE A | ||

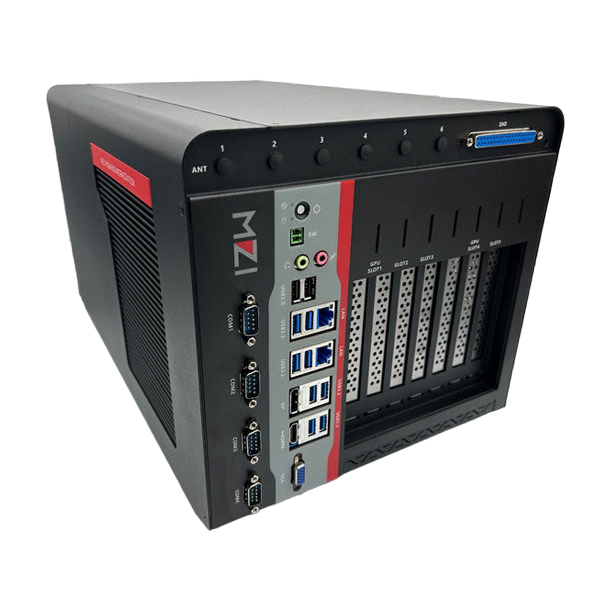

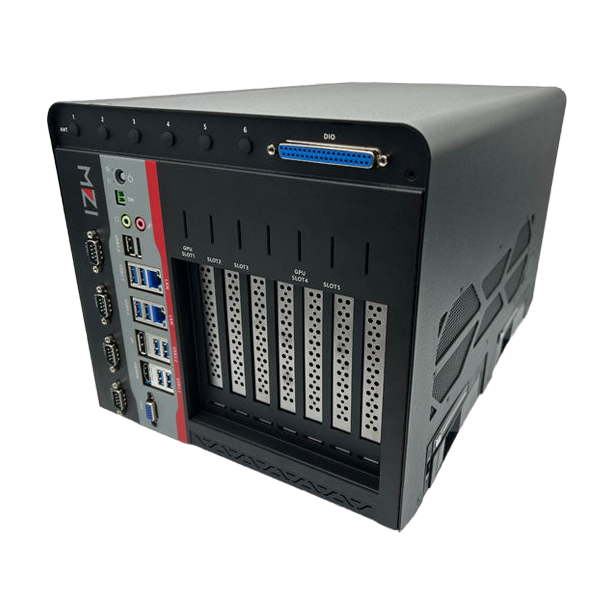

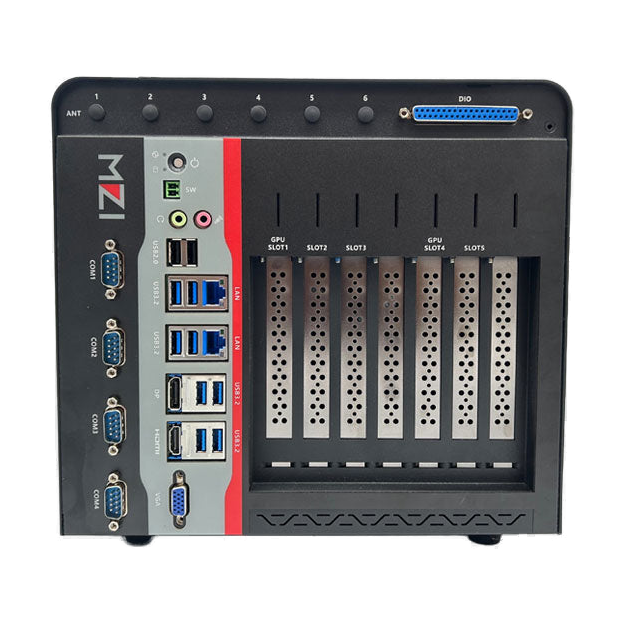

| FRONT I/O | 1 x 2-pin Terminal Block Remote Power on / off / 3 x RS232 / 4 x USB3.2 Gen2 / 4 x USB3.2 Gen1 / 6 x SMA hole with rubber cap / 1 x DB37 connector for 32 bit DIO / 1 x DisplayPort 1.4 / 1 x VGA / 1 x HDMI 2.0b / 2 x USB 2.0 / 1 x RS232 / 422 / 485 / 1 x Mic-in / 1 x Line-out |
||

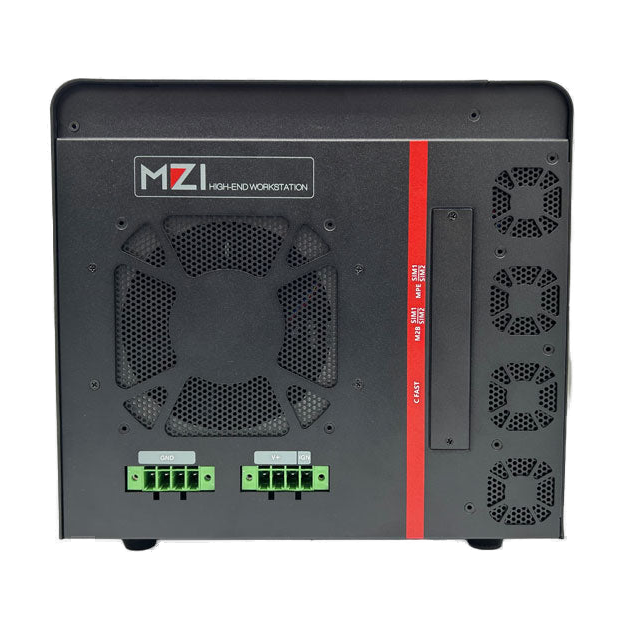

| REAR I/O | 2 x 4-pin Terminal Block Power Input / 2 x SIM slot to M.2 B Key slot / 2 x SIM slot to mPCIe slot / 1 x CFast slot |
||
| POWER REQUIREMENT | POWER INPUT | 9~48V Wide Range DC Input w/ Terminal Block Connectivity | |
| POWER ADAPTER | Optional 300W/1000W AC to DC PSU | ||
| MECHANICAL | THERMAL DESIGN | Fan | |
| MOUNTING | Wallmount | ||
| DIMENSIONS (W X D X H) | 264 x 415 x 256mm | ||
| WEIGHT | 13kg (28.7 lb) | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | *Please consult with your sales contact window about the Operating Temperature of GPU Card Configurations / -40°C ~ 70°C (w/ 35W CPU, w/o GPU card) -40°C ~ 60°C (w/ 65W CPU, w/o GPU card) -40°C ~ 50°C (w/ 80W CPU, w/o GPU card) -40°C ~ 40°C (w/ 125W CPU, w/o GPU card) *Max OT limit -10°C w/ dual GPU card / with 0.7m/s Air Flow and Wide Temperature Memory/Storage |
|
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (Non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C non-condensing | ||
| VIBRATION RESISTANCE | MIL-STD-810H, Follow Method 514.8C-I Category 4 for Truck | ||
| SHOCK RESISTANCE | MIL-STD-810H 516.8 procedure I - functional shock, Operating 20G, 11ms (Follow IEC 60068-2-27 half sine) | ||
| CERTIFICATION | CE / FCC Class A | ||
| OS | OS SUPPORT | Windows® 10 IoT LTSC 64bit (LTSC 2021) / Ubuntu 22.04 / Windows® 11 64bit, | |
| PACKING LIST | PACKAGE | 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 2 pin Terminal Block Male Connector / 2 x 4 pin Terminal Block Power Connector / 1 x GPU Power Cable kit |
|
