Sku: P150-11KS-7600U
Tipo de Produto:
Panel-PC Alta Performance
Fabricante:
MiTAC

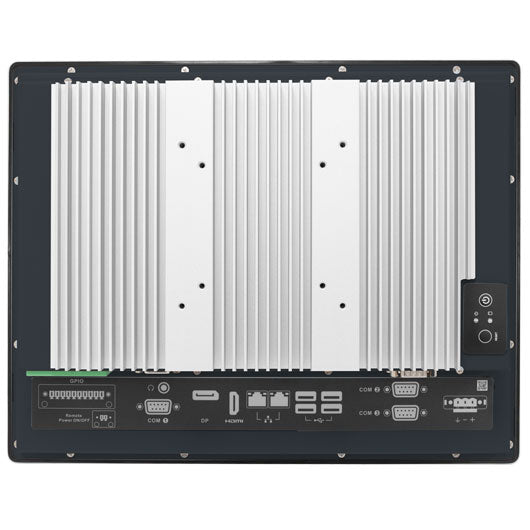

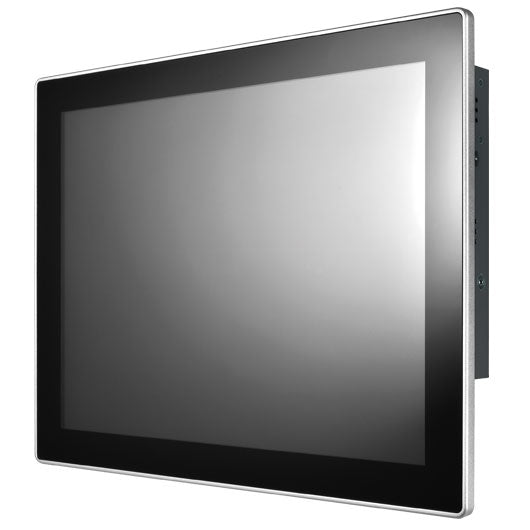

Panel PC 15' com processador Intel® Kaby Lake i7-7600
P150-11KS
- LCD TFT 15" com 70,000 horas de vida útil
- Proteção IP65 frontal, design fanless
- Slim Panel PC PCAP touch
- Processadores de 6ª e 7ª Ger. Intel® Core i
Caraterísticas
Especificações
Downloads
Caraterísticas
P150-11KS is a 15 inch all in one panel PC system with Intel Apollo Lake based platform for power-efficiency and fanless condition.
For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.
All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.
Powerful Kaby Lake Processor
2.18X Performance Improvement
(CPU Passmark)
Power Consumption Reduction
Low Power Consumption & Fanless Design
CORE-I
Fanless Design
Slient & stable 24-7 long term opertation
Slim & Sleek Design
Display & Touch
P-cap Multi Touch
Scratch resistance: 7H
Sunlight Readable Display
Triple Display
Support triple independent displays(VGA, HDMI, DP). The HDMI & DisplayPort up to 4K high resolution. The enhance visual quality responses the demand of being high precise.
DisplayPort 1.2 4K@60Hz
HDMI 1.4 4K@30Hz
0 ∼ 50ºC Wide Temperature
P series Panel PC is design for fan-less application in extreme temperature condition from 0ºC to 50ºC
IP65 Dust & Water proof
Front IP65
Sealing to prevent dust even protected against splash of waters
(within certain limits)

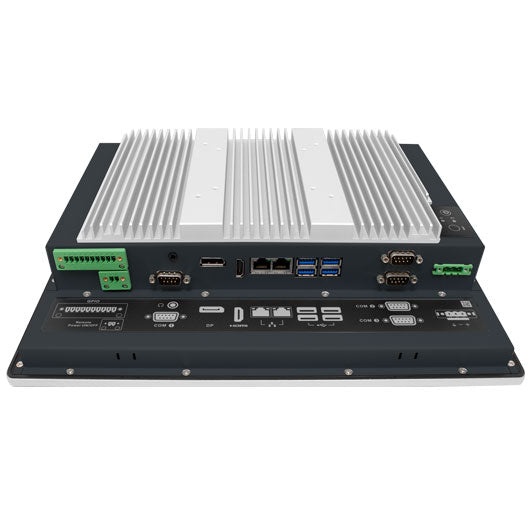

Rich I/O
Advanced Power Protection
Wide Power Range
8V ∼ 24V
Protection
ESD Protection: +/-8kV (air), +/- 4kV (contact)
Surge Immunity: 2kV
Mounting Design
STEP 1
- Make a cutout on the fixture (ex. wall) according to the cutout Dimensions of the Panel PC
STEP 2
- Place the Panel PC on the fixture from the front side
- The sides of the bezel should be visible from outside
STEP 3
- Use mounting kit to secure the Panel PC to the fixture
- First install mounting clamp to the Panel PC, and then fasten the screw to fix the clamp to the fixture
STEP 4
-
Installation complete
Especificações
| Model | CPU | VGA | Display Port | HDMI | USB 3.0 / 2.0 | Line out / Mic-in | RS232 | LAN | Wifi / BT | Power |
|---|---|---|---|---|---|---|---|---|---|---|
| P150-11KS-3965U | Celeron 3965U | 0 | 1 | 1 | 4 / 0 | 1 combo jack | 3 | 2 | Optional | DC-in 8~24V |
| P150-11KS-7100U | Core i3-7100U | 0 | 1 | 1 | 4 / 0 | 1 combo jack | 3 | 2 | Optional | DC-in 8~24V |
| P150-11KS-7300U | Core i5-7300U | 0 | 1 | 1 | 4 / 0 | 1 combo jack | 3 | 2 | Optional | DC-in 8~24V |
| P150-11KS-7600U | Core i7-7600U | 0 | 1 | 1 | 4 / 0 | 1 combo jack | 3 | 2 | Optional | DC-in 8~24V |
| P150-11KS (P150-11KS) Specifications | |||
|---|---|---|---|
| LCD | DISPLAY TYPE | 15" TFT-LCD | |
| MAX. RESOLUTION | 1024 x 768 | ||
| MAX. COLORS | 16.7M (8 bit / color) | ||
| LUMINANCE (cd/m2) | 300 | ||
| VIEWING ANGLE (H/V) | 176° / 176° | ||
| LED BACKLIGHT LIFETIME (hrs) | 70,000 | ||
| HIGH BRIGHTNESS | Option | ||
| TOUCH SCREEN | TYPE | P-CAP | |
| TOUCH SCREEN | True-flat 10 points | ||
| AR/AG | Option | ||
| SYSTEM | PROCESSOR | 7th Gen Intel® Kaby Lake-U i3-7100U(Dual Core, 3MB Cache, 2.40 GHz) / option: 7th Gen Kaby Lake celeron 3965U / i5-7300U / i7-7600U / option: 6th Gen Skylake celeron 3955U / i3-6100U / i5-6300U / i7-6600U | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR4 2133MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) | ||
| ETHERNET | Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN | ||
| I/O PORT | 1 x 3-pin Phoenix type terminal block DC input / 2 x RJ45 / 1 x Audio Jack (combo Line-out + Mic-in) / 1 x 8bit GPIO terminal block / 1 x DisplayPort 1.2 / 1 x 2-pin remote power on/off / 3 x RS232 / 4 x USB 3.0 / 1 x HDMI 1.4 | ||
| EXPANSION SLOT | Wireless: M.2 2230 E key (PCIe, USB) | ||
| STORAGE | 1 x SATA 2.5” HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 2W | ||
| OS SUPPORT | Windows® 10 enterprise 1703 | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | DC-in 8~24V | |
| POWER ADAPTER | AC to DC / DC19V / 3.4A / 65W adapter | ||
| MECHANICAL | MOUNTING | VESA 75/100mm / Panel Mount | |
| DIMENSIONS (W X D X H) | 283.1 x 360.4 x 81.7 mm | ||
| WEIGHT | TBD | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -20~55°C (-4 ~ 131°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| STORAGE HUMIDITY | 10% ~ 90% @40°C non-condensing | ||
| VIBRATION RESISTANCE | Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD / 2Grms @with SSD, follow IEC 60068-2-64 | ||
| SHOCK RESISTANCE | Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27 | ||
| EMC | CE / FCC Class B | ||
| FRONT PANEL PROTECTION | IP65 Compliant | ||
| PACKING LIST | PACKAGE | 1 x Driver CD / 1 x Quick Installation Guide / 1 x 3 pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screws kit / 1 x Mounting kit / 1 x 10 pin Terminal Male Connector | |
