Panel PC 21.5' P210-11KS-3965U (Kaby Lake 3965U dual core)

Panel PC 21.5' P210-11KS-3965U (Kaby Lake 3965U dual core)

Name: Panel PC 21.5' P210-11KS-3965U (Kaby Lake 3965U dual core)
Brand: MiTAC
SKU: P210-11KS-3965U
Price: 1060.00 EUR
Availability: InStock
Rating: 5 (47 reviews)

com IVA

1,303.80€

sem IVA

1,060.00€

Sku: P210-11KS-3965U

Tipo de Produto: Panel-PC Capacitivo

Fabricante: MiTAC

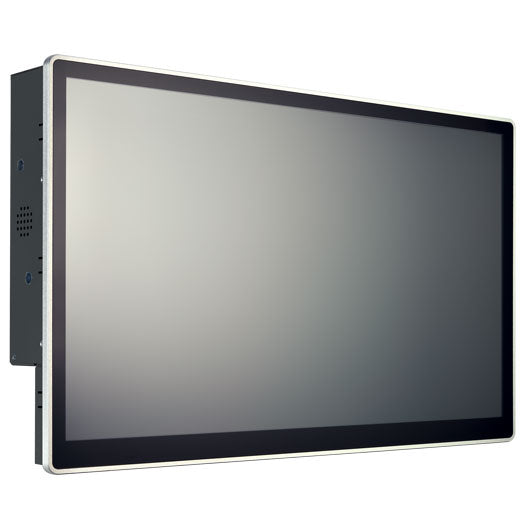

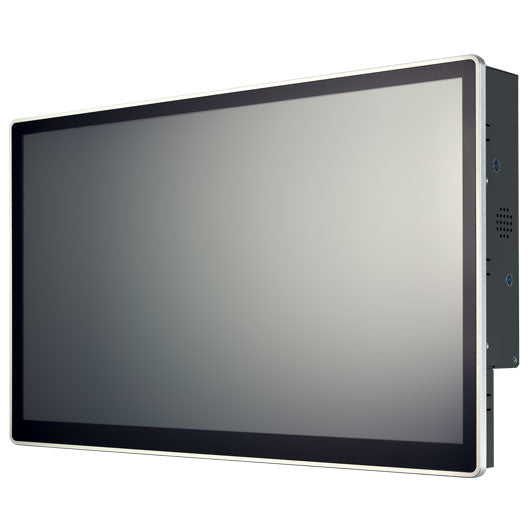

Panel PC 21.5' com processador Intel® Kaby Lake 3965U

P210-11KS

LCD TFT 21.5" com 30,000 horas de vida útil
Proteção IP65 frontal, design fanless
Slim Panel PC PCAP touch
Processadores de 7ª Ger. Intel® Core-I

Caraterísticas

Especificações

Downloads

Caraterísticas

P210-11KS is a 21.5 inch all in one panel PC system with Intel Apollo Lake based platform for power-efficiency and fanless condition.

For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.

All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

Powerful Kaby Lake Processor

2.18X Performance Improvement
(CPU Passmark)

Power Consumption Reduction

Low Power Consumption & Fanless Design

CORE-I

Fanless Design

Slient & stable 24-7 long term opertation

Slim & Sleek Design

Display & Touch

P-cap Multi Touch

Scratch resistance: 7H

FHD 16:9 natural viewing experience

Sunlight Readable Display

Triple Display

Support triple independent displays(VGA, HDMI, DP). The HDMI & DisplayPort up to 4K high resolution. The enhance visual quality responses the demand of being high precise.

DisplayPort 1.2 4K@60Hz

HDMI 1.4 4K@30Hz

0 ∼ 50ºC Wide Temperature

P series Panel PC is design for fan-less application in extreme temperature condition from 0ºC to 50ºC

IP65 Dust & Water proof

Front IP65

Sealing to prevent dust even protected against splash of waters

(within certain limits)

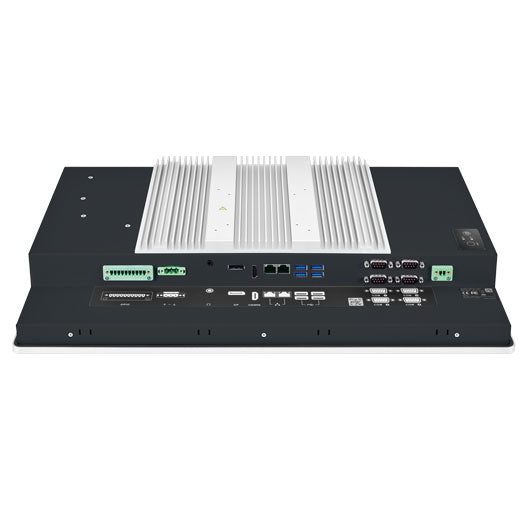

Rich I/O

Advanced Power Protection

Wide Power Range

8V ∼ 24V

Protection

ESD Protection: +/-8kV (air), +/- 4kV (contact)
Surge Immunity: 2kV

Mounting Design

STEP 1

Make a cutout on the fixture (ex. wall) according to the cutout Dimensions of the Panel PC

STEP 2

Place the Panel PC on the fixture from the front side
The sides of the bezel should be visible from outside

STEP 3

Use mounting kit to secure the Panel PC to the fixture
First install mounting clamp to the Panel PC, and then fasten the screw to fix the clamp to the fixture

STEP 4

Installation complete

Especificações

Model	CPU	Display Port	HDMI	USB 3.0 / 2.0	Line out / Mic-in	RS232	LAN	Wifi / BT	Power
P210-11KS-3965U	Celeron 3965U	1	1	4 / 0	1 combo jack	4	2	Optional	DC-in 8~24V
P210-11KS-7100U	Core i3-7100U	1	1	4 / 0	1 combo jack	4	2	Optional	DC-in 8~24V
P210-11KS-7300U	Core i5-7300U	1	1	4 / 0	1 combo jack	4	2	Optional	DC-in 8~24V
P210-11KS-7600U	Core i7-7600U	1	1	4 / 0	1 combo jack	4	2	Optional	DC-in 8~24V

P210-11KS (P210-11KS) Specifications
LCD	DISPLAY TYPE	21.5" TFT-LCD
	MAX. RESOLUTION	1920 x 1080
	MAX. COLORS	16.7M (8 bit / color)
	LUMINANCE (cd/m2)	250
	VIEWING ANGLE (H/V)	170° / 160°
	LED BACKLIGHT LIFETIME (hrs)	30,000
	HIGH BRIGHTNESS	Option
TOUCH SCREEN	TYPE	P-CAP
	TOUCH SCREEN	True-flat 10 points
	AR/AG	Option
SYSTEM	PROCESSOR	7th Gen Intel® Kaby Lake-U i3-7100U(Dual Core, 3MB Cache, 2.40 GHz) / option: 7th Gen Kaby Lake celeron 3965U / i5-7300U / i7-7600U / option: 6th Gen Skylake celeron 3955U / i3-6100U / i5-6300U / i7-6600U
	CHIPSET	Intel® SoC Integrated
	SYSTEM MEMORY	DDR4 2133MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
	ETHERNET	Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN

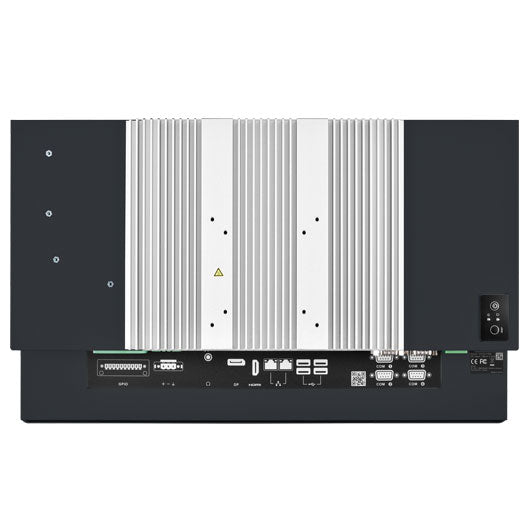

	I/O PORT	1 x 3-pin Phoenix type terminal block DC input / 2 x RJ45 / 1 x Audio Jack (combo Line-out + Mic-in) / 1 x 8bit GPIO terminal block / 4 x RS232 / 1 x DisplayPort 1.2 / 1 x 2-pin remote power on/off / 4 x USB 3.0 / 1 x HDMI 1.4
	EXPANSION SLOT	Wireless: M.2 2230 E key (PCIe, USB)
	STORAGE	1 x SATA 2.5” HDD / SSD bay
	STEREO SPEAKER	2 x 2W
	OS SUPPORT	Windows® 10 enterprise 1703
	WATCHDOG TIMER	1~255 steps by software program
POWER REQUIREMENT	POWER INPUT	DC-in 8~24V
POWER REQUIREMENT	POWER ADAPTER	AC to DC / DC19V / 3.4A / 65W adapter
MECHANICAL	MOUNTING	VESA 75/100mm / Panel Mount
	DIMENSIONS (W X D X H)	508 x 308 x 83 mm
	WEIGHT	8kg
ENVIRONMENTAL	OPERATING TEMPERATURE	0 ~ 50°C (32 ~ 122°F)
	STORAGE TEMPERATURE	-20 ~ 60°C (-4 ~ 140°F)
	STORAGE HUMIDITY	10% ~ 90% @40°C non-condensing
	VIBRATION RESISTANCE	Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD / 2Grms @with SSD, follow IEC 60068-2-64
	SHOCK RESISTANCE	Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27
	EMC	CE / FCC Class B
	FRONT PANEL PROTECTION	IP65 Compliant
PACKING LIST	PACKAGE	1 x Driver CD / 1 x Quick Installation Guide / 1 x 3 pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screws kit / 1 x Mounting kit / 1 x 10 pin Terminal Male Connector

Downloads

Datasheet
