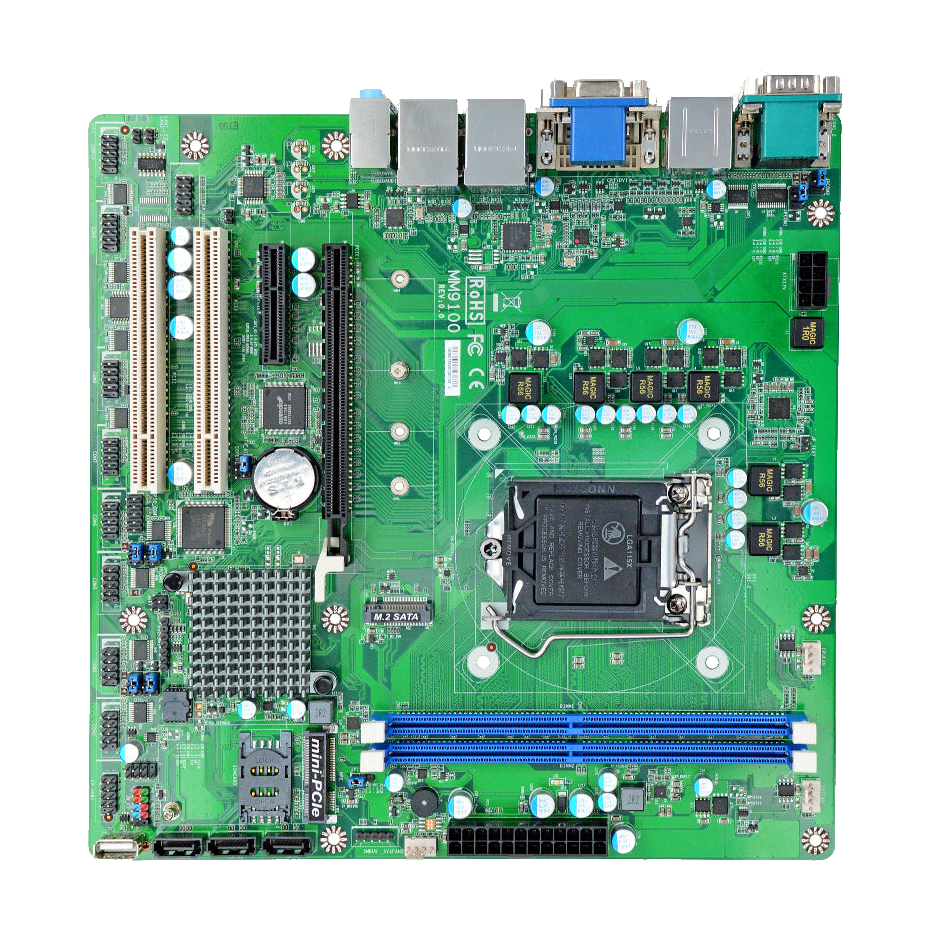

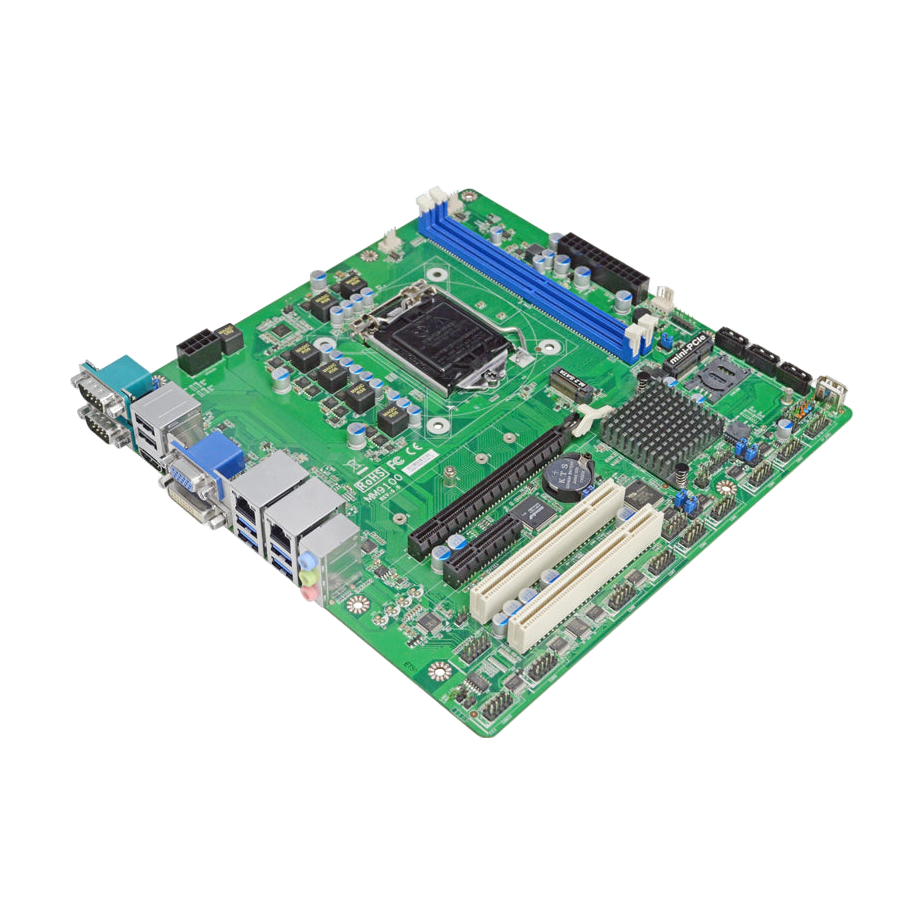

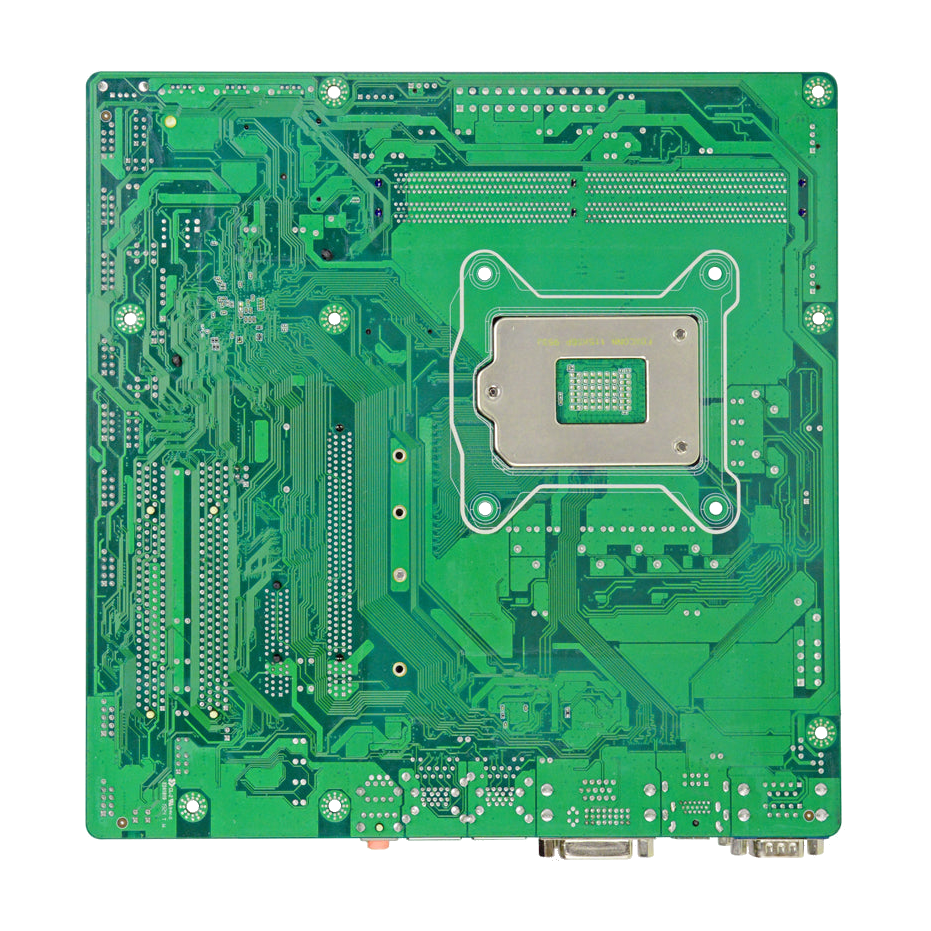

Jetway MM91-00 (Intel® Core™ LGA1151 i7/ i5 /i3, Pentium)

Model / Part Number

Model

– MM91-00

Part Number

– MM91-00

 Form Factor

Dimensions

– Micro ATX (244 * 244mm)

 Processor System

CPU

– Intel^® LGA1151 SkyLake/KabyLake Processor (Max. 65W TDP)

Core Number

– (By CPU)

Max Speed

– (By CPU)

Cache

– (By CPU)

Chipset

– H110

BIOS

– AMI Flash ROM

 Expansion Slot

Expansion

– 1* Mini PCIe (full size)
– 1* PCIex16 slot
– 1* PCIex4 slot
– 2* PCI
– 1* SIM card slot

 Memory

Technology

– Dual CH DDR4 2133MHz UDIMM

Max.

– 32GB

Socket

– 2* UDIMM

 Graphics

Controller

– Intel® HD Graphics

VRAM

– Shared Memory

VGA

– 1 (Max Resolution: 1920×1200@60Hz)

DVI-D

– 1 (Max Resolution: 1920×1200@60Hz)

HDMI 1.4

– 1 (Max Resolution: 4096×2160@30Hz)

Multi Display

– Dual Displays

 Ethernet

Ethernet

– 10/100/1000 Mbps

Controller

– PCIe GbE: 1* i219V, 1* i211AT

Connector

– 2 * RJ45

 Audio

CODEC

– HD Audio: Realtek ALC662

Channel

– 6 Channel

 SATA

SATA

– 3* SATAIII

 I/O Connector

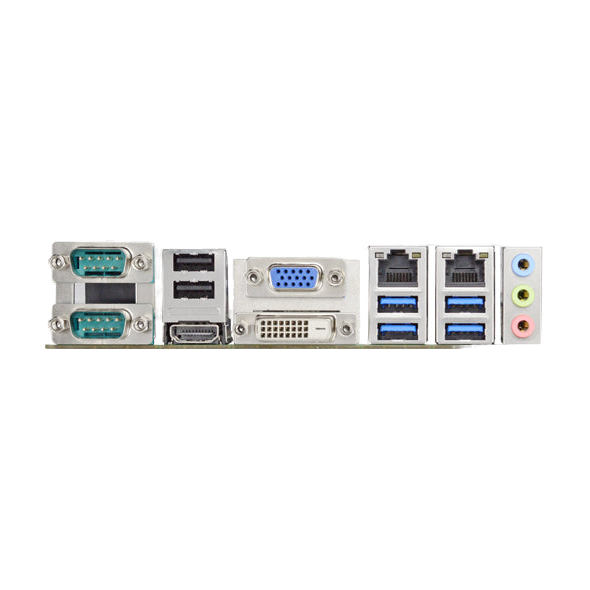

Rear I/O

– 1* VGA
– 1* HDMI
– 1* DVI-D
– 2* Ethernet RJ45
– 4* USB 3.1 (Gen. 1) & 2* USB2.0
– Line-In, Line-Out, MIC
– 2* COM (COM 1 support RS232/422/485)

Internal Connector

– 2* USB 2.0, 1* USB2.0 (Vertical type)
– 1* PS/2
– 8* COM
– 3* SATAIII
– 1* SIM card slot
– 1* Mini PCIe (full size)
– 1* M.2 M-key 2242/2260/2280/22110 (SATA I/F)
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS
– 1* AT mode
– Support onboard TPM (option)

 Watchdog Timer

Output

– From Super I/O to drag RESETCON#

Interval

– 256 segments (10sec ~ 255min)

 Power Requirements

Input PWR

– ATX PWR (8+24 pin)

Power On

AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Certifications

Certifications

– CE, FCC, LVD, RoHS, REACH

 Environment

Temperature

– Operating: 0°C ~ 60°C

– Storage: -20°C ~ 85°C

 Warranty

Warranty

– 2 Years Limited Warranty
