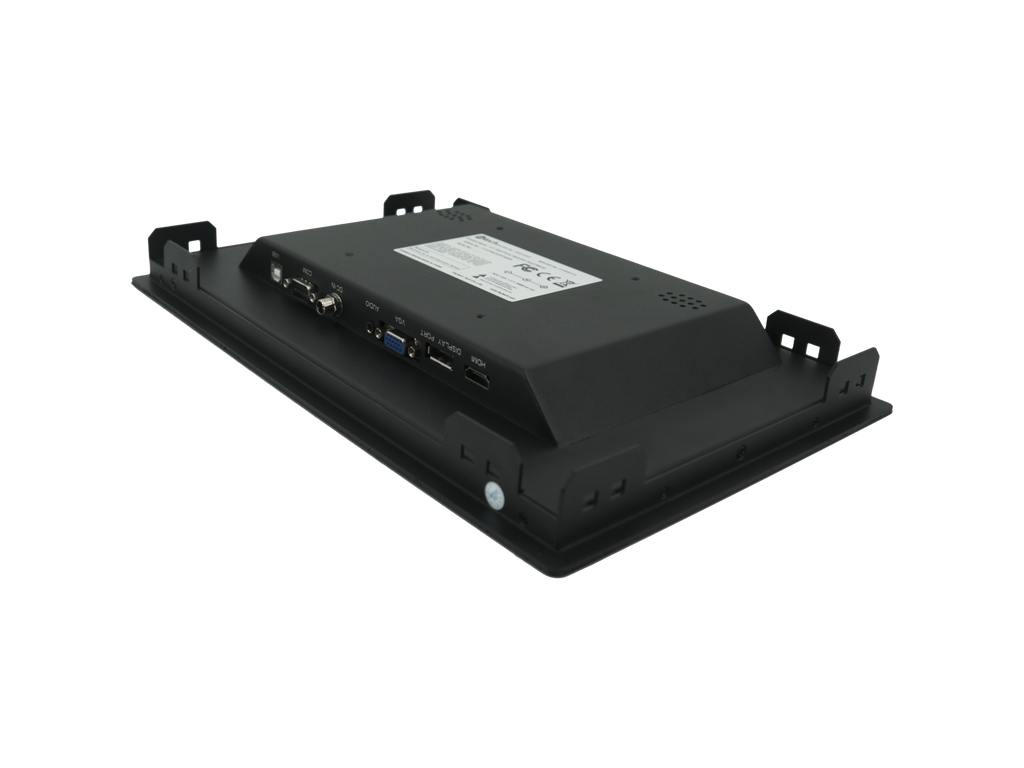

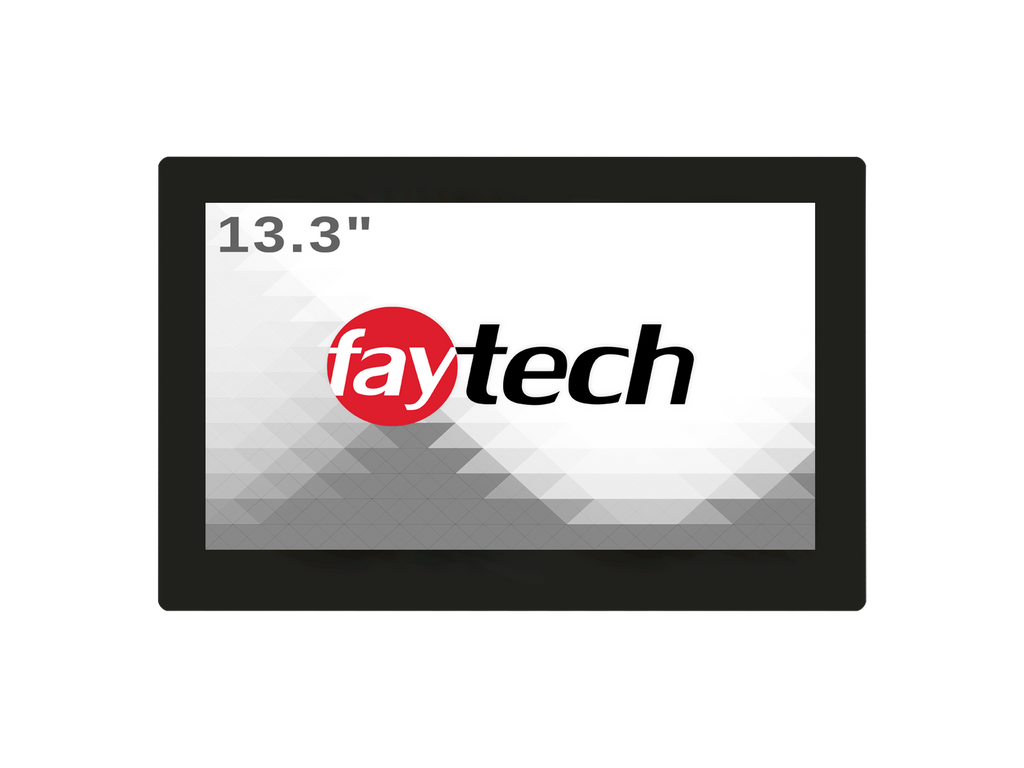

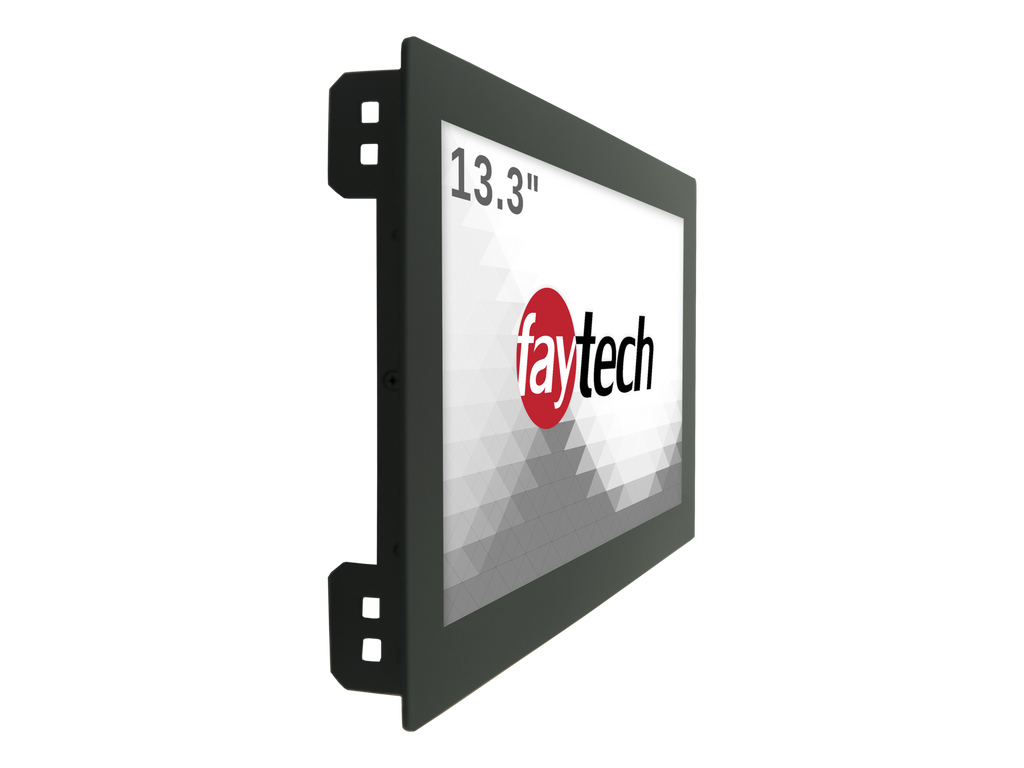

| Product name | 13.3'' Open Frame Capacitive Touch Monitor |
| Model number / EAN number | FT133TMCAPOFHBOB / 6920734000395 |
| IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 13.3/33.78 |
| Display active screen size (cm) | 29.38×16.52 |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 |
| Maximum showable resolution | 1920×1080 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 1000 |
| Contrast | 800:1 |
| Typical reaction time Tr/ Tf (ms) | 15/15 |
| Visual Angle horizontal/vertical (°) | 170/170 |
| Backlight / Backlight Lifetime (hours) | LED / 100,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etched) |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 1.58 |
| Gross weight (kg) | 3.00 (incl. cartonage) |
| Housing material (open frame) | Aluminum |
| Housing (mm) L × W × H | 342.0 × 220.5 × 38.5 |
| Cut-out required (mm) L × H | 329.0 × 207.0 |
| Max. wall thickness for clamp supports (mm) | 5.0 |
| Amount of clamps required | 8 |
| (optional) Tape length required (mm) | 1092.0 (2× 339.0 + 2× 207.0) |
| (optional) Amount of glue required (ml) | 5.46 |
| Mounting | VESA 100 |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 18 |
| Stand-By Consumption (W) | <1 |
| Video | 1x HDMI 1.3 (incl. HDCP) |
| 1x DP | |
| 1x VGA | |
| Audio | 1x PC-Audio |
| Touch Connector | 1x USB |
| Connectors | 1x Serial |
| 1x 12V DC-In |
| Power Supply (see Power section) |
| Short Installation Manual |
| HDMI Cable |
| USB Cable |
