• 27" Outdoor Open Frame
  • IP66 & Nema 4x
  • Compliant with UL-60950 & IK-10
  • OEM Life Cycle Support
  • Ready for 24/7 Use
com IVA

sem IVA
Sku: E399052
Tipo de Produto: Monitores Openframe Touch
Fabricante: Elo Touch

elo2799 – E399052

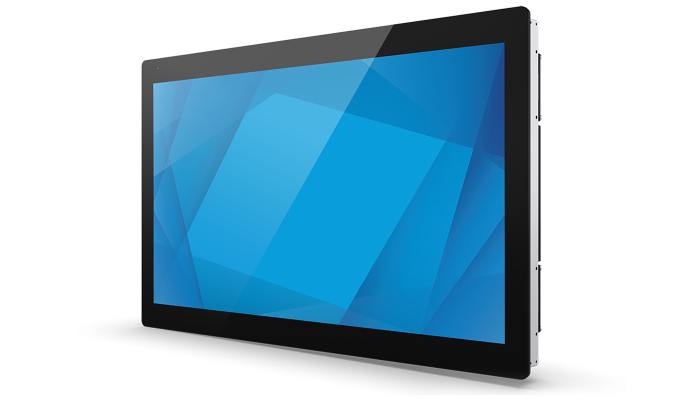

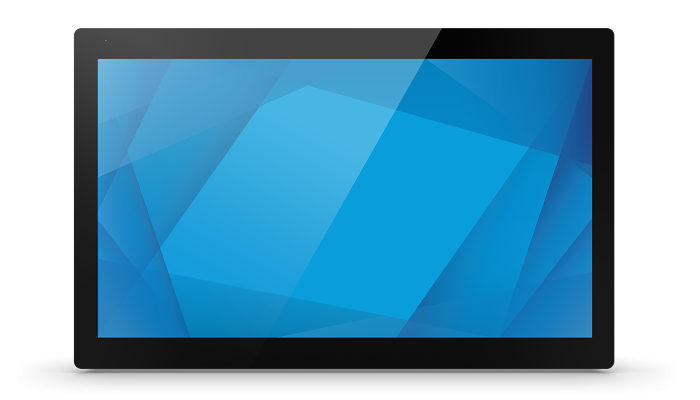

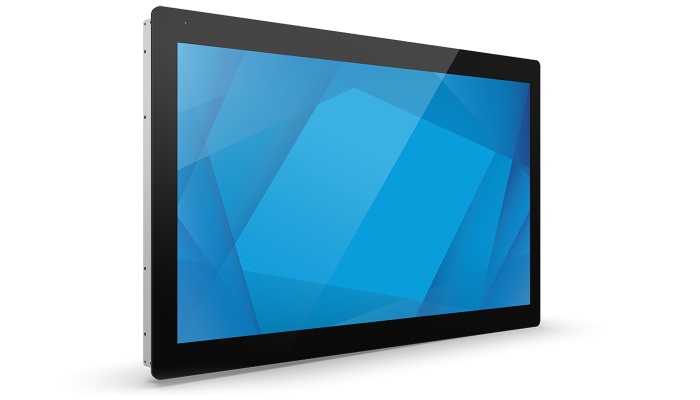

Monitor 27" Outdoor Open Frame

  • Built-in Thermal Protection
  • Compliant with UL-60950 & IK-10
  • IP66 & Nema 4x
  • OEM Life Cycle Support
  • Ready for 24/7 Use

2799L 27" Outdoor Open Frame

Outdoor kiosk ready.

Elo's 27-inch outdoor monitor, boasting 1500 NITs brightness and IK10 vandal-proof rating, ensures 24/7 performance, even in direct sunlight. Readable with polarized sunglasses, it thrives in extended temperatures. Ideal for payment systems, signage, and charging stations, this brilliant, optically bonded weatherproof monitor features edge-to-edge glass for seamless outdoor enclosure integration.






Active Display Area

23.54"  x 13.24"  / 597.89 mm x 336.31 mm


27" / 685.8 mm

Aspect Ratio


Native Resolution


Other Supported Resolutions

640x480 60Hz, 720x400 70Hz, 800x500, 60Hz, 800x600 56, 60Hz, 1024x768 60Hz, 1280x800 60Hz, 1280x1024 60Hz, 1366x768 60Hz, 60Hz RB,

1440x900 60Hz, 60Hz RB, 1680x1050 60Hz, 60Hz RB, 1920x1080 50, 60Hz

Number of Colors

16.7 million

Number of Touches

10-touch with USB, 2-touch with RS232

Brightness (typical)

LCD panel: 1500  nits; TouchPro PCAP: 1320  nits

Response (typical)

14 msec

Viewing Angle

Horizontal: 89°/178°; Vertical: 89°/178°

Contrast Ratio





On-Screen Display

Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power

Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight  Saving Time

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

I/O Ports

Locking for all ports - USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, DC IN, Terminal Block for GPIO control (4 pins)




HDMI V1.3 Type A receptacle for HDMI input

Analog VGA on Female DE-15 (DB-15) connector (Support RS232 touch via E810917) DisplayPort V1.1a - Supports later versions of DisplayPort video input

Input Video Horizontal Sync frequency range: 30 – 82KHz

Input Video Vertical Sync (frame rate) frequency range: 50-75Hz





External DC - Optional power brick (sold separately)

Monitor  input  power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm

(+/- 0.2mm) barrel depth)

Monitor  input  voltage range: 12V – 24V DC +/- 5%

Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm

(+/- 0.5mm) barrel length)

Adapter input  voltage range: 100-240 VAC Input frequency: 50-60  Hz

Power  Consumption

ON (Typical - 100% Brightness): 70 W; SLEEP from PC (monitor + adapter): 1.23W ; OFF (monitor + adapter): 0.26 W


Operating: -20 °C to 60 °C (-4 °F to 140 °F); Storage: -30 °C to 80 °C (-22 °F to 176 °F)


Operating: 10% to 90%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)


16.34"  x 25.90"  x 2.6" / 415 mm x 658 mm x 66 mm

Shipping Dimensions

22.25” x 32.29” x 9.06” / 565 mm x 820 mm x 230 mm


Unpackaged: 30.00 lbs / 13.6 kg; Packaged: 36.60 lbs / 16.6kg

Mounting Options

200mm x 100mm VESA mount on rear of unit; 4 hole  mounting interface on all four sides; Flush mount with included brackets


2 years standard


50,000 hours demonstrated

Agency Approvals

Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NoM; Taiwan BSMI; United States

UL, FCC; International CB; Russia EAC; RoHS, China RoHS, WEEE


GLI 15 kV air / 8 kV contact ESD compliant; UL ball-drop compliant; IK10 impact compliant


Other Features

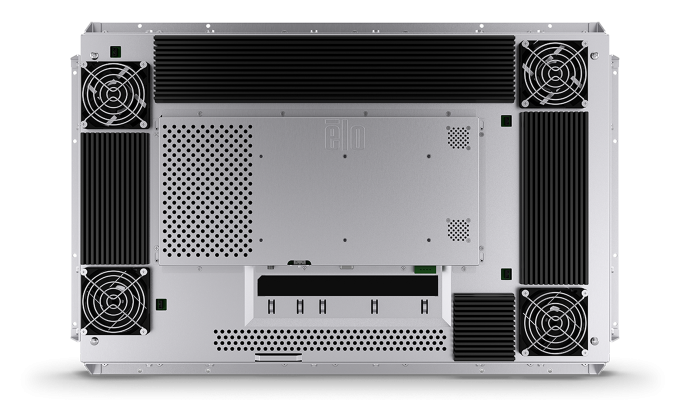

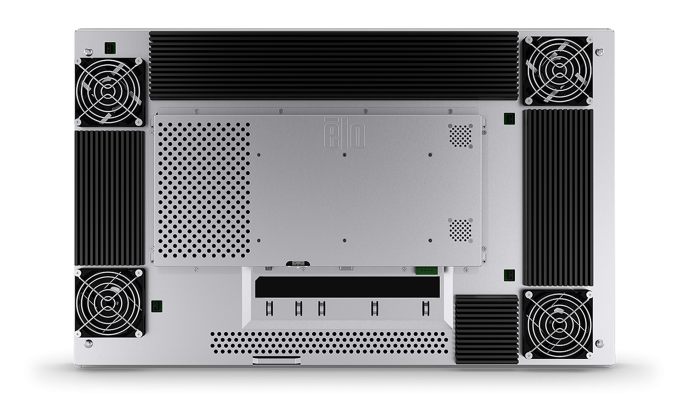

Polarize  sunglasses view: portrait and  landscape; Ambient light sensor (1x); Thermal sensor (2x); Internal fan (2x); External fan (4x); GPIO Control (1x input, 1x output, VCC, GND)

What’s in the Box

HDMI Cable, VGA Cable, OSD Remote, Touch USB Cable, QIG, Flush Mount  Brackets with screws, EEI Label, Japan Class-B TM info sheet
