Ordering Information | ||||||||||
| Model | Processor | AC Adaptor | Model | Processor | AC Adaptor | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| MP1-11TGS-6305E | Celeron 6305E | None | MP1-11TGS-1145G7E | i5-1145G7E | None | |||||
| MP1-11TGS-6305E-AC | Celeron 6305E | 72W AC to DC Adaptor | MP1-11TGS-1145G7E-AC | i5-1145G7E | 72W AC to DC Adaptor | |||||
| MP1-11TGS-1115G4E | i3-1115G4E | None | MP1-11TGS-1185G7E | i7-1185G7E | None | |||||
| MP1-11TGS-1115G4E-AC | i3-1115G4E | 72W AC to DC Adaptor | MP1-11TGS-1185G7E-AC | i7-1185G7E | 72W AC to DC Adaptor | |||||
| MP1-11TGS (MP1-11TGS) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | 11st Gen Tiger Lake-UP3 Intel® Core™ i ULV Processor i3-1115G4E / (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11st Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR4 3200 MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) | ||
| GRAPHICS | Intel® HD Graphics | ||
| DISPLAY INTERFACE | HDMI 2.0b / DisplayPort 1.4 | ||
| STORAGE SLOT | 1 x Hot Swappable 2.5 HDD / SSD / 1 x M.2 B Key 2280/2260/2242 Slot | ||
| ETHERNET | Intel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN / Additional 2 x Intel® I210-IT Giga LAN for Options | ||
| AUDIO | Realtek® ALC256 | ||
| I/O CHIPSET | Nuvoton NCT6126D(eSPI) | ||
| TPM | Nuvoton NPCT750AABYX TPM2.0 | ||
| EXPANSION SLOT | Storage/LTE/5G Slot: M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIex1/SATAIII) *Not support M.2 M Key NVMe SSD / Wireless: M.2 2230 E key (PCIe, USB) | ||
| INDICATOR | Power LED / HDD LED | ||
| FRONT I/O | 2 x SMA Antenna (Optional for WiFi/LTE function) / 3 x RS232 / 1 x Audio Combo Jack (Mic-in and Line-out) / 1 x Hot Swappable 2.5” SSD/HDD slot / 2 x USB 2.0 / 1 x RS232 / 422 / 485 / HDD LED / Power Button w/ Power Indicator | ||

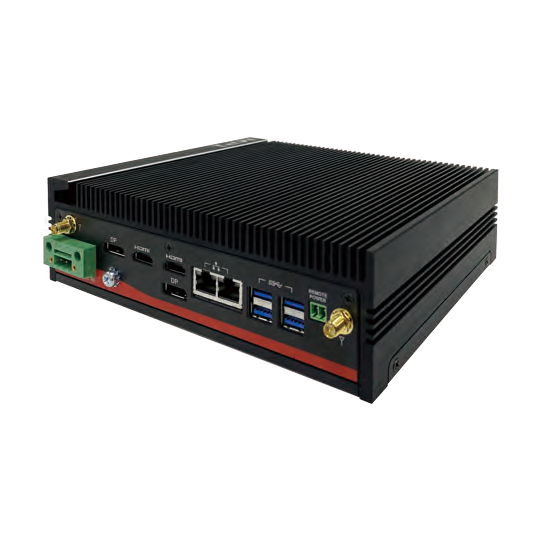

| REAR I/O | 2 x HDMI 2.0b / 2 x DisplayPort 1.4 / 2 x RJ-45 / 4 x USB 3.1 Gen 2 (10 Gbps) / 1 x 3-pin Terminal Block Power Input / 1 x 2-pin Terminal Block Remote Power on / off / 2 x SMA Antenna (Optional for WiFi/LTE function) | ||
| H/W MONITOR | Temperature Monitor / Voltage Monitor | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | 8~24V Wide Range DC Input w/ Terminal Block Connectivity (Optional) / 8~24V Wide Range DC-in Jack Connectivity | |
| POWER ADAPTER | DC24V / 3A / AC / DC / 72W adapter (For AC SKU) | ||
| MECHANICAL | THERMAL DESIGN | Fanless | |
| MOUNTING | Wallmount / Side Mount / 75 mm x 75 mm VESA Holes & Din Rail Mount Combo Kit (Optional) | ||
| DIMENSIONS (W X D X H) | 8.3” x 5.9” x 2.5” (210 x 150 x 63 mm) | ||
| WEIGHT | TBD | ||
| MATERIAL | Top cover: Aluminum Alloy / Bezel and chassis: Steel | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 15W TDP: -40 ~ 70°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM) / 28W TDP: -40 ~ 60°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM) | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| CERTIFICATION | CE / FCC Class A | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Driver CD / 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 3 pin Terminal Block Power Connector / 1 x SATA & SATA PWR Cable / 1 x 2 pin Terminal Block Male Connector | |
