Sku: MX1-10FEP-D-C246-IEF-AC300
Tipo de Produto:
GPU Edge box PC
Fabricante:
MiTAC

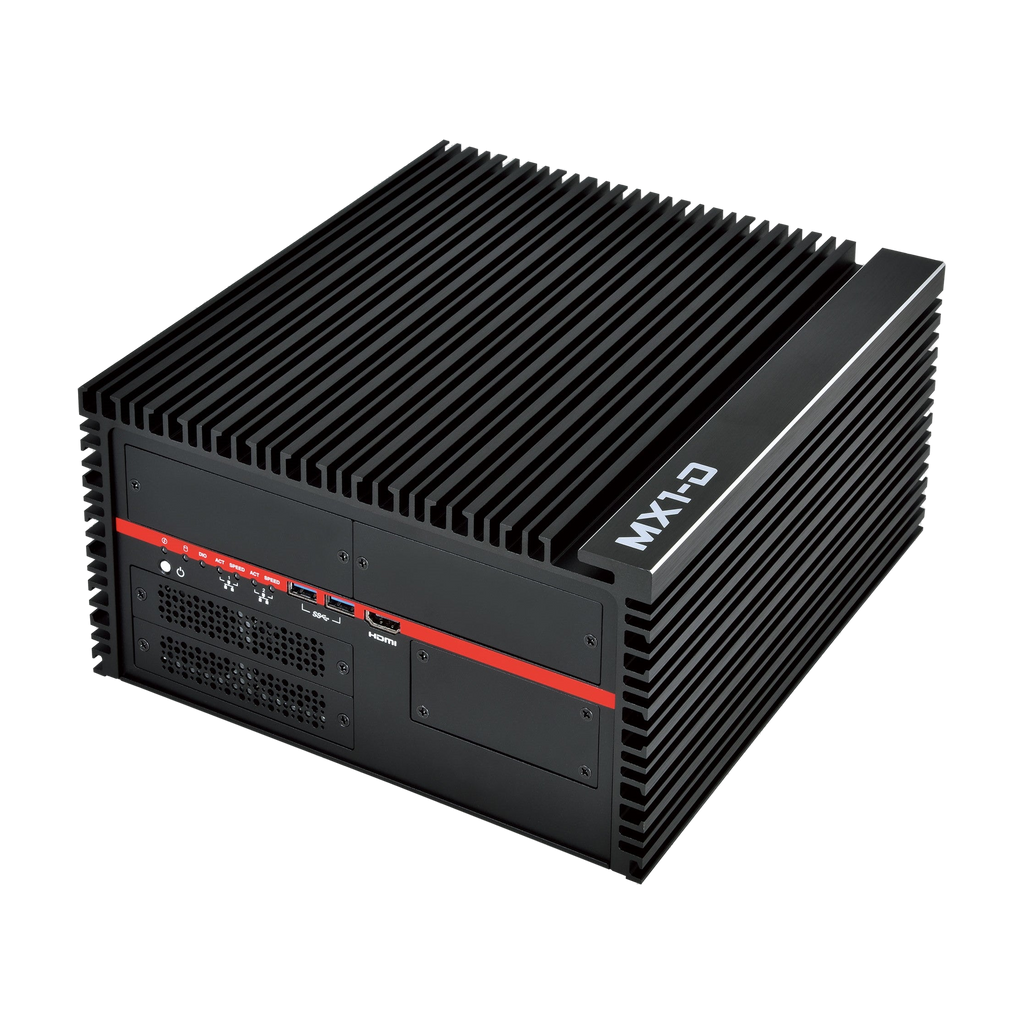

MX1-10FEP-D-C246-IEF-AC300
Sistema embedded para computação gráfica com processador Intel® Coffee Lake Xeon / Core-i
O MX1-10FEP-D da MiTAC é um embedded PC de próxima geração com chipset Intel® Coffee Lake C246 que pode suporta os poderosos processadores tipo Xeon e Core-i LGA1151. Com proteção de energia OCP/ OVP e design de E/S expansível, fornece uma solução para todas as tarefas complicadas e a maioria das aplicações.
O MX1-D é também uma solução NVIDIA GPUCloud (NGC) para os clientes implementarem aplicativos de Inteligência Artificial. O MX1-D passou por testes adicionais para segurança e controlo de sistema remotos, que são requisitos fundamentais para implantações deste tipo. MX1-D é um sistema ideal para executar o DGX™, proporcionando facilidade de implantação.
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
Poderoso processador Coffee Lake-S Xeon
Xeon
- Up to 1.36X Performance Improvement compared to the previous generation
- Fanless design with up to Xeon TDP 80W
Core i
- Up to 1.15X Performance Improvement compared to 7th generation
Memória ECC DDR4
AI accelerating card (opcional)
People Tracking
Multi-Person Pose Estimation
Semantic Segmentation
Intruder Detection
Pedestrian Detection
Traffic Monitoring
Versáteis Módulos de Expansão
The versatile Xpansion Module design, offers various I/O functionalities through its lower clever cost effective modulation, providing all functions within one system.
- Versatile I/O connectivity. Up to 12 LAN, 10 PoE, 10 COM, 16 DIO
- Power ignition Xpansion module for vehicle application
Suporta exibição tripla de alta resolução
Supports triple independent displays (DP + HDMI + DVI). The HDMI & DisplayPort up to 4K high resolution. The enhanced visual quality responses the demand of being high precise.
- Display Port 1.2 (4K@60Hz)
- HDMI 1.4 (4K@30Hz)
- DVI-I (FHD@60Hz)
Born for Matching High Efficiency GFX & AI Cards
Maximum GFX Card Dimensions
145 x 221 x 43 mm
AI / Graphic Card Support List
- NVIDIA Quadro P400 (30W)
- NVIDIA Quadro P620 (40W)
- NVIDIA Quadro P1000 (47W)
- NVIDIA Quadro P2200 (75W)
- NVIDIA Tesla T4/P4 (75W)
- Aetina GTX1050 N1050-J9FX, 2GB (75W)
- Leadtek WinFast GTX1030, 4GB (30W)
- Leadtek WinFast GTX1650, 4GB (75W)
- Leadtek WinFast GTX1660 HURRICANE, 6GB (120W)
- Leadtek WinFast GTX1660 SUPER HURRICANE, 6GB (125W)
- Leadtek WinFast GTX1660 Ti HURRICANE, 6GB (120W)
*120W GFX Card need to add 2nd AC/DC 12V Adaptor
Fácil Expansão através da slot Dual PCIE GEN3
Venting Holes Design
Venting holes design for graphic card thermal air out
PCIe Holder Design
Rugged PCIe holder design for harsh shock & vibration environment
Dual PCIe Configurations
- PCIe 3.0 X16 + PCIe 3.0 X1 Slot as default
- 2 x PCIe 3.0 X8 slot as option
Sistema Fanlesss Integrado
For High-end GFX Cards
Optional 2 x internal system fan with ventilation air inlet door for high-end GFX cards
For NVIDIA P4/T4 Edge AI Inference
Optional 2 x internal system fan with ventilation air inlet door and smart air duct design for NVIDIA P4/T4 edge AI inference
Easy Connect & Insert
Easy connect & insert external system fan for the application in extremely harsh environment
Proteção avançada de energia
Wide Power Range
9V~48V
Protection
- Reverse Power Input Protection
- Over Voltage Protection: 58V
- Over Current Protection: 15A
- ESD Protection: +/-15kV (air), +/-8kV (contact)
- Surge Protection: 3kW
Ampla temperatura -40~70º C
MX1-10FEP is designed in patented aluminum enclosure not only for atheistic appearance but also for fan-less application in extreme temperature condition from -40 oC to 70 oC.
Certificate
MX1-10FEP are certified and all units undergo severe environmental testing to ensure reliable performance under a variety of automation conditions.
MX1-10FEP-D I/O
Dimensões
Especificações
MX1-10FEP-D (MX1-10FEP-D) | ||||||||||
| Model | PCIe Slot | Thermal | Power | AC Adaptor | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MX1-10FEP-D-C246-FL | X16 + X1 | Fanless | 9~48V Wide Rage DC Input w/ Terminal Block Connectivity |
None | ||||||
| MX1-10FEP-D-C246-FL-AC300 | X16 + X1 | Fanless | 9~48V Wide Rage DC Input w/ Terminal Block Connectivity |
300W AC to DC Adaptor | ||||||
| MX1-10FEP-D-C246-IF-AC300 | X16 + X1 | 2 x Internal System Fan | 9~48V Wide Rage DC Input w/ Terminal Block Connectivity |
300W AC to DC Adaptor | ||||||
| MX1-10FEP-D-C246-IEF-AC300 | X16 + X1 | 2 x Internal System Fan 1 x External System Fan |
9~48V Wide Rage DC Input w/ Terminal Block Connectivity |
300W AC to DC Adaptor | ||||||
| MX1-10FEP-D (MX1-10FEP-D) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | 9th & 8th Gen Intel® Coffee Lake Xeon LGA1151 Socket Processor, 6-core TDP Max. 80W / 9th & 8th Gen Intel® Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 65W, Core i9 8-core TDP Max 35W / *Please see the CPU Options in Docs / Manuals | |
| CHIPSET | Intel® C246 | ||
| SYSTEM MEMORY | Max. 32GB (Xeon: ECC / Non-ECC; Core-i: Non-ECC) / DDR4 2666MHz / 2 x 260-pin SO-DIMM | ||
| GRAPHICS | Intel® HD Graphics | ||
| DISPLAY INTERFACE | DisplayPort 1.2 / DVI-I / HDMI 1.4 | ||
| STORAGE SLOT | 3 x 2.5 HDD / SSD (1 w/ Removable HDD Bay, 2 w/ Internal HDD Bracket) / 2 x mSATA | ||
| ETHERNET | Intel® I219-LM Giga LAN + I210-IT Giga LAN | ||
| AUDIO | Realtek® ALC662 | ||
| I/O CHIPSET | Nuvoton NCT6116D | ||
| TPM | Nuvoton NPCT750AAAYX TPM2.0 | ||
| EXPANSION SLOT | Storage: M.2 2280 / 2260 / 2242 M key (PCIe, SATA) / Storage/LTE/Wireless: 2 x mPCIe Full / Half size (USB / PCIe / SATA), w/ SIM Card Holder / Wireless: M.2 2230 E key (PCIe, USB) / PCIe Slot: PCIe 3.0 X16, PCIe 3.0 X1 (Option: 2 x PCIe 3.0 X8) | ||
| INTERNAL SPEAKER | 1 x Buzzer | ||
| INDICATOR | DIO LED / LAN1 & 2 ACT / SPEED / Power LED / HDD LED | ||

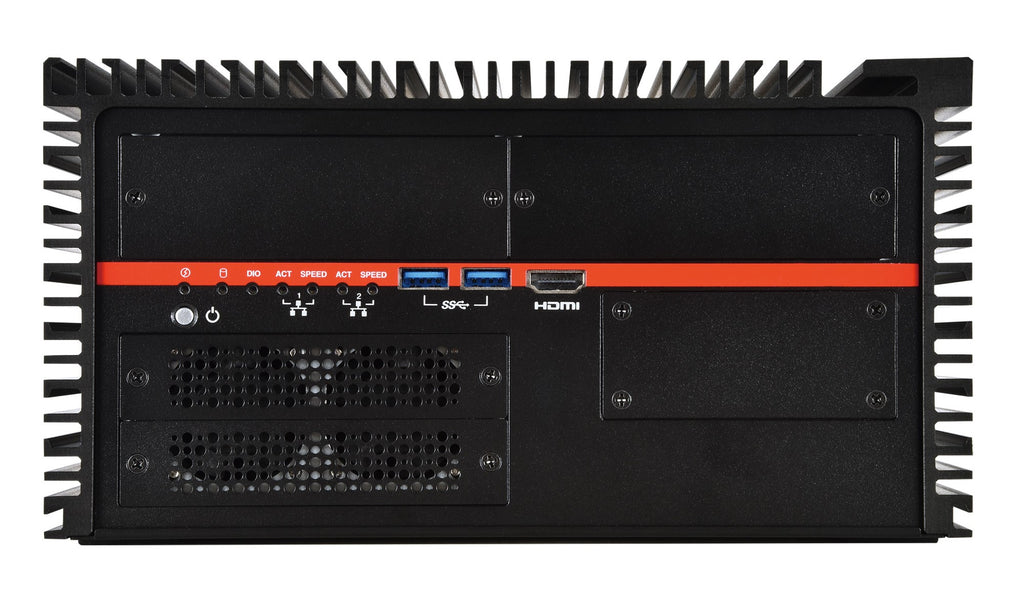

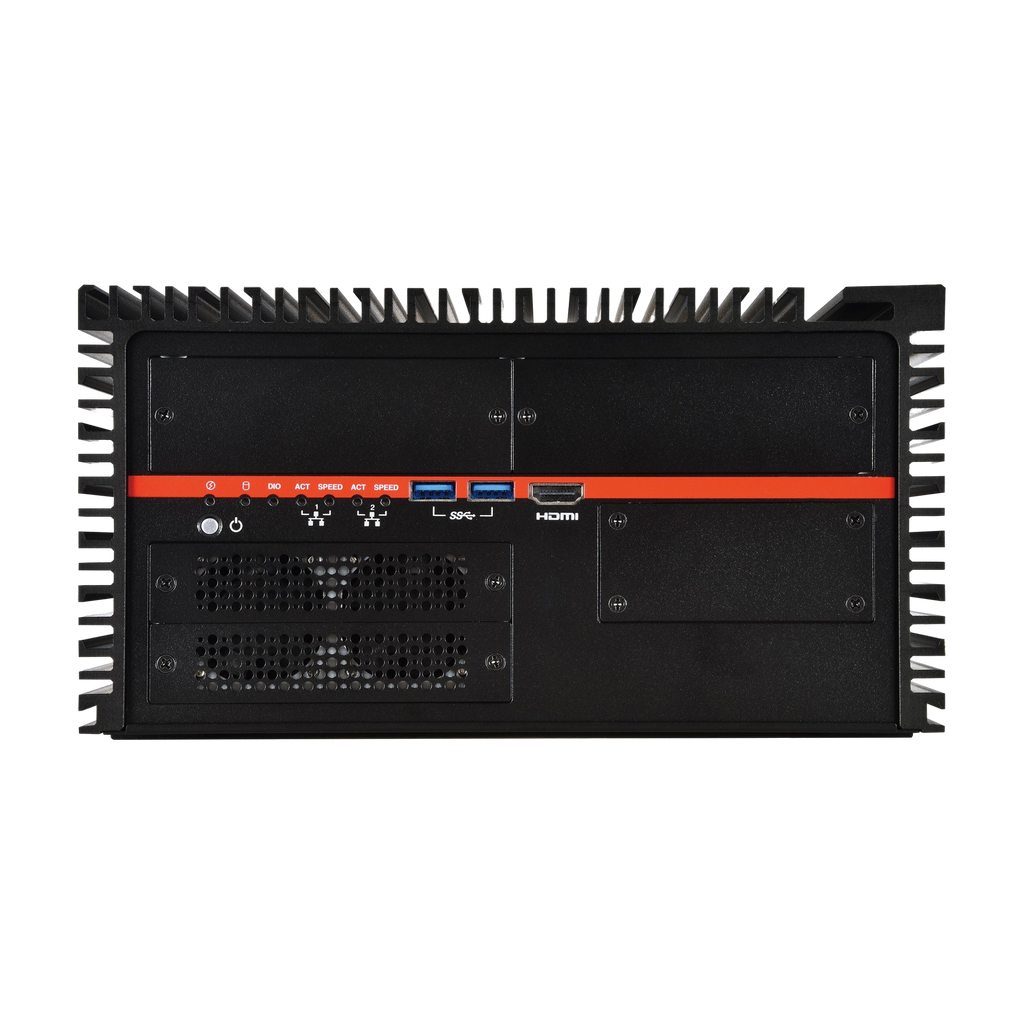

| FRONT I/O | 1 x HDMI 1.4 / 2 x USB 3.0 / 2 x SIM Card Slot w/ Cover / 1 x 2.5" SATAIII HDD / SSD Bay | ||

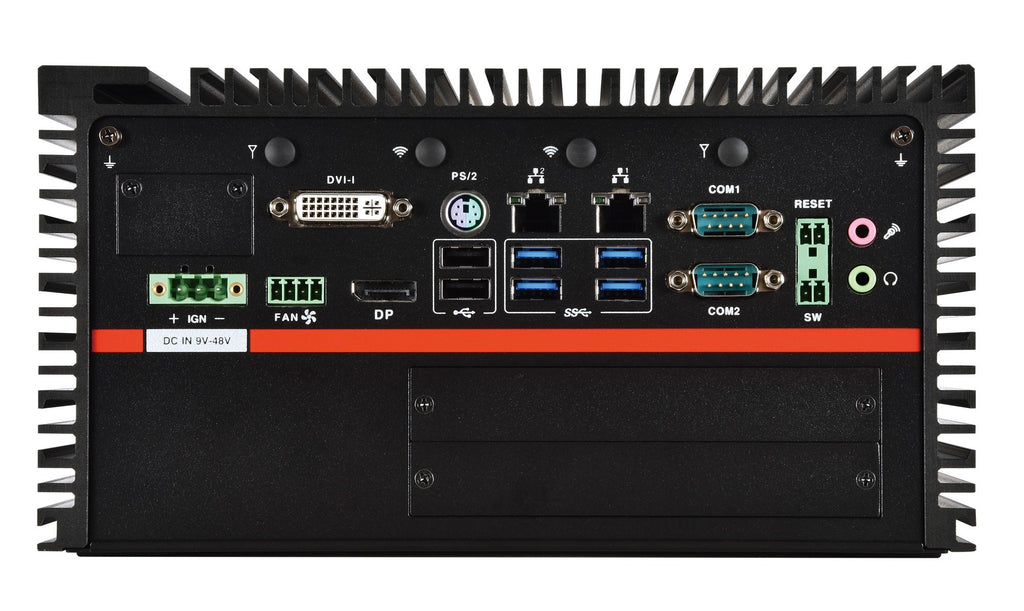

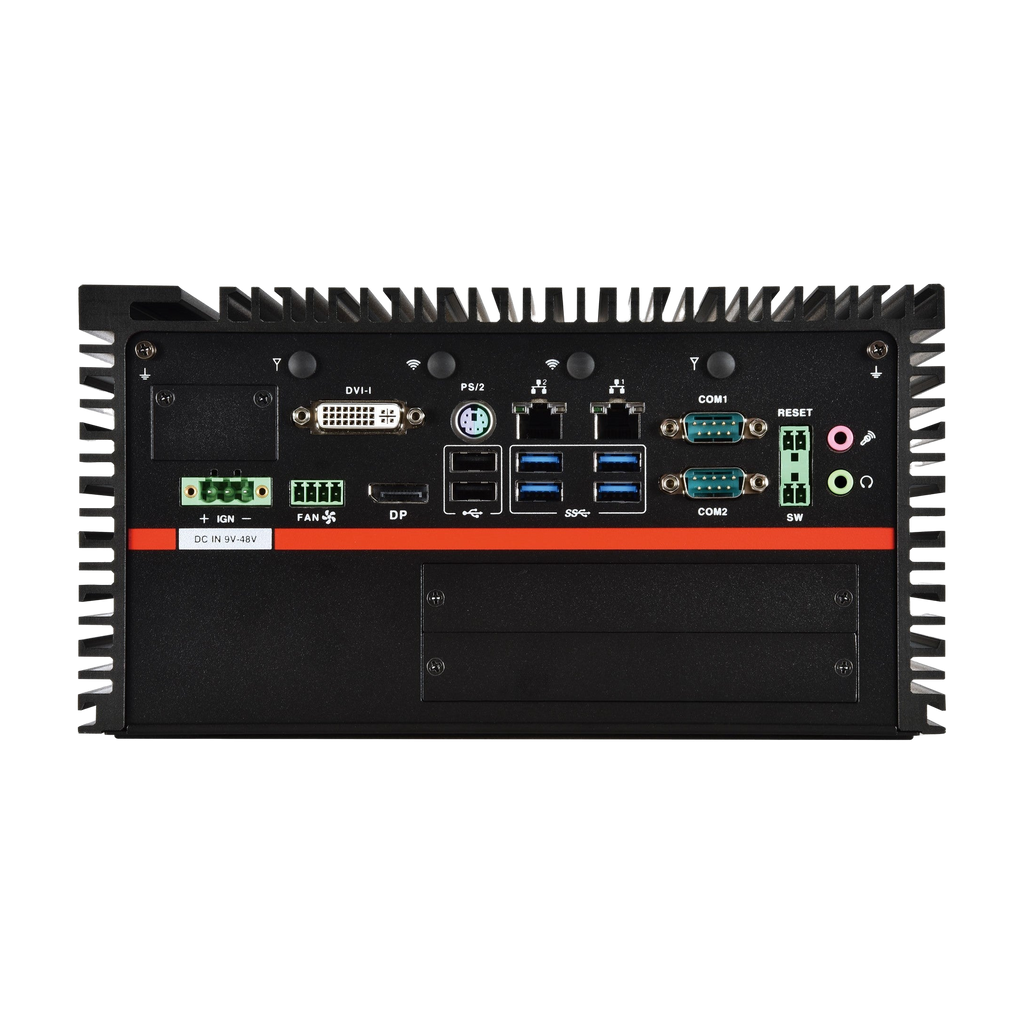

| REAR I/O | 1 x DisplayPort 1.2 / 1 x DVI-I / 2 x RJ-45 / 4 x USB 3.1 Gen 2 (10 Gbps) / 2 x USB 2.0 / 2 x RS232 / 422 / 485 (Support Power 5V / 12V) / 1 x Mic-in / 1 x Line-out / 1 x PS/2 / 1 x 2-pin Terminal Block Remote Power Reset / 1 x 3-pin Terminal Block Power Input / 1 x 4-pin Terminal Block External Fan Connector / 1 x 2-pin Terminal Block Remote Power on / off / 4 x SMA Antenna (Optional for WiFi/LTE function) | ||
| EDGE AI ENGINE (Optional) | 1X/2X/3X/4X Movidius Myriad X VPU, and Intel® OpenVINO™ toolkit supported (Optional) | ||
| POWER REQUIREMENT | POWER INPUT | 9~48V Wide Range DC Input w/ Terminal Block Connectivity | |
| POWER ADAPTER | Optional | ||
| MECHANICAL | THERMAL DESIGN | Fanless w/o Venting Holes / Options with 2 x Internal 40x40x20 System Fan (Supporting NVIDIA GTX1650/GTX1660 Graphic Cards); Options with 2 x Internal 40x40x28 System Fan and Fan Duct (Supporting NVIDIA Tesla T4/P4 GPU Cards) | |
| MOUNTING | Wallmount | ||
| DIMENSIONS (W X D X H) | DIMENSIONS (W X D X H) : 10.6” x 9.7” x 5.0” (268 x 246 x 128 mm) | ||
| WEIGHT | 7.7kg (17 lb) | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 35W TDP Processor: -40°C to 70°C / 51~65W TDP Processor: -40°C to 50°C / 71~80W TDP Processor: -40°C to 40°C / *Please consult with your sales contact window about the Operating Temperature of GPU Card Configurations / with 0.7m/s Air Flow and Wide Temperature Memory/Storage | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (Non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C non-condensing | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| CERTIFICATION | CE / FCC Class A / Compliant with EN50155 & EN50121 / E-mark | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Driver CD / 1 x Quick Installation Guide / 1 x Embedded System / 1 x CPU Cooler (passive) / 1 x Wall Mount Brackets (2PCS in 1 set) / 1 x 3 pin Terminal Block Power Connector / 1 x 4 pin Terminal Block Male Connector / 2 x 2 pin Terminal Block Male Connector / 1 x DVI to VGA converter / 1 x 30 cm SATA & SATA PWR Y Cable (3rd SSD/HDD needs optional SATA Y cable) | |
