Sku: MX1-10FEP-D-C246-IF-AC300
Tipo de Produto: PCs Industriais
Fabricante: MiTAC

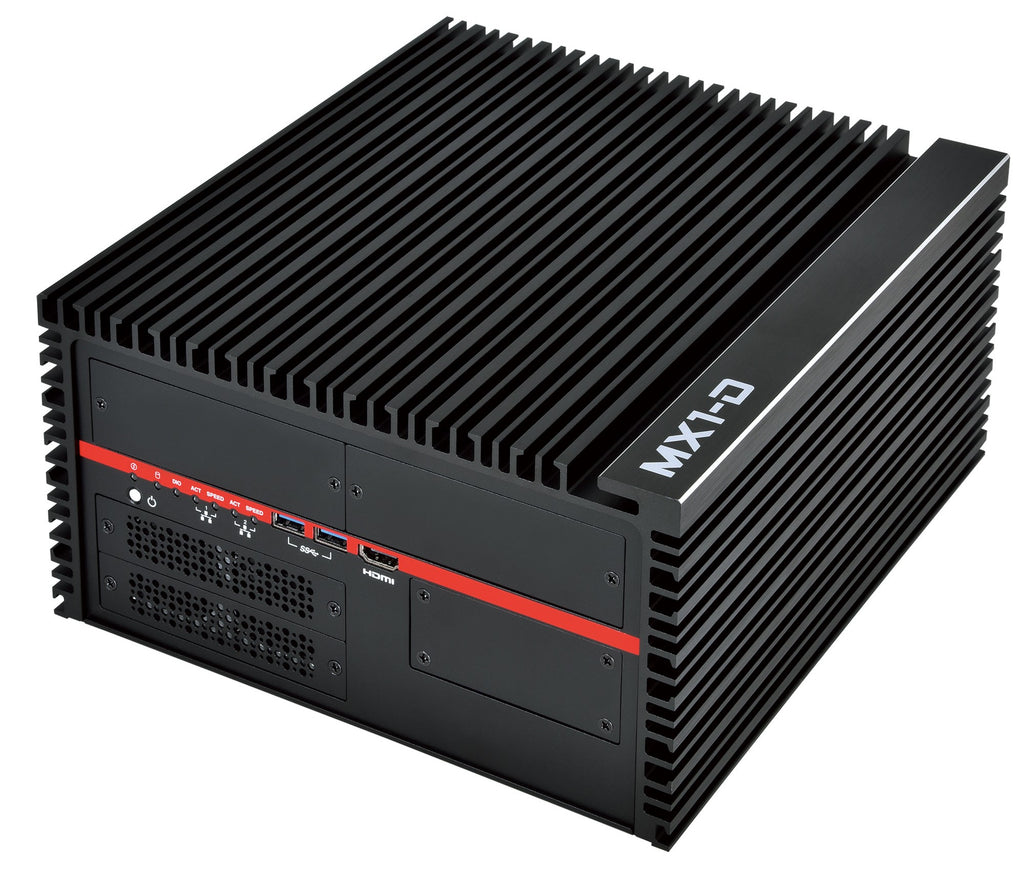

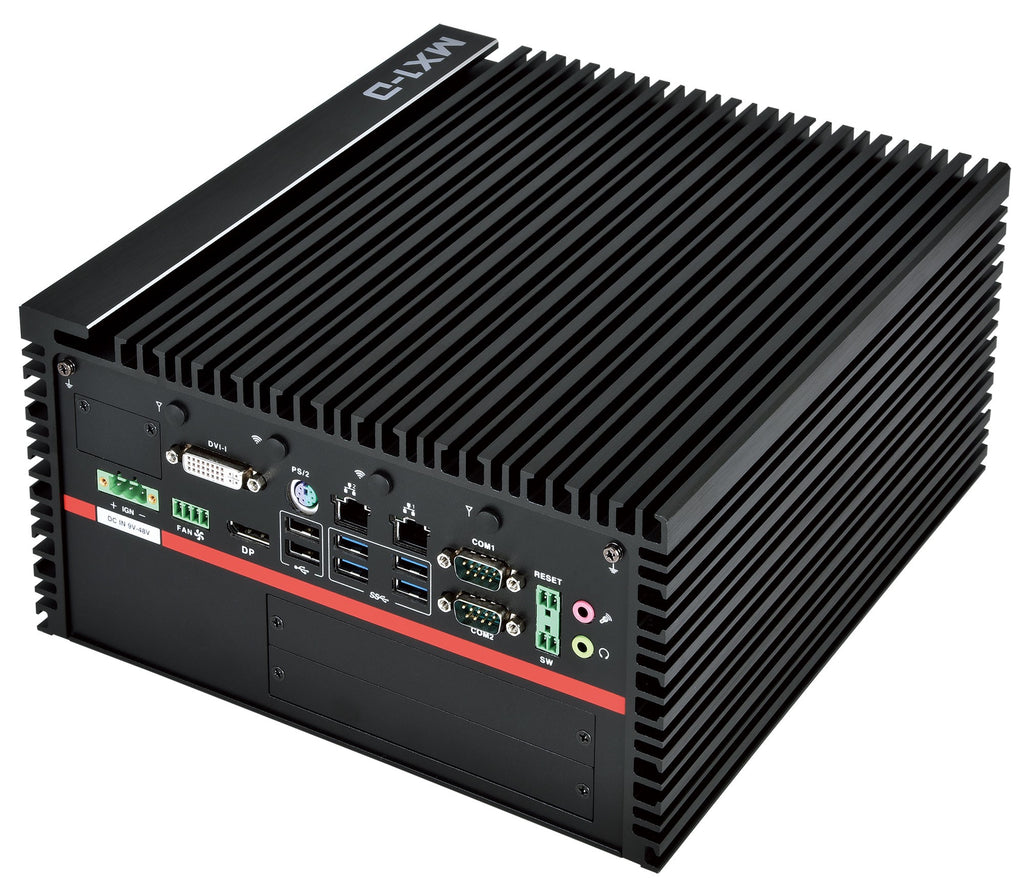

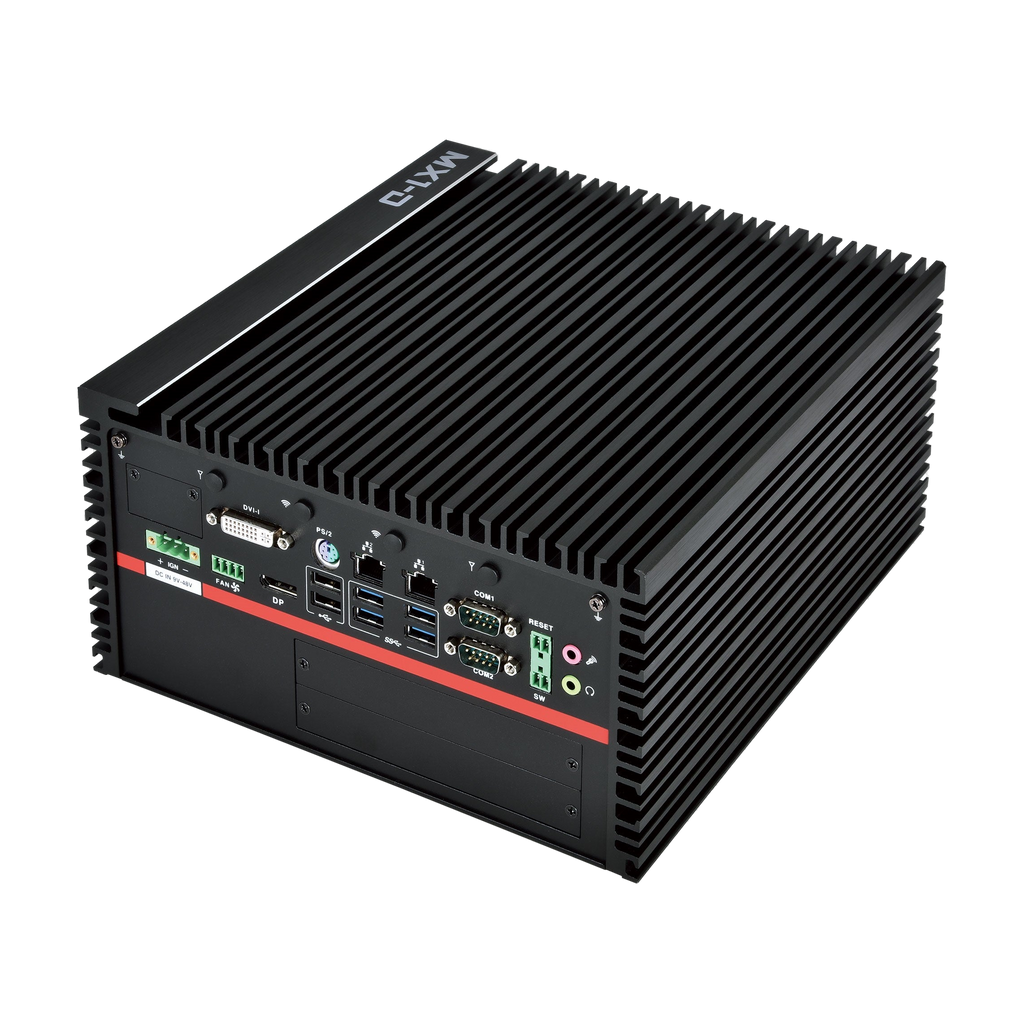

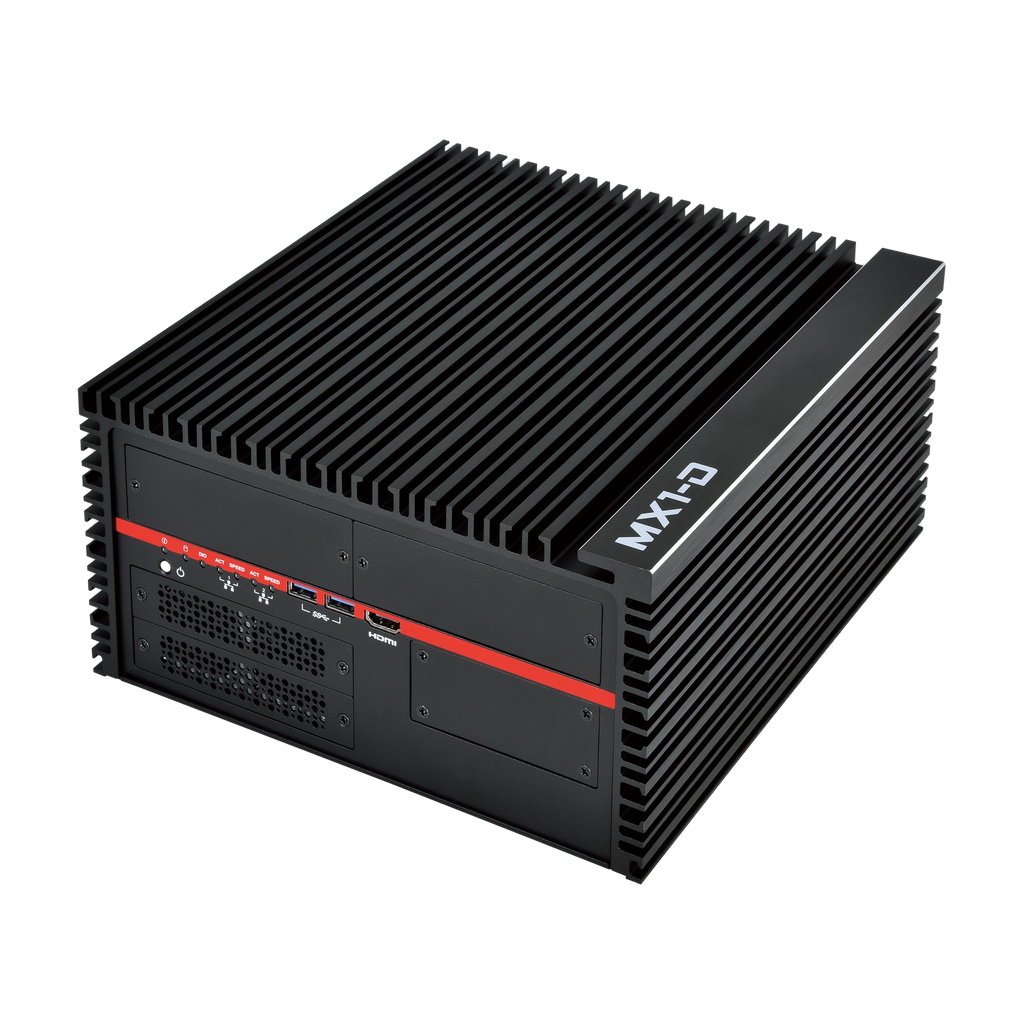

Sistema embedded para computação gráfica com processador Intel® Coffee Lake Xeon / Core-i

O MX1-10FEP-D da MiTAC é um embedded PC de próxima geração com chipset Intel® Coffee Lake C246 que pode suporta os poderosos processadores tipo Xeon e Core-i LGA1151. Com proteção de energia OCP/ OVP e design de E/S expansível, fornece uma solução para todas as tarefas complicadas e a maioria das aplicações.

O MX1-D é também uma solução NVIDIA GPUCloud (NGC) para os clientes implementarem aplicativos de Inteligência Artificial. O MX1-D passou por testes adicionais para segurança e controlo de sistema remotos, que são requisitos fundamentais para implantações deste tipo. MX1-D é um sistema ideal para executar o DGX™, proporcionando facilidade de implantação.



  • Up to 1.36X Performance Improvement compared to the previous generation
  • Fanless design with up to Xeon TDP 80W

Core i

  • Up to 1.15X Performance Improvement compared to 7th generation

Memória ECC DDR4

Memória ECC DDR4

Versáteis Módulos de Expansão

The versatile Xpansion Module design, offers various I/O functionalities through its lower clever cost effective modulation, providing all functions within one system.

  • Versatile I/O connectivity. Up to 12 LAN, 10 PoE, 10 COM, 16 DIO
  • Power ignition Xpansion module for vehicle application
Módulos de Expansão

Edge AI Accelerator

4X Intel® Movidius™ Myriad™ X for Edge AI

MX1-10FEP-D with AI modules powered by Intel® Movidius™ Myriad™ X creates the possibility to be implemented in more Edge AI solutions, for example, traffic flow monitoring and real-time decision, manufacturing yield rate improvement via AI algorithm, remote healthcare service, and efficient transportation.

Edge AI Accelerator
Edge AI Accelerator

Supports High Resolution Triple Display

Supports triple independent displays (DP + HDMI + DVI). The HDMI & DisplayPort up to 4K high resolution. The enhanced visual quality responses the demand of being high precise.

  • Display Port 1.2 (4K@60Hz)
  • HDMI 1.4 (4K@30Hz)
  • DVI-I (FHD@60Hz)
High Resolution Triple Display

Born for Matching High Efficiency GFX & AI Cards

Born for Matching High Efficiency GFX & AI Cards

Maximum GFX Card Dimensions

145 x 221 x 43 mm

  • NVIDIA Quadro P400 (30W)
  • NVIDIA Quadro P620 (40W)
  • NVIDIA Quadro P1000 (47W)
  • NVIDIA Quadro P2200 (75W)
  • NVIDIA Tesla T4/P4 (75W)
  • Aetina GTX1050 N1050-J9FX, 2GB (75W)
  • Leadtek WinFast GTX1030, 4GB (30W)
  • Leadtek WinFast GTX1650, 4GB (75W)
  • Leadtek WinFast GTX1660 HURRICANE, 6GB (120W)
  • Leadtek WinFast GTX1660 SUPER HURRICANE, 6GB (125W)
  • Leadtek WinFast GTX1660 Ti HURRICANE, 6GB (120W)
    *120W GFX Card need to add 2nd AC/DC 12V Adaptor

Smart and Simple Integrated Fan Solutions

Smart and Simple Integrated Fan Solutions

For High-end GFX Cards

Optional 2 x internal system fan with ventilation air inlet door for high-end GFX cards

For NVIDIA P4/T4 Edge AI Inference

Optional 2 x internal system fan with ventilation air inlet door and smart air duct design for NVIDIA P4/T4 edge AI inference

Easy Connect & Insert

Easy connect & insert external system fan for the application in extremely harsh environment

Smart and Simple Integrated Fan Solutions

-40~70º C Wide Temperature

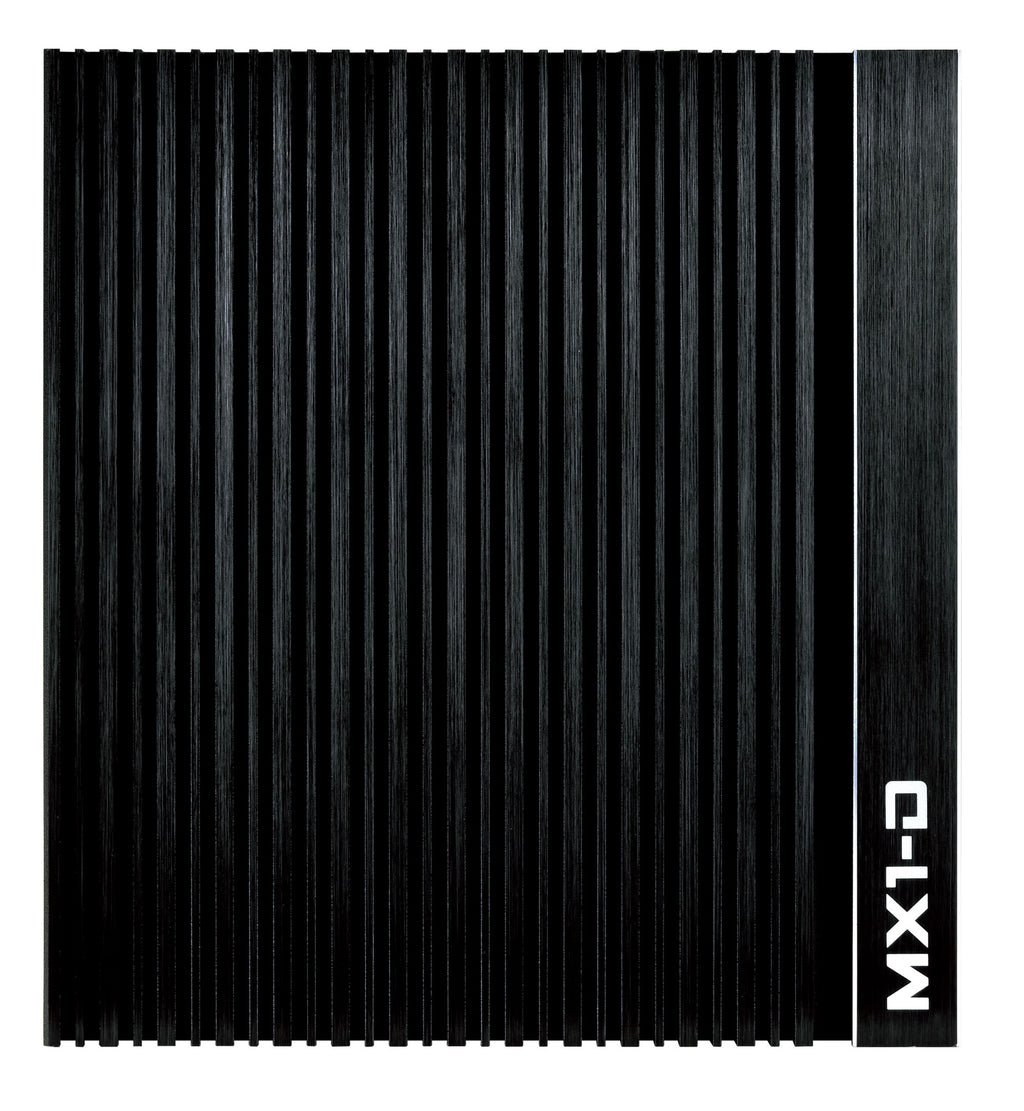

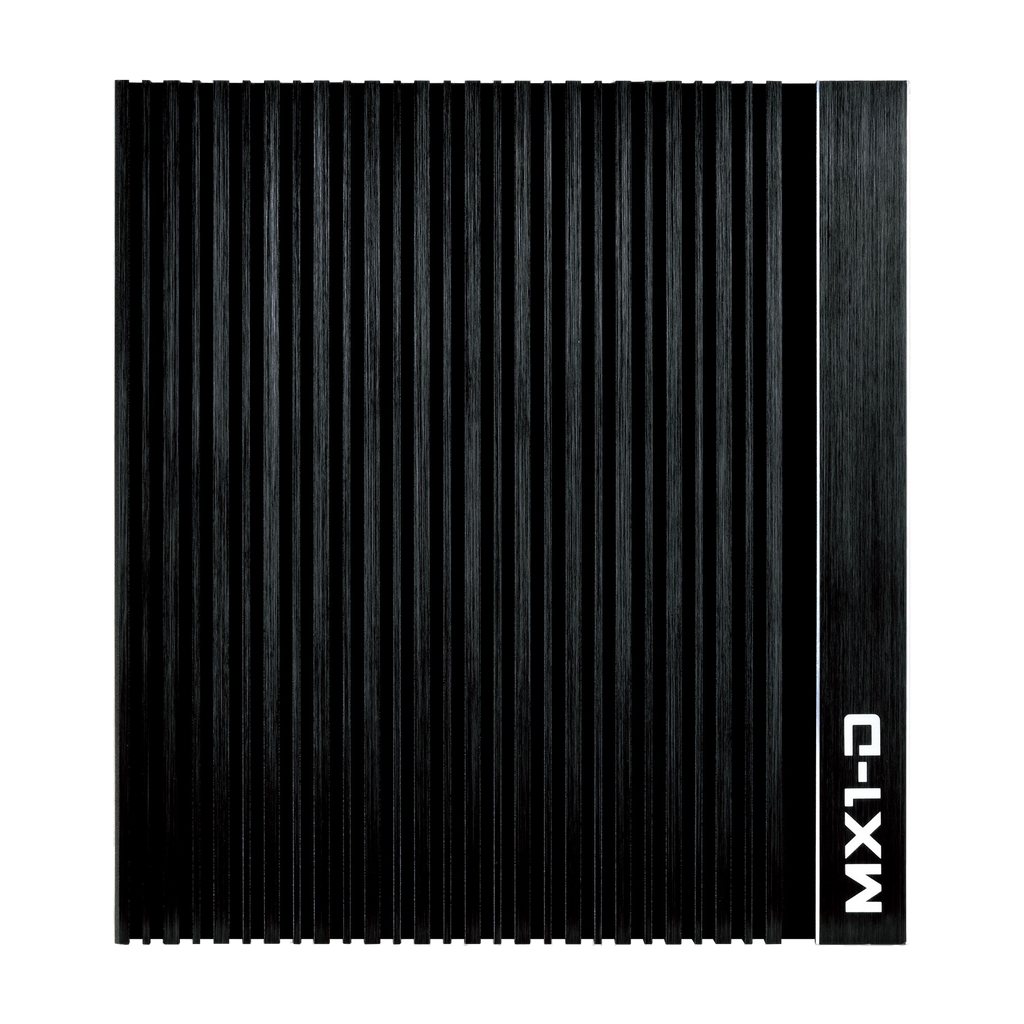

MX1-10FEP is designed in patented aluminum enclosure not only for atheistic appearance but also for fan-less application in extreme temperature condition from -40 oC to 70 oC.

Wide Temperature


MX1-10FEP are certified and all units undergo severe environmental testing to ensure reliable performance under a variety of automation conditions.






MX1-10FEP-D (MX1-10FEP-D)

Model PCIe Slot Thermal Power AC Adaptor
MX1-10FEP-D-C246-FL X16 + X1 Fanless 9~48V Wide Rage DC Input
w/ Terminal Block Connectivity
MX1-10FEP-D-C246-FL-AC300 X16 + X1 Fanless 9~48V Wide Rage DC Input
w/ Terminal Block Connectivity
300W AC to DC Adaptor
MX1-10FEP-D-C246-IF-AC300 X16 + X1 2 x Internal System Fan 9~48V Wide Rage DC Input
w/ Terminal Block Connectivity
300W AC to DC Adaptor
MX1-10FEP-D-C246-IEF-AC300 X16 + X1 2 x Internal System Fan
1 x External System Fan
9~48V Wide Rage DC Input
w/ Terminal Block Connectivity
300W AC to DC Adaptor
MX1-10FEP-D (MX1-10FEP-D) Specifications
SYSTEM   CPU 9th & 8th Gen Intel® Coffee Lake Xeon LGA1151 Socket Processor, 6-core TDP Max. 80W / 9th & 8th Gen Intel® Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 65W, Core i9 8-core TDP Max 35W / *Please see the CPU Options in Docs / Manuals
  CHIPSET Intel® C246
  SYSTEM MEMORY Max. 32GB (Xeon: ECC / Non-ECC; Core-i: Non-ECC) / DDR4 2666MHz / 2 x 260-pin SO-DIMM
  GRAPHICS Intel® HD Graphics
  DISPLAY INTERFACE DisplayPort 1.2 / DVI-I / HDMI 1.4
  STORAGE SLOT 3 x 2.5 HDD / SSD (1 w/ Removable HDD Bay, 2 w/ Internal HDD Bracket) / 2 x mSATA
  ETHERNET Intel® I219-LM Giga LAN + I210-IT Giga LAN
  AUDIO Realtek® ALC662
  I/O CHIPSET Nuvoton NCT6116D
  TPM Nuvoton NPCT750AAAYX TPM2.0
  EXPANSION SLOT Storage: M.2 2280 / 2260 / 2242 M key (PCIe, SATA) / Storage/LTE/Wireless: 2 x mPCIe Full / Half size (USB / PCIe / SATA), w/ SIM Card Holder / Wireless: M.2 2230 E key (PCIe, USB) / PCIe Slot: PCIe 3.0 X16, PCIe 3.0 X1 (Option: 2 x PCIe 3.0 X8)

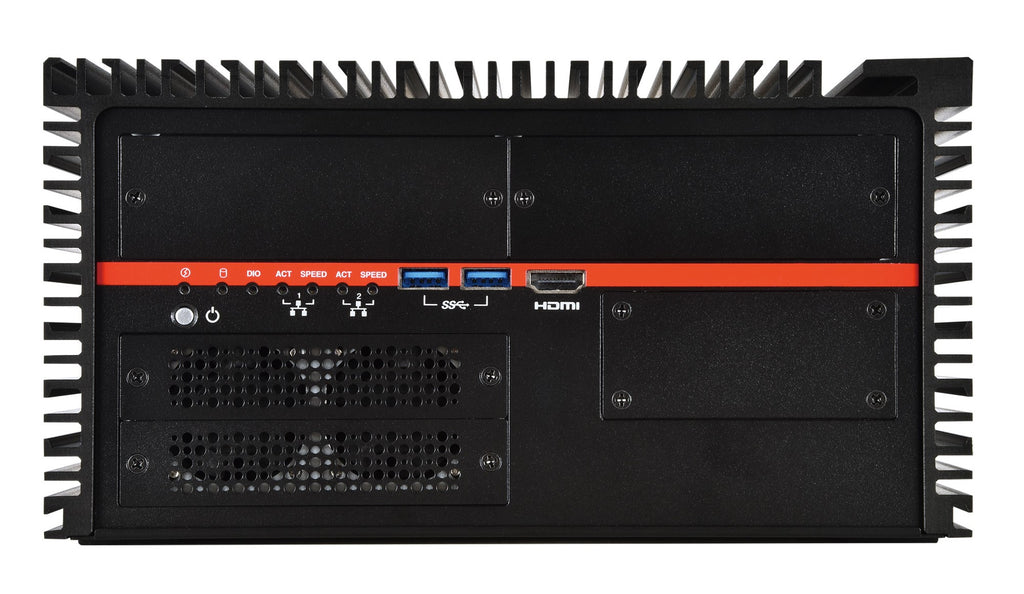

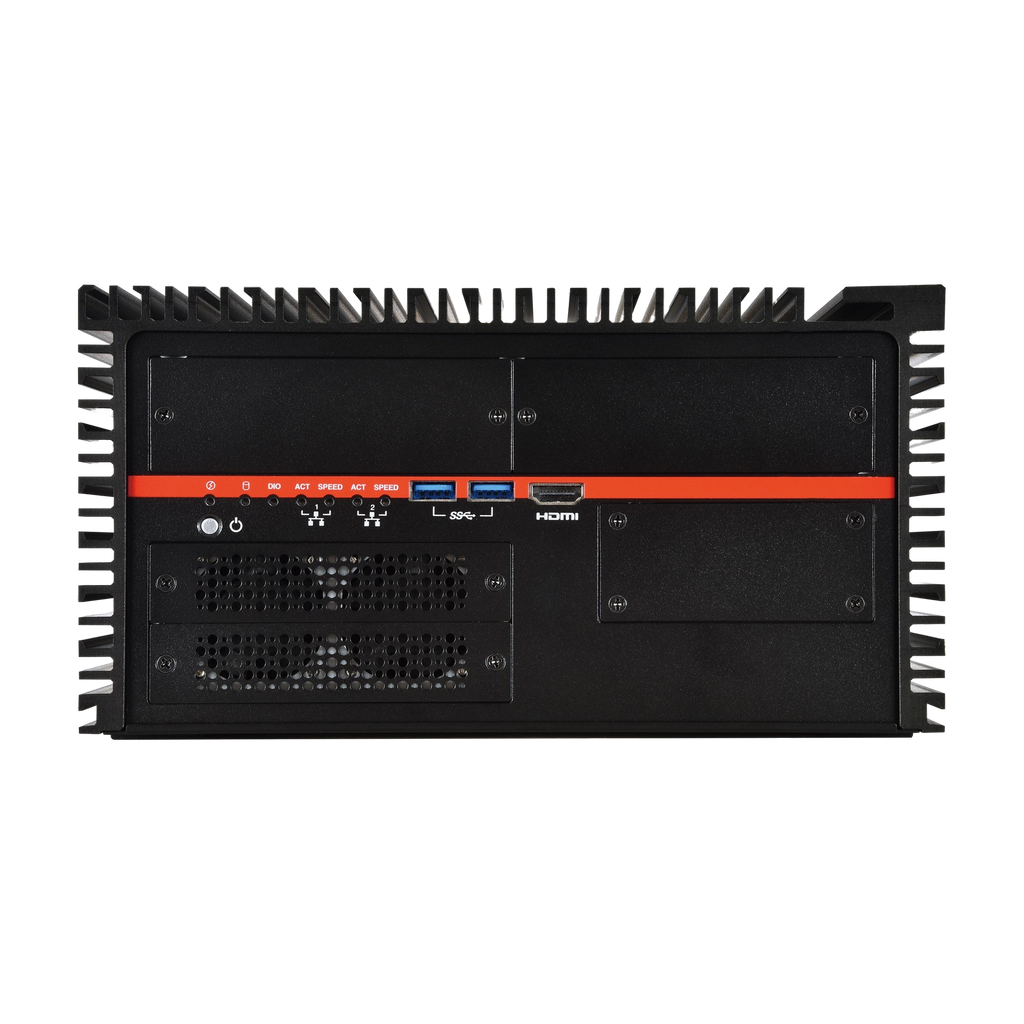

  FRONT I/O 1 x HDMI 1.4 / 2 x USB 3.0 / 2 x SIM Card Slot w/ Cover / 1 x 2.5" SATAIII HDD / SSD Bay

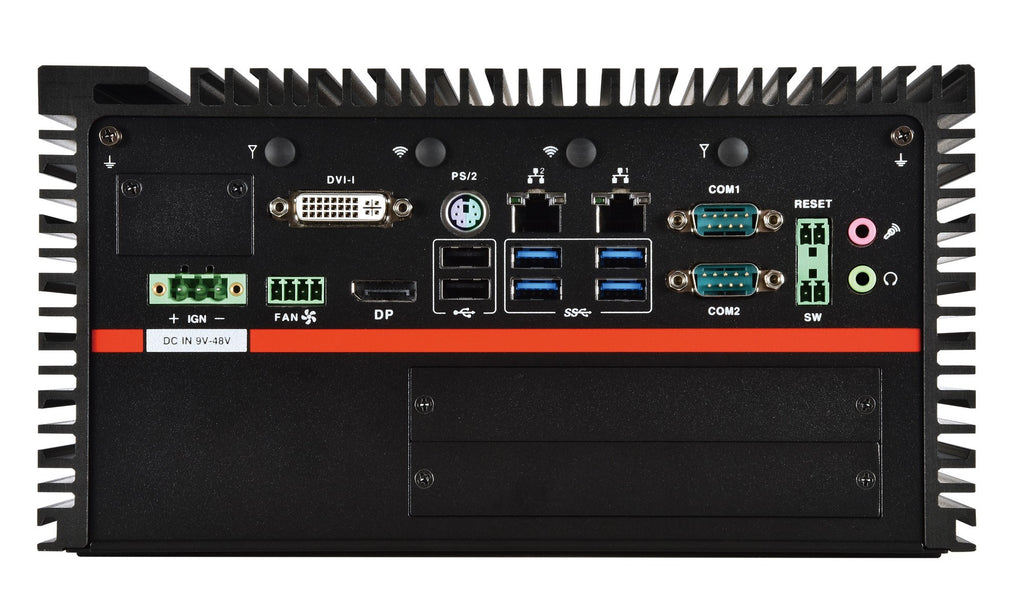

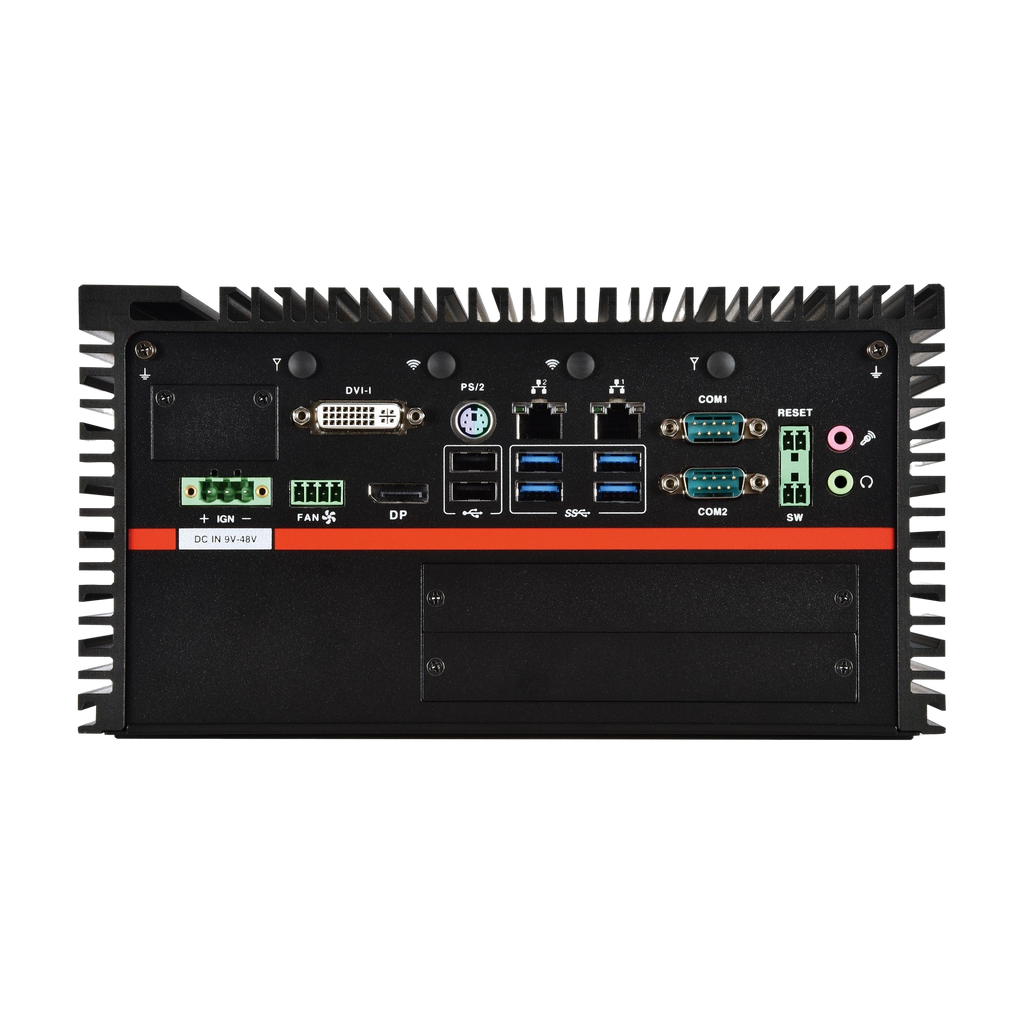

  REAR I/O 1 x DisplayPort 1.2 / 1 x DVI-I / 2 x RJ-45 / 4 x USB 3.1 Gen 2 (10 Gbps) / 2 x USB 2.0 / 2 x RS232 / 422 / 485 (Support Power 5V / 12V) / 1 x Mic-in / 1 x Line-out / 1 x PS/2 / 1 x 2-pin Terminal Block Remote Power Reset / 1 x 3-pin Terminal Block Power Input / 1 x 4-pin Terminal Block External Fan Connector / 1 x 2-pin Terminal Block Remote Power on / off / 4 x SMA Antenna (Optional for WiFi/LTE function)
  EDGE AI ENGINE (Optional) 1X/2X/3X/4X Movidius Myriad X VPU, and Intel® OpenVINO™ toolkit supported (Optional)
POWER REQUIREMENT   POWER INPUT 9~48V Wide Range DC Input w/ Terminal Block Connectivity
MECHANICAL   THERMAL DESIGN Fanless w/o Venting Holes / Options with 2 x Internal 40x40x20 System Fan (Supporting NVIDIA GTX1650/GTX1660 Graphic Cards); Options with 2 x Internal 40x40x28 System Fan and Fan Duct (Supporting NVIDIA Tesla T4/P4 GPU Cards)
  MOUNTING Wallmount
  DIMENSIONS (W X D X H) DIMENSIONS (W X D X H) : 10.6” x 9.7” x 5.0” (268 x 246 x 128 mm)
  WEIGHT 7.7kg (17 lb)
ENVIRONMENTAL   OPERATING TEMPERATURE 35W TDP Processor: -40°C to 70°C / 51~65W TDP Processor: -40°C to 50°C / 71~80W TDP Processor: -40°C to 40°C / *Please consult with your sales contact window about the Operating Temperature of GPU Card Configurations / with 0.7m/s Air Flow and Wide Temperature Memory/Storage
  STORAGE TEMPERATURE -40 ~ 85°C (-40 ~185°F)
  OPERATING HUMIDITY 10% ~ 90% R/H (Non-condensing)
  STORAGE HUMIDITY 10% ~ 95% @85°C non-condensing
  VIBRATION RESISTANCE Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
  SHOCK RESISTANCE Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
  CERTIFICATION CE / FCC Class A / Compliant with EN50155 & EN50121 / E-mark
OS   OS SUPPORT Windows® 10 64-bit / Linux (support by request)
PACKING LIST   PACKAGE 1 x Driver CD / 1 x Quick Installation Guide / 1 x Embedded System / 1 x CPU Cooler (passive) / 1 x Wall Mount Brackets (2PCS in 1 set) / 1 x 3 pin Terminal Block Power Connector / 1 x 4 pin Terminal Block Male Connector / 2 x 2 pin Terminal Block Male Connector / 1 x DVI to VGA converter / 1 x 30 cm SATA & SATA PWR Y Cable (3rd SSD/HDD needs optional SATA Y cable)
